YT-82514

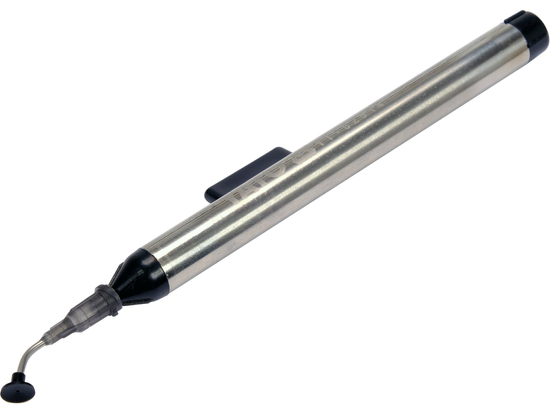

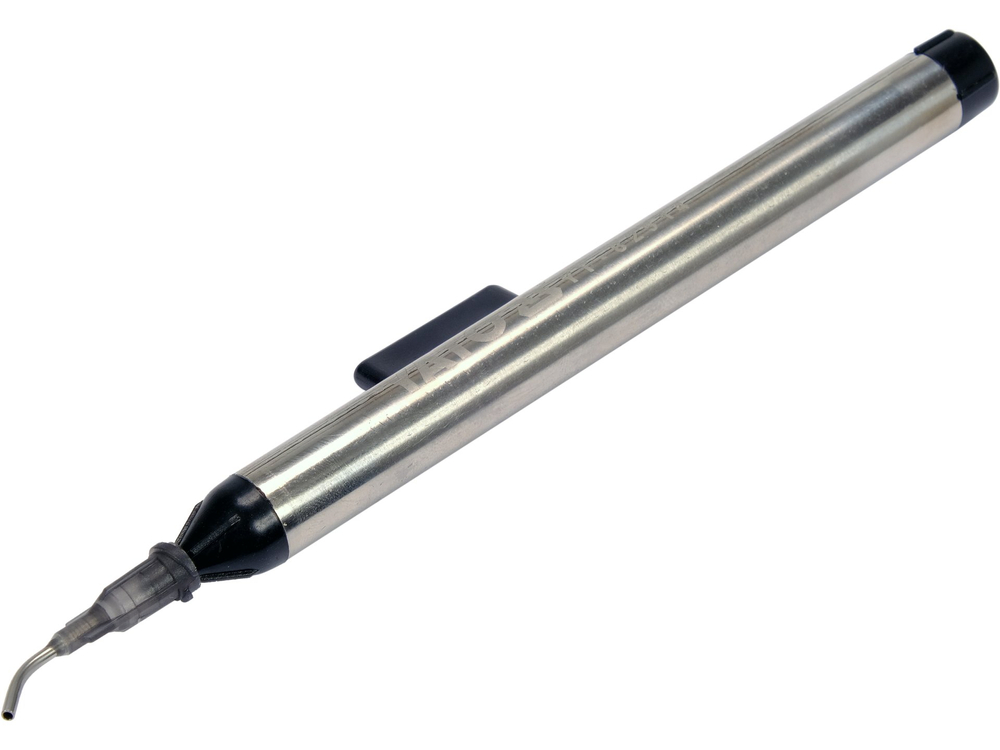

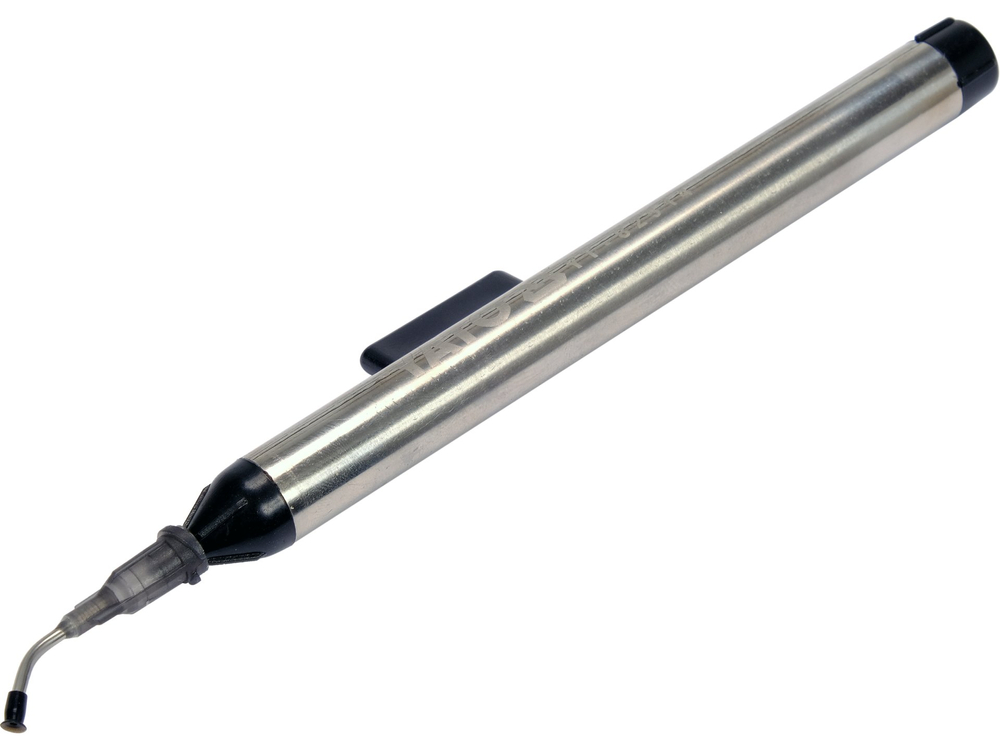

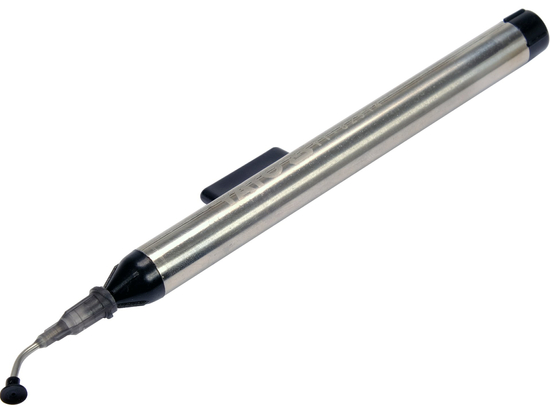

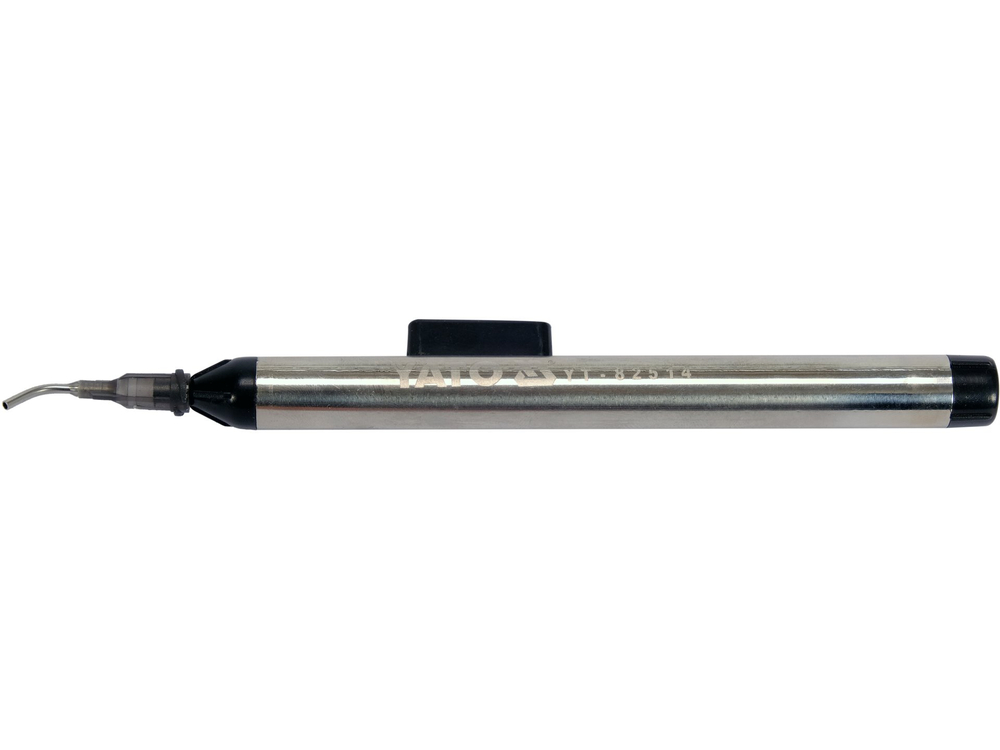

VACUUM PEN FOR SMD SOLDERING
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Working part material
stainless steel (needle), silicone (suction tips)
Materiał rękojeści
aluminum, PVC
Length
150 mm
Weight
15 g
Set includes
gripper, suction tip x3 (Ø3 mm lifts elements to a weight of 3 g, Ø6 mm lifts elements to a weight of 18 g, Ø10 mm lifts elements to a weight of 40 g)
Application
electronics repair
Symbol
YT-82514
Prós gripper YT-82514 designed for electronics repair work. Thanks to the vacuum generated mechanically with a button, we can grasp the BGA or SMD chip to be soldered without using tweezers. The stainless steel needle and three suction tips made of special silicone guarantee resistance to high temperatures.
- length: 150 mm
- handle material: aluminum + plastic elements
- needle material: stainless steel
- material of suction ends: heat-resistant silicone
- grip weight: approx. 15 gramsów
- 3 mm diameter suction end lifts items to a weight of 3 gramsów
- endó6 mm diameter suction end lifts items to a weight of 18 gramsów
- 10 mm diameter suction end lifts items to a weight of 40 gramsów
