YT-65136

Name: ANGLE VICE
Brand: Yato
Availability: InStock

ANGLE VICE

+ Add to compare Add to shopping list

Brand

Yato

Entity responsible for this product in the EU

TOYA S.A.More

Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl

Series

GRE

Mounting type

constantly

Jaws range

70 mm

Dimensions

150x150 mm

Height

55 mm

Wall thickness

13 mm

Material

aluminium

Surface finish

painted, lacquered

Operation angle

90 ˚

Slot size

10x32 mm

Bolt diameter

12 mm

Application

locksmith, for making connections from strips or boards

Symbol

YT-65136

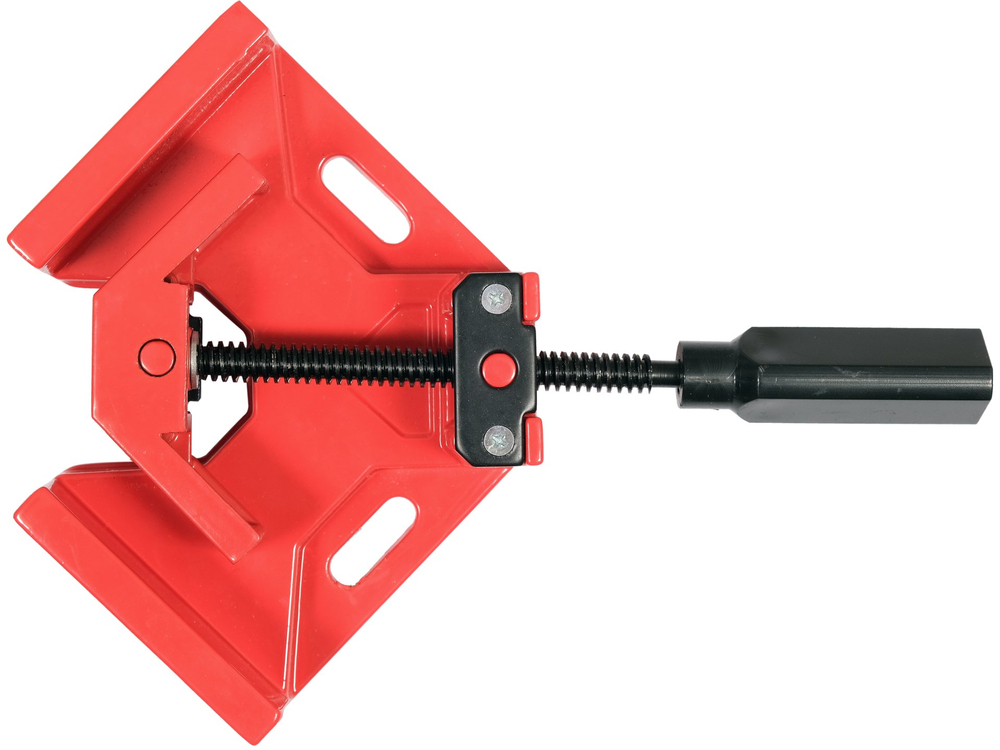

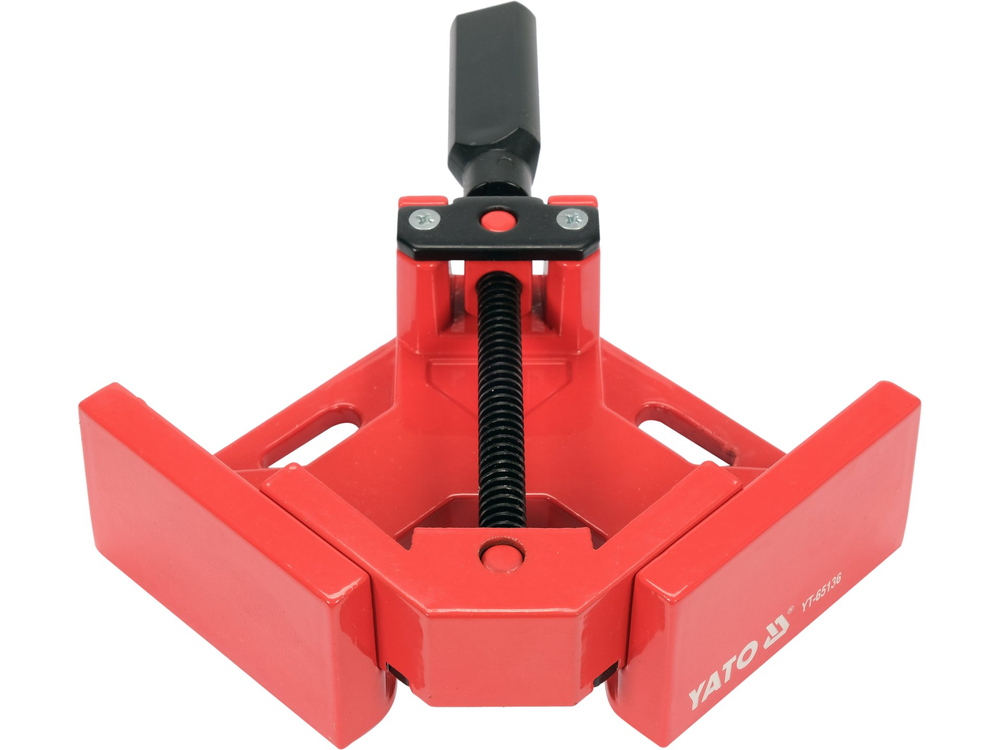

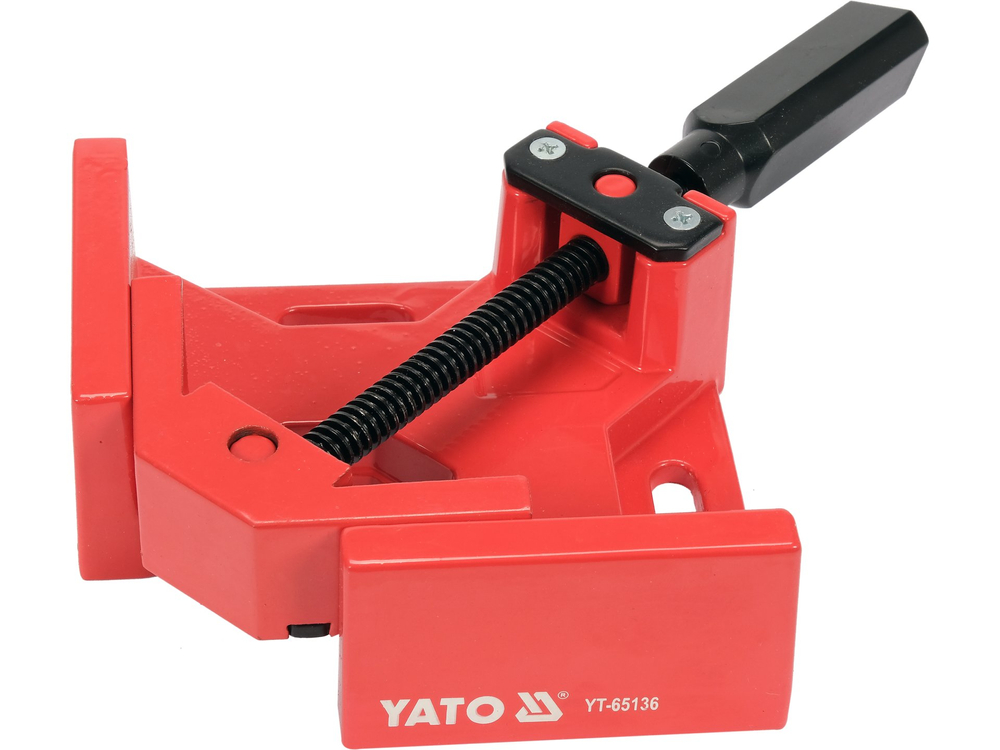

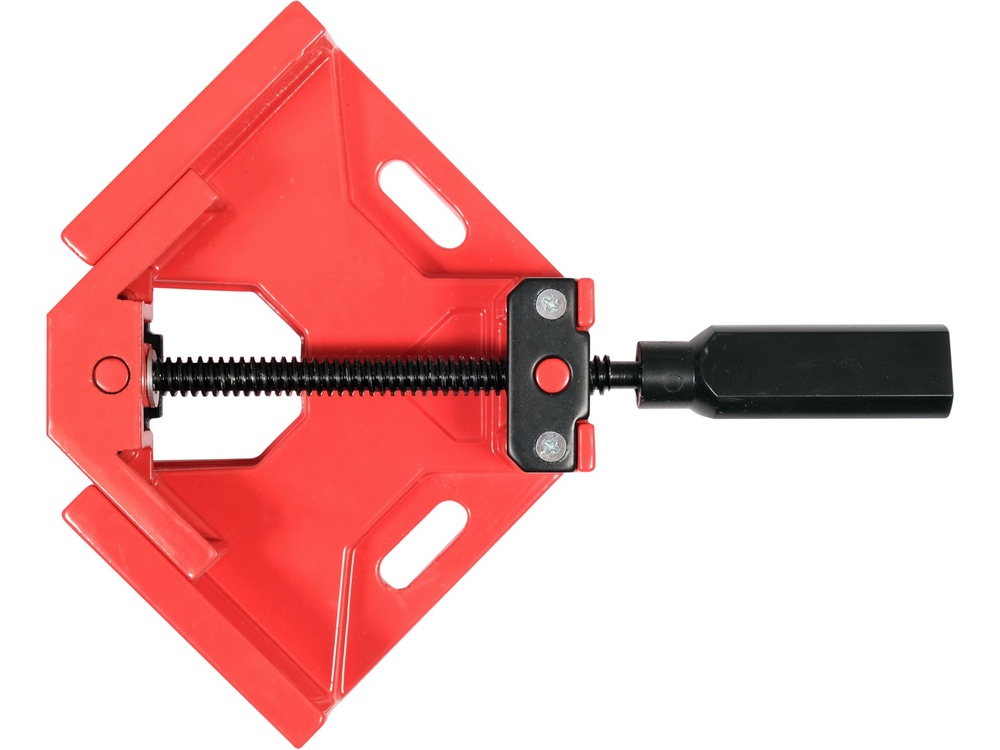

Angle vice for fixing elements at an angle of 90 °. Body made of aluminum base 150 x 150 mm depth /thickness max. Fastened elements approx. 70 mm, wall height approx. 55 mm wall thickness about 13 mm in the base of the holes for fixing 10 mm x 32 mm. The metal screw fired fi 12mm fixed in the joint gives the possibility of changing the fastening angle through the pressure to one wall, plastic knob. For fixing materials at an angle of 90 degrees. Most often for making connections with slats or boards.

Usage warnings:

Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
