03963
TILE DRILLING GUIDE AND DIAMOND DRILL BIT SET
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Grubość
15 mm
Diameter
100 mm
Drill bit length
55 mm
Cutting diameter
4, 5, 6, 8, 10, 12 mm
Working part material
diamond, steel
Set includes
body, drill x5
Application
for drilling in tiles, stone, marble and plastics
Work type
dry, damp
Symbol
03963

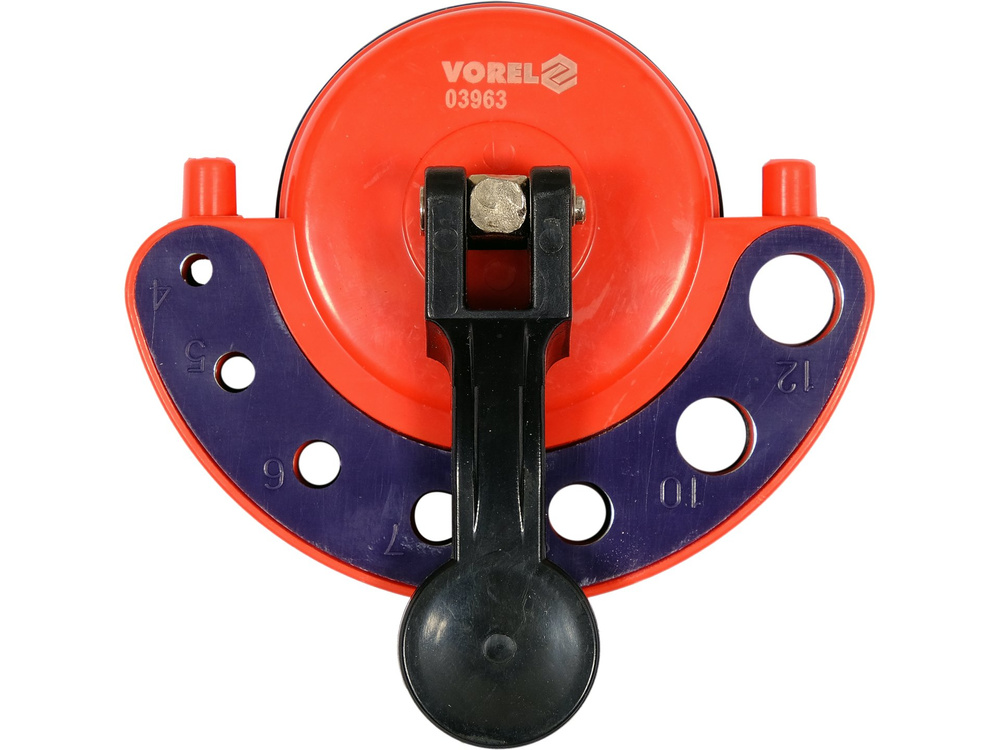

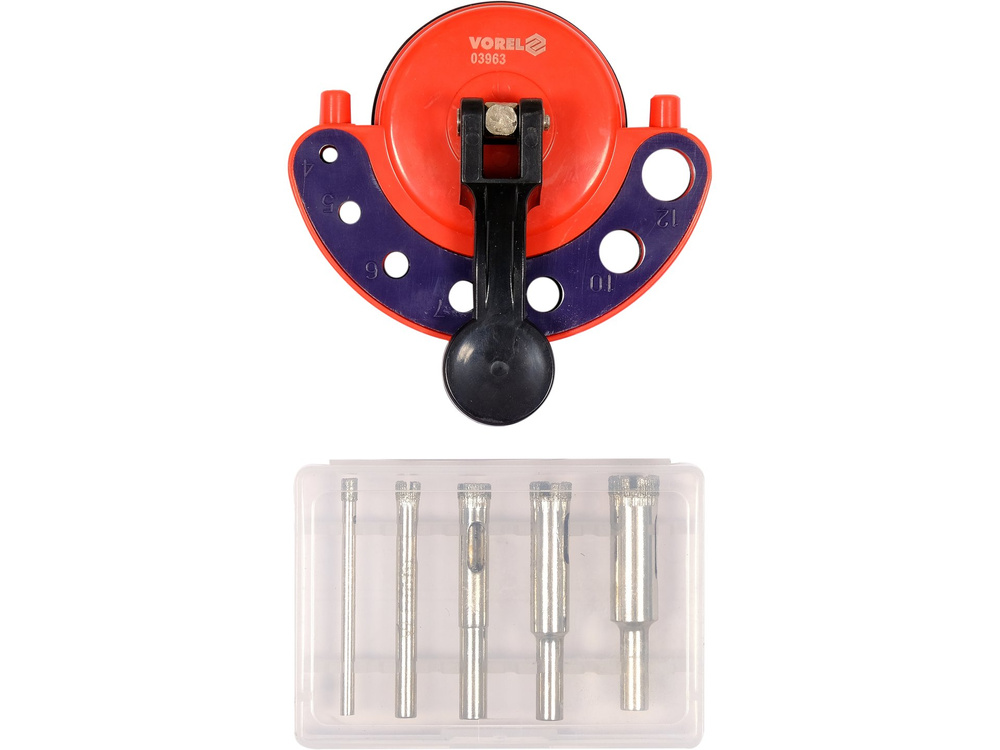

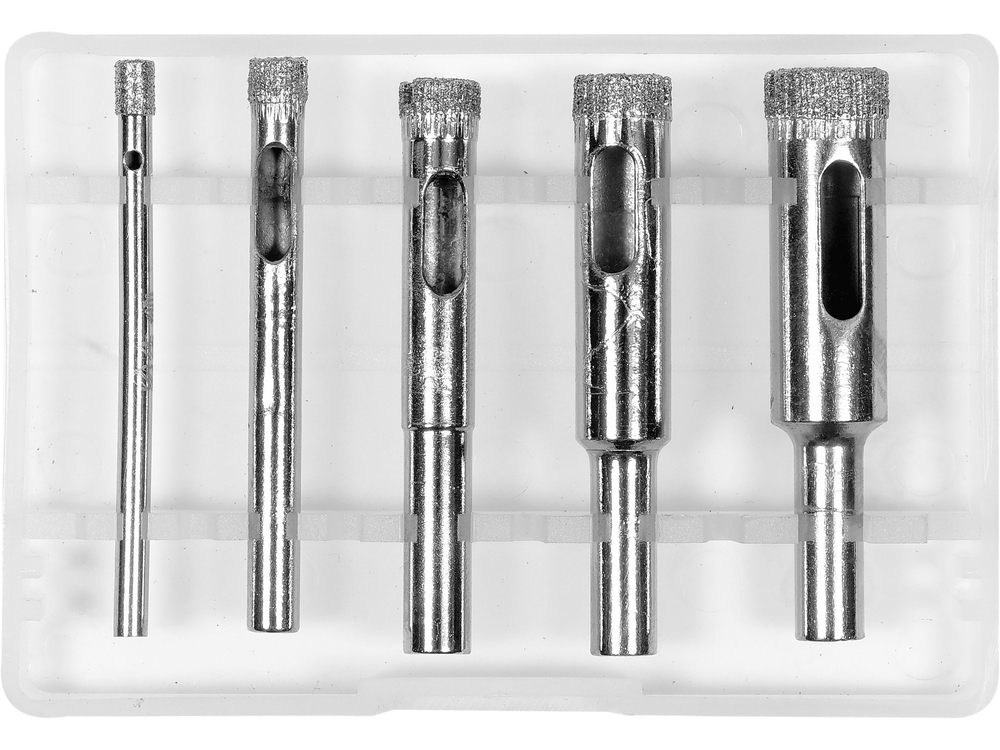

Guide, template for drilling in ceramic tiles. Body made of damage-resistant plastic. Equipped with a strong rubber suction cup with a diameter of about 100 mm, thickness of about 15 mm. On the perimeter it has guide holes, reinforced with metal rings fi 4 /5/6/7/8/10/12 mm. The set also includes rów special tubular drill bits with diamond surfaced tip /with diamond coating/.
- Length of drill bits - 55 mm.
- Working diameters are adapted to the holesós guide, i.e. 4/6/8/10/12 mm.
- Bore depth approx. 3 - 4 mm
- Shank diameter: 3 to 6 mm.
Diamond drill bits are designed for drilling „dry or wet” in ceramic tiles, stone, marble, plastics.

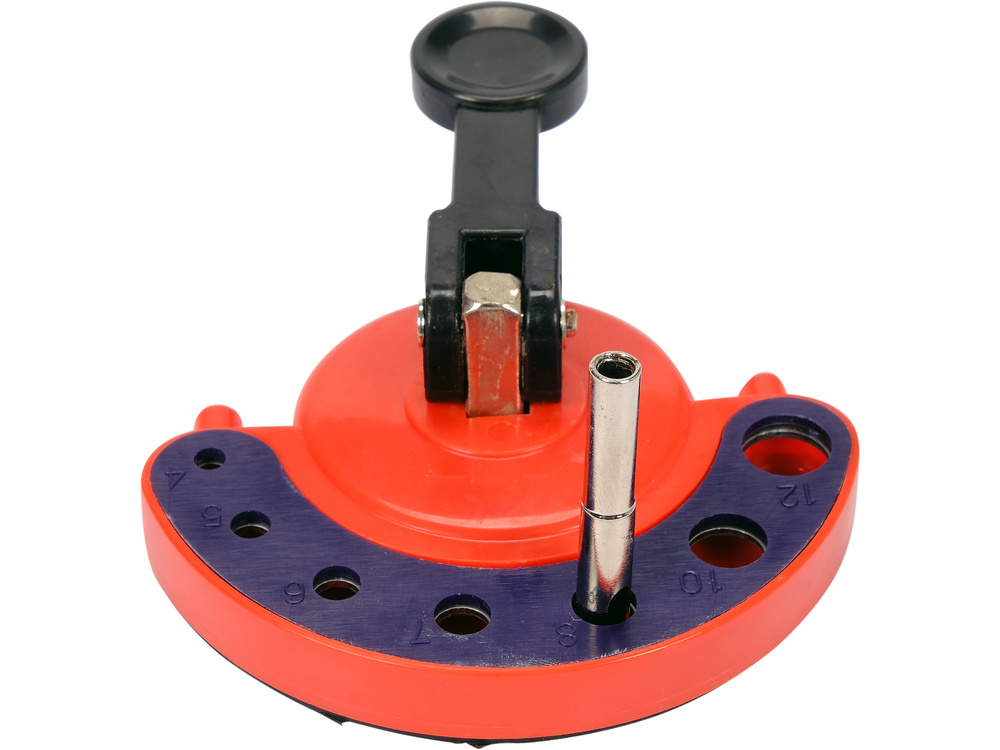

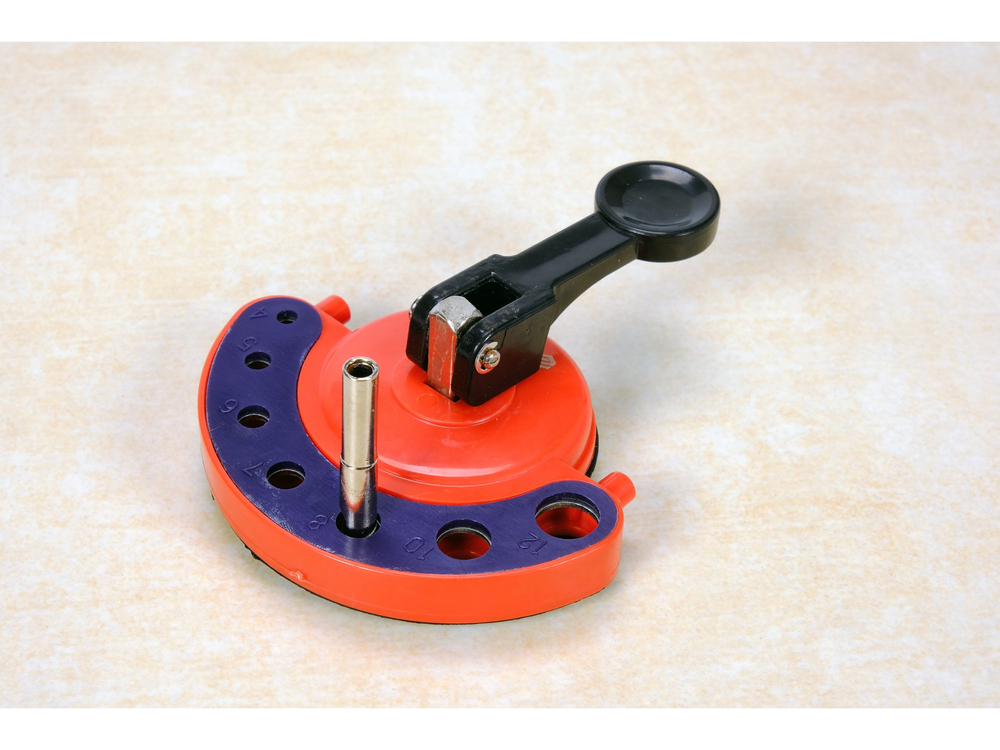

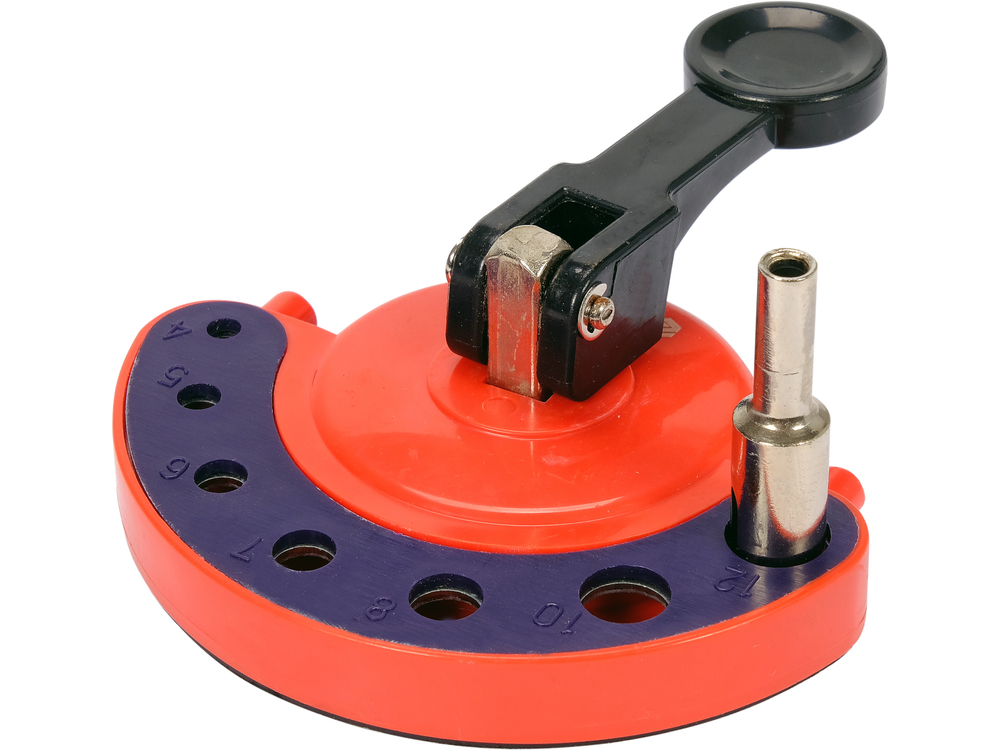

The guide allows you to independently make precise holes in ceramic tiles, stone , glass , many plastics. Suction cup allows you to effectively fix on vertical or horizontal elementsPlace the guide on the tile so that the rubber suction cup on the bottom adheres to the material, slightly press and pull back the lever located on the body. Insert a diamond drill bit of similar diameter into the hole of the selected diameter and start drilling .Diamond drill bits drill "dry" or with water Do not use the impact function guide , diamond drill bits 4/6/8/12 mm
Usage warnings:
Warning! Always use personal safety equipment at work.Ask a question
