YT-39820
LONG METAL DRILLS 5PCS 3-8MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Diameter
3, 4, 5, 6, 8 mm
Overall length
150, 175, 195, 205, 240 mm
Working part length
100, 120, 135, 140, 165 mm
Toolholder type
tube-shaped
Rotations
2600, 2000, 1600, 1300, 1000 min⁻¹
Material
HSS 4341
Surface finish
refined, polished
DIN
1869
Drill bit point angle
118 ˚
Split point
yes
Pcs
5
Application
stainless steel, acid-resistant steel, cold rolled steel
Symbol
YT-39820

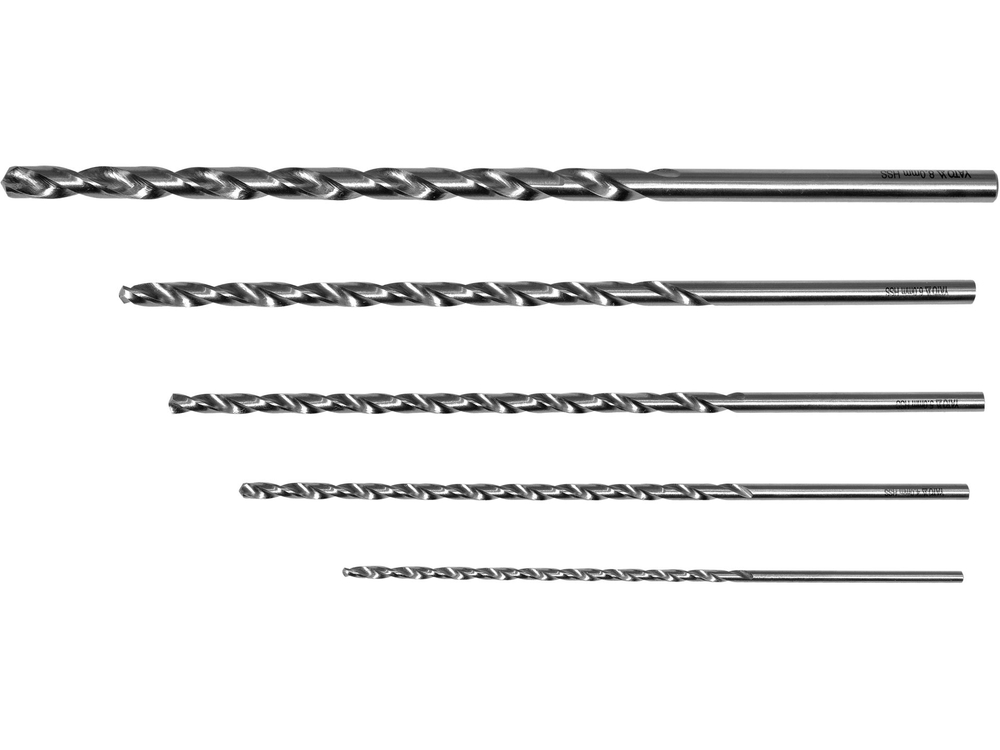

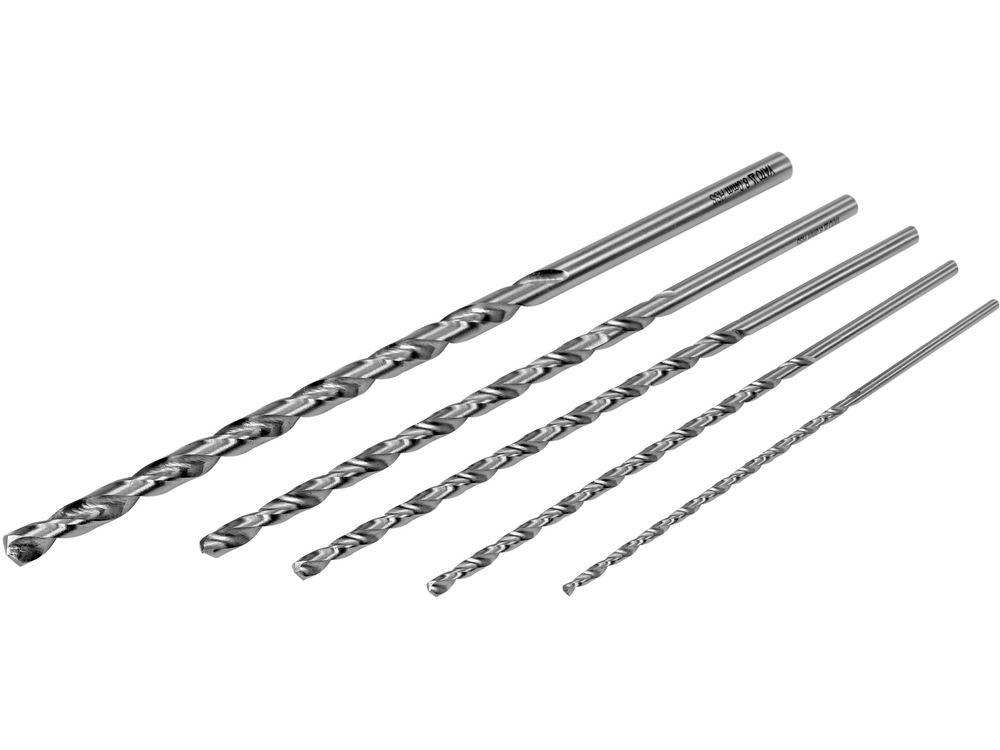

A set of metal drill bits with an overall length from 150 mm to 240 mm. The tip of the drill bits cross-sharpened, so-called split point 118°.
- Material: HSS 4341
- DIN: 1869
- diameter: 3, 4, 5, 6, 8 mm
Sizes:
- 3 mm: working length: 100 mm, overall length: 150 mm
- 4 mm: working length: 120 mm, overall length: 175 mm
- 5 mm: working length: 135 mm, overall length: 195 mm
- 6 mm: working length: 140 mm, overall length: 205 mm
- 8 mm: working length: 165 mm, overall length: 240 mm .
