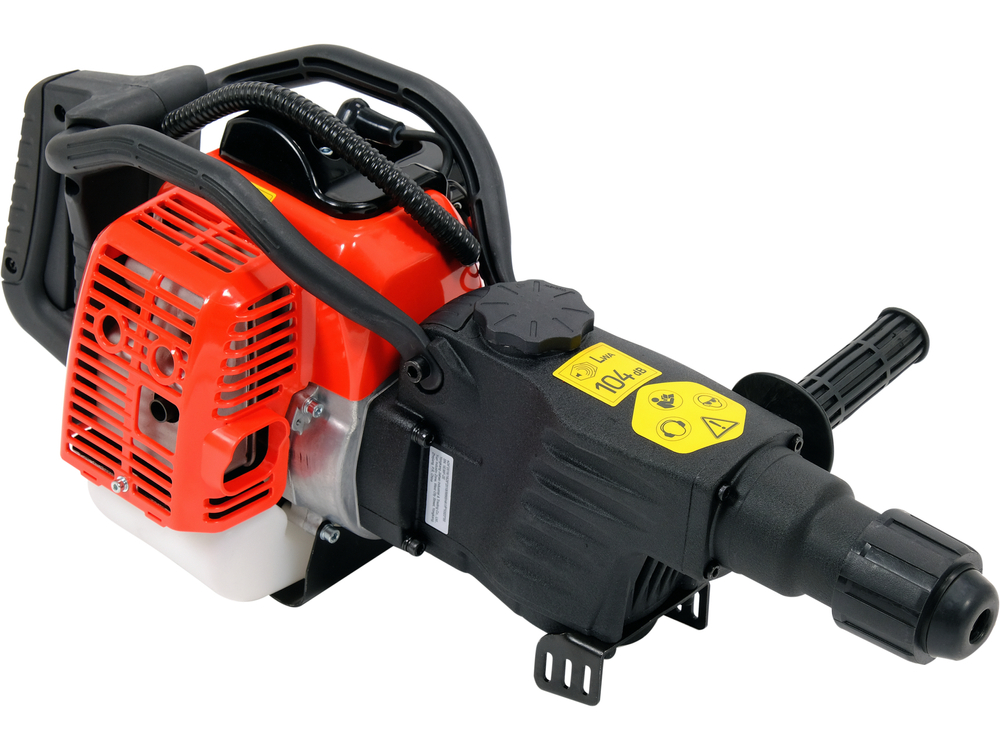

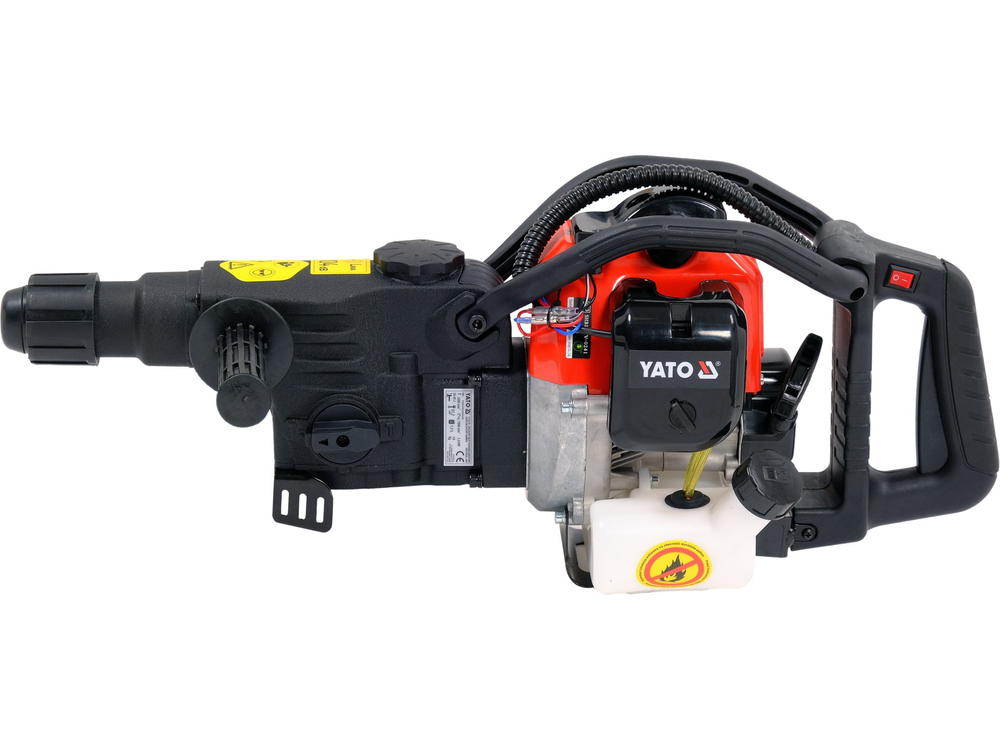

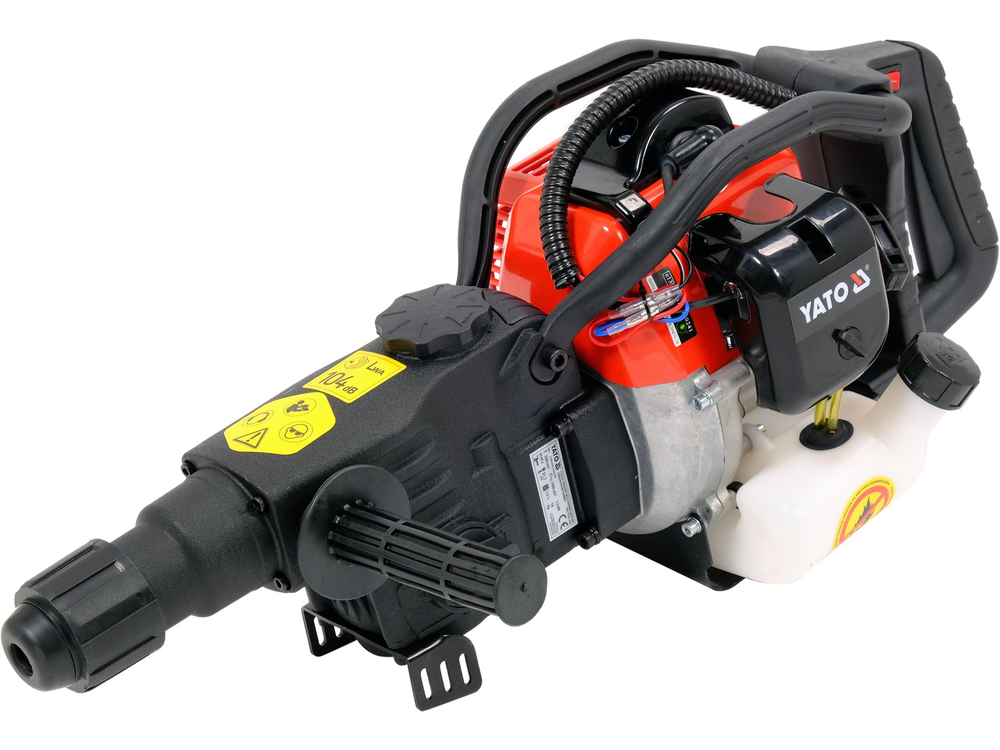

The most powerful SDS-MAX rotary hammer available on the market.

Ampact force as high as 35J combined with rotation enables you to drill through granite and the hardest concrete much faster than any electric-powered device.

Such high power drastically reduces working time when installing light poles, traffic lights, energy barriers, road signs, anchoring radio masts, installing sliding entrance gates, etc.

Also demolition work on walls and ceilings is much easier using an ergonomically balanced hammer with high single impact energy, which works without a generator and weighs only 10kg.

The hammer fits SDS-MAX accessories such as chisels, blades, peavey, TCT spiral and crown bits.

• two-stroke engine
• 95PB gasoline/oil ratio: 25:1

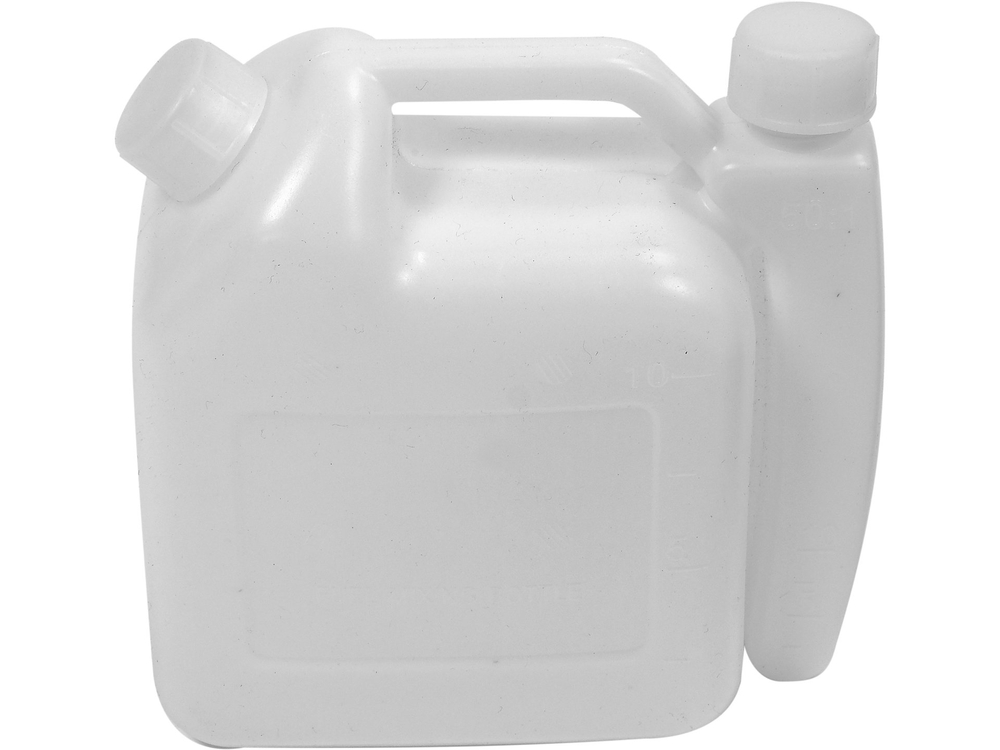

• complete with a set of wrenches for servicing and a tank for preparing the fuel mixture

Parameters:

• fuel tank capacity [l]: 1.3
• impact frequency [min-1]: 3200
• single stroke energy [J]: 30 - 35
• tool handle: SDS MAX
• engine: 1E44F-E; number of cylinders: 1; number of bars: 2; air-cooled
• spark plug type: L8RTC
• engine displacement [cm3]: 51.7
• engine power [kW]: 1.3
• maximum engine speed [min-1]: 6000
• maximum engine speed without load [min-1]: 7000 ± 300
• max. fuel consumption [l/h]: 0.6

The device offers two modes of operation:

• drilling with impact
• forging

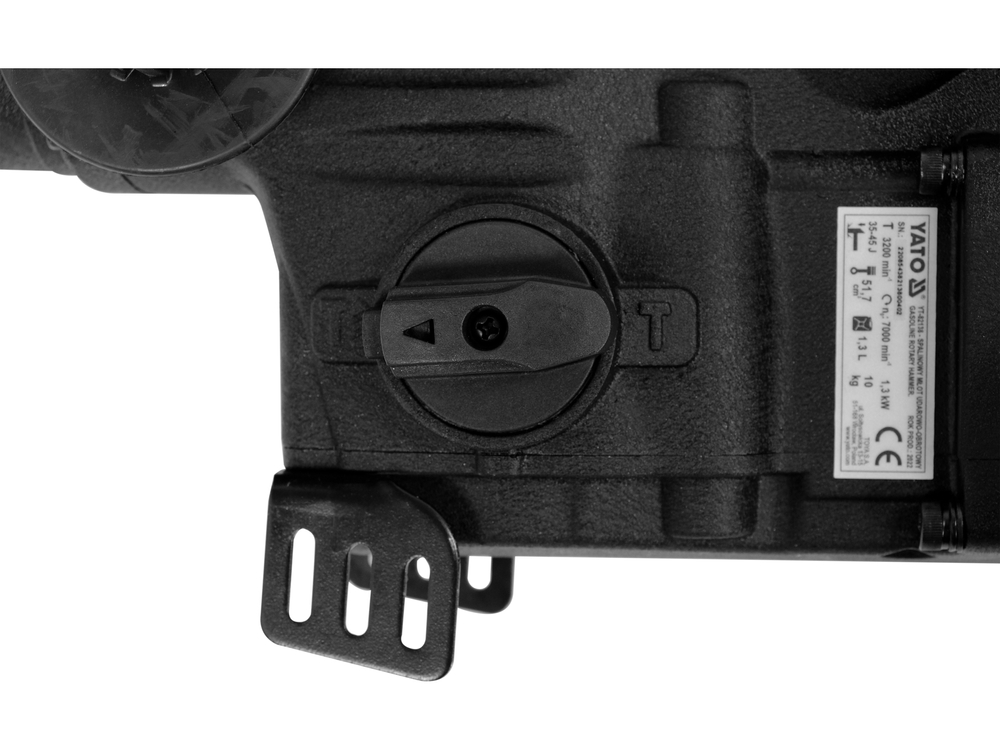

The operating mode is selected using the dial. You need to press and hold the knob lock button, then rotate it so that the arrow on the knob points to one of the symbols.

The hammer symbol indicates forging, and the drill and hammer symbol indicates impact drilling.

Usage warnings:
