YT-72453
ELECTRONIC DIAL INDICATORS 0-12,7MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Measuring range
0-12.7 mm
Clock diameter
57 mm
Mounting pin diameter
8 mm
Power supply
battery
Type of battery
1x; LR44
Functions
zeroing
Measurement unit
meters, inches
Measurement accuracy
± 0.01 mm
Reading type
electronic
Display type
LCD
Operating relative humidity Rh
80 %
Working temperature range
0~40 ˚C
Storage temperature
-20 ~ +70 ˚C
Compatible with
YT-72460
Application
workshop work, machine control, servicing and checking the correct installation of brake discs and all types of pulleys and shafts,
Application contd
stable measuring point for checking runout of rotating elements
Symbol
YT-72453

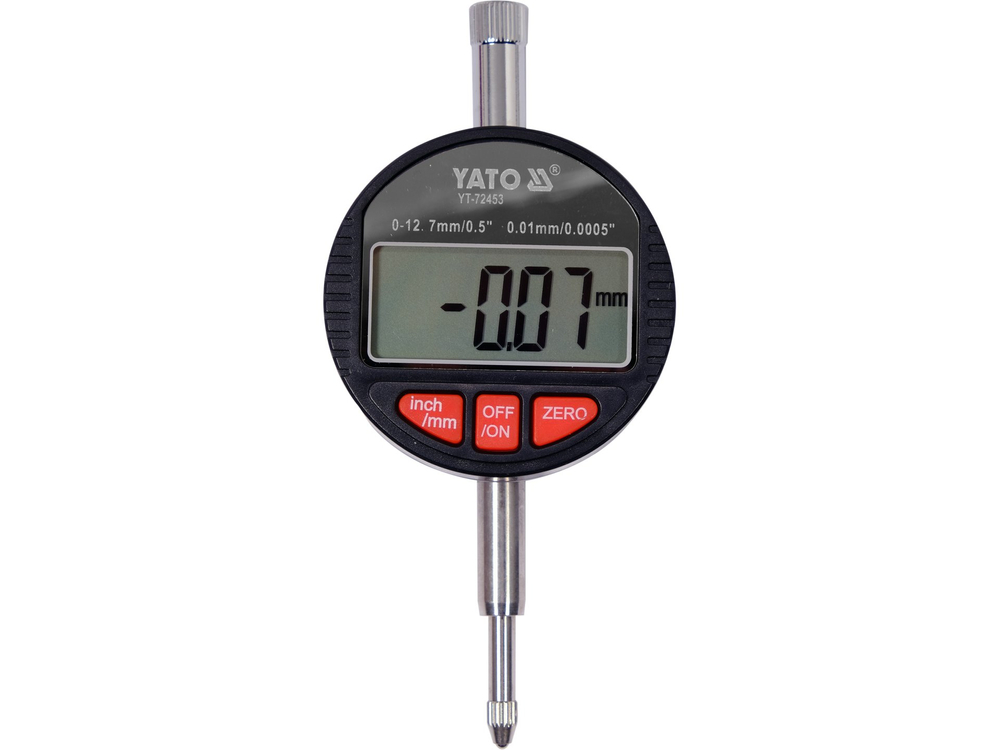

Professional electronic dial sensor YT-72453 is widely used in workshop work and machine inspection. It will be perfect for handling and checking the correctness of the installation of brake discs and all kinds of pulleys or shafts. Thanks to the special magnetic base, YT-72453 can serve as a stable measuring point for checking the runout of rotary componentsós.
- Graduation 0.01 mm
- Measuring range 0-12.7 mm
- Mounting mandrel - &.Phi; 8 mm
- Diameter of the clock face ~ Φ 57 mm

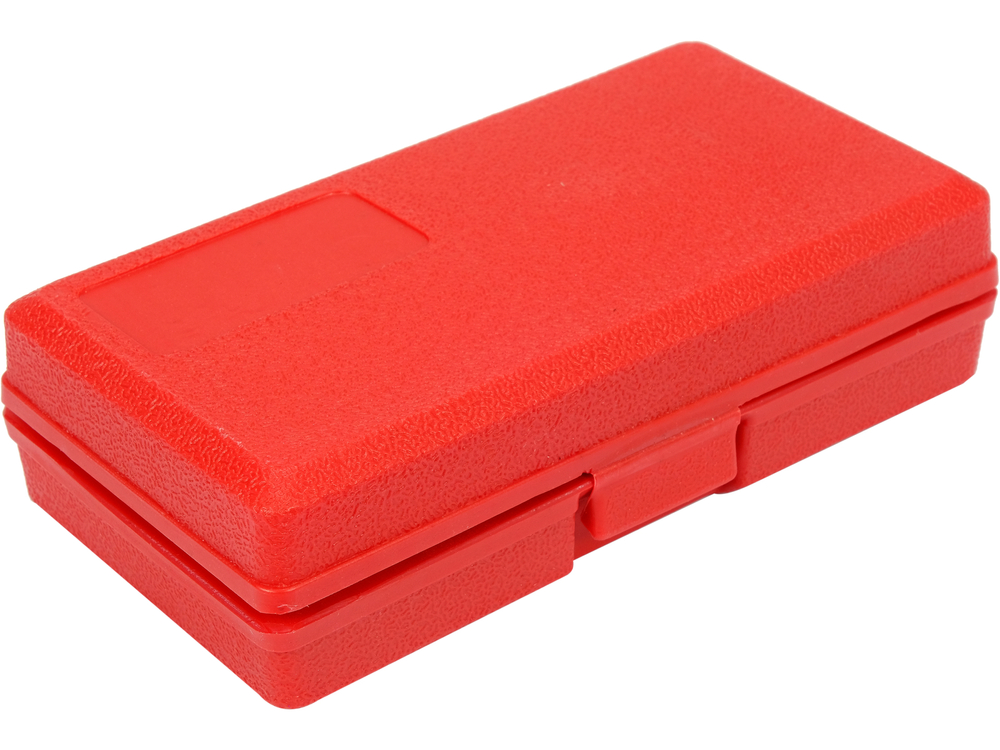

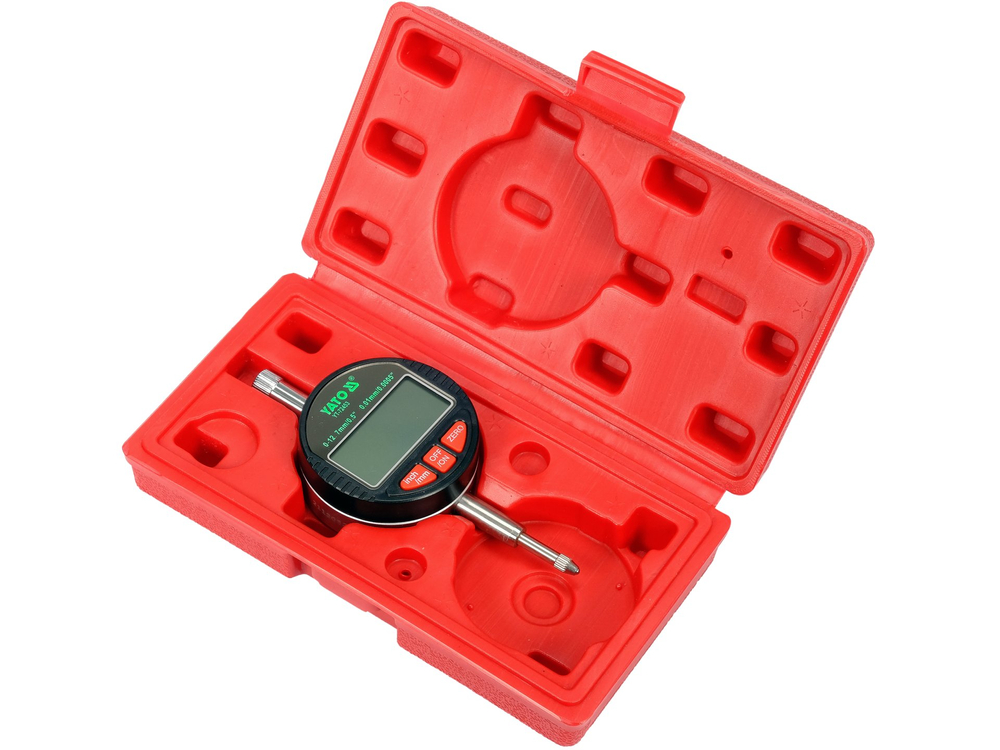

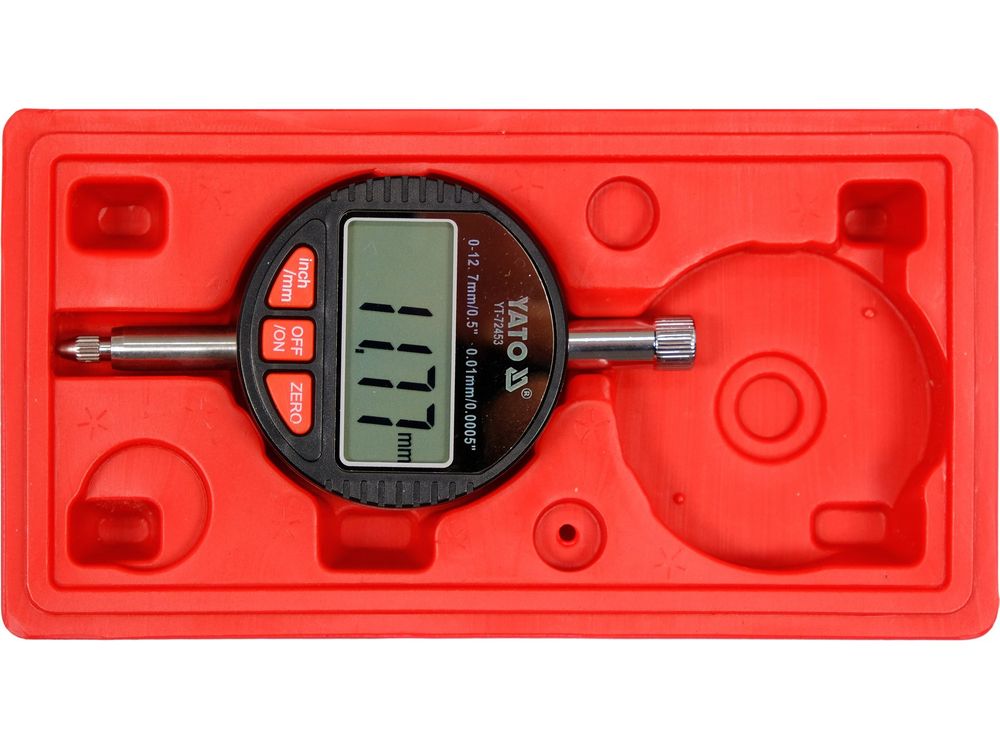

- Packaged in a sturdy plastic box.
