YT-09620
PNEUMATIC IMPACT WRENCH 1" 5800 NM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1" (25.0 mm)
Toolholder type
Driver

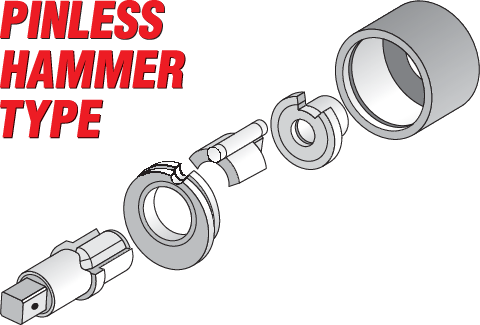

Stroke mechanism type
PINLESS HAMMER
Max. working pressure
0.63 MPa
Recommended working pressure
0.63 MPa
Required air flow
650 l/min
Rotations
7000 min⁻¹
Max. torque
5800 Nm
Quick coupler size
1/2" (12.7 mm)
Air connection diameter (PT)
1/2" (12.7 mm)
Air supply hose inside diameter
1/2" (12.7 mm)
Length
675 mm
Casing material
aluminum

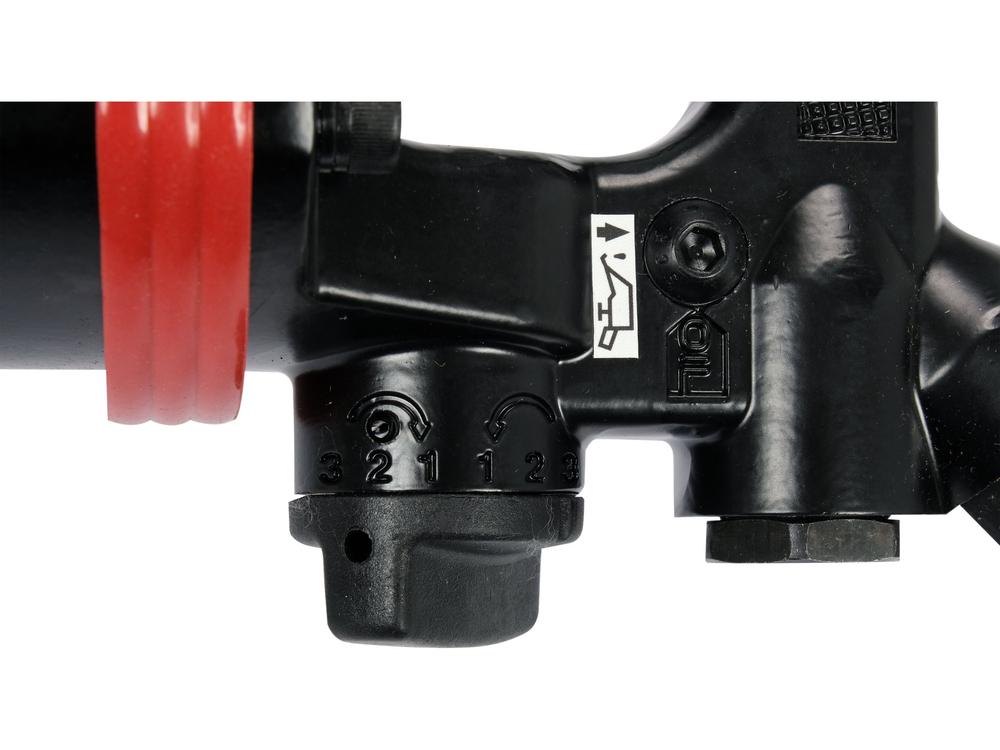

Rotation switch
yes
Acoustic pressure
84.4 ± 3.0 dB(A)
Acoustic power
95.4 ± 3.0 dB(A)
Vibrations
2.6 ± 1.5 m/s²
Weight
21 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mobile and stationary car services, tire and truck services
Symbol
YT-09620

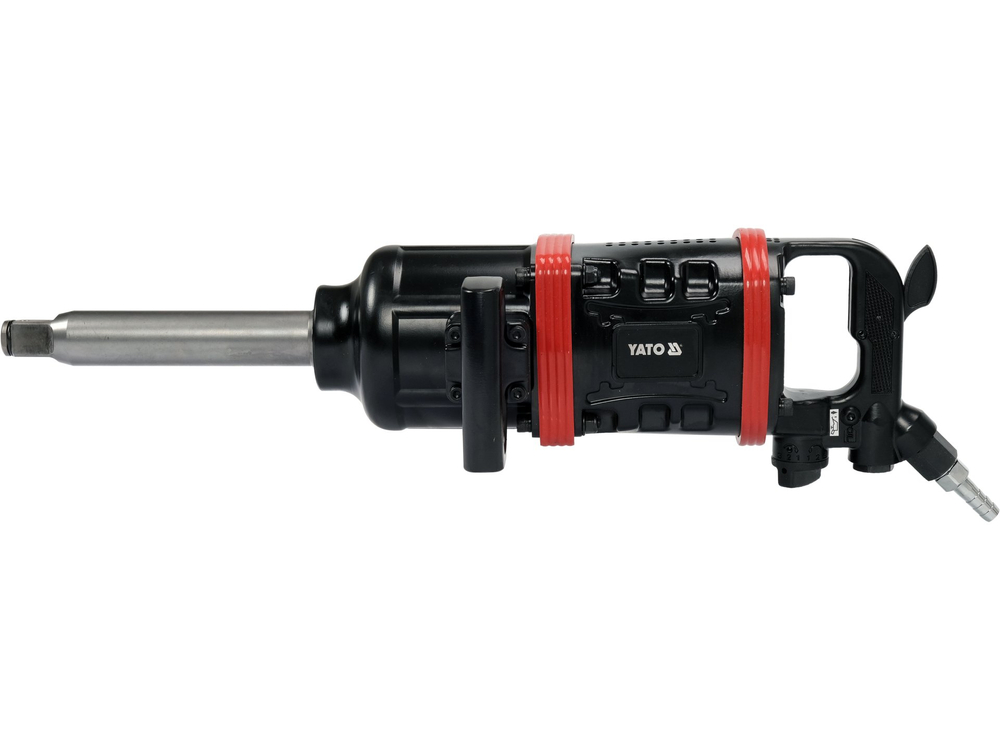

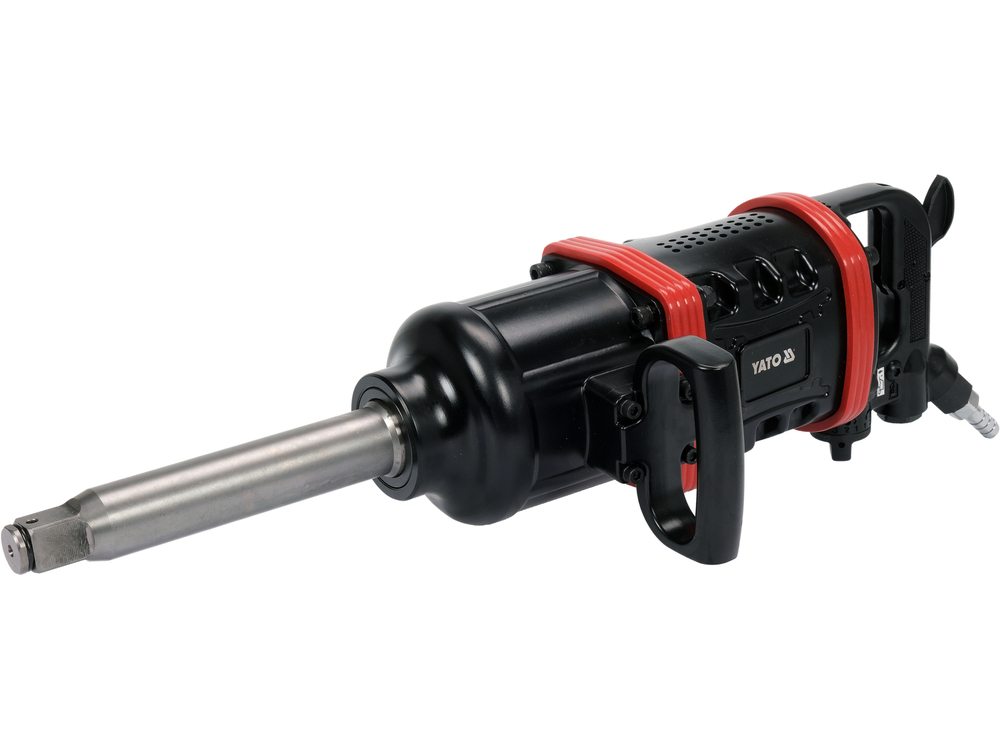

High-end 1" pneumatic wrench with extremely high torque of 5800 Nm.
Ideal indispensable in industrial plants, vulcanization plants, as well as mobile and stationary car repair shops.
It is perfect for repairing trucks, buses, tractors and other heavy equipment. It provides very efficient work.
- generates 7000 rpm
- max. torque: 5800 Nm
- impact mechanism: pinless hammer
- tool handle: 1"
- solid aluminum housing
- rpm switch
- air flow: 650 l/min
- max working pressure: 0.63 MPa
- connection: 1/2"
