YT-09618
PNEUMATIC IMPACT WRENCH 1" 4800NM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1" (25.0 mm)
Toolholder type
Driver
Stroke mechanism type
PINLESS HAMMER
Max. working pressure
1 MPa
Recommended working pressure
0.6-1 MPa
Required air flow
450 l/min
Rotations
5000 min⁻¹
Max. torque
4800 Nm
Quick coupler size
1/2" (12.7 mm)
Air connection diameter (PT)
1/2" (12.7 mm)
Air supply hose inside diameter
1/2" (12.7 mm)
Length
620 mm
Casing material
aluminum
Rotation switch
yes
Acoustic pressure
97.0 ± 3.0 dB(A)
Acoustic power
108.0 ± 3.0 dB(A)
Vibrations
12.579 ± 1.5 m/s²
Weight
19 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mobile and stationary car services, tire and truck services
Symbol
YT-09618

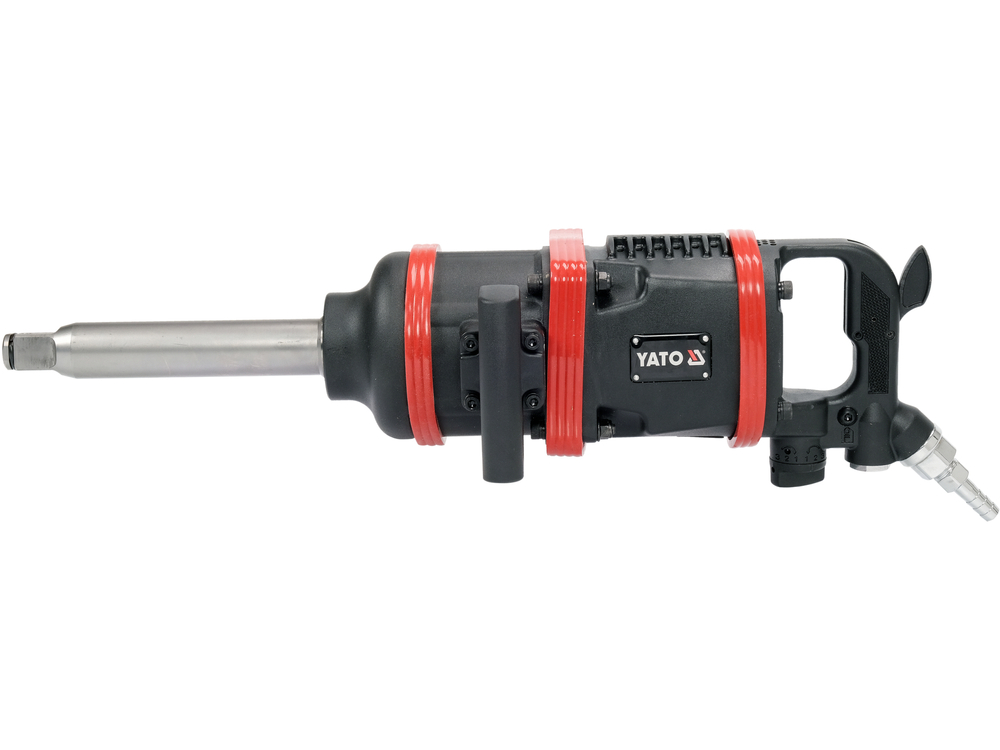

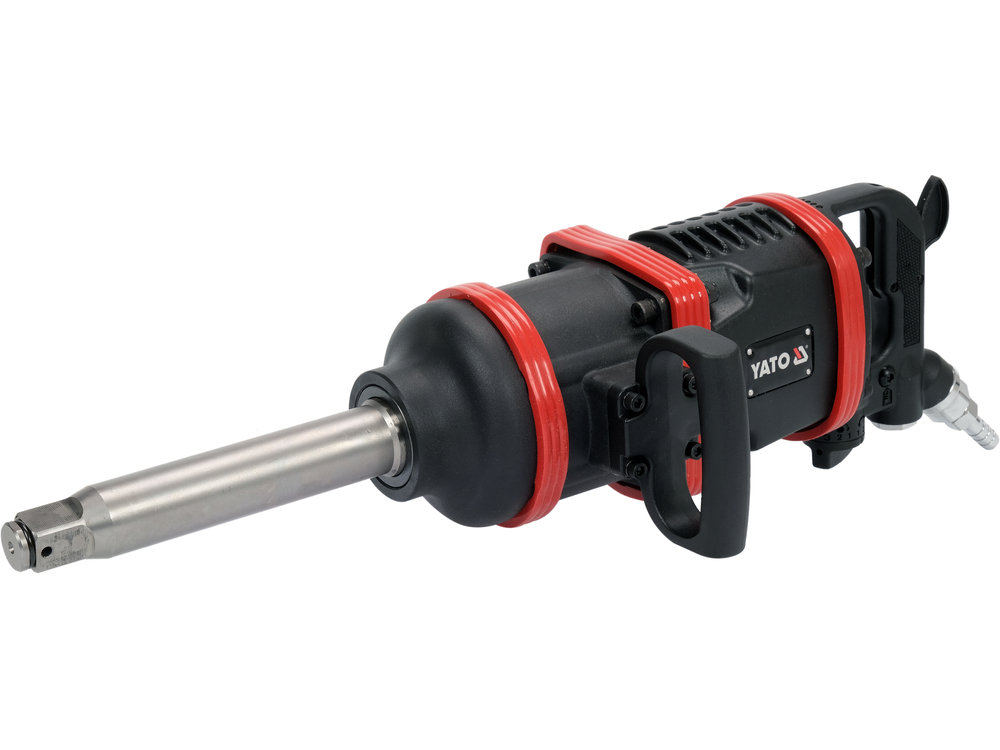

High-end 1" pneumatic wrench with extremely high torque of 4800 Nm.
Ideal indispensable in industrial plants, vulcanization plants, and mobile and stationary car repair shops.
It is perfect for repairing trucks, buses, tractors and other heavy equipment. It provides very efficient work.
- generates 5000 rpm
- max. torque: 4800 Nm

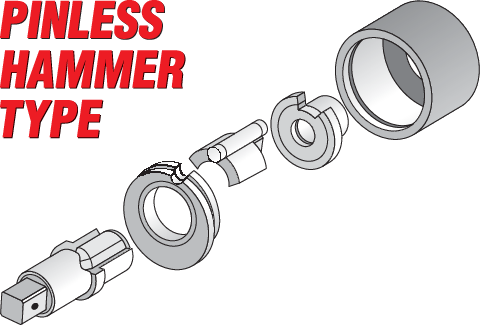

- impact mechanism: pinless hammer
- tool handle: 1"
- solid aluminum housing

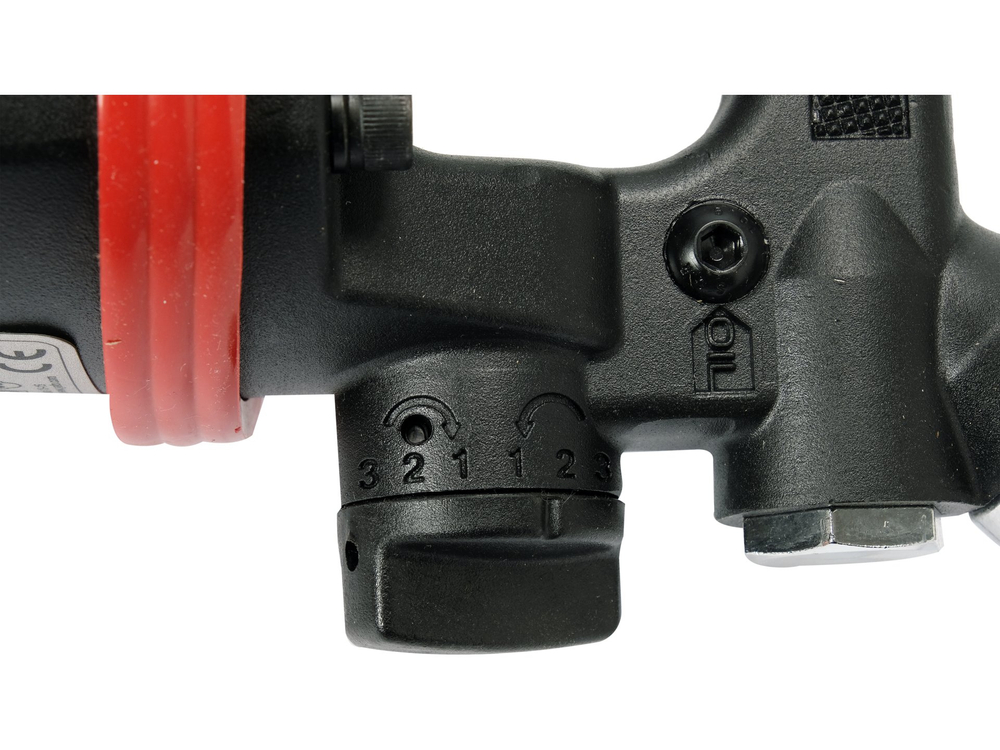

- rpm switch
- air flow: 450 l/min
- max working pressure: 1 MPa
- connection: 1/2"
