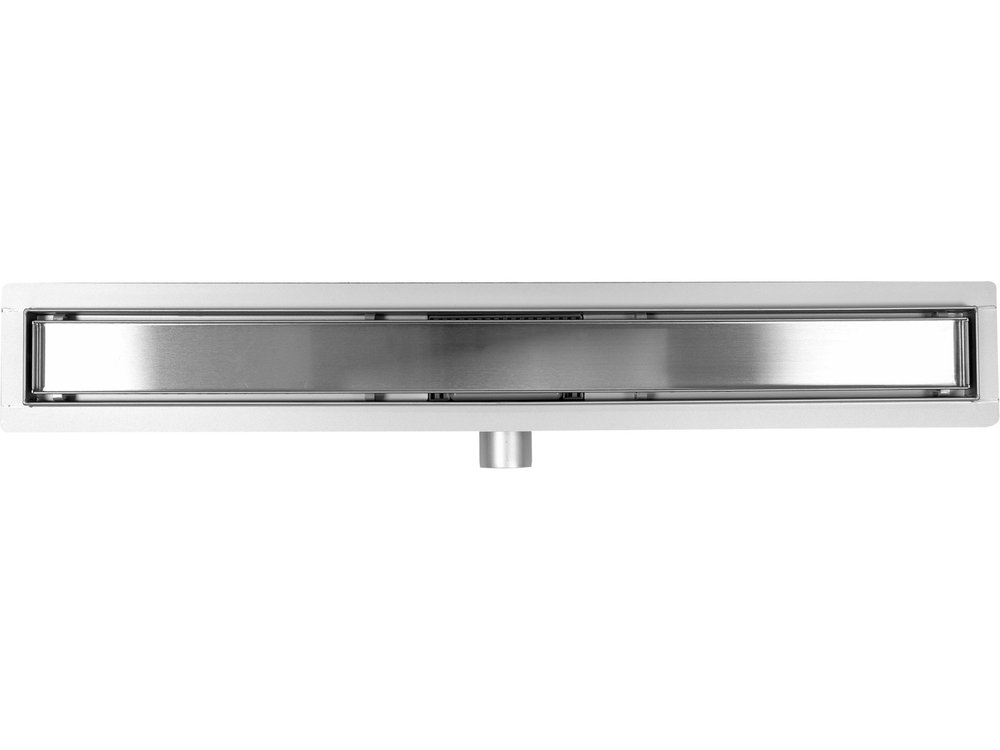

Linear drain Fala is a perfect idea for elegant and practical arrangement of bathroom space.
Wide selection of available sizes allows for optimal adjustment of its length to the dimensions of the cabin or tiles, and allows for more freedom than in the case of traditional shower trays when planning the shower area.
It is made entirely of stainless steel AISI 304, which is characterized by resistance to corrosion, detergents, and mechanical damage.
Fala shower drains are equipped with conveniences ensuring comfortable and efficient operation for many years:

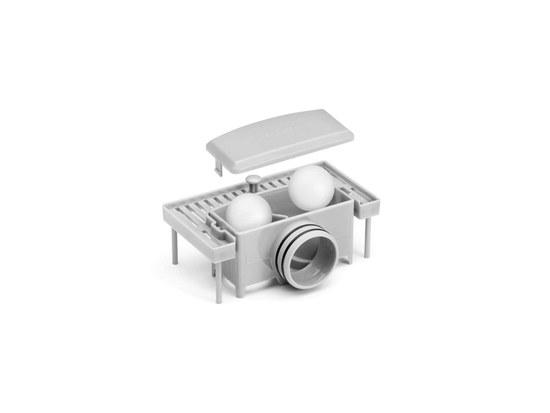

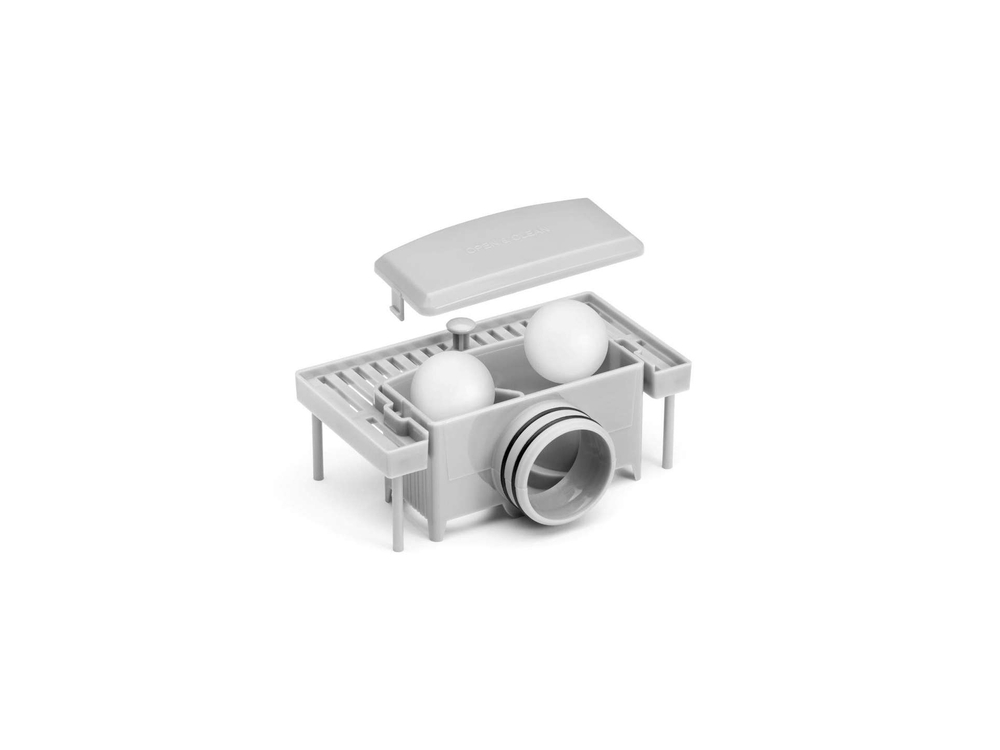

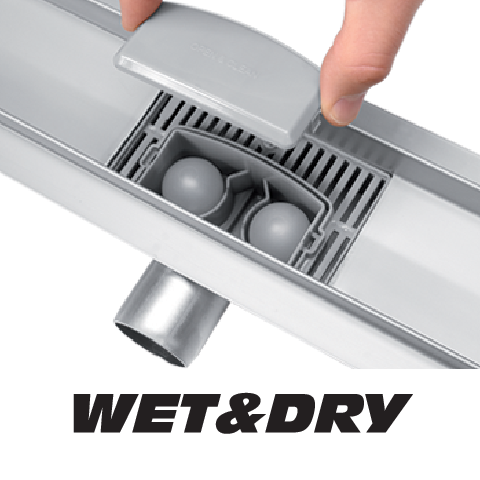

• WET&DRY - special solution in the siphon that prevents odors and insects from entering during use and after drying
• SMARTthru - special inspection window for 100% flow control and easy cleaning

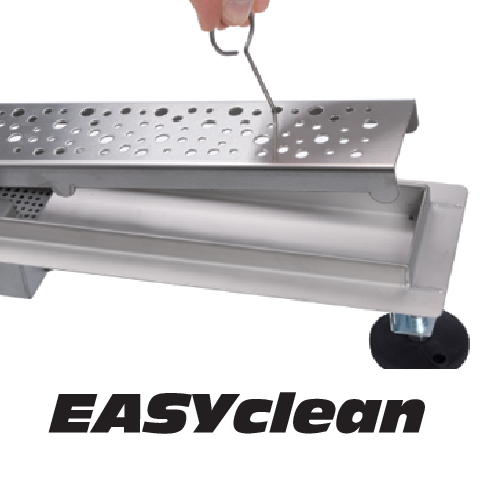

• EASYclean - easy to clean thanks to the included hook

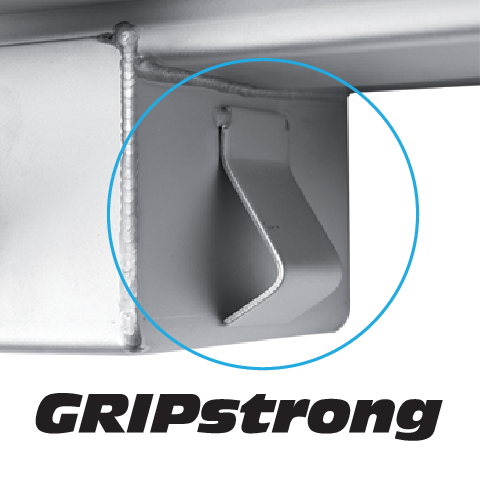

• GRIPstrong - stabilizing handles, additional reinforcement of the structure in the floor

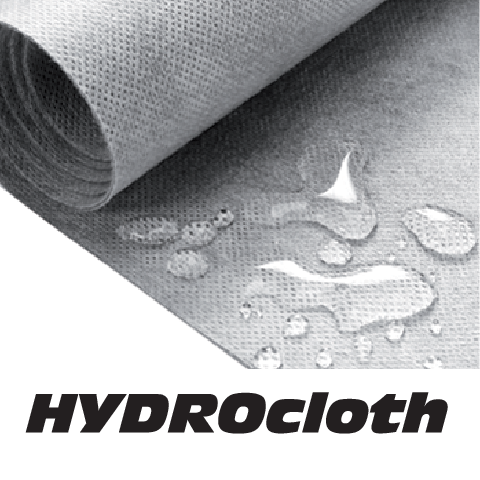

• HYDROcloth - sealing mat - essential part of waterproofing

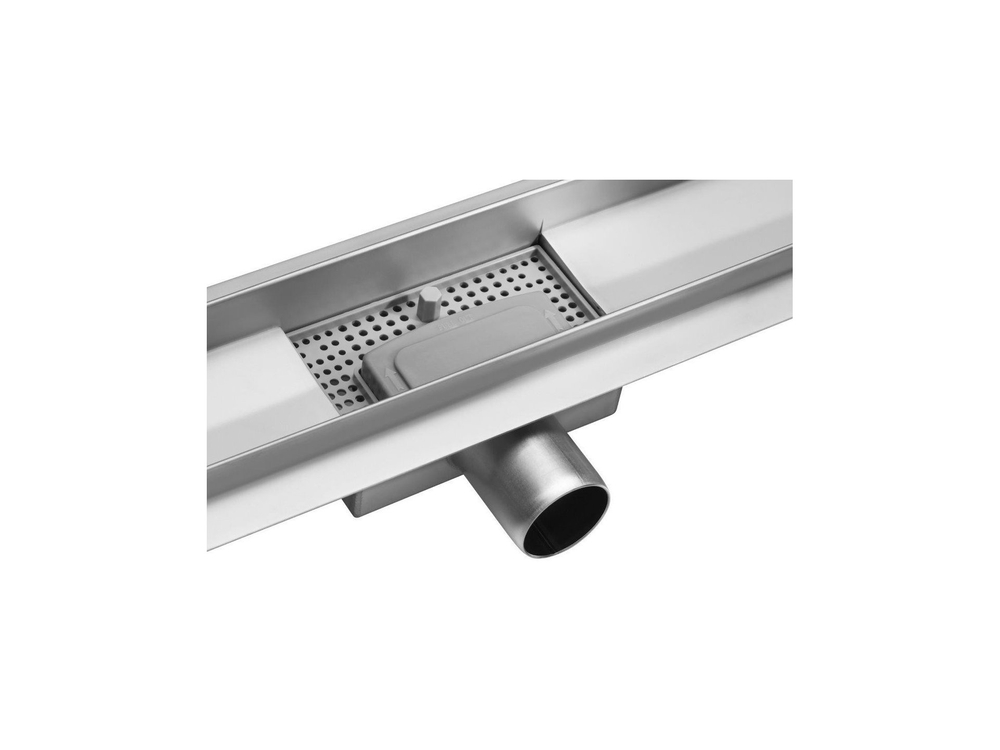

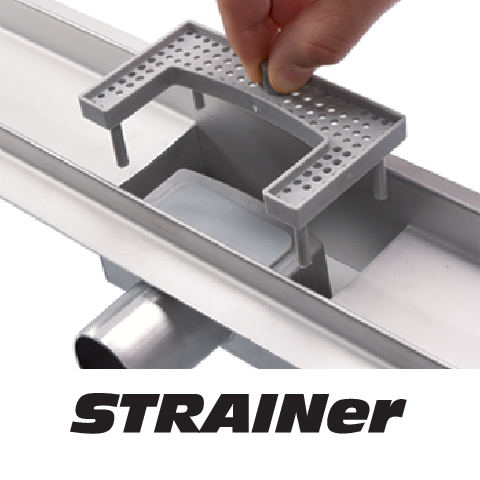

• STRAINer - effective and durable strainer that prevents clogging of the siphon and facilitates ongoing drain maintenance

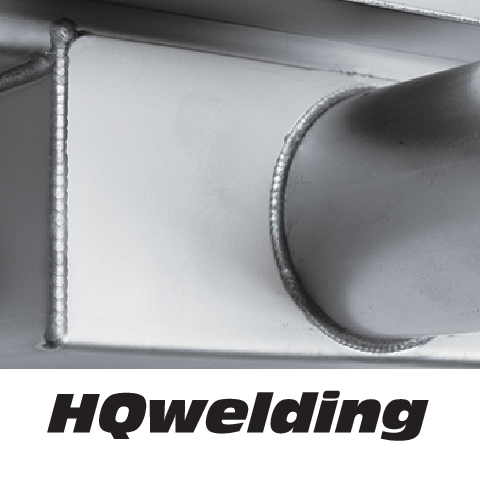

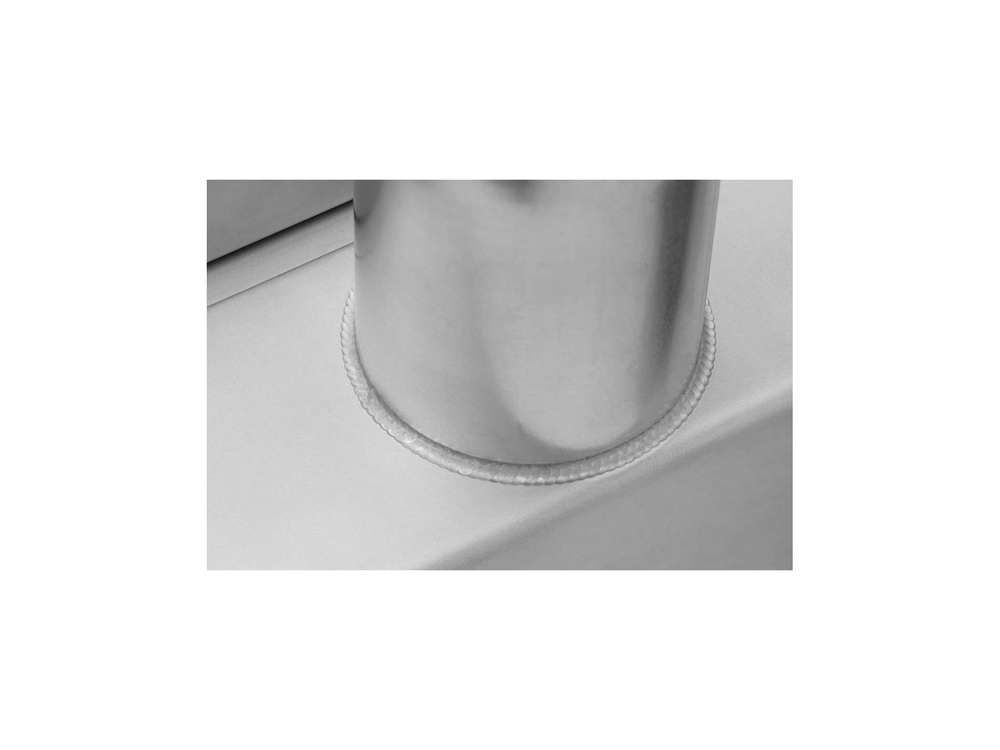

• HQwelding - high-quality precise welds ensuring the tightness of the drain

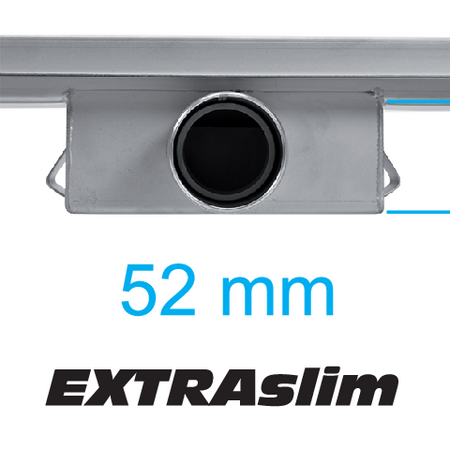

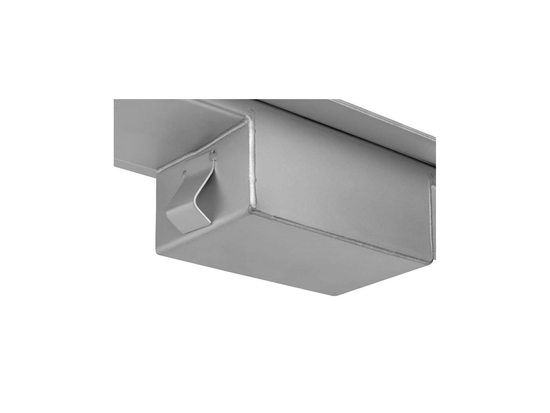

• EXTRAslim - made of stainless steel AISI 304 very low siphon facilitating installation

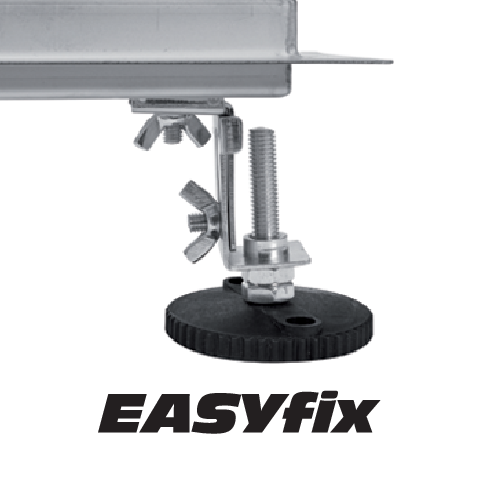

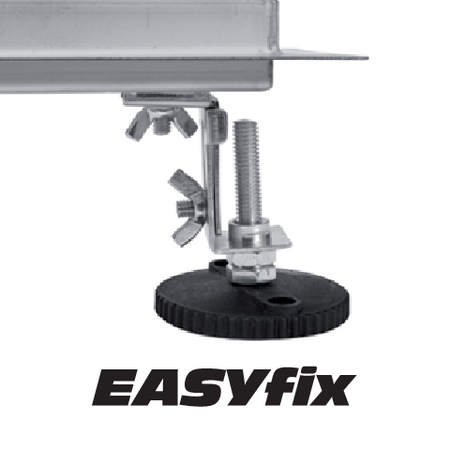

• EASYfix - wide range of height adjustments allowing adaptation of the drain to the floor surface

You can install Fala drain without worries - all our drains come with a 10-year warranty!

Details:
- length of the channel: 60 cm

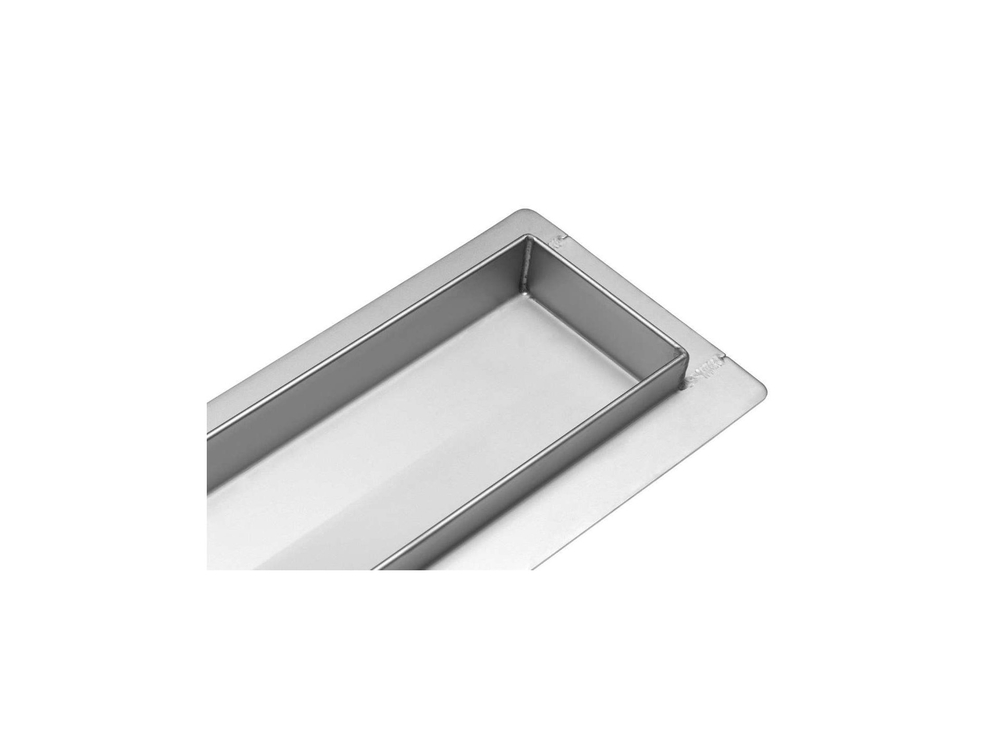

- grate pattern - 2IN1 (full or for tile insertion)
- material: stainless steel AISI 304
- width: 70 mm (additional flange approx. 20 mm on each side)
- siphon height: 52 mm

Thickness of linear drains steel:

• channel: 1.2 mm
• grate: 1.5 mm

Product compliant with standard EN 1253-1
Load class: K3 (surfaces without wheeled traffic)
Product thermal behavior class: Class A (no installation limitations)
Flow rate: above 36 l/min (shower faucet has a max flow of 18 l/min)

Intended use:

- bathrooms, shower cabins
- swimming pools, pools
- laundries, boiler rooms
- balconies, terraces

Package contents:

- drainage channel with siphon
- grate
- sewerage reduction 50/40 mm

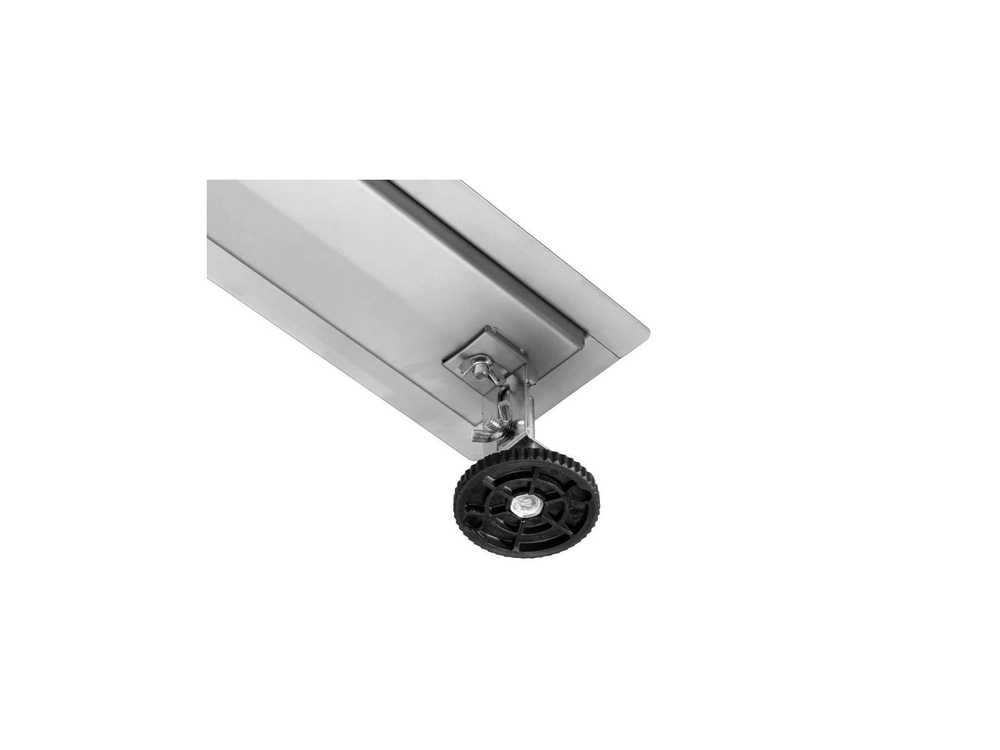

- adjustable mounting feet
- insulation mat
- hook for lifting the grate
- user manual
- warranty card
