YT-71004
DIGITAL ANGLE RULER 300MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Symbol
YT-71004
Producer code
5906083083815
Series
Length
300 mm
Measured angle range
360 ˚
Measurement accuracy
± 0.2 ˚
Measured angle accuracy
± 0.2 ˚
Measurement unit
meters, inches
Material
steel
Metric scale
yes
Inch scale
yes
Display type
backlit LCD
Reading resolution
0.05 ˚
Power supply
battery
Type of battery
3V; CR2032
Functions
saving measurement, resetting the indication to zero, manual locking
Data Hold
yes
Working temperature range
0~40 ˚C
Storage temperature
-10 ~ +50 ˚C
Safety Directives
2014/30/EU EMC, 2011/65/EU ROHS
Safety standards
EN 61326-1:2013

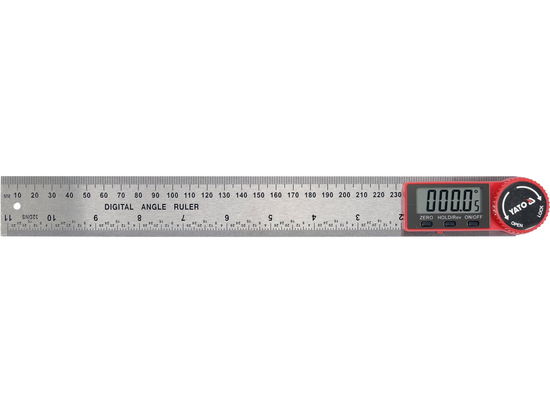

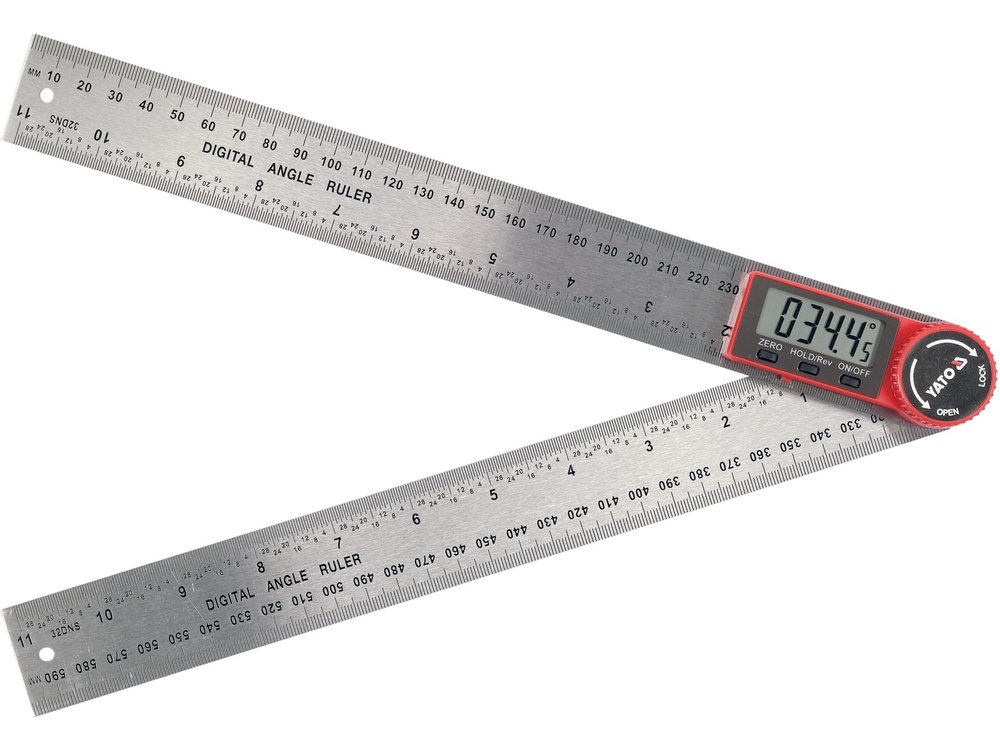

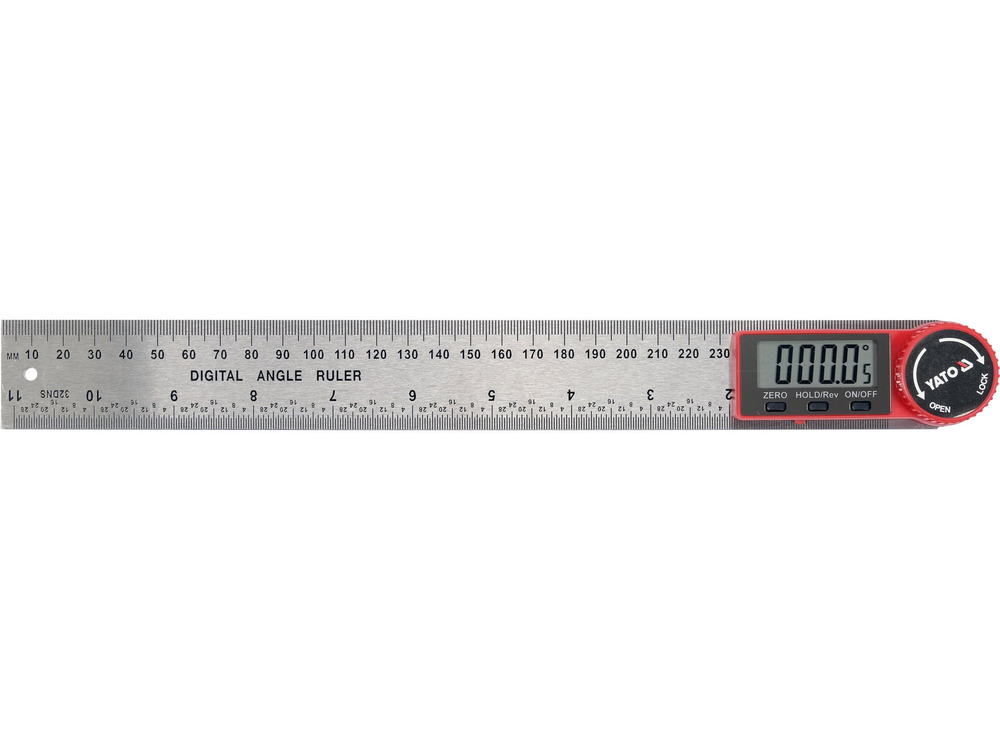

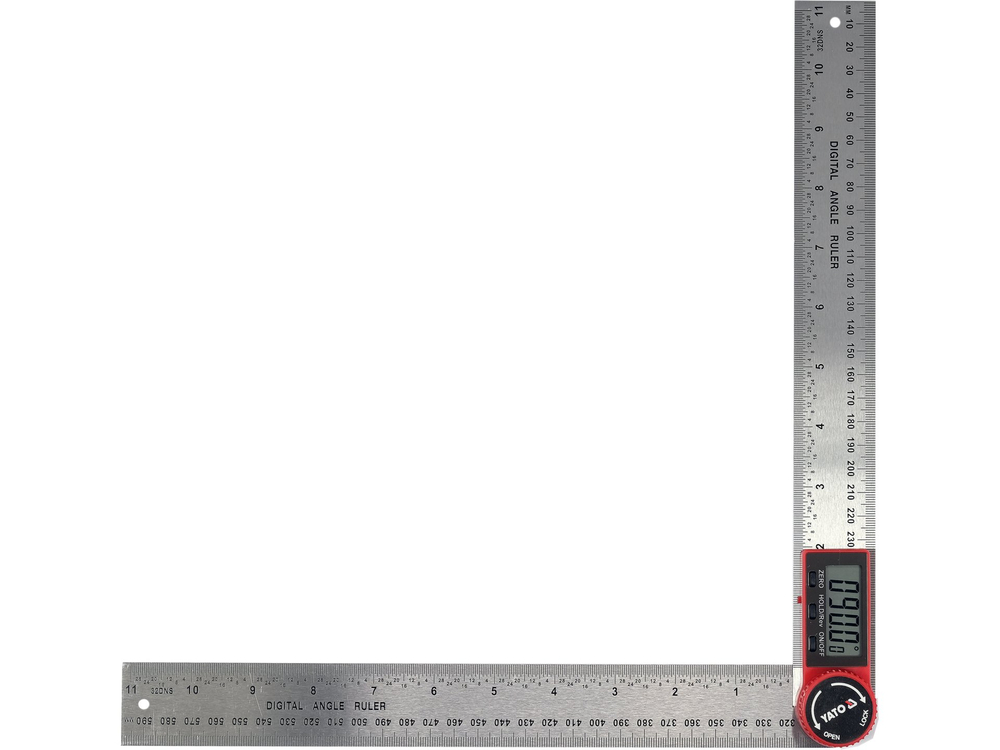

Electronic angle meter with arm length of 300 mm.

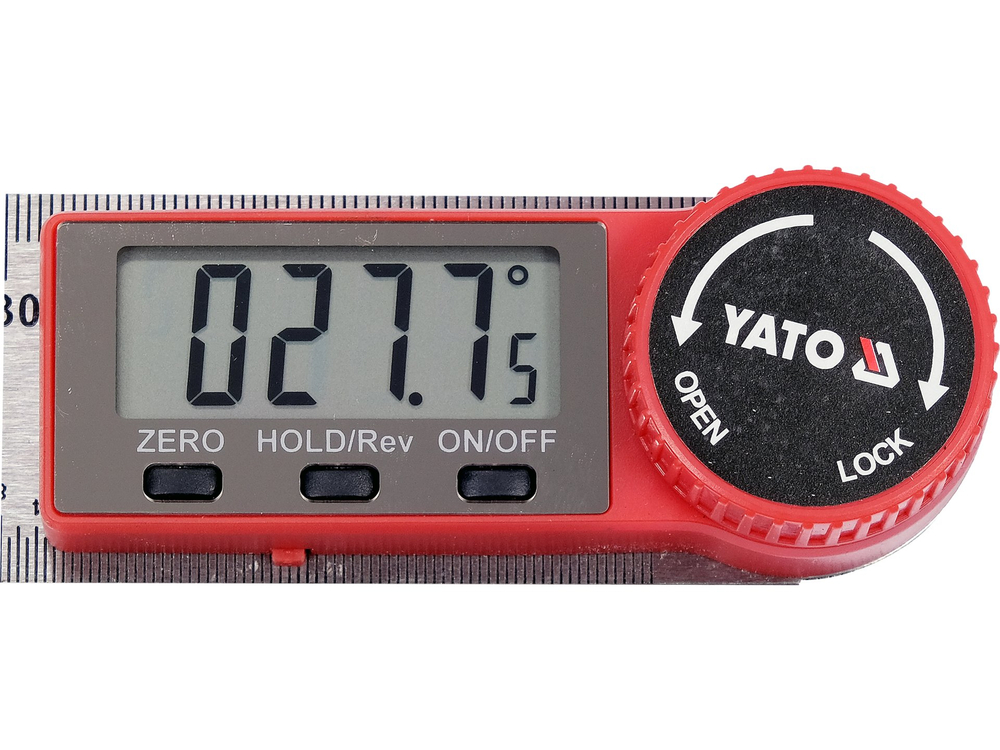

Large screen for reading the results.
- Metal arms
- Locking arm adjustment
- Cut millimeter and inch graduations
- Measuring range: 0-360°
- resolution: 0.05°
- accuracy: +/- 0.2
- power supply: battery CR2032
