Bestseller
YT-09545

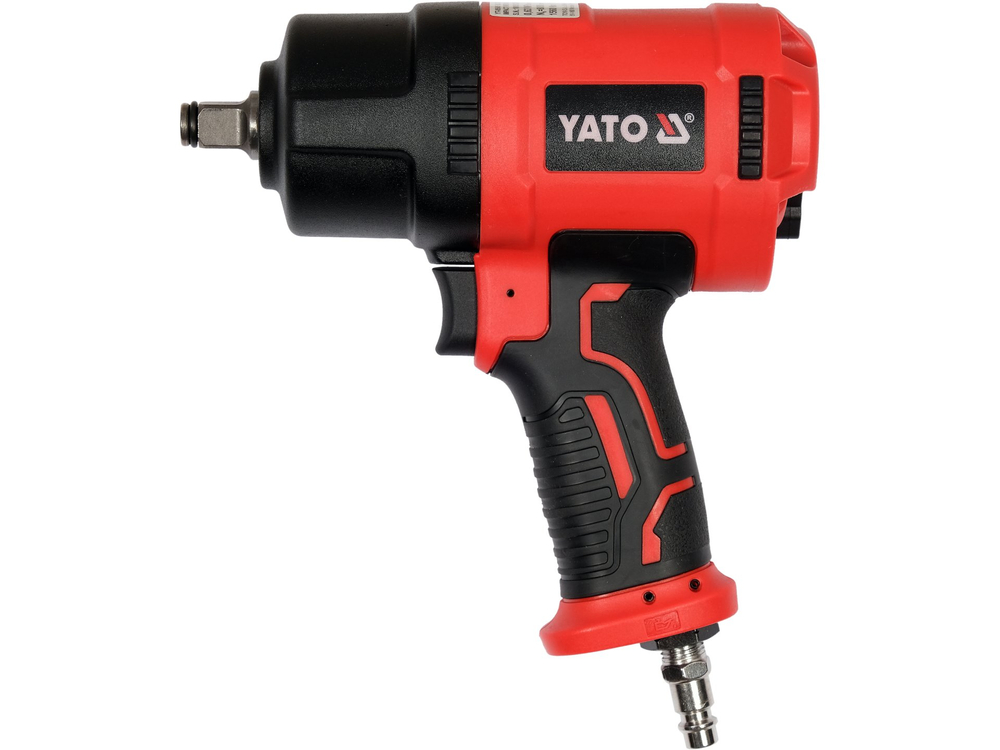

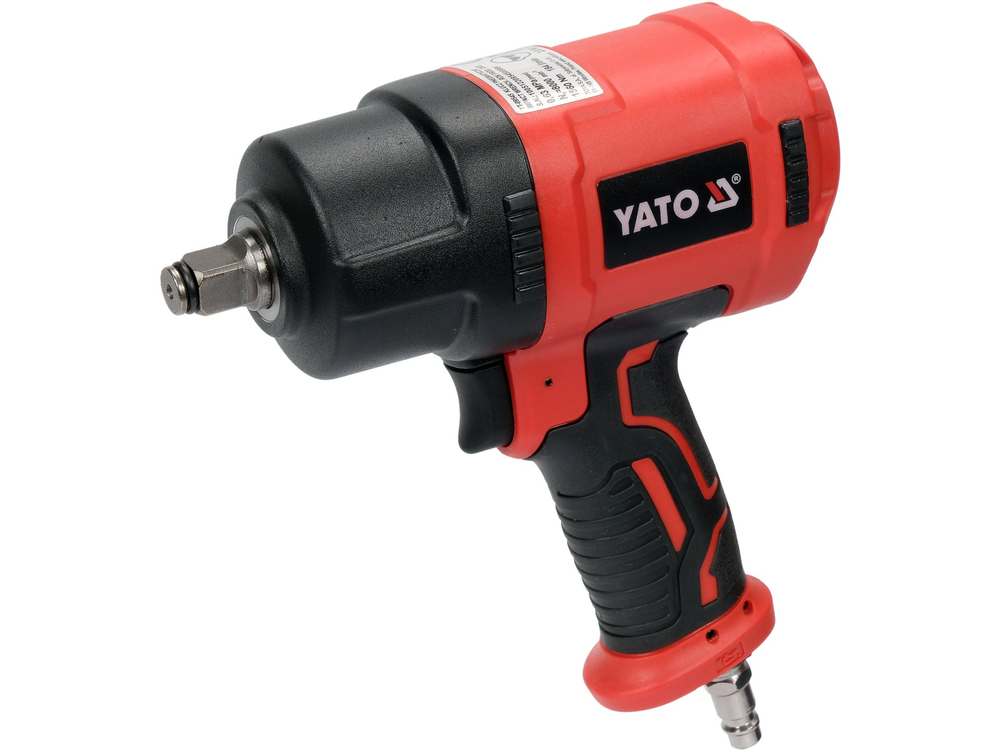

AIR IMPACT WRECH 1/2" 1560NM COMPOSITE
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Symbol
YT-09545
Producer code
5906083084393
Series
Toolholder size
1/2" (12.7 mm)
Toolholder type
Driver
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
184 l/min
Rotations
8000 min⁻¹
Max. torque
1560 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
179 mm
Casing material
composite, duralumin
Rotation switch
yes
Acoustic pressure
87.0 ± 1.0 dB(A)
Acoustic power
94.0 ± 2.0 dB(A)
Vibrations
9.4 ± 0.9 m/s²
Weight
2 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Safety Directives
2006/42/EC MD
Safety standards
EN ISO 11148-6:2012
Professional wrench with Twin Hammer mechanism recommended for use in industry, mechanical workshops and automotive service. High torque makes it easy to loosen tightly seized screws.

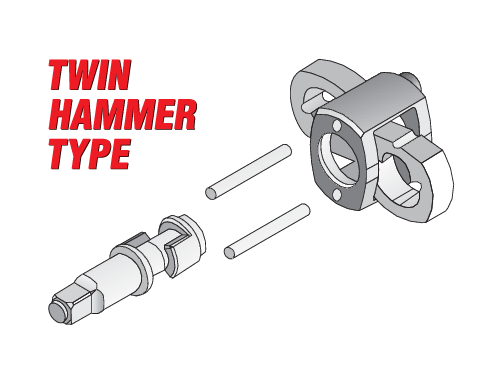

- Twin Hammer mechanism guarantees efficient loosening and enables high torque with low compressed air requirements
- durable composite body
- max. torque: 1560 Nm
- max speed: 8000 rpm
- air consumption: 184 l/min
- torque adjustment

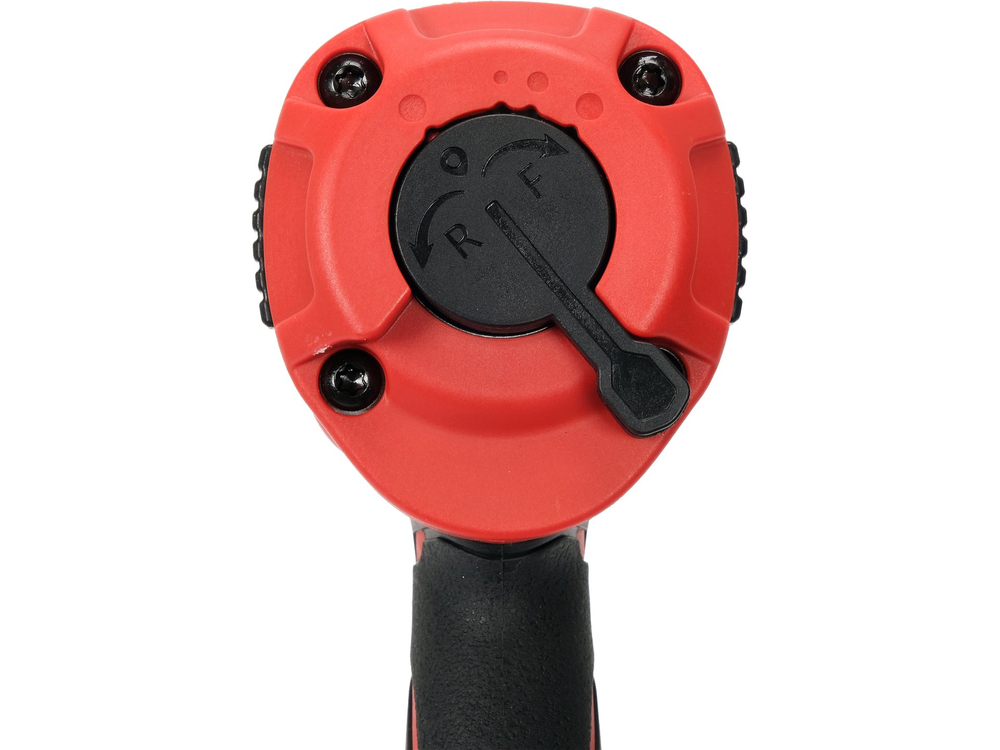

- right/left-hand rotation switch
- low weight of 2.1 kg and small size of 179 mm make it easy to reach hard-to-reach places
- grip: 1/2"
