YT-55503
PORTA POWER REPAIR KIT 10T
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Max. load capacity
10 t
Jaws force
0.5 t
Operating pressure
620 bar
Cylinder working range
355-495 mm
Piston stroke
135 mm
Connector thread size
13/16-20 UNEF
Pcs
15

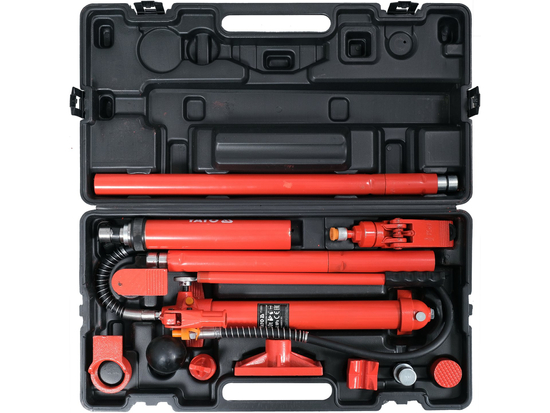

Set includes
hydraulic pump, actuator, extension x4 (140, 240, 340, 590 mm), spreading jaws, round cap, flat cap, actuator hook, piston hook, crevice attachment,
Set includes cont’d
V-type cap, rubber cap, male connector
Symbol
YT-55503
The 10-ton spreader is designed for workshop, assembly and sheet metal work requiring significant static forces. The device is used for lifting, stretching, spreading, bending, straightening and pulling.
- Piston stroke: 135 mm
- Pressure: 620 bar
- working range: 355-495 mm
- included:
- spreader pump
- 4 extensions: 140, 240, 340, 590 mm
- spreader jaws 0.5 t
- 8 accessories: round cap, flat cap, slotted cap, V-type and rubber cap, actuator and piston clip, male connector
