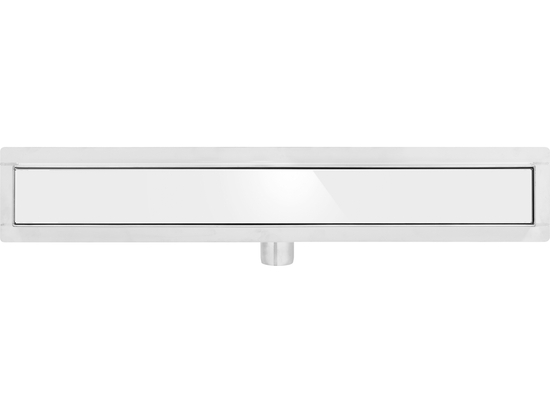

The Wave linear drain is an excellent idea for arranging the bathroom space in an elegant and practical way. The wide selection of available sizes allows you to optimally match its length to the dimensions of the shower enclosure or tiles and allows you to plan your shower space with greater freedom than with traditional shower trays.

• Façade drain is made entirely of AISI 304 stainless steel, which is characterized by a high level of durability
  • Made entirely of AISI 304 stainless steel, which is characterized by resistance to corrosion, detergents and mechanical damage
  • Trough length: 60 cm

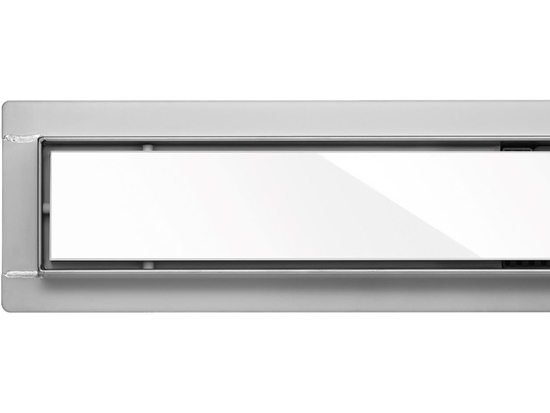

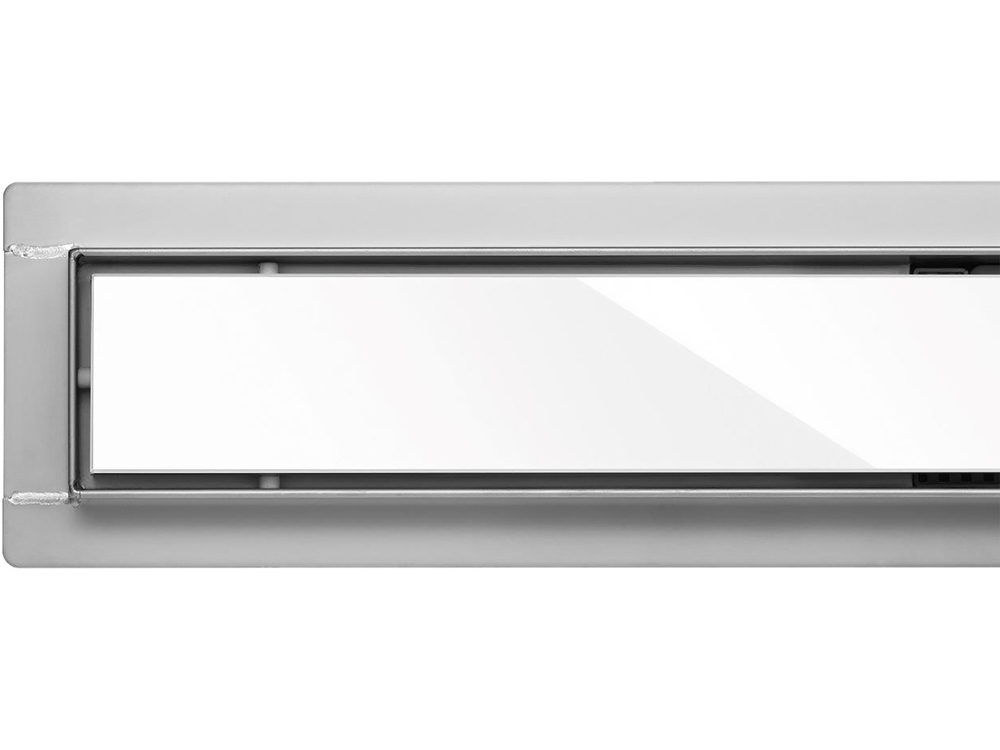

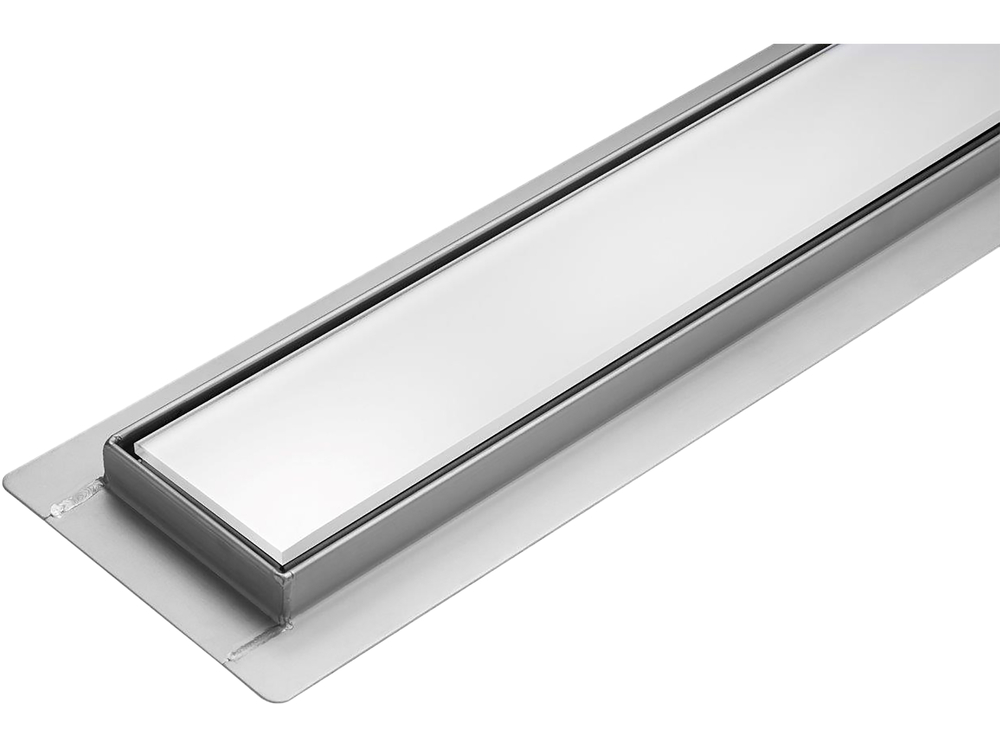

  • Grate design: white glass
  • Width: 70 mm (additionally flanged approx. 20 mm on each side)

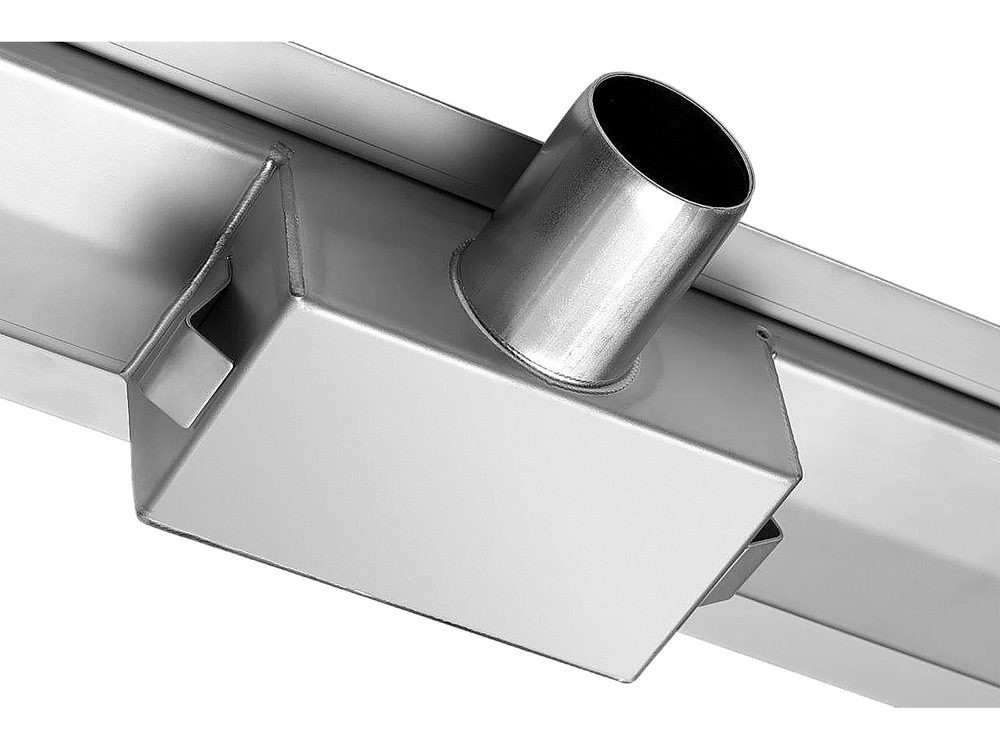

  • siphon height: 52 mm
  • steel gutter 1.2 mm thick and grate 1.5 mm thick
  • load class: K3
  • product thermal behavior class: A
  • flow rate: over 36 l/min (shower faucet has a maximum flow rate of 18 l/min)
  • product complies with EN 1253-1
  • equipped with amenities that guarantee comfortable and efficient operation for many years:

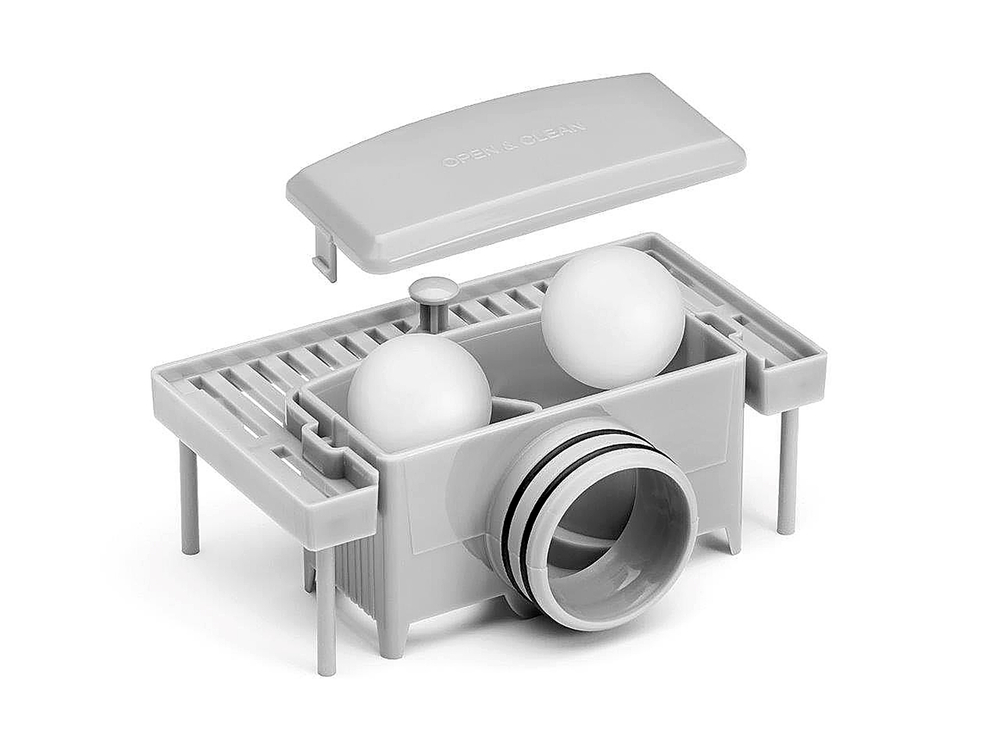

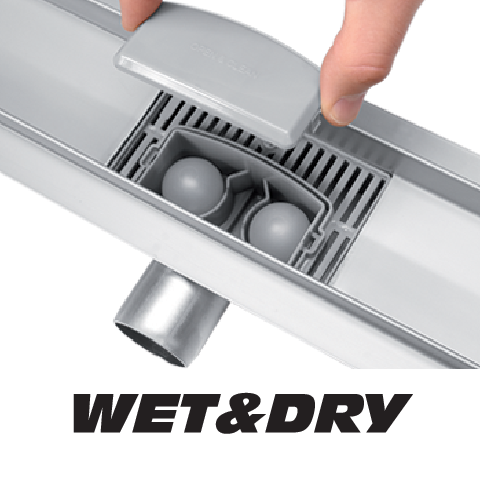

    • WET&DRY - a special solution in the siphon, which prevents the entry of odors and bugs during use, as well as after drying
    • SMARTthru - a special inspection window that gives 100% patency control and cleaning convenience

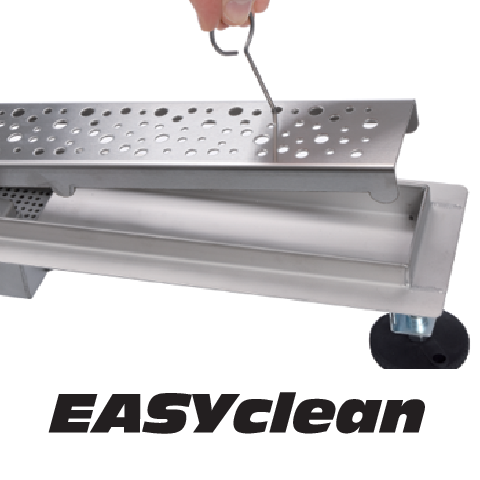

    • .EASYclean - easy cleaning with the included hook
    • GRIPstrong. - brackets stabilizing the body, additional bracing of the structure in the floor

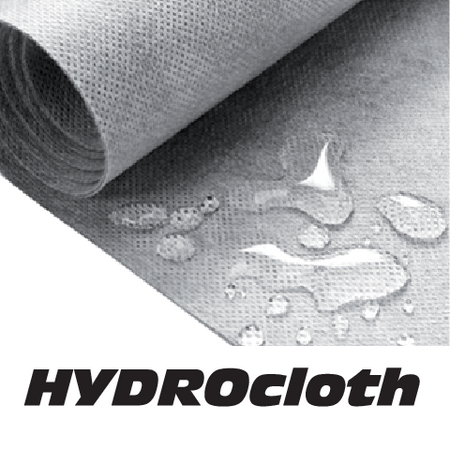

    • HYDROcloth - sealing mat essential for waterproofing

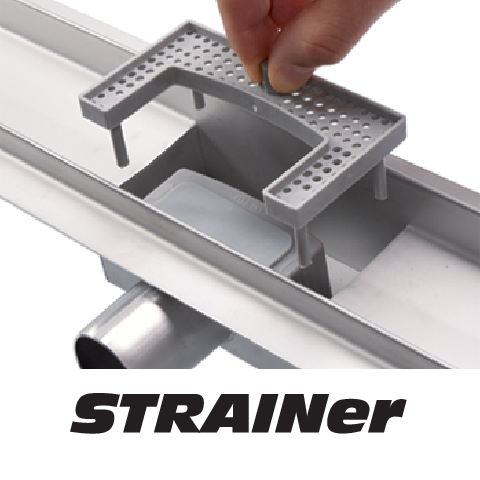

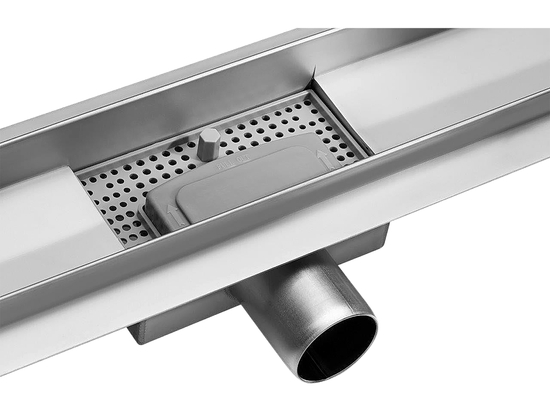

    • STRAINer - an effective and durable strainer that prevents clogging of the trap and facilitates ongoing drain maintenance

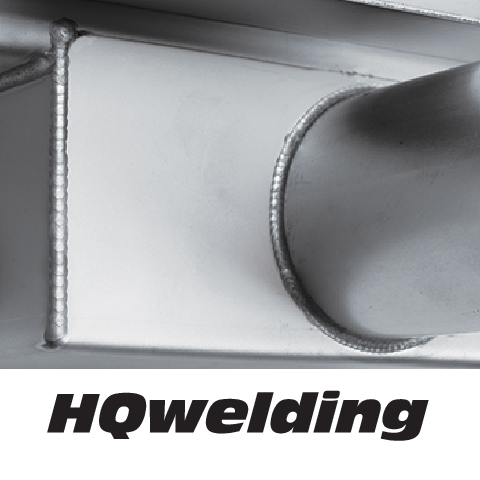

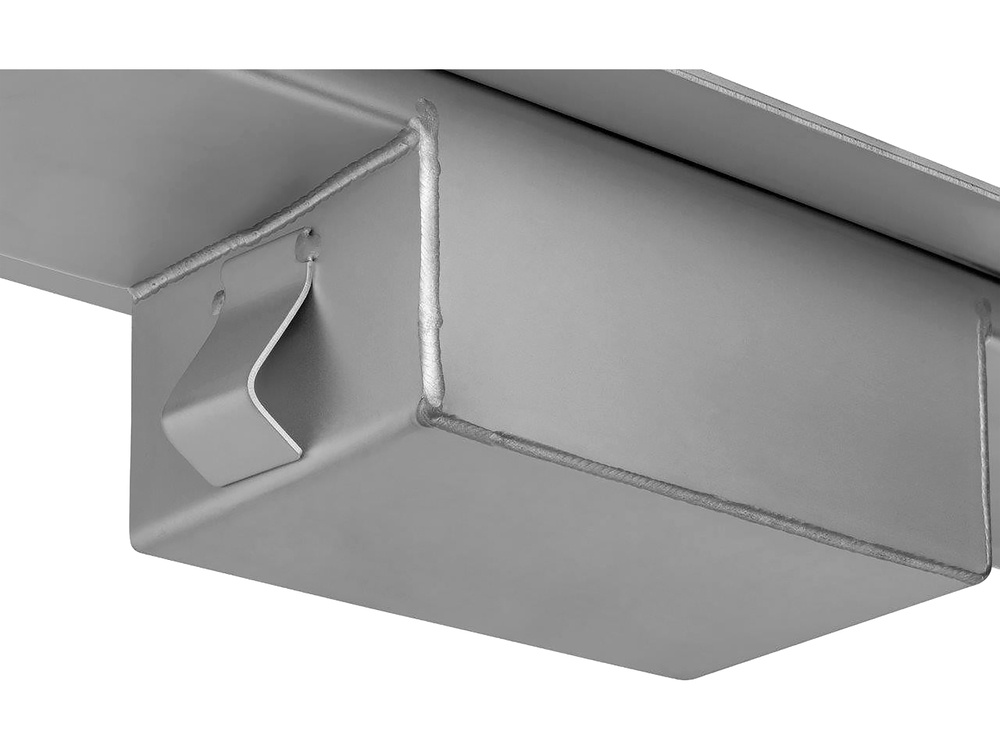

    • .HQwelding - high-quality precision welds that guarantee the tightness of the drain

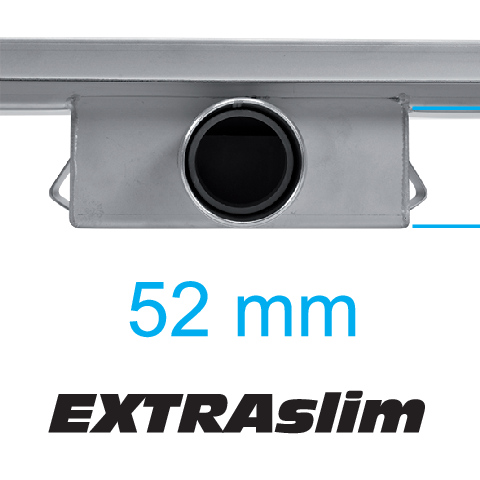

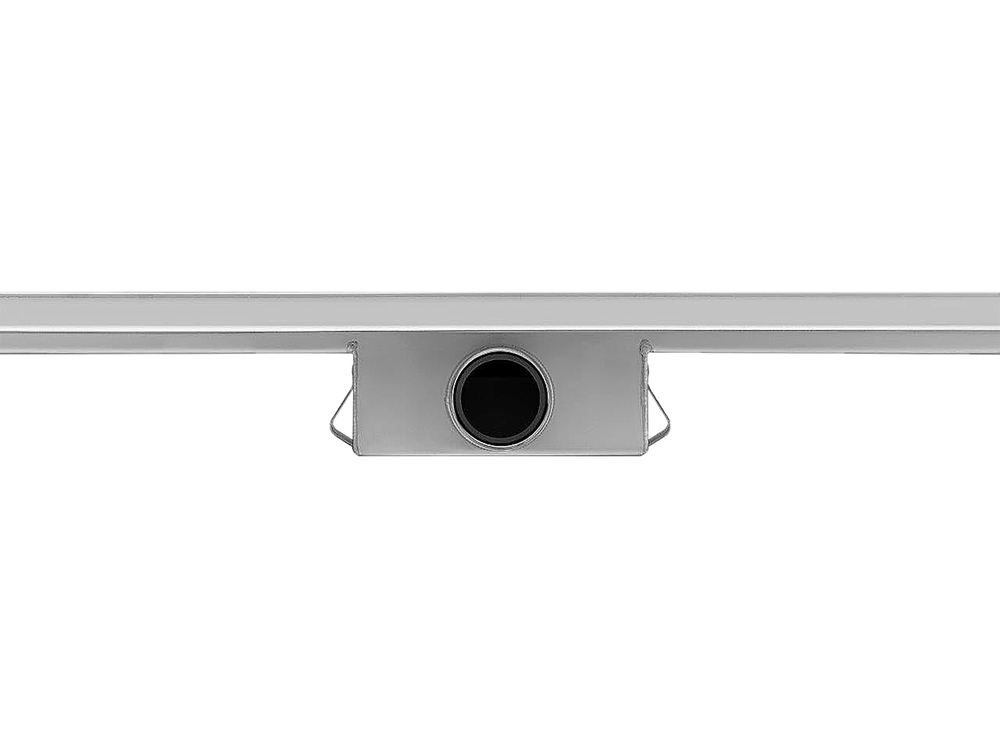

    • EXTRAslim. - made of AISI 304 stainless steel very low siphon, which makes installation easier

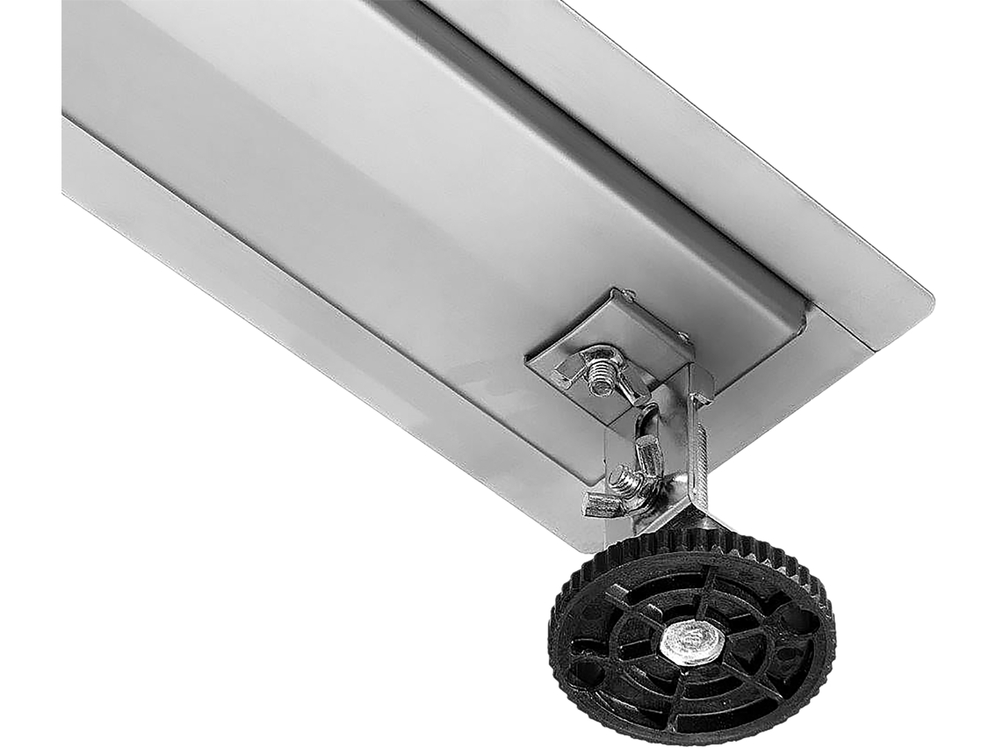

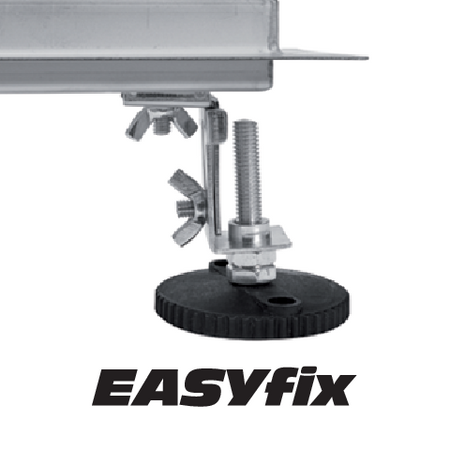

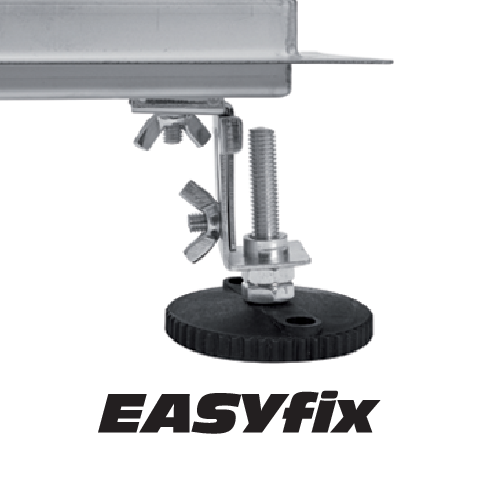

    • EASYfix - wide range of height adjustment, which allows the drain to fit the floor surface
    .
  • designed for bathrooms, laundry rooms, boiler rooms, swimming pools, balconies and terraces
  • included: drain trough with siphon, grate, sewer reduction 50/40 mm, adjustable mounting feet, insulation mat, hook for lifting the grate

The Wave drain has a 10-year warranty!
