71615
LINEAR DRAIN WET&DRY BLACK GLASS 70CM
Brand
Symbol
71615
Producer code
5906083086755
Series
Gutter length
700 mm
Series
Wet & dry black glass
Grate pattern
tempered glass
Material
stal nierdzewna 304
Gutter width
70 mm
Collar width
20 mm
Siphon height
52 mm
Connection size
50/40 mm
WET&DRY
Yes
EASYclean
Yes
GRIPstrong
Yes
HYDROcloth
Yes
STRAINer
Yes
HQwelding
Yes
EXTRAslim
Yes
EASYfix
Yes
Application
bathrooms - shower cabins, swimming pools - pools, laundries, boiler rooms, balconies, terraces
Contents of the set
grate, drainage trough with covering, sewage reduction, adjustable fastening feet, insulation mat, grate lifting hook
FALA linear drain is an excellent idea for elegant and practical arrangement of bathroom space. The wide range of available sizes allows you to optimally match its length to the dimensions of the shower enclosure or tiles, and allows you to plan the shower area with greater freedom than with traditional shower trays.
It is perfect for bathrooms, laundry rooms, boiler rooms, swimming pools, balconies and terraces.
- made entirely of stainless steel AISI 304, which is characterized by resistance to corrosion, detergents and mechanical damage

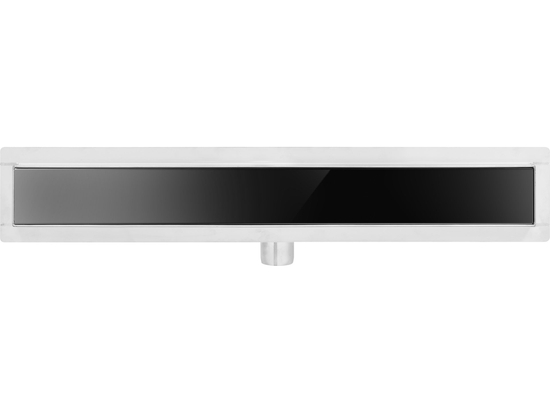

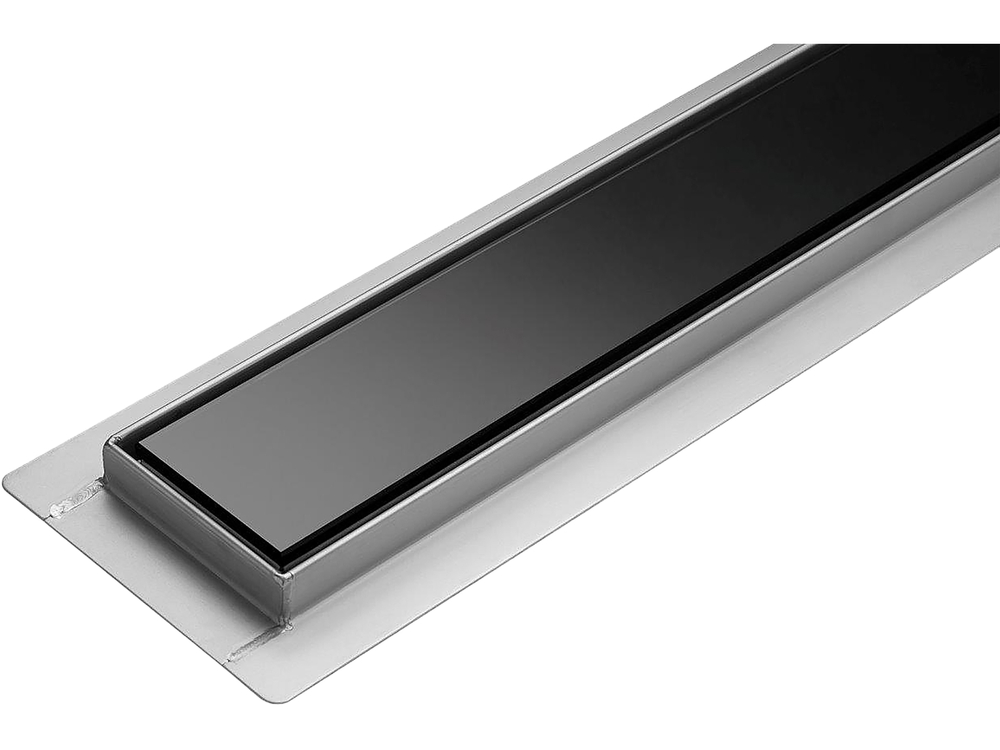

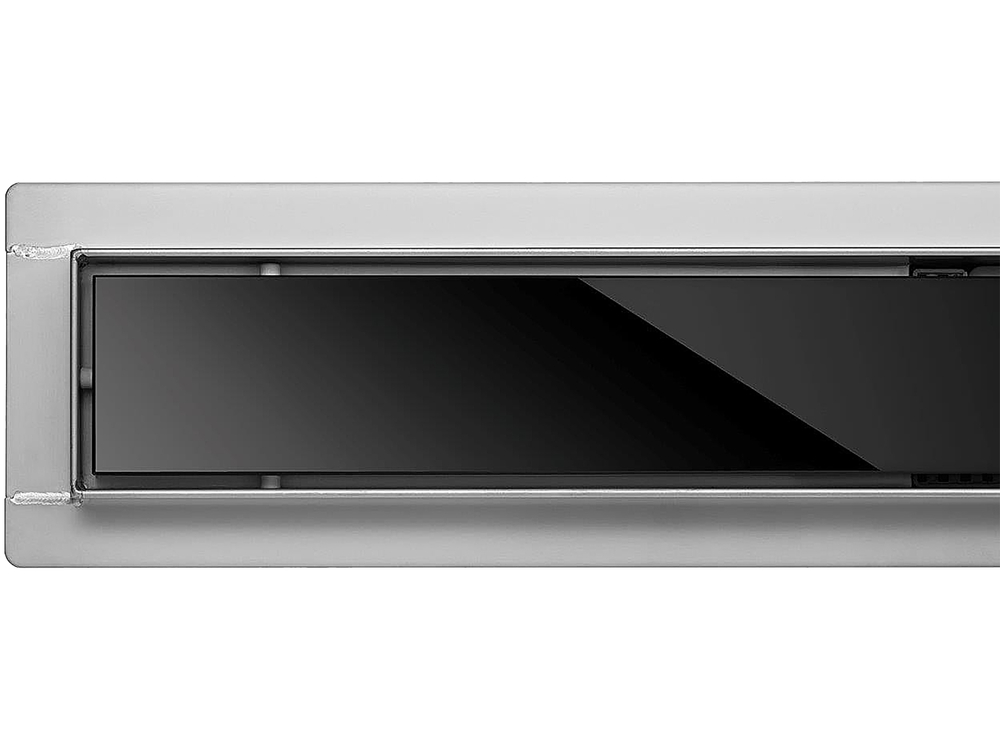

- grate design: black glass
- width: 70 mm (additional flange of about 20 mm on each side)
- siphon height: 52 mm
- thickness of gutter: 1.2 mm and grate: 1.5 mm
- load class: K3
- thermal behavior class of the product: A
- flow rate: over 36 l/min (shower mixer has a maximum flow rate of 18 l/min)
- product complies with EN 1253-1
- included: drain trough with siphon, grate, sewer reduction 50/40 mm, adjustable fixing feet, insulation mat, hook for lifting the grate
FALA drain is equipped with facilities that guarantee comfortable and efficient operation for many years:

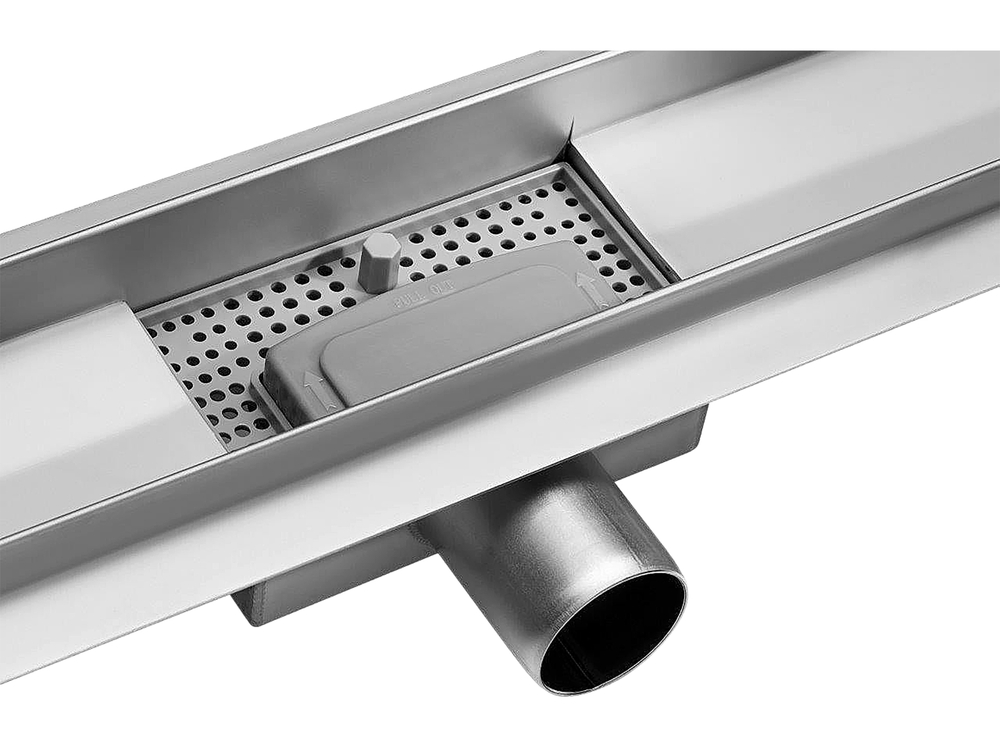

- WET&DRY - a special solution in the trap, which prevents the entry of odors and bugs during use, as well as after drying out
- SMARTthru - special inspection window giving 100% patency control and cleaning convenience

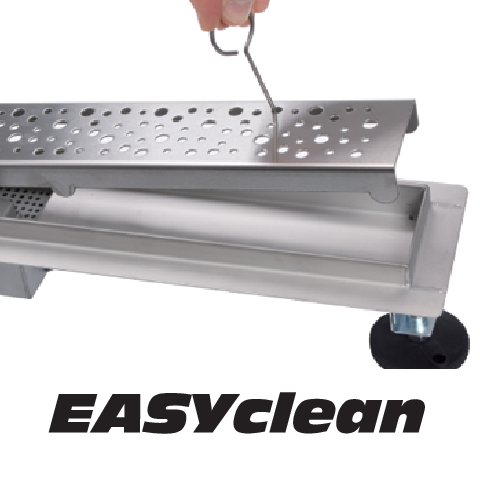

- EASYclean - easy to clean with the included hook

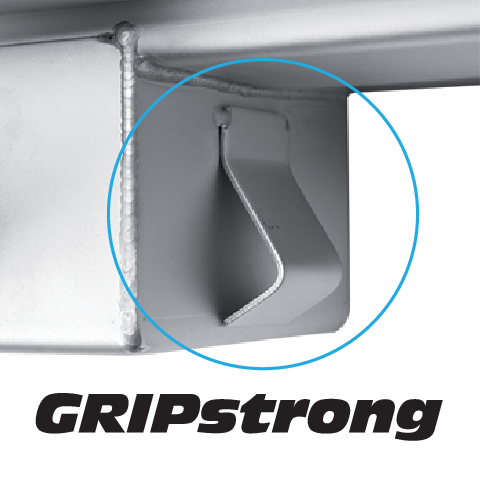

- GRIPstrong - handles stabilizing the body, additionally stiffening the structure in the floor

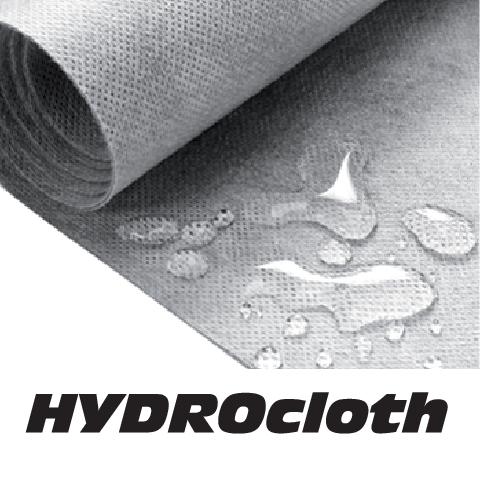

- HYDROcloth - sealing mat essential for waterproofing

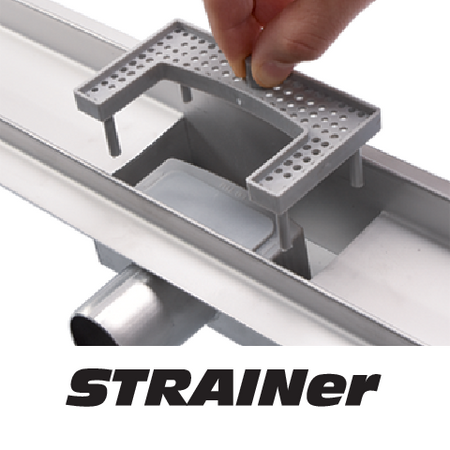

- STRAINer - an effective and durable strainer that prevents clogging of the trap and facilitates ongoing drain maintenance

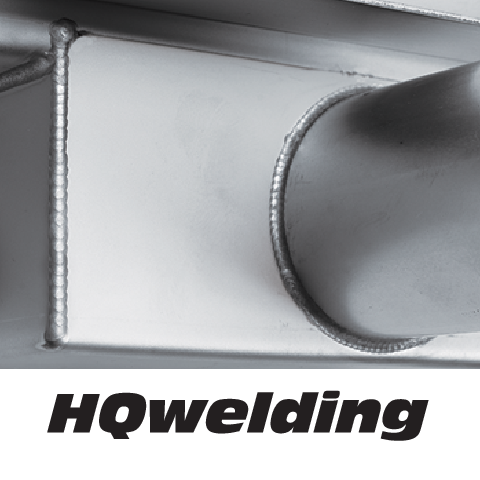

- HQwelding - high quality precision welds that guarantee the tightness of the drain

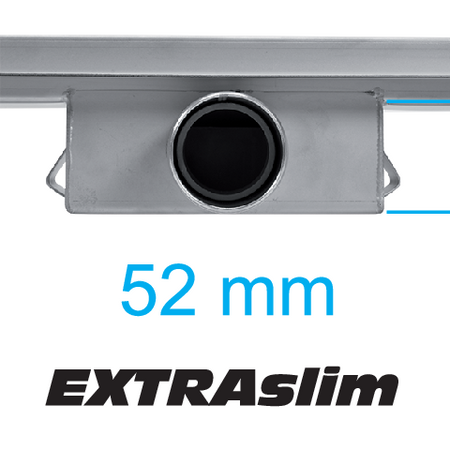

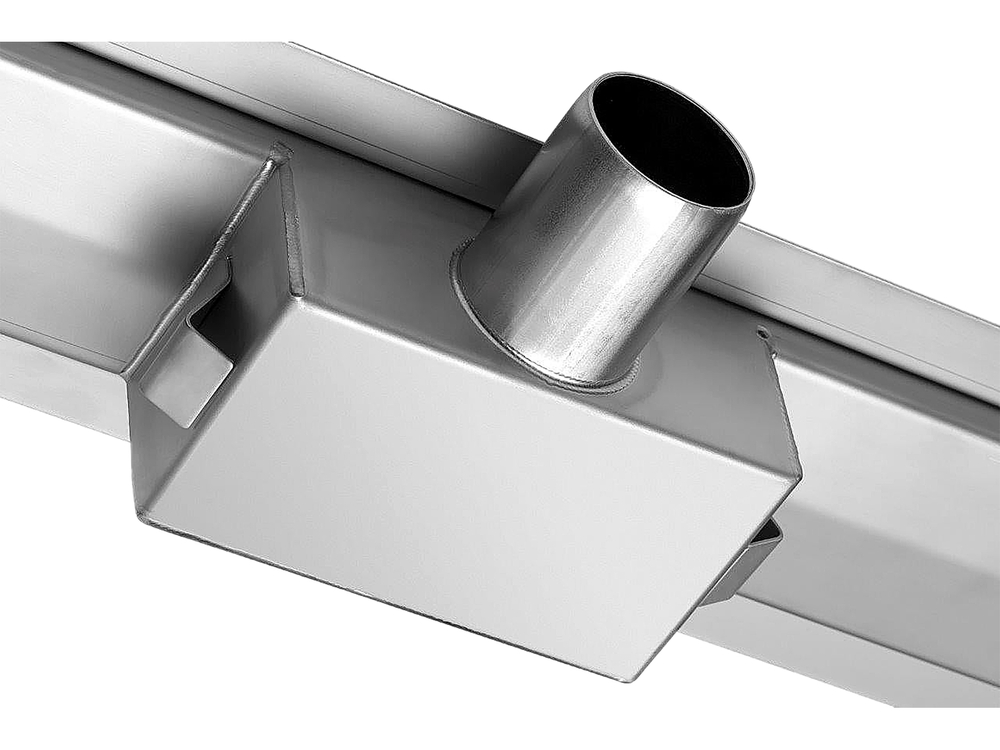

- EXTRAslim - made of AISI 304 stainless steel extra low siphon, which makes installation easier

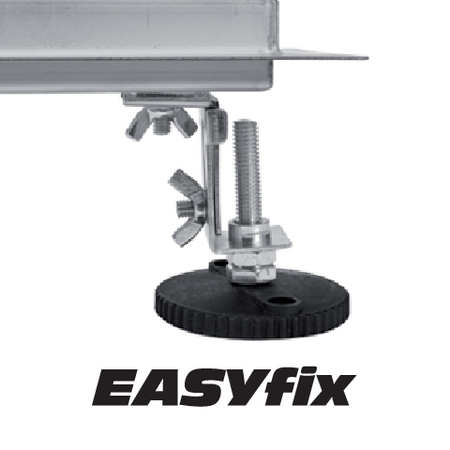

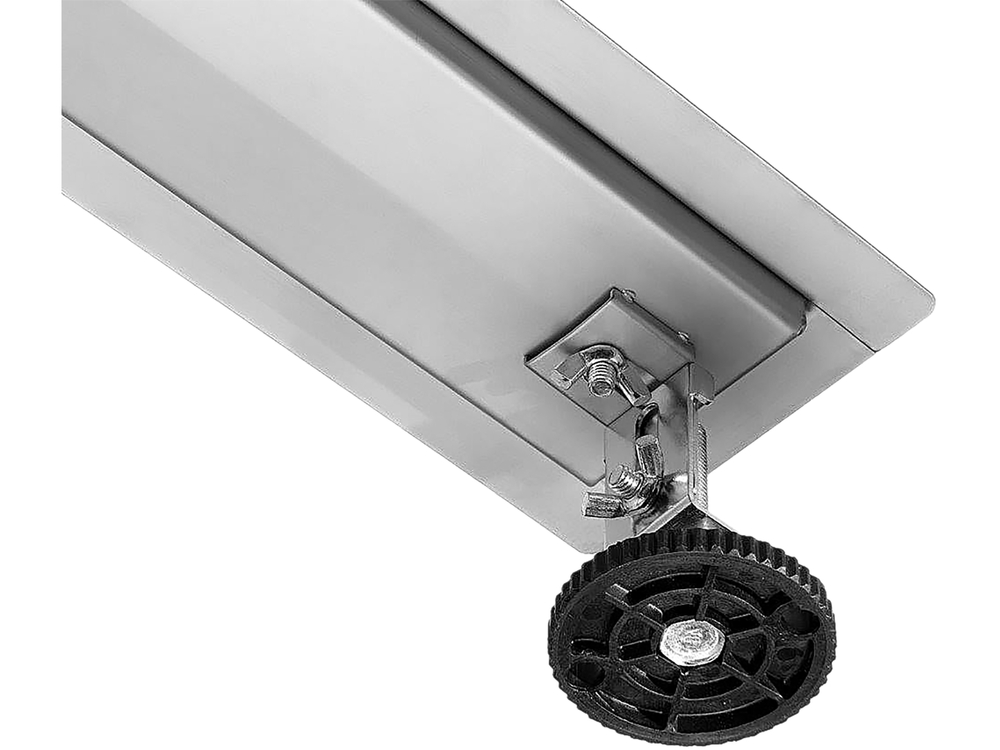

- EASYfix - wide range of height adjustment, which allows the drain to fit the floor surface
The Fala drain has a 10-year warranty!
