YT-81302

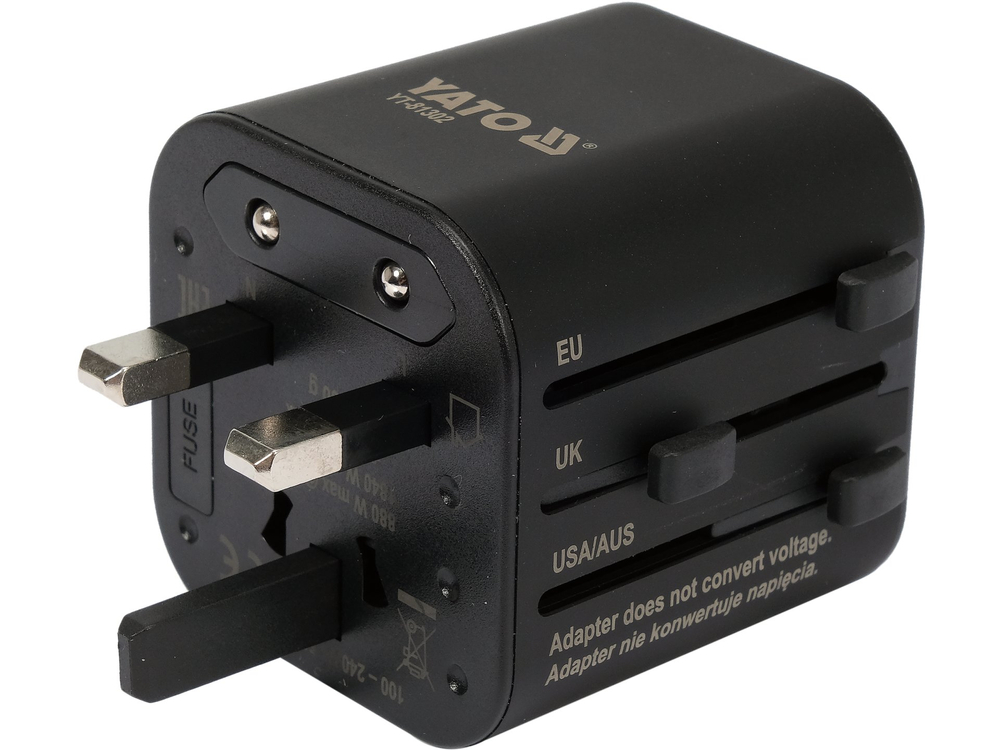

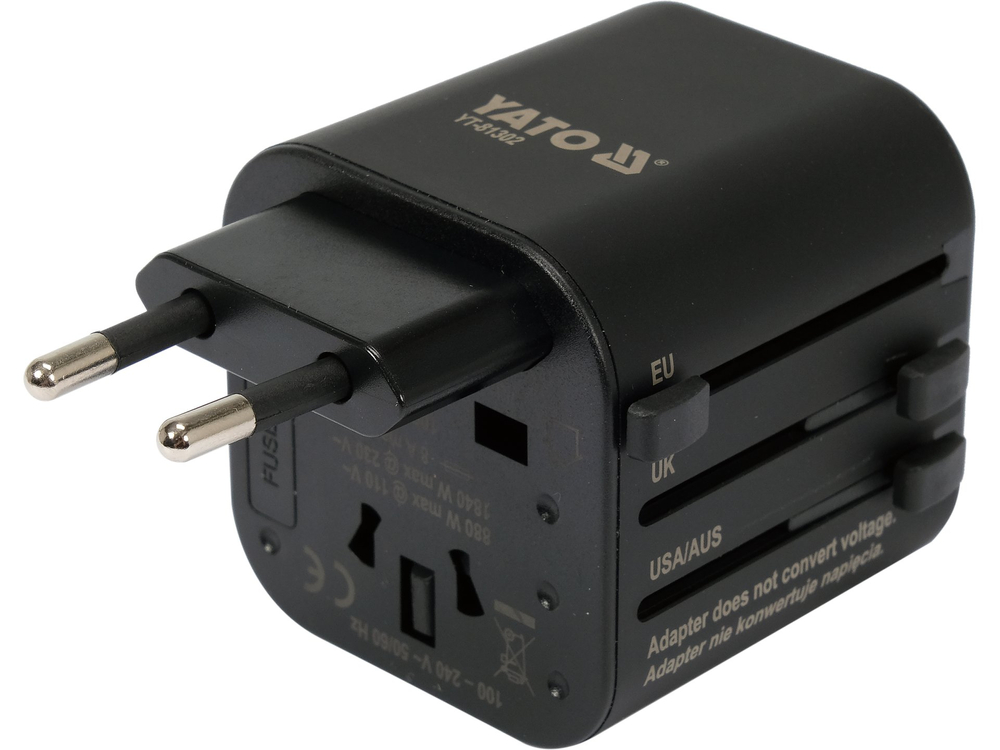

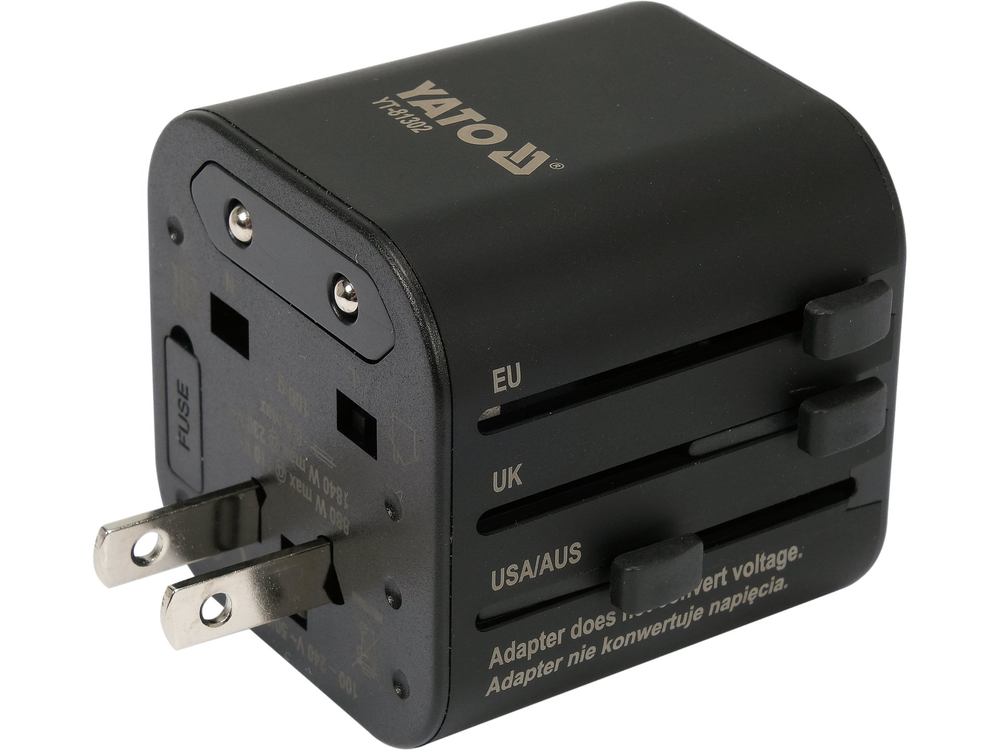

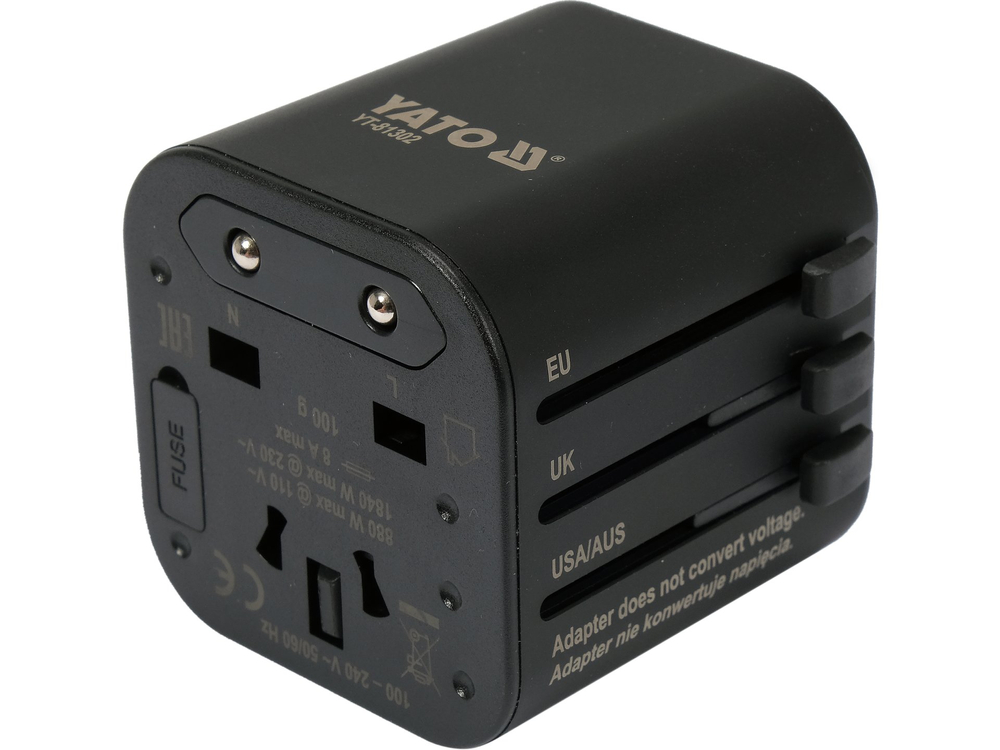

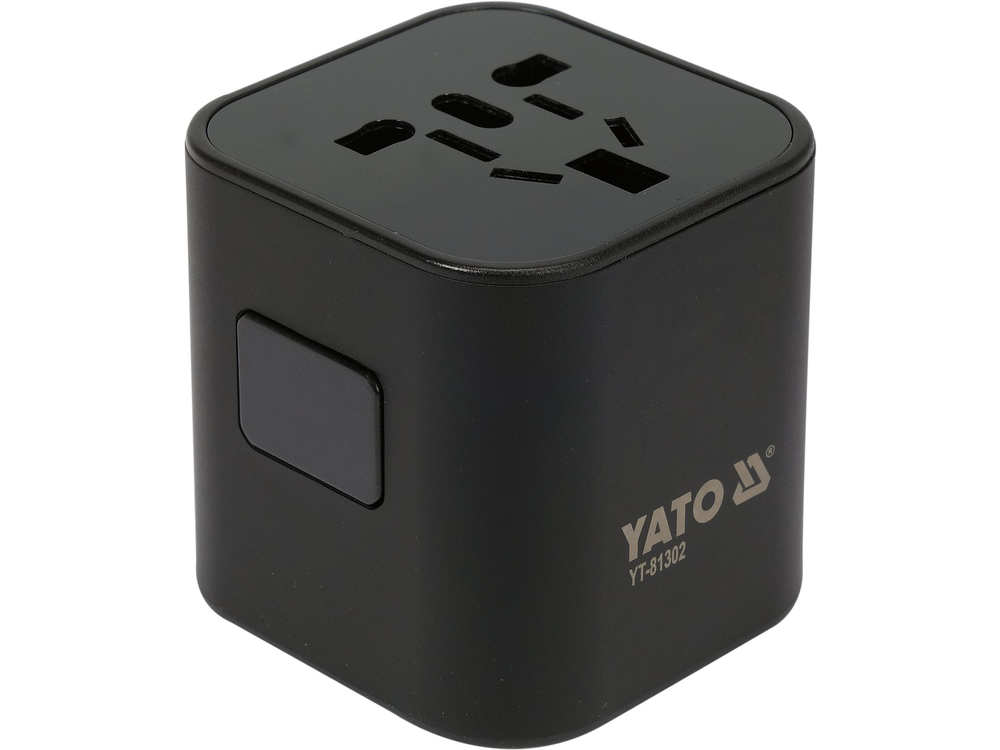

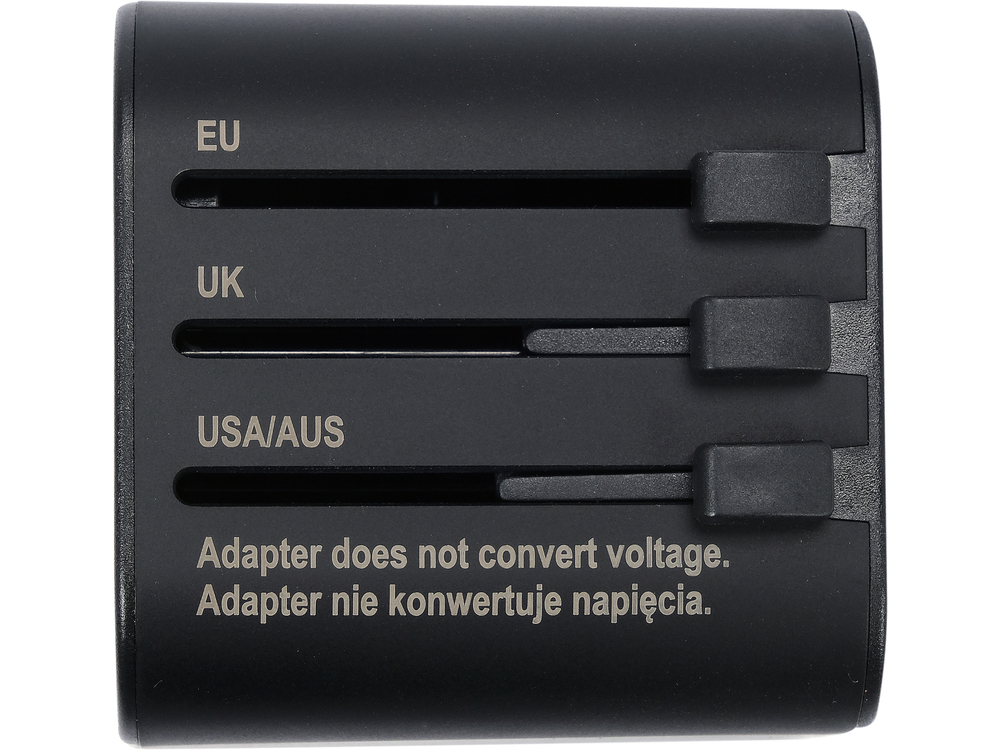

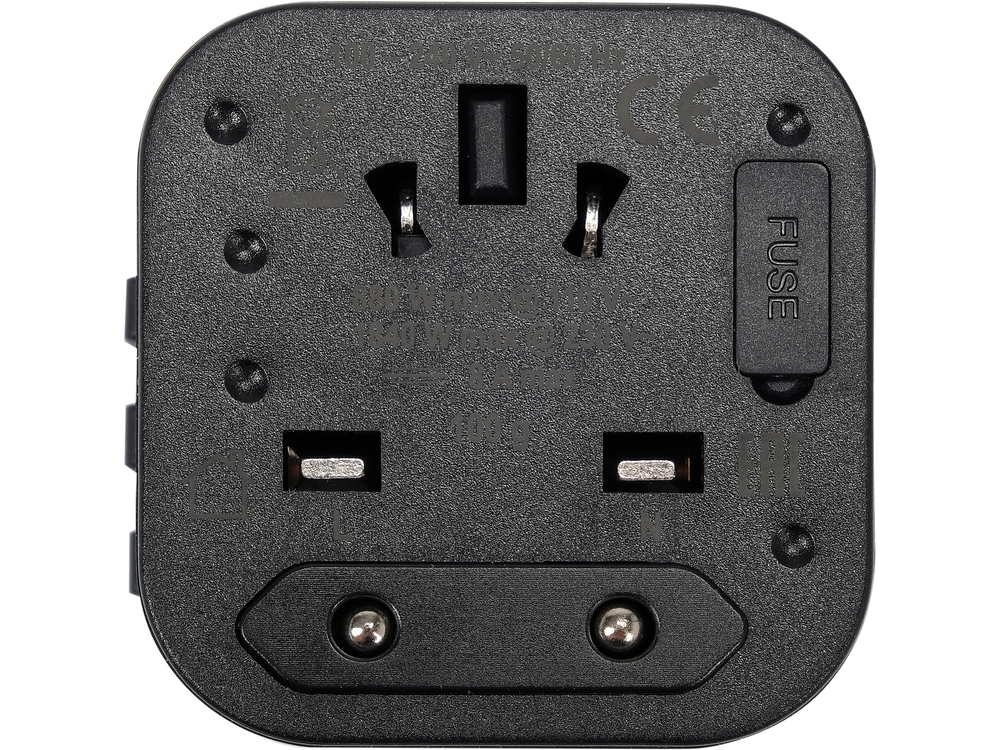

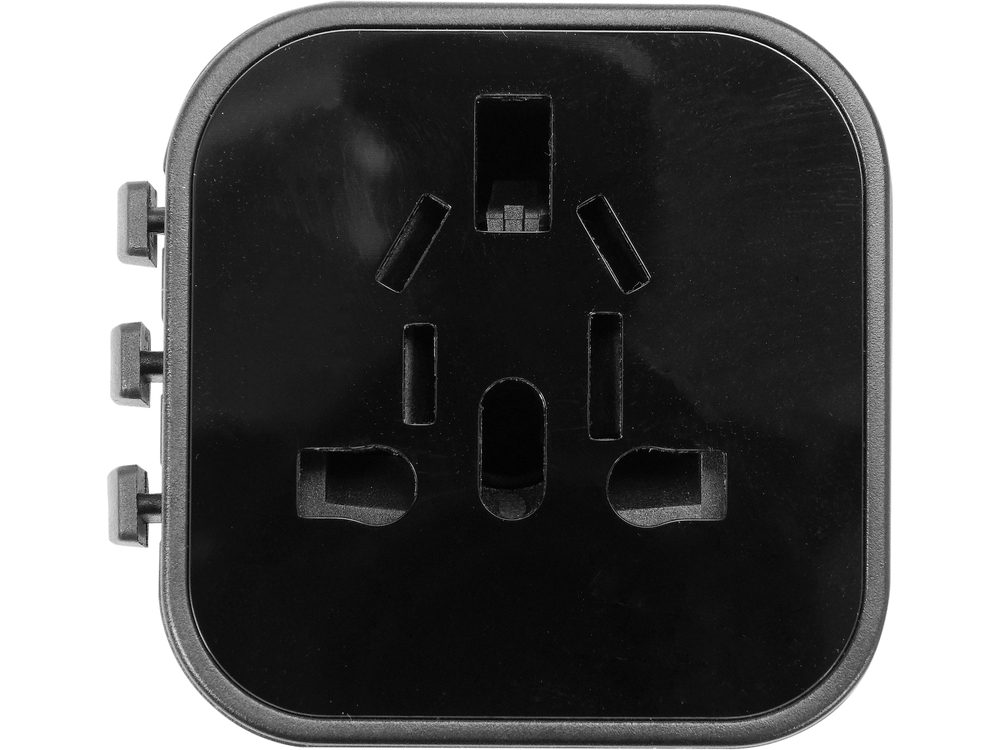

UNIVERSAL TRAVEL ADAPTER
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of
universal socket and plugs
Plug type
I (AU, CN), G (UK), A (USA, JP), C (most of the EU)
Nest type
universal
Material
P.C
Color
black
Earthing
no
Voltage
110-240 V a.c.
Frequency
50/60 Hz
Power
880 (at 110 V a.c.), 1840 (at 230 V a.c.) W
Max. power
1840 W
Max. current
8 A
Min. power consumption
600 mA
Fuse
8A
Protection grade
IP20
Electric insulation class
II
Children protection
yes
Weight
100 g
Symbol
YT-81302
Adapter adapted to the standard of more than 150 countries.
Removable plugs with a locking mechanism that prevents the pins from sliding back into the housing. Adapter protected against short-circuit by an easily accessible ceramic fuse. Housing made of durable flame-retardant plastic.
- universal outlet with child protection
- four types of plugs
- maximum power at 230 V: 1840 W
- ceramic fuse: 8 A
- dimensions: 50 x 53 x 52 mm
UWAGA
Note
The mains voltage in most countries using the Type A, B and I outlet standard is different from the European standard. The adapter does not convert 230V mains voltage to 110V. Devices that are not suitable for AC 100-250 V may not work properly.
