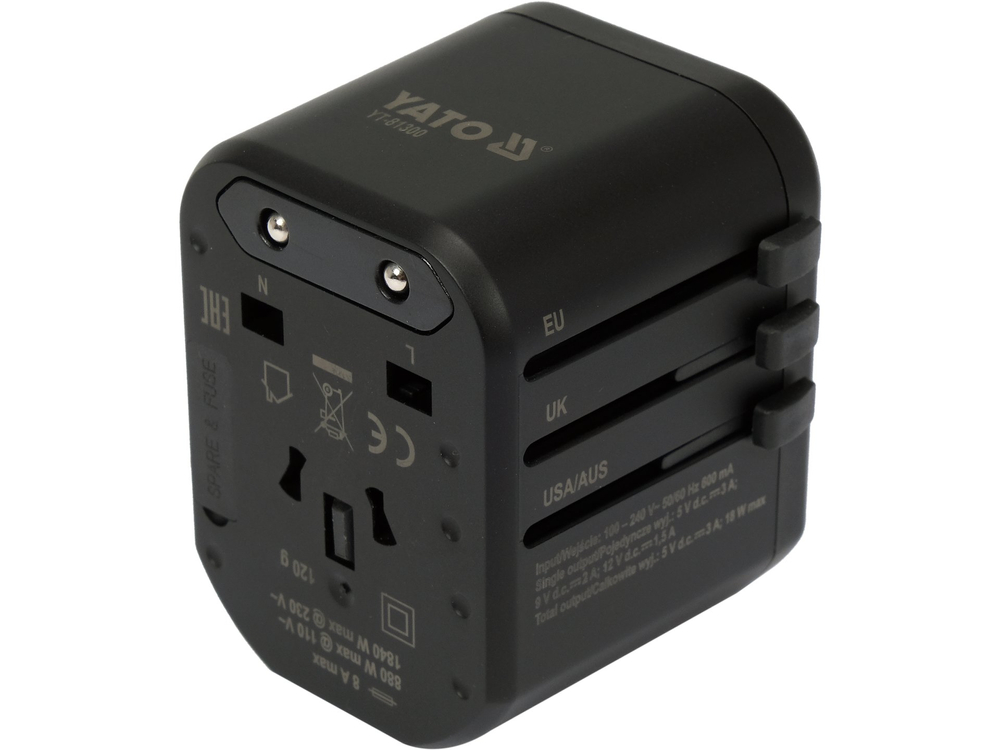

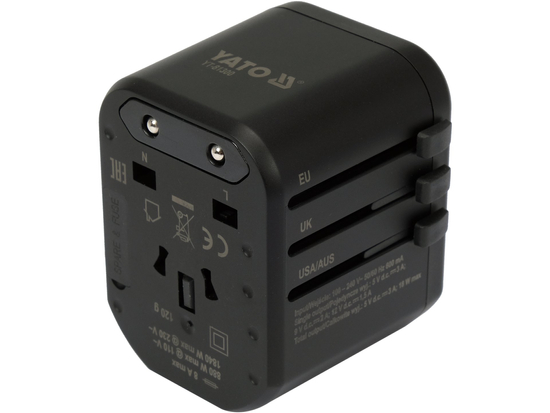

Adapter with built-in charger with two USB ports with fast charging technology suitable for more than 150 countries.

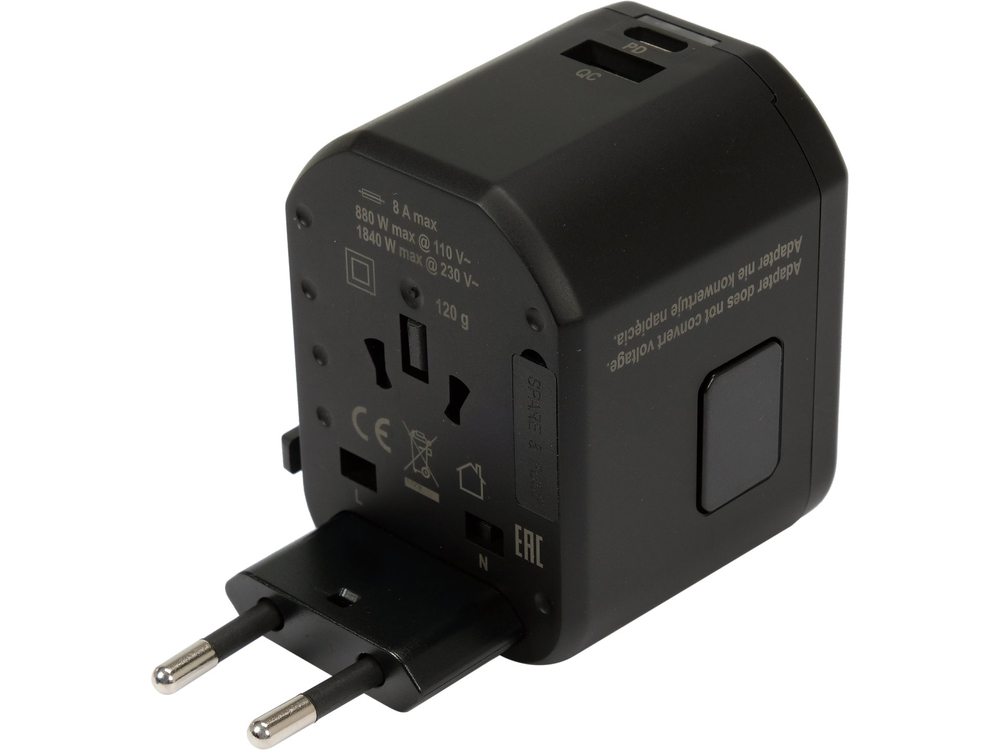

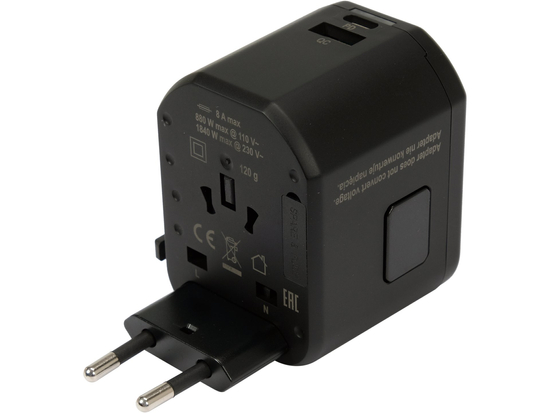

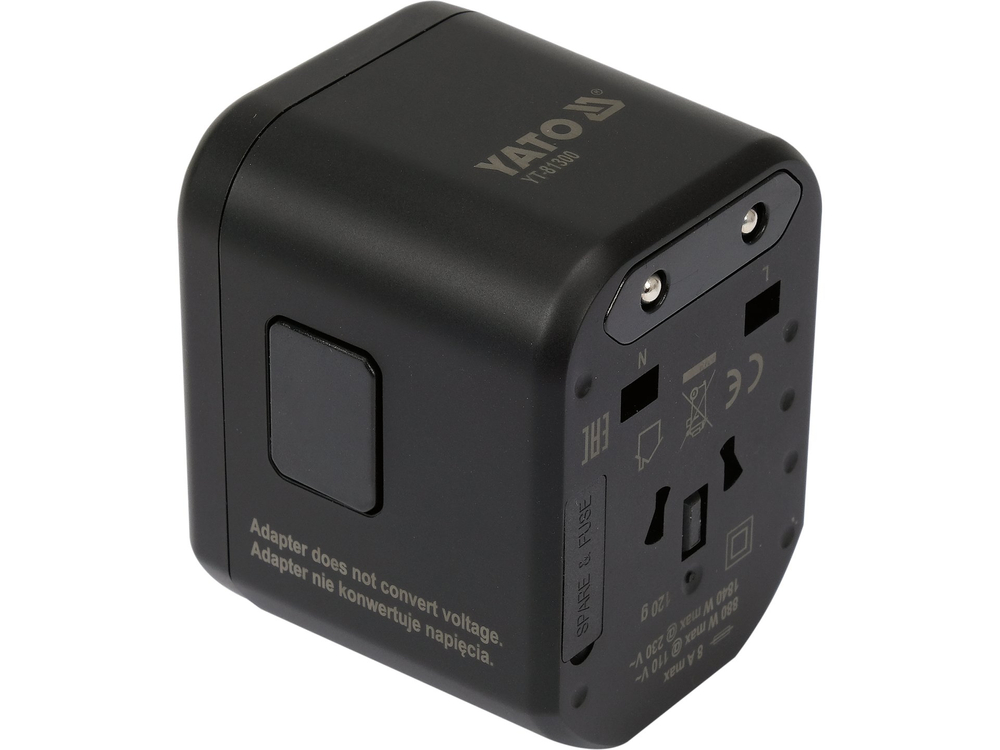

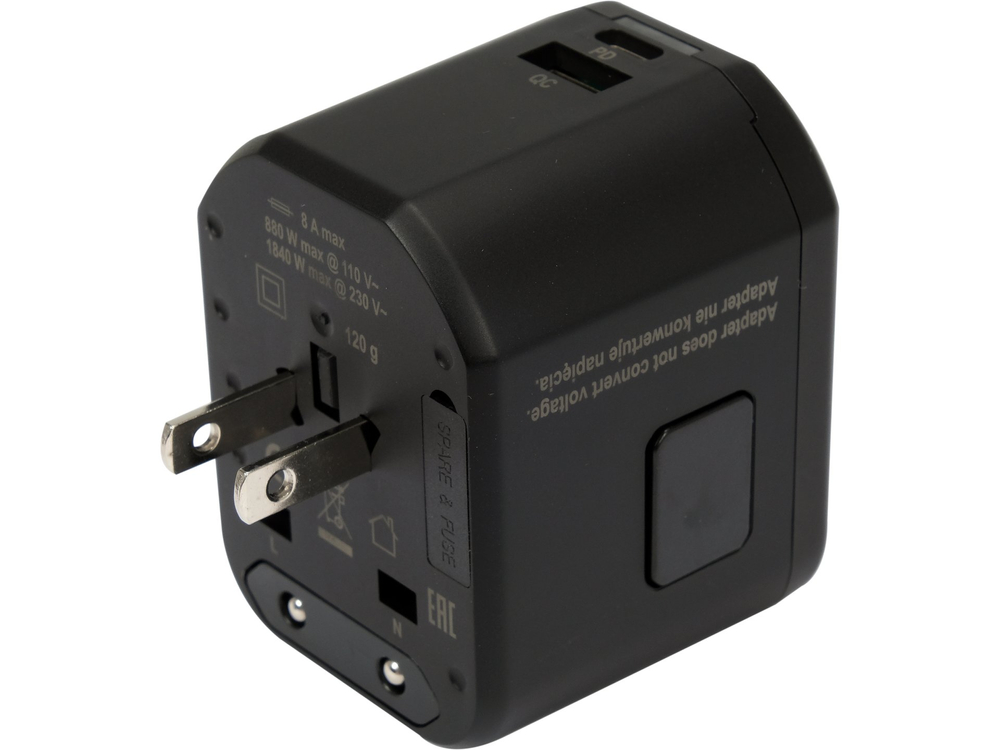

Removable plugs with a locking mechanism that prevents the pins from sliding back into the case. Adapter protected against short-circuit by an easily accessible ceramic fuse. Housing made of durable flame retardant plastic.

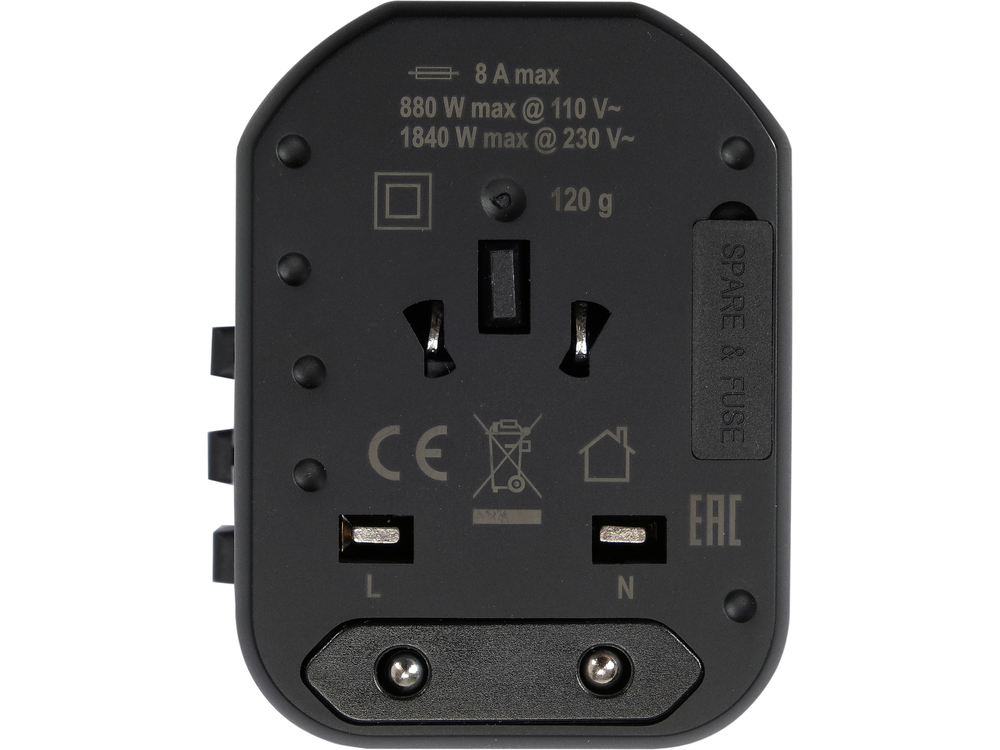

Function of the Adapter:

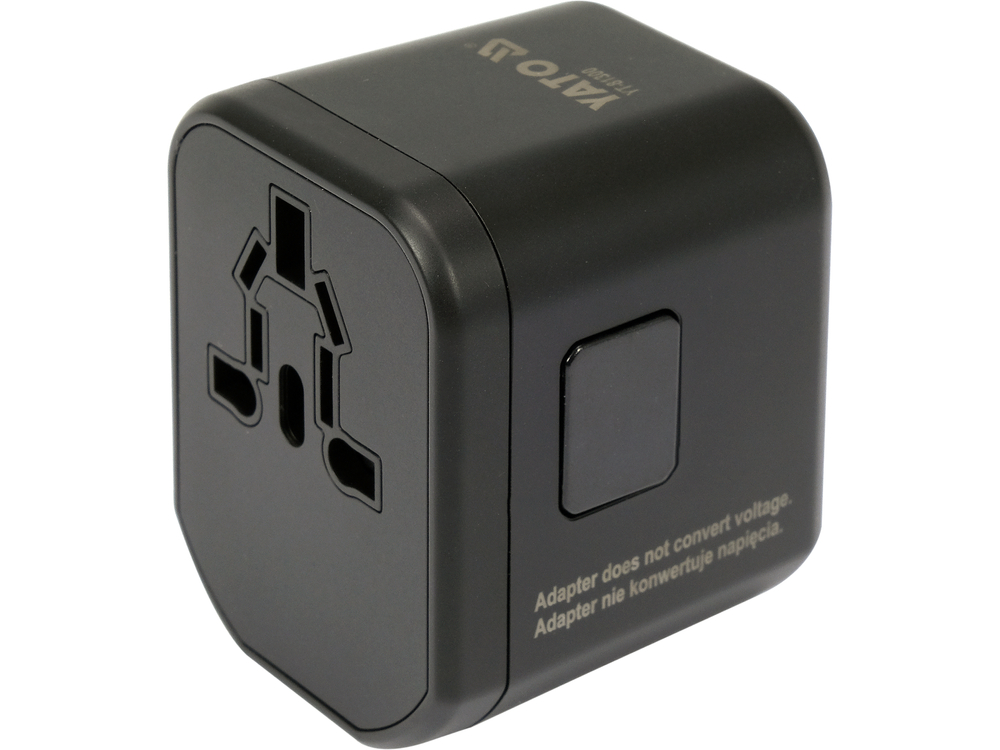

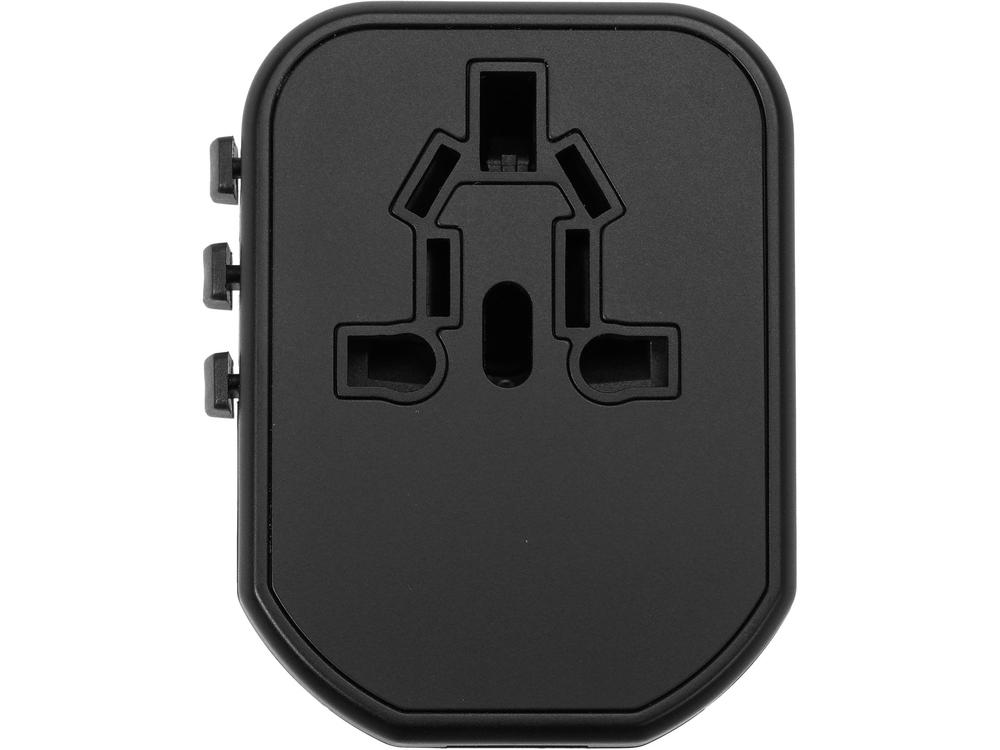

• universal outlet with child protection

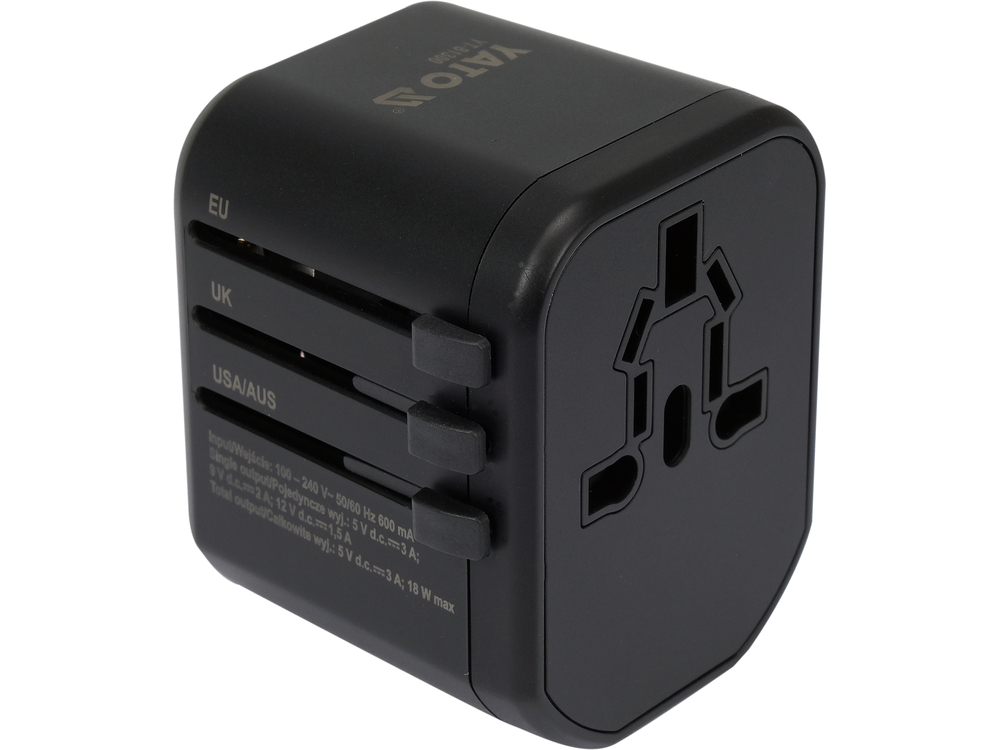

• four types of plugs
• maximum power at 230 volts: 1840 W
• ceramic fuse: 8 A
• dimensions: 68 x 53 x 52 mm
• spare fuse included

Power supply function:

• Maximum power: 18W

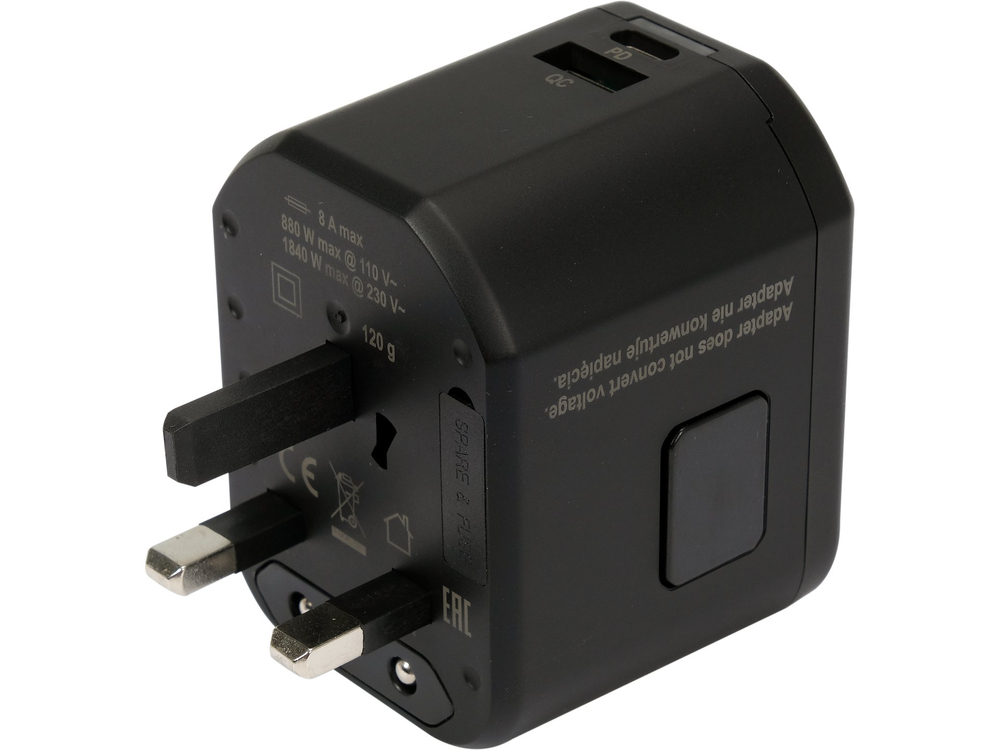

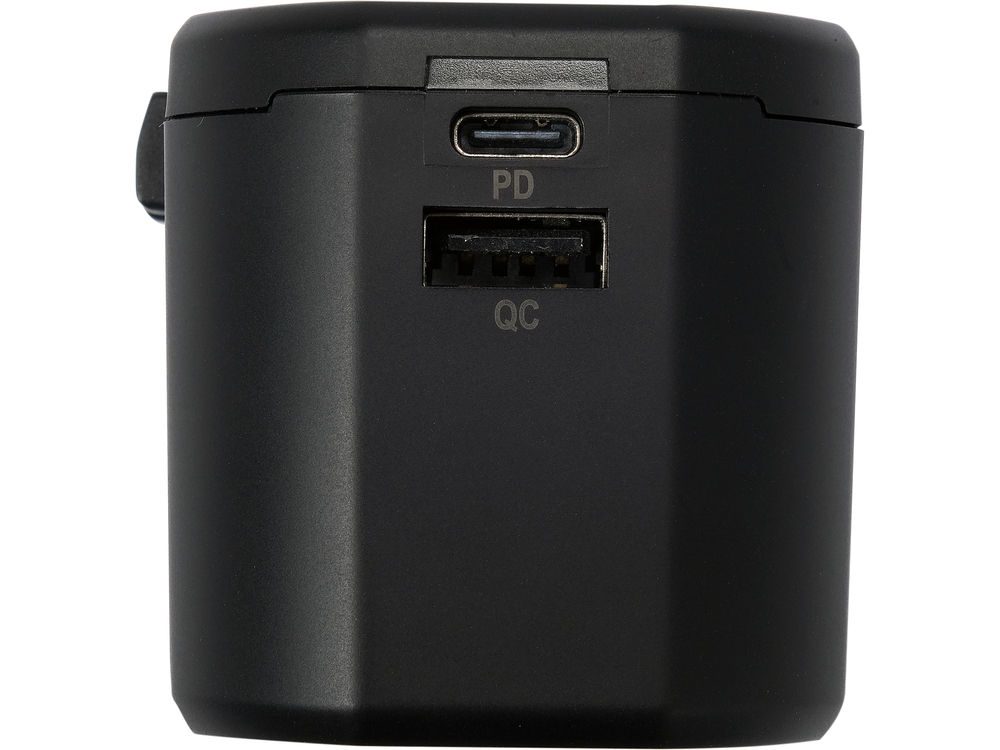

• USB-C socket with PD (power delivery) technology: 5V/3 A, 9V/2 A, 12V/1.5 A
• USB-A socket with Q.C. technolgy. 3.0 (quick charge): 5V/3 A, 9V/2 A, 12V/1.5 A

Quick Charge Technology

Nearly all modern mobile devices like smartphones and tablets support fast charging technology. The most popular of these are PD and Q.C. In telegraphic terms, this technology allows batteries to be charged with a higher voltage.

A dedicated battery management chip communicates with the charger, can determine its capabilities and adapt to them. The higher voltage allows charging at a lower current while maintaining the same or higher power. For example, at 5 V and 3 A we get 15 W of power, at 9 V and 2 A this power will be at 18 W. Similarly, with a voltage of 12 V and an amperage of 1.5 A.

The difference in power is not much at first glance. However, it is important to keep in mind the limitations of both the cable and the battery itself. The higher the amperage, the harder it is for both the cable's thin wires, its plugs, and the battery management system. For example, although the charger can deliver 3 A of current at 5 V, the cable and the phone's battery management system will usually not accept more than 2 A, which will ultimately translate into a power output of 10 W. However, if you increase the voltage, for example, to 9 V, then with the same charging current you will already get 18 W, that is, the device will be charged almost twice as fast.

Modern smartphones, in the name of ecology, are increasingly supplied without chargers. The Yato Universal Travel Adapter is not only an indispensable product for overseas travel, but also a high-quality fast charger with multiple test-confirmed parameters, which we can safely charge both our smartphones and tablets.

Note

The mains voltage in most countries using type A, B and I outlet standard is different from the European standard. The adapter does not convert 230V mains voltage to 110V. Devices not suitable for AC 100-250 V may not work properly.
