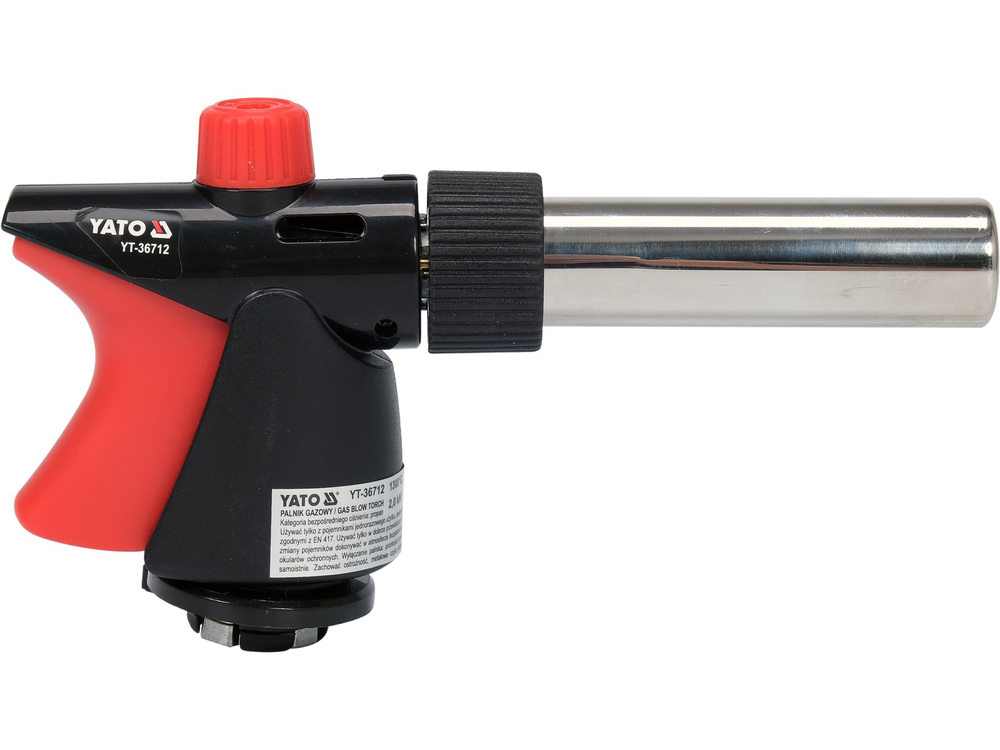

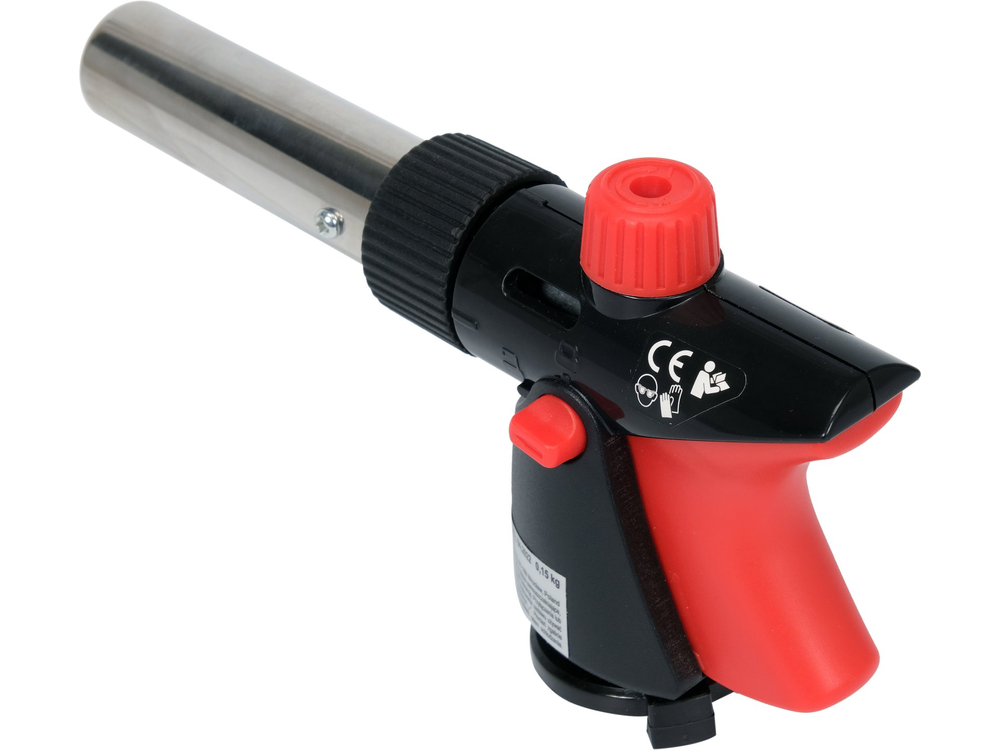

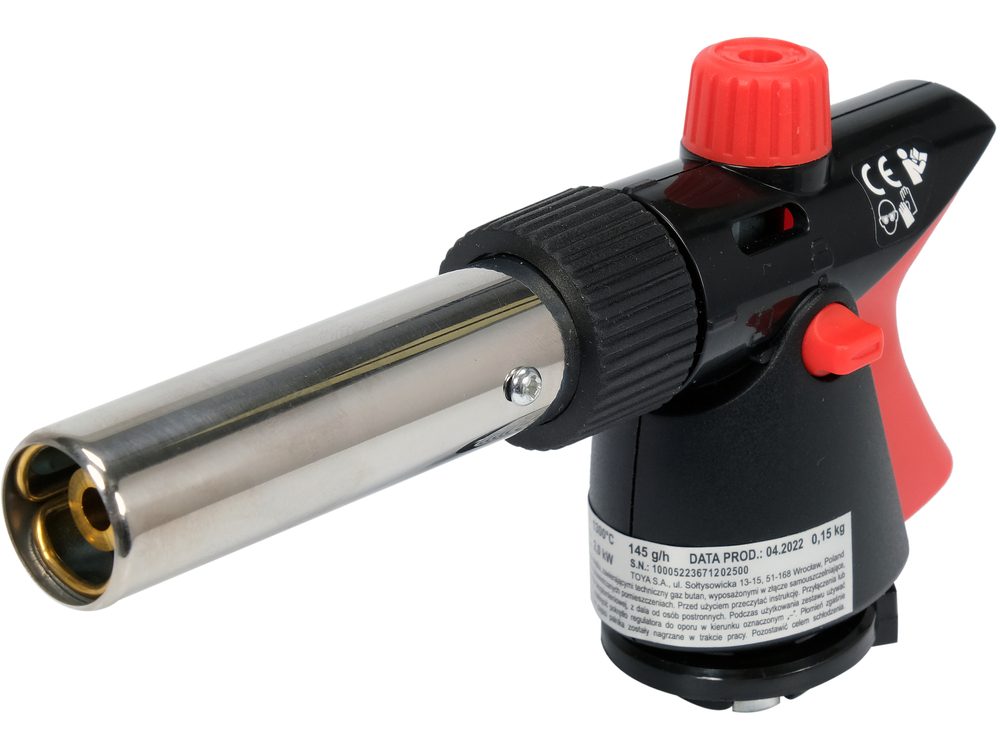

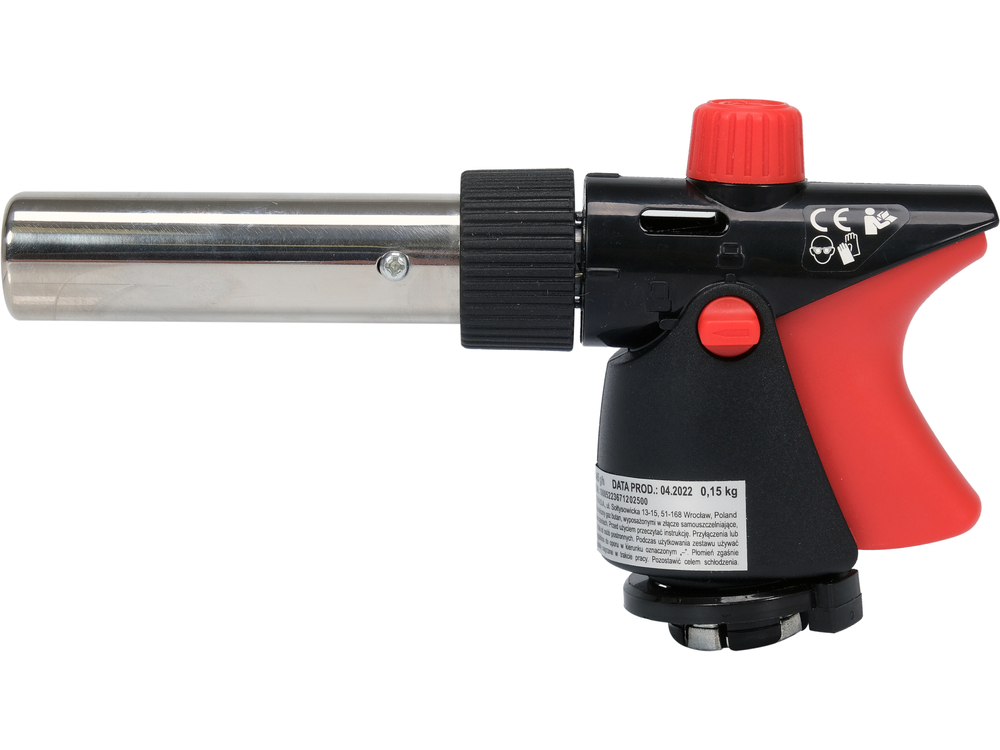

YT-36712
TORCH HEAD
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
2 kW

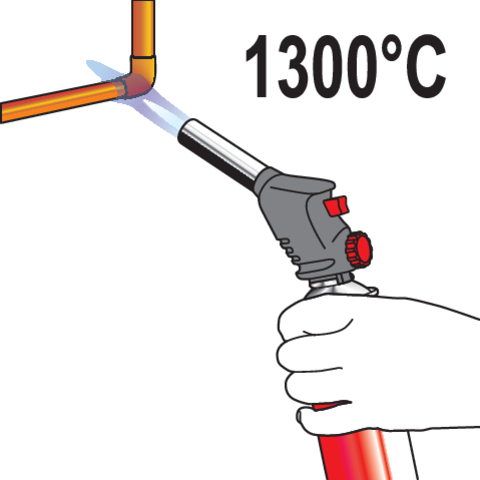

Flame temperature
1300 ˚C
Gas type
butane from an external cylinder

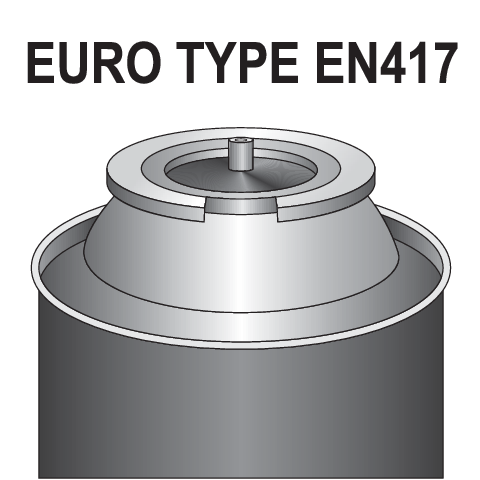

Gas tank type
disposable, self-sealing, under direct pressure, type EN417
Gas usage
145 g/h
Piezo ignition
yes

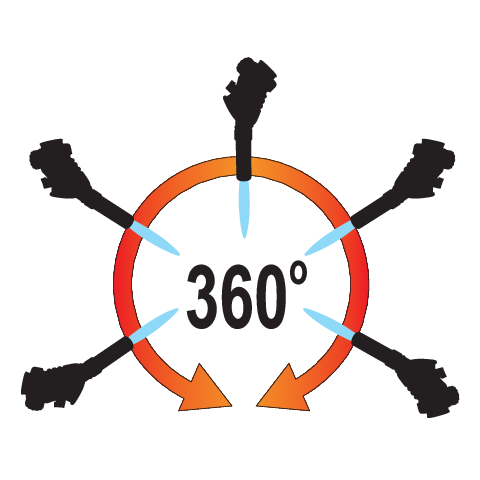

Operation angle
360 ˚
Head offset
360 ˚
Flame adjustment
yes
Weight with empty tank
0.15 kg
Application
jewelry, handicraft, shaping, gastronomy, burning small metal or wooden surfaces, lighting fireplaces, grills and stoves, bending and warm forming,
Application contd
heat welding and gluing, unscrewing stuck screws, reheating and thawing, shrinking of heat-shrinkable materials
Symbol
YT-36712
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__66749__Sklep_pikto/PIEZO.png")
![](https://pim.toya.pl/piktogramy/W_kW/image-thumb__53094__Sklep_pikto/2%2C0_kW.png")
![](https://pim.toya.pl/piktogramy/kg_g_g-min_g-h_g-m2/image-thumb__98975__Sklep_pikto/145_g-h.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__63570__Sklep_pikto/GAS_-_%2B_ENG.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__66758__Sklep_pikto/BUTANE_ENG.png")
Gas burner with piezo ignition designed for jewelry making, handicrafts, model making, catering work. It is used for burning small metal or wooden surfaces, heat bending and molding, welding and gluing, as well as lighting fireplaces, grills, stoves.
- power: 2 kW
- work angle: 360˚
- flame temperature: 1300˚C
- gas consumption: 145 g/h
- flame adjustment
- power supply: butane from external cylinder
- type of gas container: disposable, threaded, self-sealing, direct pressure, type EN417
- weight: 0.15 kg
Usage warnings:
Use only with disposable containers containing technical butane gas, equipped with a self-sealing connector, complying with EN 417.Use only in well-ventilated areas.
Read the instructions before using this device.
Make connections or changes to containers in a flameless atmosphere, away from bystanders.
Use safety glasses when using the kit.
Turning off the burner: Turn the control knob all the way in the direction marked "OFF". The flame will go out spontaneously.
Be careful, because the metal parts of the burner have been heated during operation. Leave to cool down.
