YT-09515
MINI AIR IMPACT WRECH 1/2" 1200NM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1/2" (12.7 mm)
Toolholder type
Driver
Stroke mechanism type
SINGLE HAMMER
Max. working pressure
0.63 MPa
Required air flow
142 l/min
Rotations
10000 min⁻¹
Max. torque
1200 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
130 mm
Casing material
aluminum

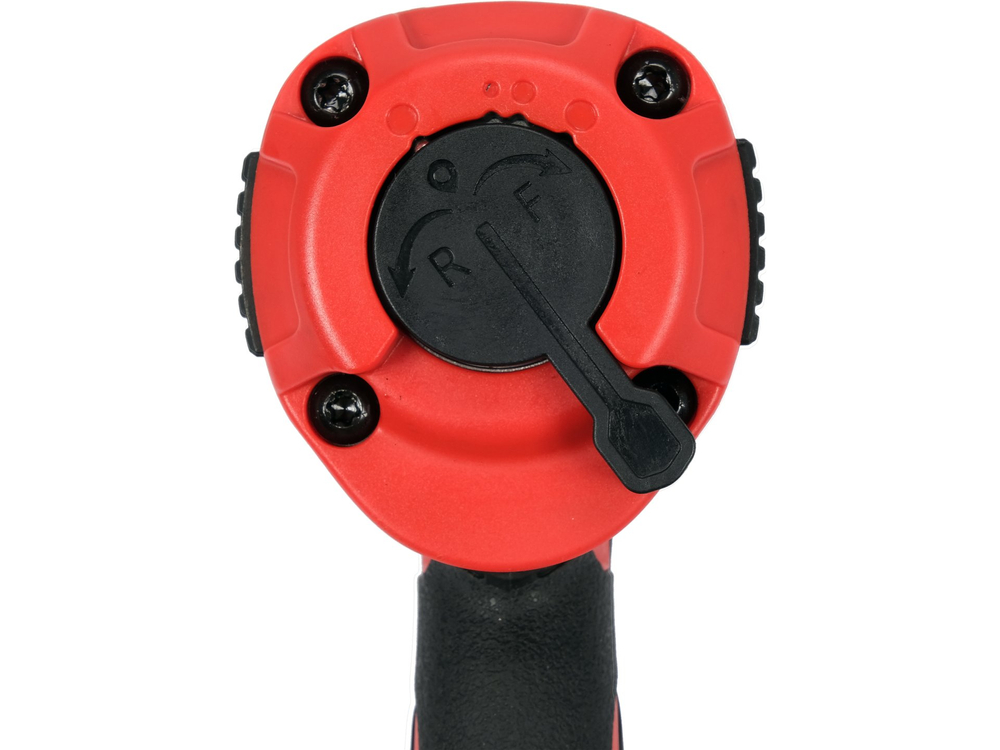

Rotation switch
yes
Acoustic pressure
87.0 ± 1.0 dB(A)
Acoustic power
94.0 ± 2.0 dB(A)
Vibrations
9.4 ± 0.9 m/s²
Weight
1.3 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09515

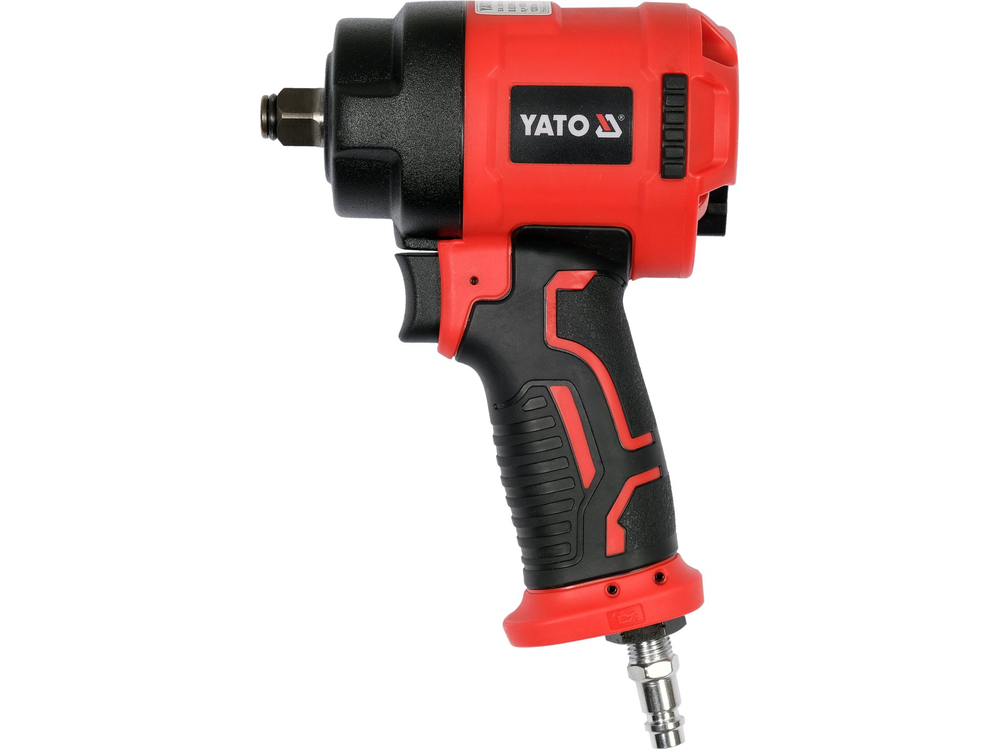

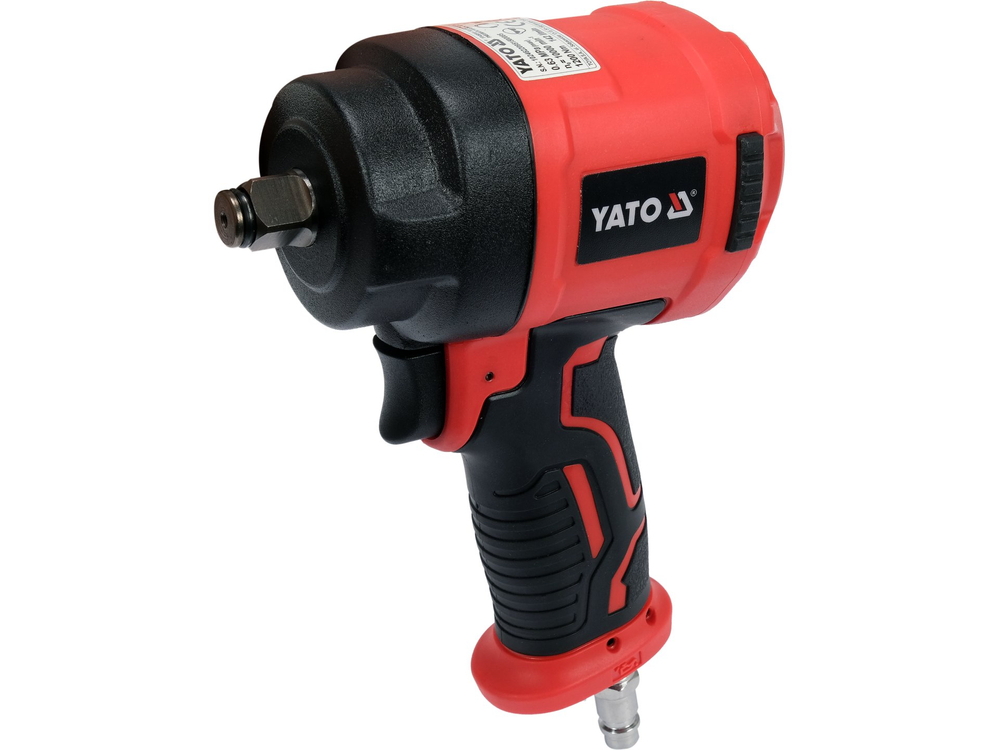

Professional 1/2" MINI pneumatic wrench
The wrench is designed for use in workshops automotive and mechanical services. Its small size and low weight allow it to be used in places with limited access.

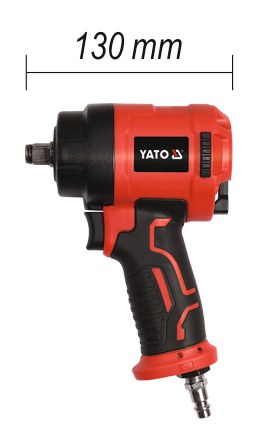

- Total length is only 132mm
- Weight 1.3 kg
- Maximum torque is 1200 Nm
- Consumption 142 l/min of air

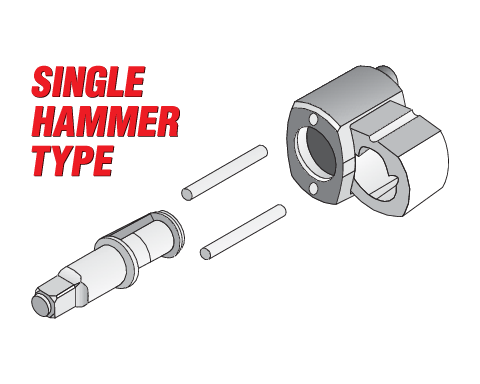

- A single hammer impact mechanism is used
- The rubber-covered handle reduces the feeling of cold during work
