71631

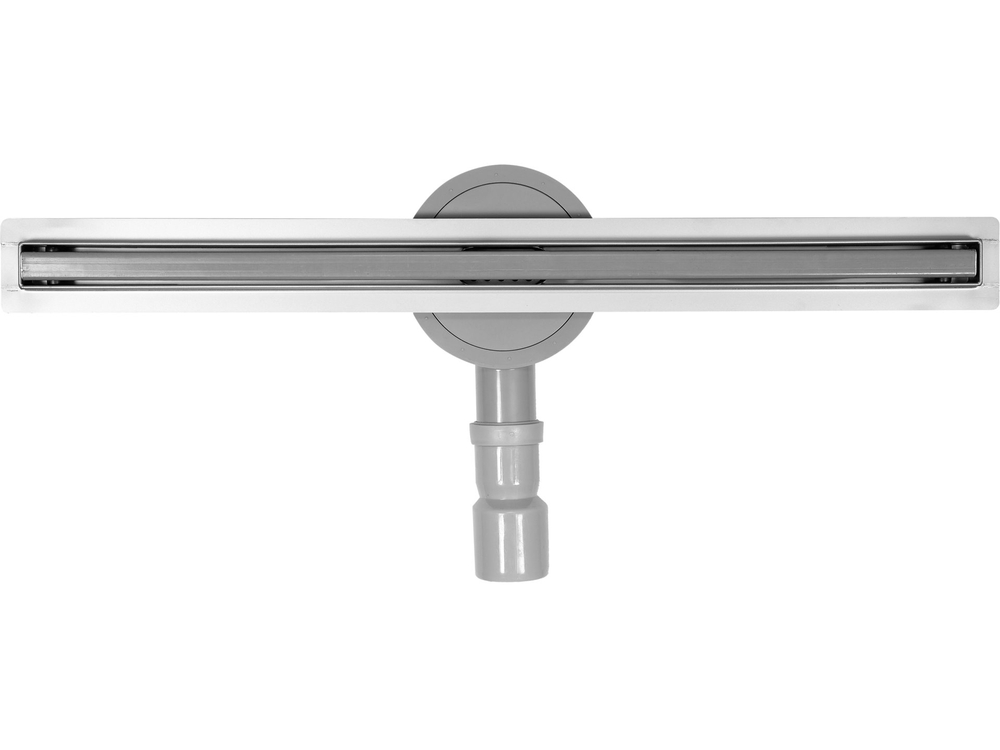

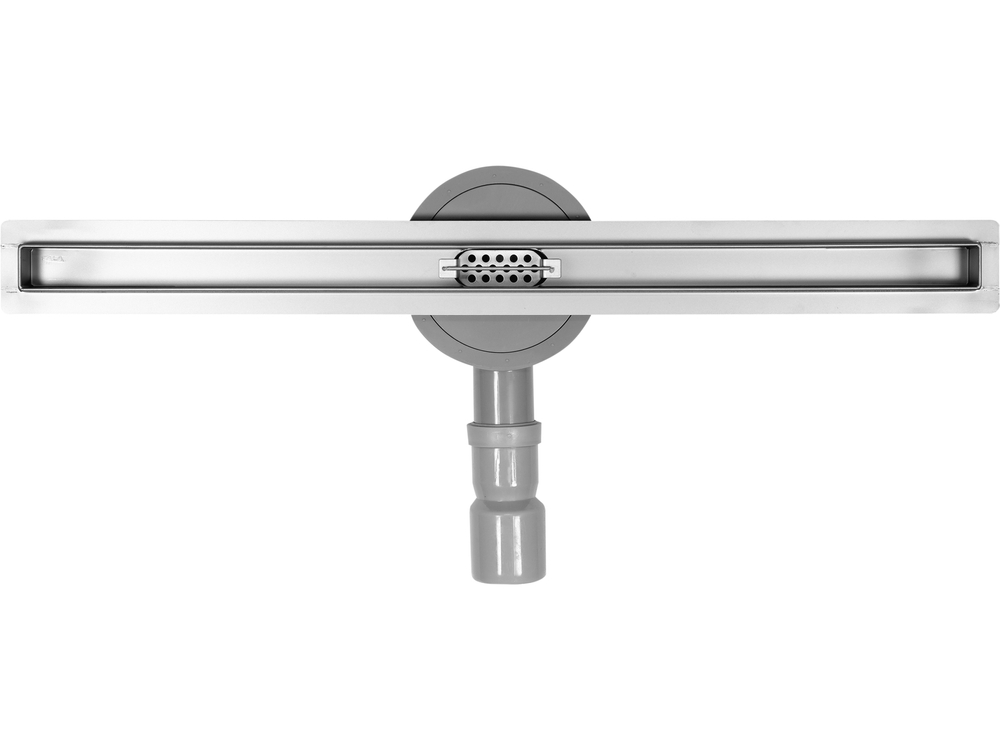

LINEAR DRAIN SLIM 60CM
Brand
Symbol
71631
Producer code
5906083086861
Series
Series
Slim
Grate pattern
full
Product material
stainless steel 304
Gutter length
600 mm
Gutter width
30 mm
Collar width
15 mm
Siphon height
56 mm
Connection size
50/40 mm
ROTARY360
Yes
EASYclean
Yes
HYDROcloth
Yes
STRAINer
Yes
EXTRAslim
Yes
EASYfix
Yes
Application
bathrooms - shower cabins, swimming pools - pools, laundries, boiler rooms, balconies, terraces
Contents of the set

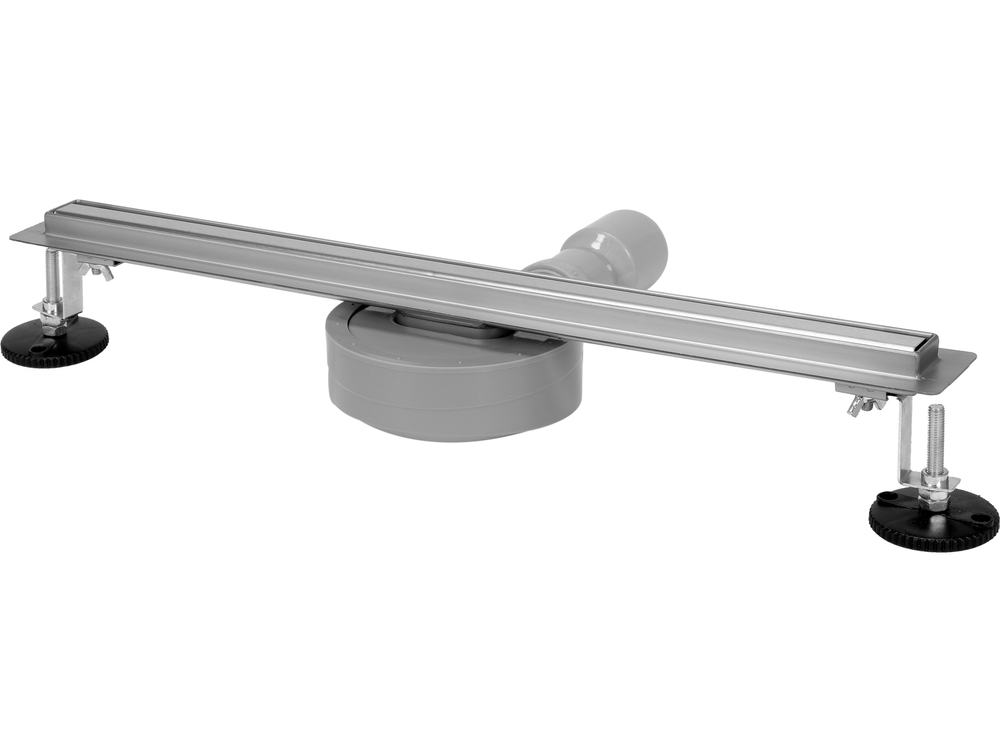

grate, drainage trough with covering, sewage reduction, adjustable fastening feet, insulation mat, grate lifting hook
The Wave linear drain is an excellent idea for arranging the bathroom space in an elegant and practical way.
The wide selection of available sizes allows you to optimally match its length to the dimensions of the shower enclosure or tiles and allows you to plan your shower space with greater freedom than with traditional shower trays.
- made of AISI 304 stainless steel, which is resistant to corrosion, detergents and mechanical damage
- Made of AISI 304 stainless steel, which is resistant to corrosion, detergents and mechanical damage
- Width: 30 mm
- round flange: 15 mm
- gutter thickness: 1.2 mm
- cover thickness: 1.2 mm
- outlet: 40/50 mm
- load class: K3
- product thermal behavior class: A
- flow rate: over 36 l/min (shower faucet has a maximum flow rate of 18 l/min)
- product complies with EN 1253-1

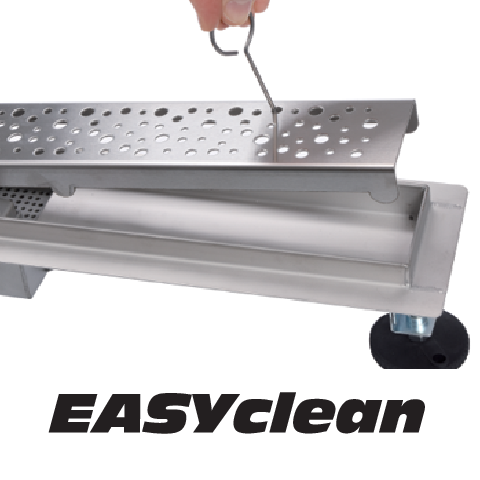

- EASYclean - ease of cleaning with the included hook

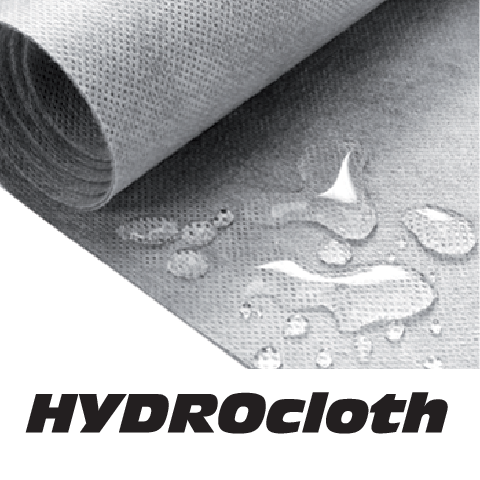

- HYDROcloth. - sealing mat indispensable in waterproofing

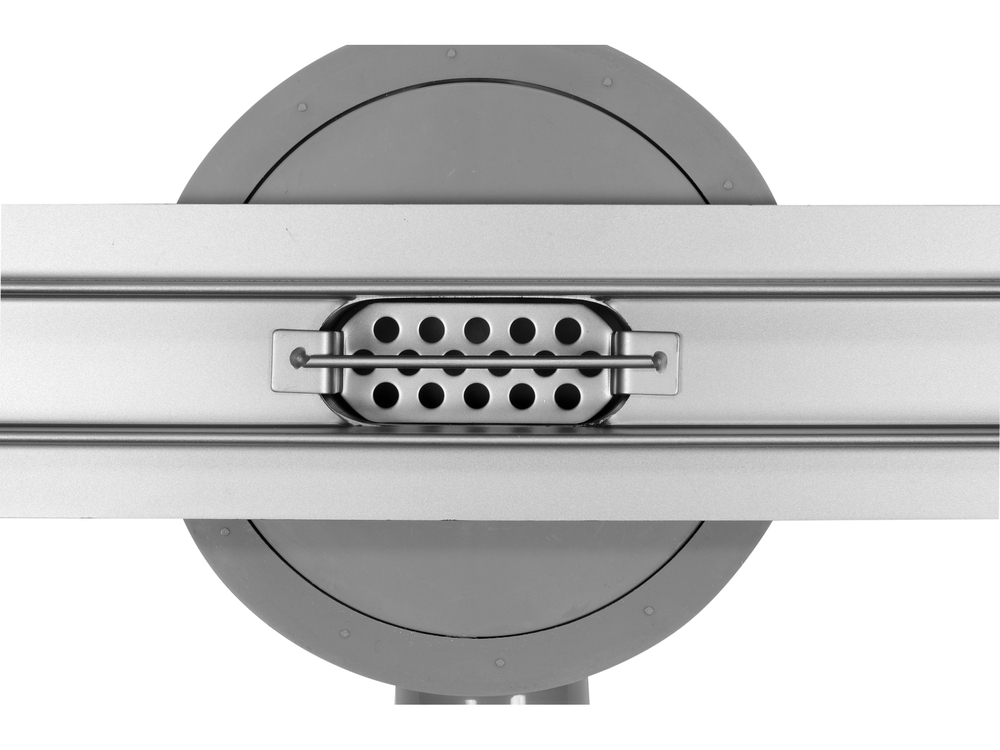

- STRAINer - an effective and durable strainer that prevents clogging of the trap and facilitates ongoing drain maintenance

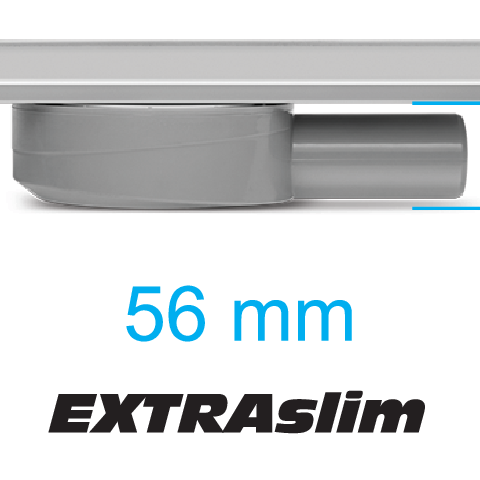

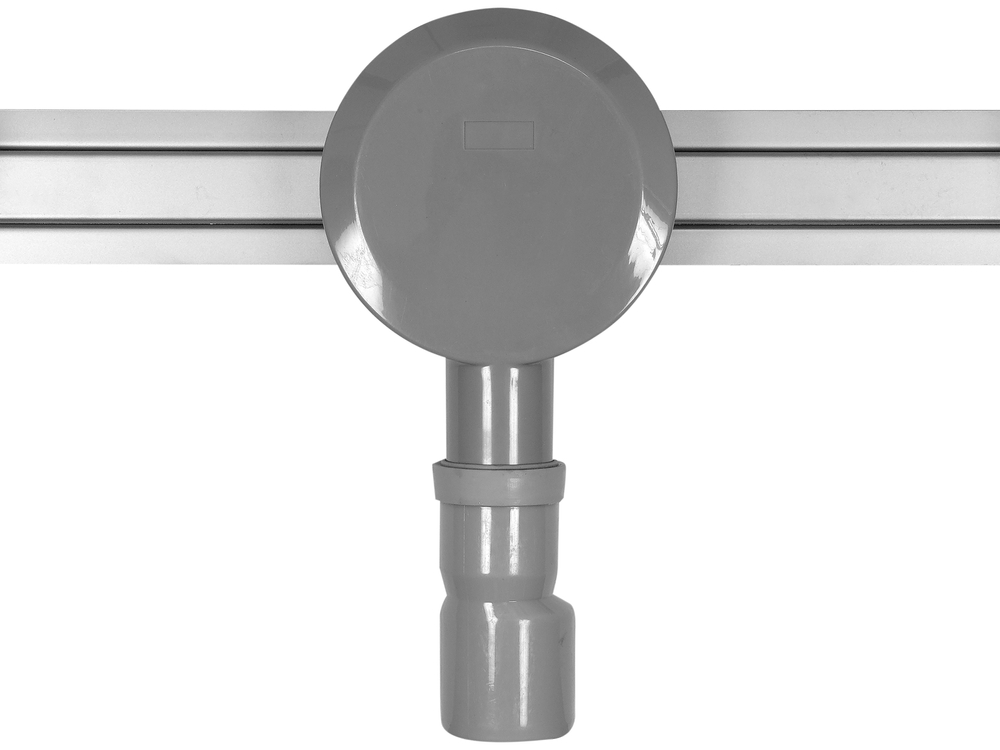

- EXTRAslim - an extra low siphon that makes installation easier
- ROTARY360 - the ability to adjust the outlet in any direction<<

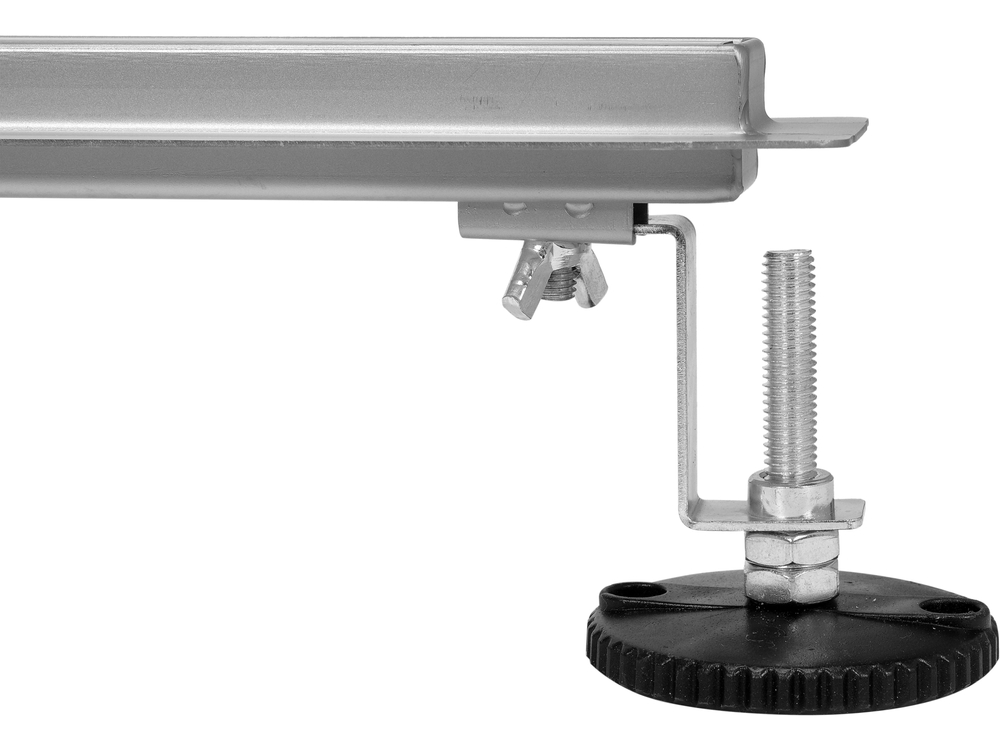

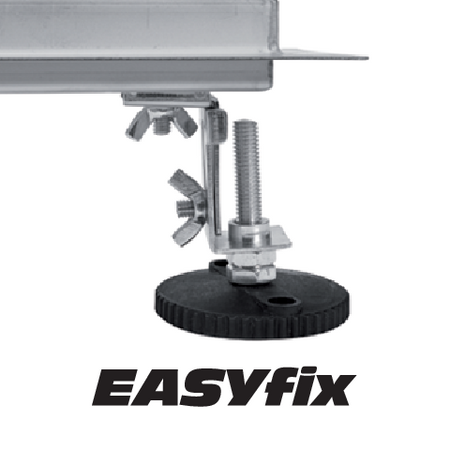

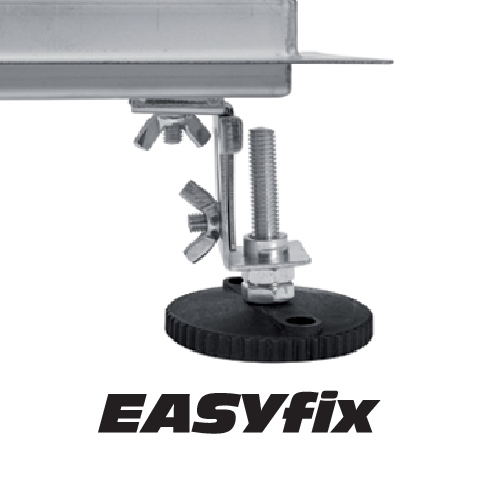

- EASYfix - a wide range of height adjustment that allows the drain to fit the floor surface
Fala shower drains are equipped with amenities that guarantee comfortable and efficient operation for many years:
The Wave drain has a 10-year warranty!
