71638

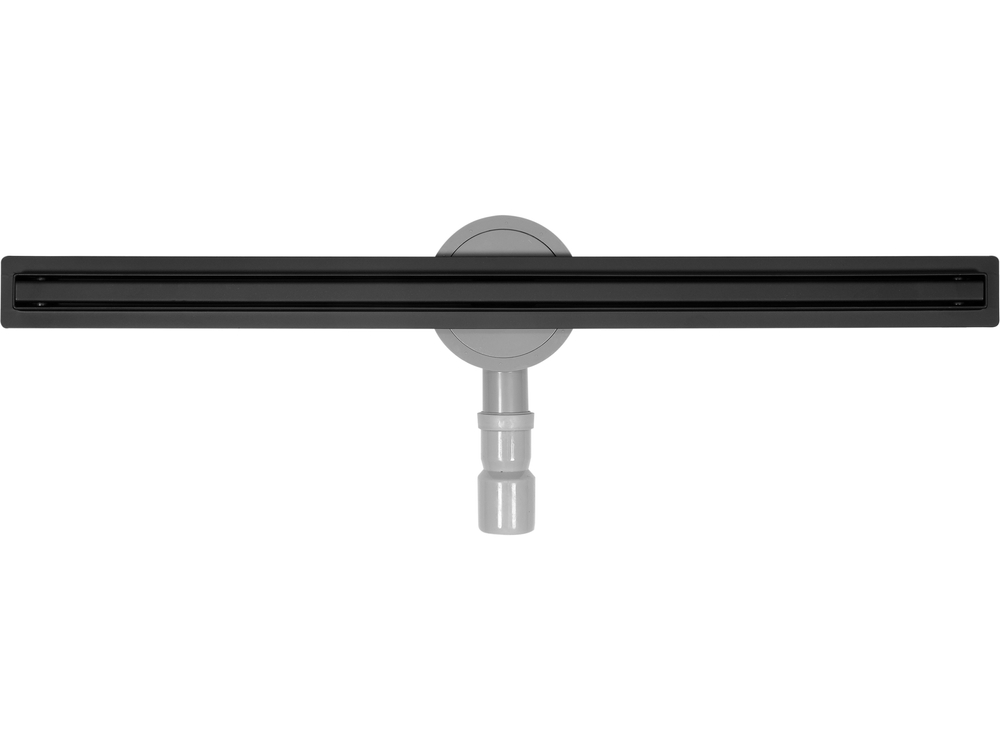

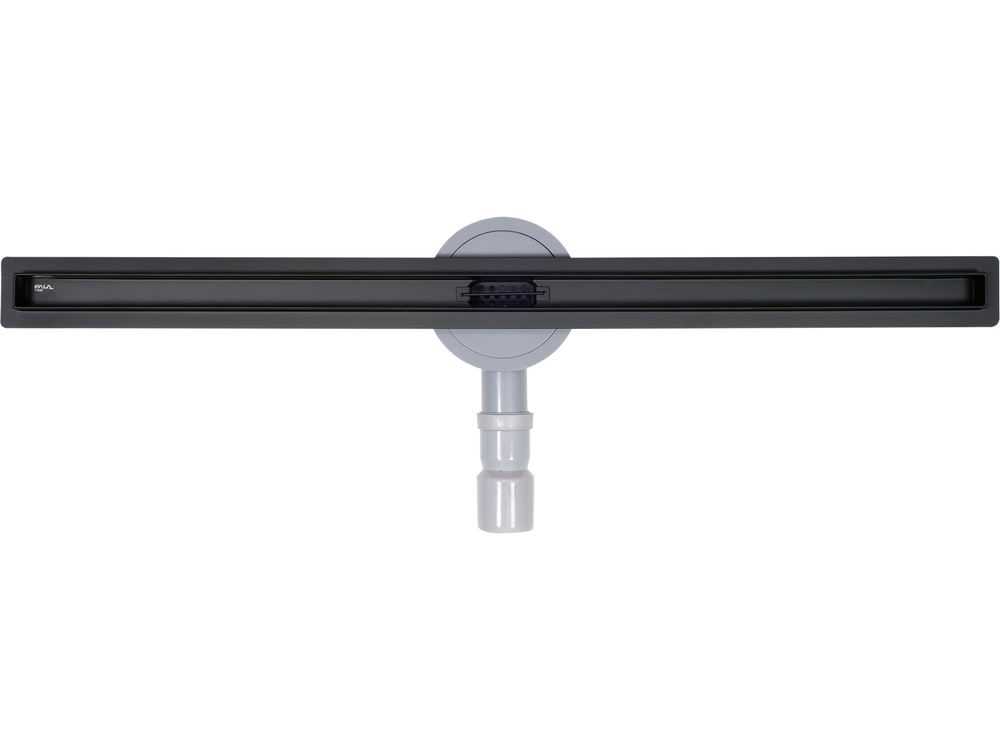

LINEAR DRAIN SLIM BLACK 80CM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series

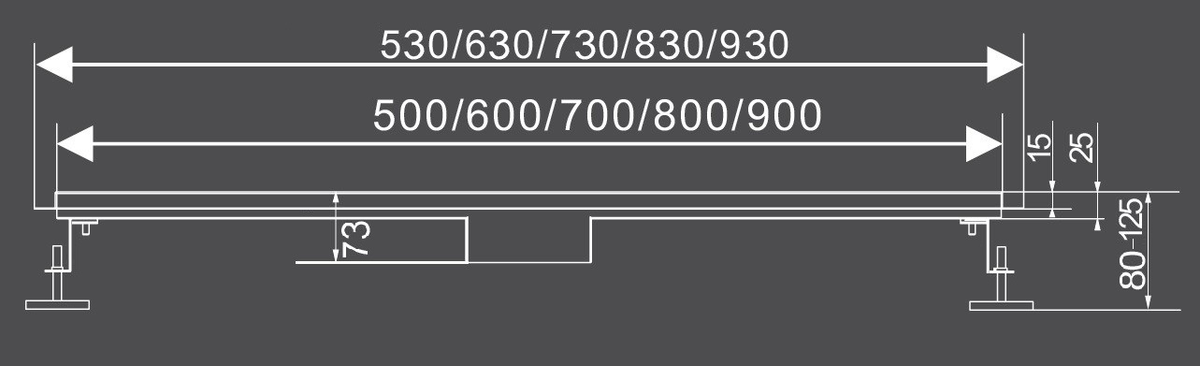

Body length
800 mm
Series
Slim black
Cover design
full
Material
304 stainless steel
Body width
30 mm
Flange width
15 mm
Siphon height
56 mm
Outlet size
50/40 mm
ROTARY360
yes
EASYclean
yes
HYDROcloth
yes
STRAINer
yes
EXTRAslim
yes
EASYfix
yes
Application
bathrooms - shower cabins, swimming pools - swimming pools, laundry rooms, boiler rooms, balconies, terraces
Set includes

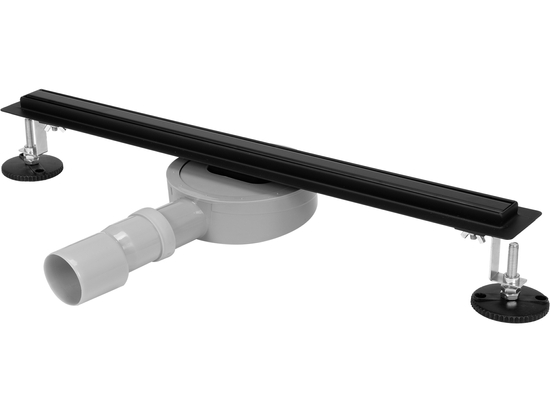

grate, drainage channel with siphon, sewage reduction, adjustable mounting feet, insulating mat, hook for lifting the grate
Symbol
71638
The Wave linear drain is an excellent idea for arranging the bathroom space in an elegant and practical way.
The wide selection of available sizes allows you to optimally match its length to the dimensions of the shower enclosure or tiles and allows you to plan your shower space with greater freedom than with traditional shower trays.
- made of AISI 304 stainless steel, which is resistant to corrosion, detergents and mechanical damage
- Made of AISI 304 stainless steel, which is resistant to corrosion, detergents and mechanical damage
- Width: 30 mm
- round flange: 15 mm
- gutter thickness: 1.2 mm
- cover thickness: 1.2 mm
- outlet: 40/50 mm
- load class: K3
- product thermal behavior class: A
- flow rate: over 36 l/min (shower faucet has a maximum flow rate of 18 l/min)
- product complies with EN 1253-1

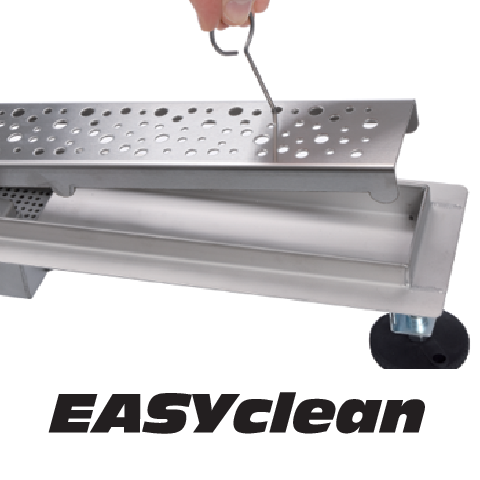

- EASYclean - easy to clean with the included hook

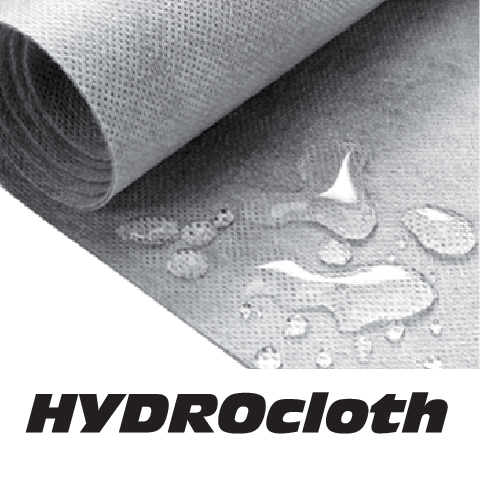

- . li>HYDROcloth - sealing mat essential for waterproofing
- STRAINer. - an effective and durable strainer that prevents clogging of the trap and facilitates ongoing drain maintenance

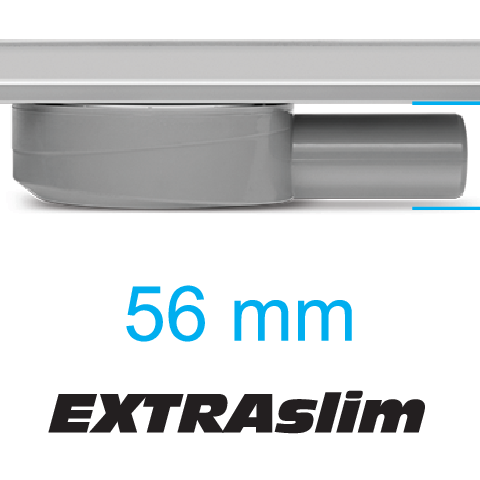

- EXTRAslim. - extra-low siphon that makes installation easier
- ROTARY360 - ability to adjust the outlet in any direction .

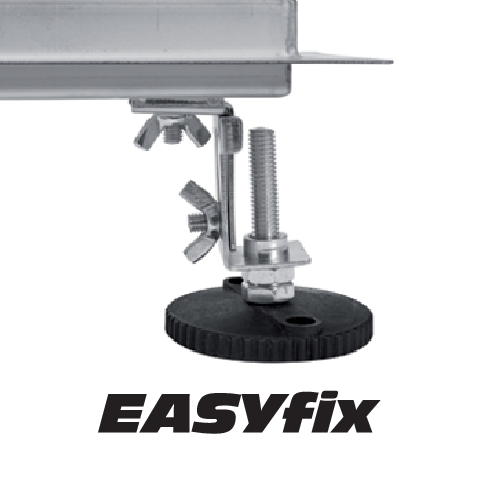

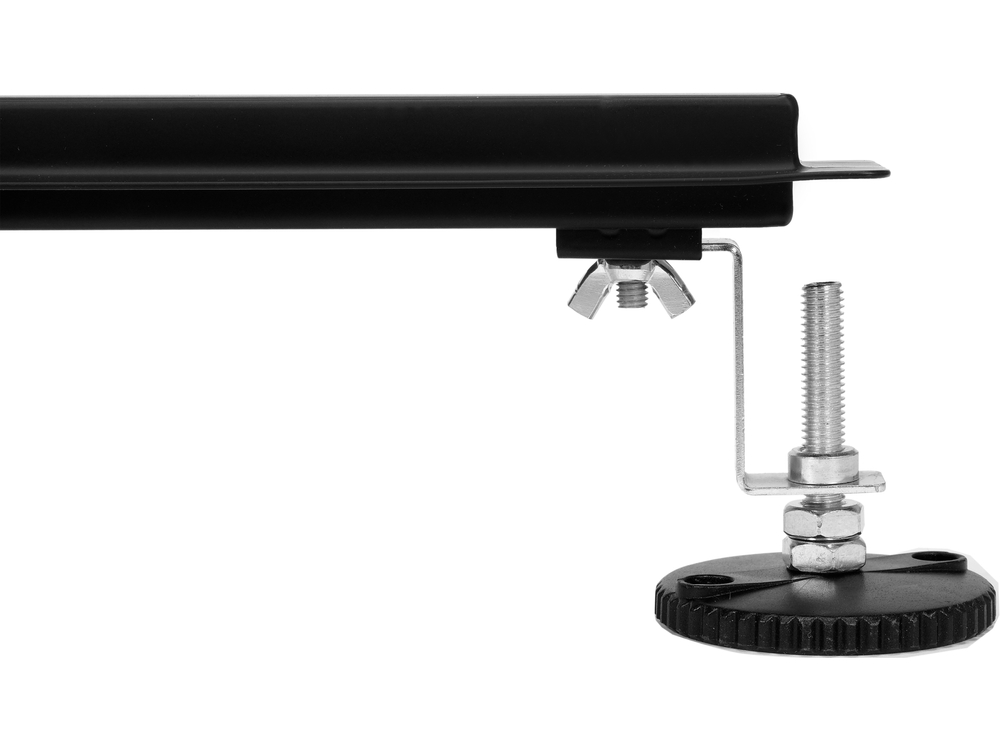

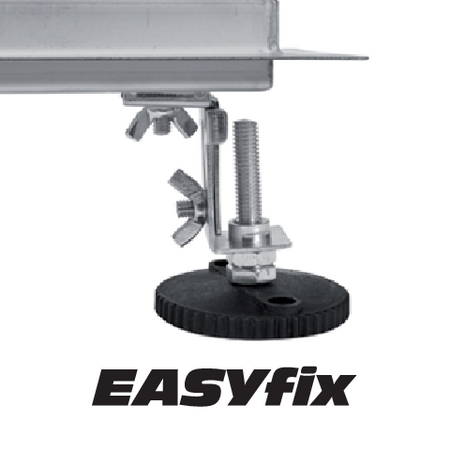

- EASYfix - a wide range of height adjustment that allows the drain to fit the floor surface
Fala shower drains are equipped with amenities that guarantee comfortable and efficient operation for many years:
The Wave drain has a 10-year warranty!
