YT-419504

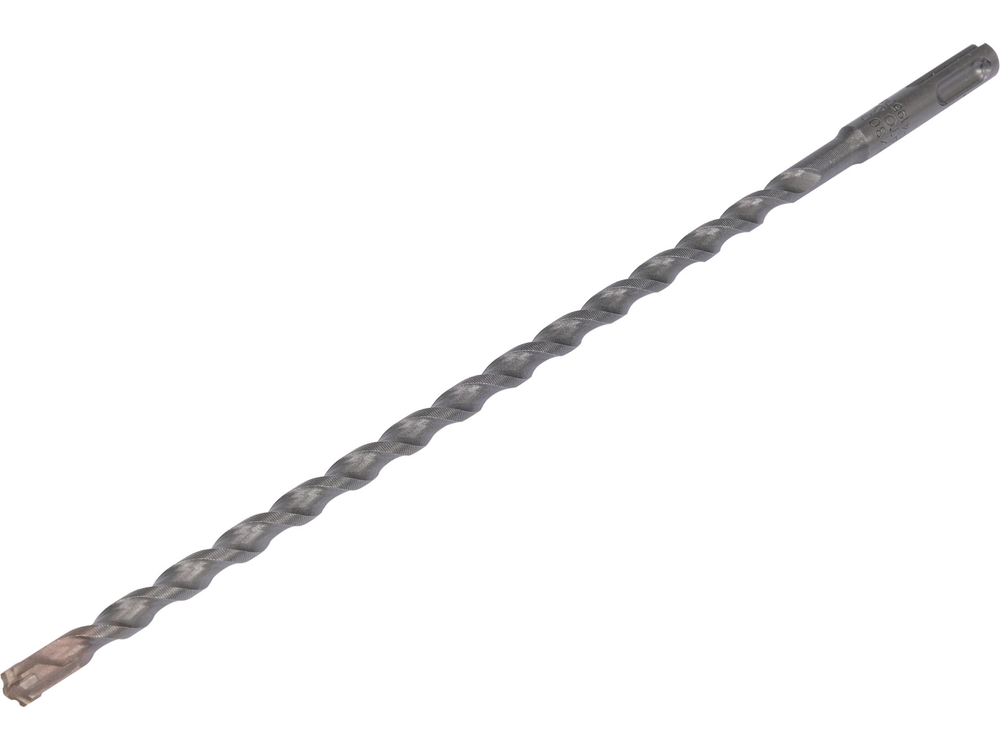

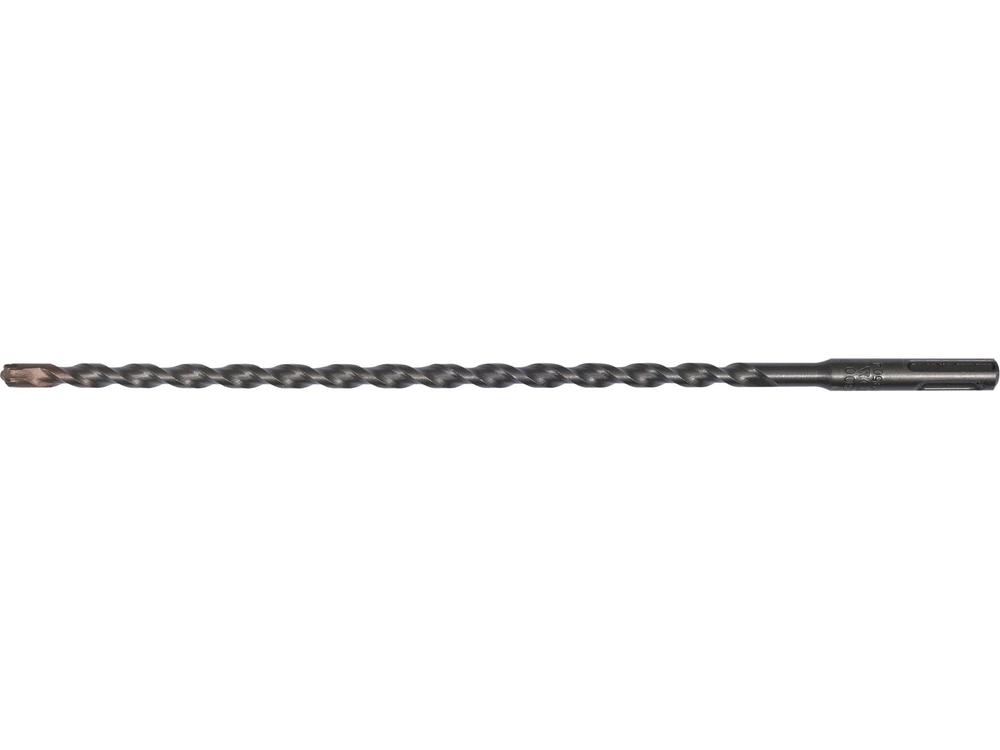

DRILL BIT SDS PLUS PREMIUM 8MM / 300MM
- Premium series SDS-plus drill bit designed for drilling reinforced concrete in industrial applications.
- Characteristics:
- thanks to the lower coefficient of friction, polished surface allows to make 50% more holes than with an standard drill
- even af
Brand
Symbol
YT-419504
Producer code
5906083087233
Series
Total length
300 mm
Diameter
8 mm
The length of the working part
250 mm
Type tool handle
SDS-Plus
Material
40Cr
Surface finish
grinded
Hardness
40 HRC
Blade material
DD carbide
Blade type
X-tip
Spiral type
single
Additional cutting edges
Yes
Automatic soldering
Yes
Application
Reinforcement
Premium series SDS-plus drill bit designed for drilling reinforced concrete in industrial applications.
Characteristics:
- thanks to the lower coefficient of friction, polished surface allows to make 50% more holes than with an standard drill
- even after making multiple holes, drill retains diameter and allows easy insertion of pins and anchors into the hole

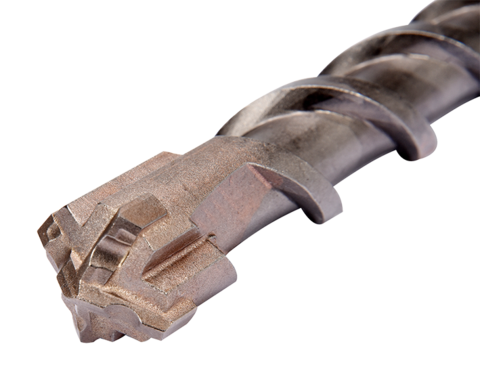

- extremely hard 4-blade cemented carbide, equipped with additional cutting edges, drills reinforcing bars in reinforced concrete
- automated process of soldering cemented carbide guarantees maximum resistance to high temperature during series drilling in reinforced concrete – in standard drills, the cemented carbide falls off the drill head after encountering a reinforcing bar

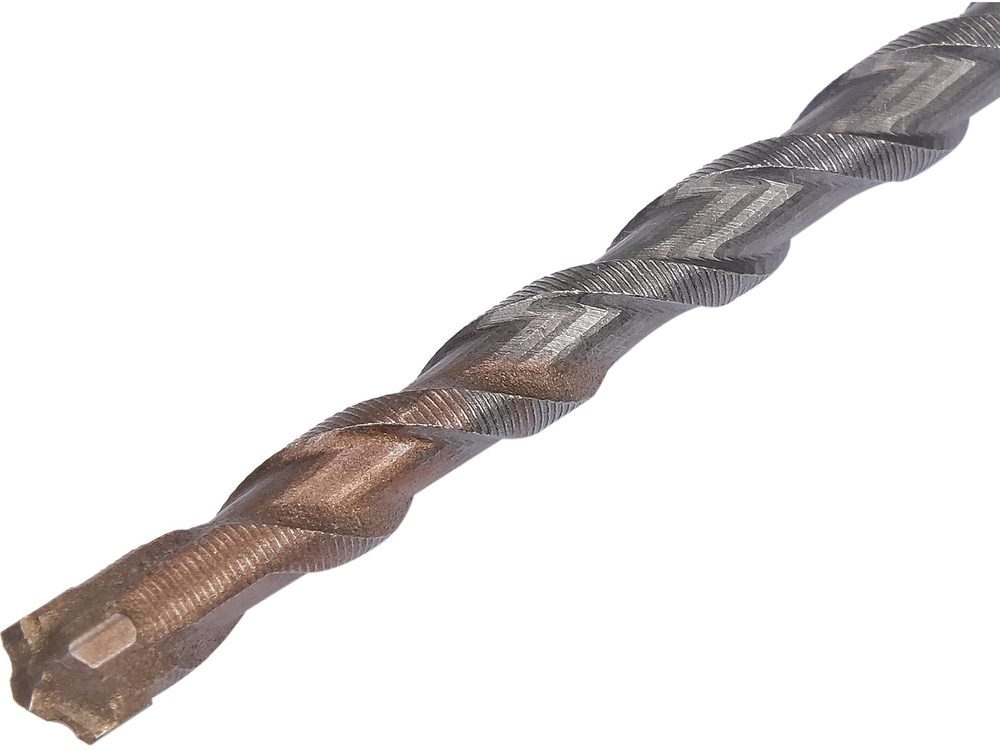

- deep spiral, preceded by 4 grooves in the drill head, efficiently leads away spoils
- made of resilient high carbon steel, resistant to deformations caused by high force and frequency of impact (do not lock in the SDS holder)
- centering process eliminates lateral run-out
- drill chuck complies with global dimension standards for SDS+
