YT-84877
ELECTRIC CHAINSAW 2IN1 750W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
chainsaw, pruner
Power
750 W
Guide bar length
10" (250 mm)
Voltage
230-240 V a.c.
Frequency
50 Hz
Chain type
3/8.043x40
Chain pitch
3/8" (9.525 mm)
Max. chain travel speed
12 m/s
Links quantity
40
Chain drive wheel teeth number and scale
6 teeth x 9.525 mm
Chain guide type
AP10-40-437P
Mounting type
P
Oil tank capacity
60 ml
Automatic chain lubrication
yes
Operation angle
handle: -180, -90, -45, 0, +45, +90, cutting head: -20, 0, +20, +40, +60 ˚
Telescopic
yes
Soft handle
yes
Length of handle
1100-1700 mm
Cable length
0.35 m
Electric insulation class
II
Acoustic pressure
89.5 ± 3.0 dB(A)
Acoustic power
102.7 ± 2.47 dB(A)
Vibrations
2.67 ± 1.5 / 3.32 ± 1.5 m/s²
Weight
1.1 kg
Set includes
saw, chain guide, cutting chain, guide cover, handle extension, carrying belt
Symbol
YT-84877

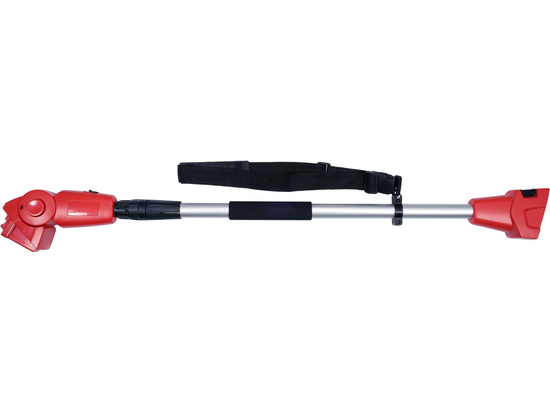

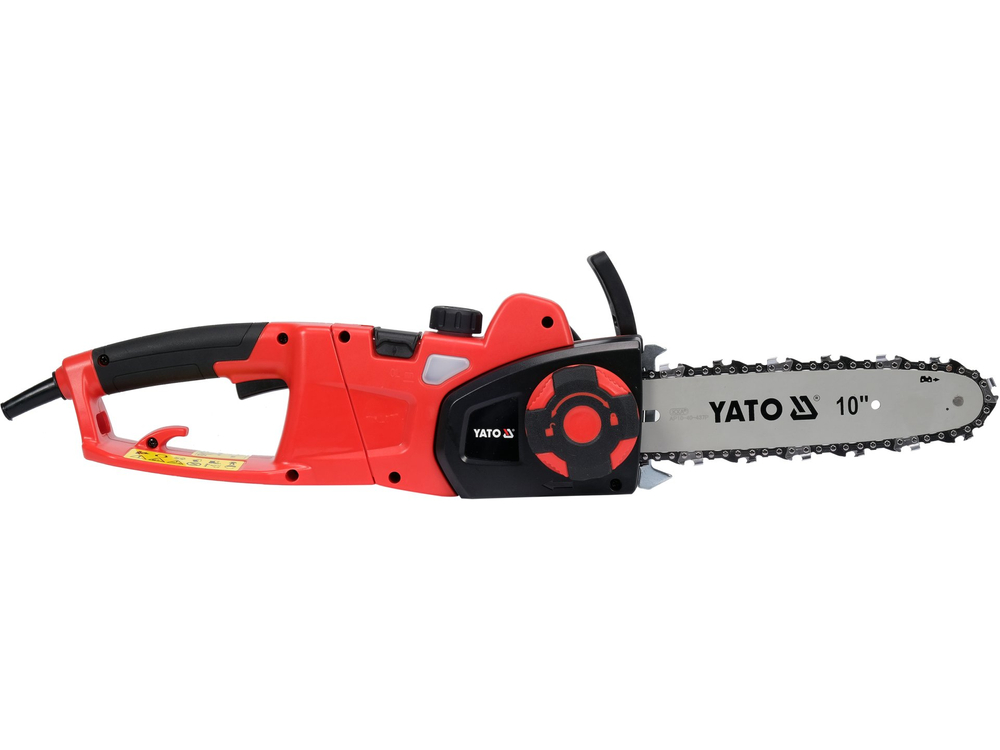

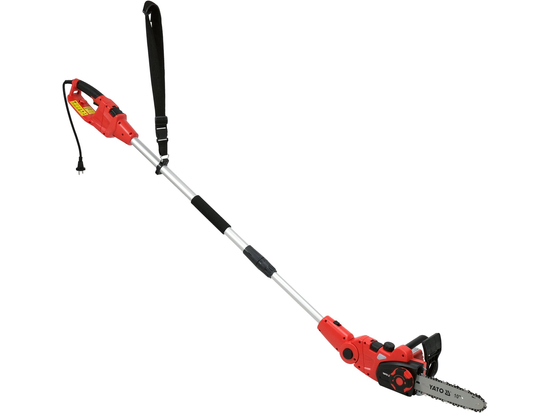

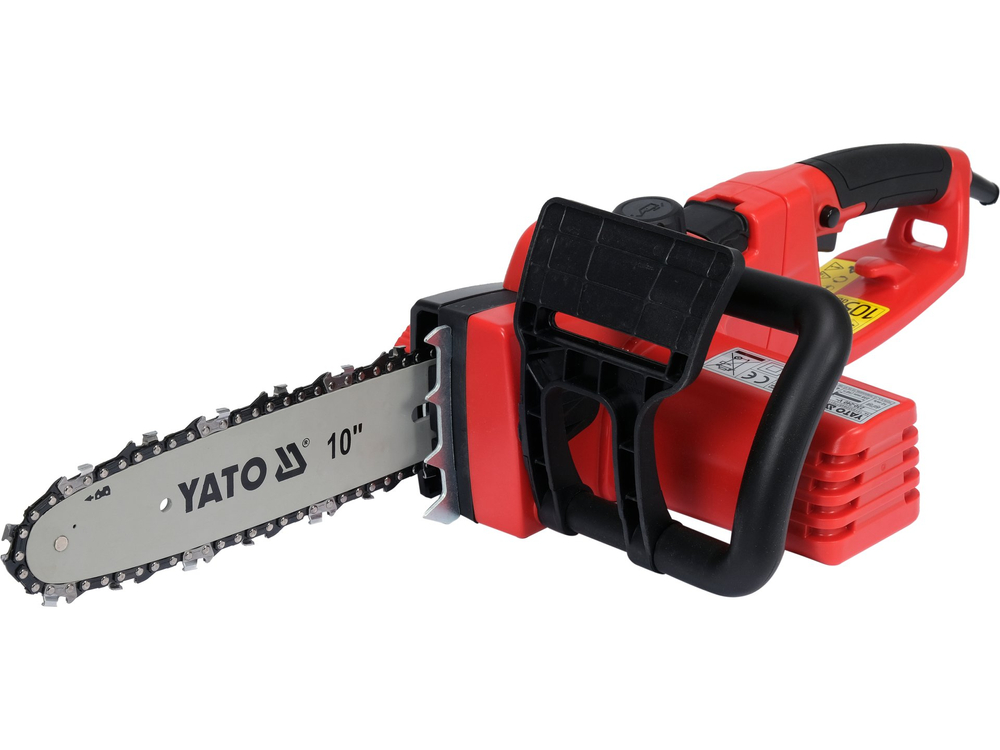

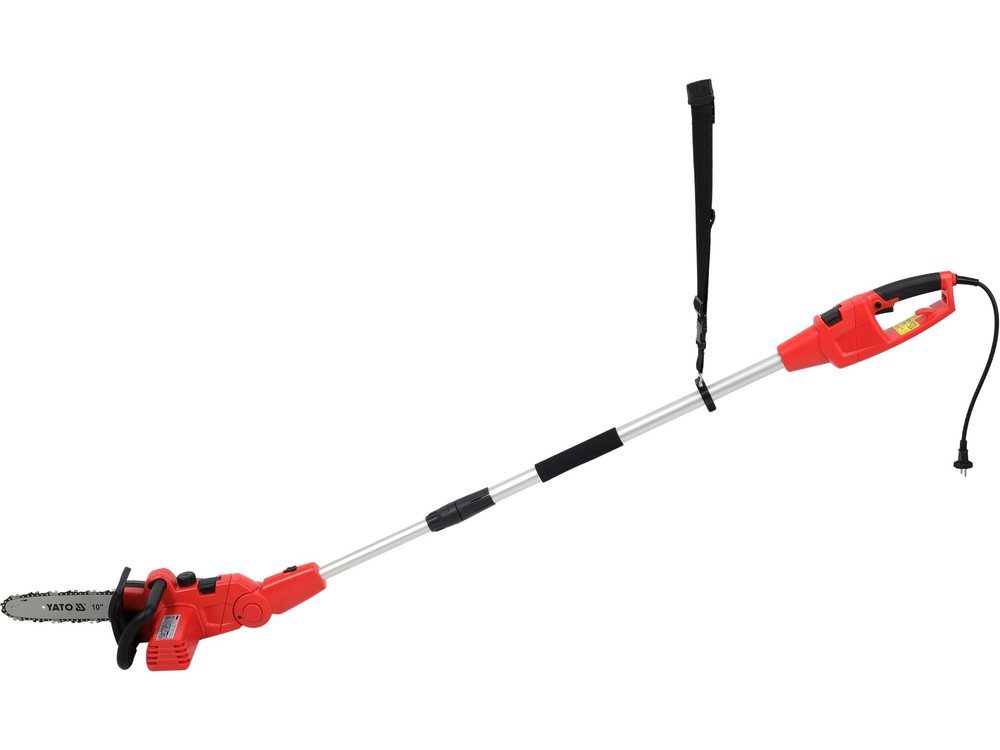

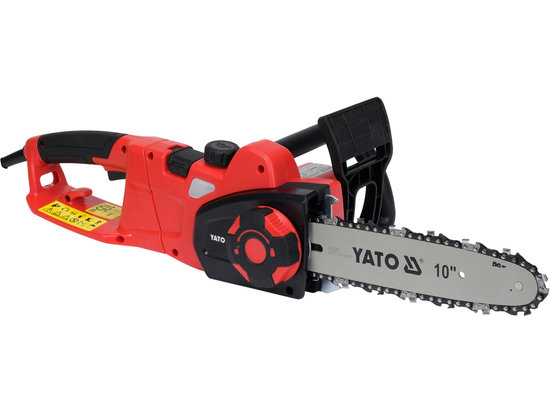

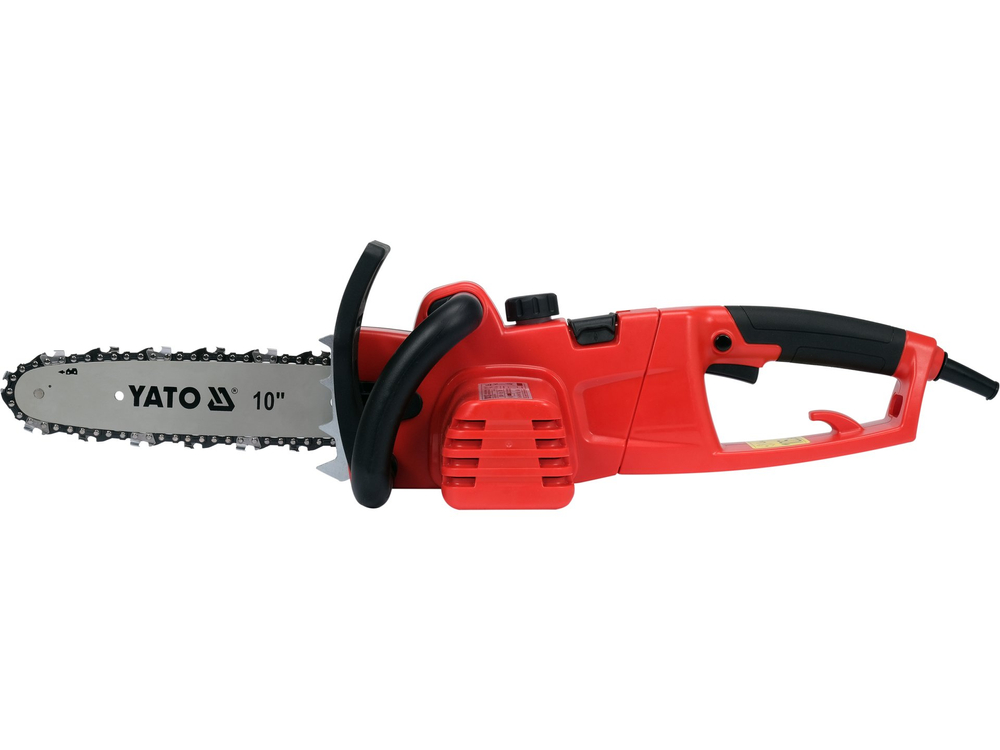

The device combines two functions - it is an electric chainsaw and a telescopic limbing machine for trimming branches. For your convenience when trimming branches, you can adjust the position of the saw head in two planes - tilting against the bar and rotating around the axis.
- adjust the angle of the pruning head: -60, -40, -20, 0, +20 degrees
- rotate the saw handle: -180, -90, -45, 0, +45, +90 degrees
The pole of the limbing machine is telescopically extendable: 110-170 cm
The user can maintain the correct chain tension thanks to the SDS tool-free quick adjustment system.
Rubber additions on the handle increase grip confidence.
- Power: 750 watts
- bar length: 25 cm (10 inches)
- bar assembly: P (A041)
- chain : 0.043", 3/8", 40 links, recoil protection (low kickback)
- chain speed: 12 m/s
- oil reservoir capacity: 60 ml
- cable length: 0.35 m
- included shoulder strap and plastic bar guard
