88925

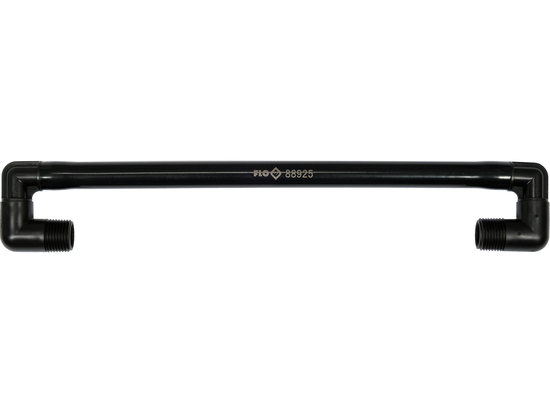

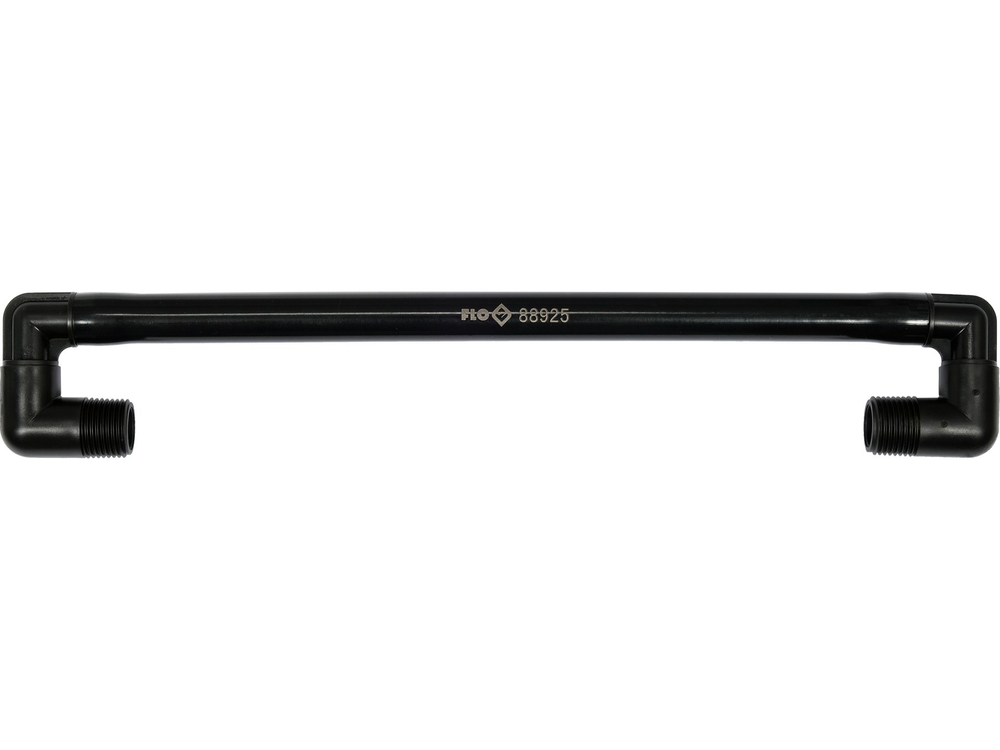

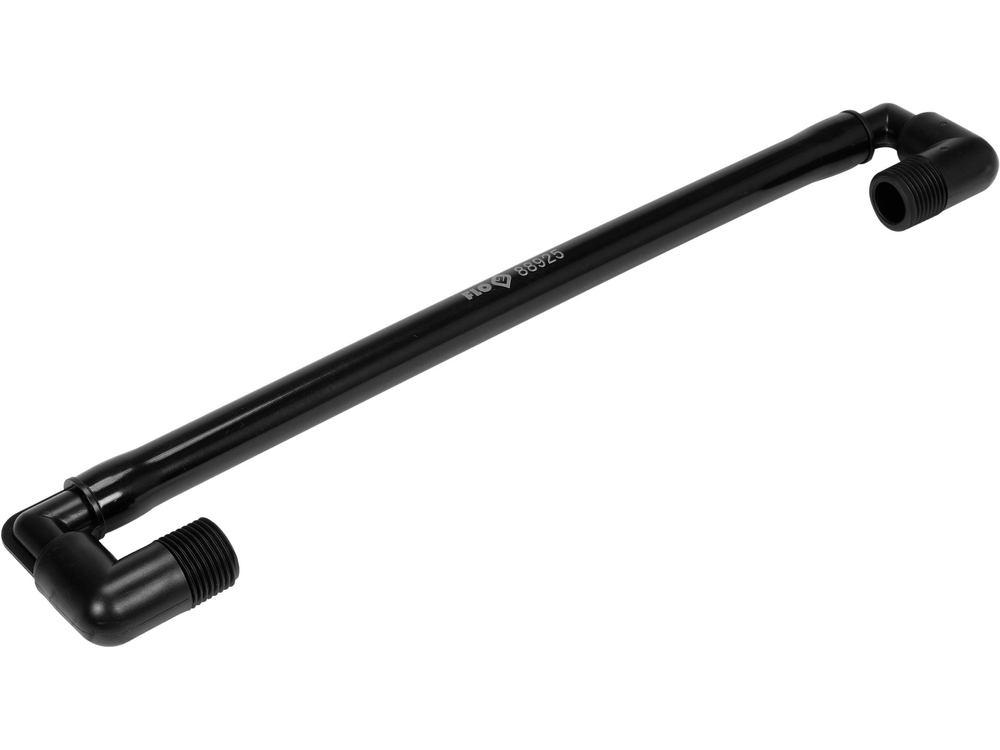

SWING JOINT
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Connector thread size
G1/2 (M)
Length
300 mm
Diameter
15 mm
Wall thickness
2.5 mm
Material
POM (pipe), PE (elbow)
Working max.
0.6 MPa
Symbol
88925




The connector is used to flexibly connect the sprinkler to the main supply line. The flexible connection protects the sprinkler from damage and prevents leaks if heavy equipment is run over the sprinkler. It is also useful when installing sprinklers in corners and places that require a slight correction of the sprinkler's position in relation to the supply line. Elbows that rotate at the ends of the connector make it easier for the user to install elements of the irrigation network. The connector is designed for sprinklers with 1/2 inch female thread. For gardening and agricultural applications.
- material of pipe: PE
- material of elbow: POM
- length: 30 cm
- internal diameter: 12.5 mm .
- wall thickness: 2.5 mm
- male thread 1/2"
- maximum working pressure: 6 bar
