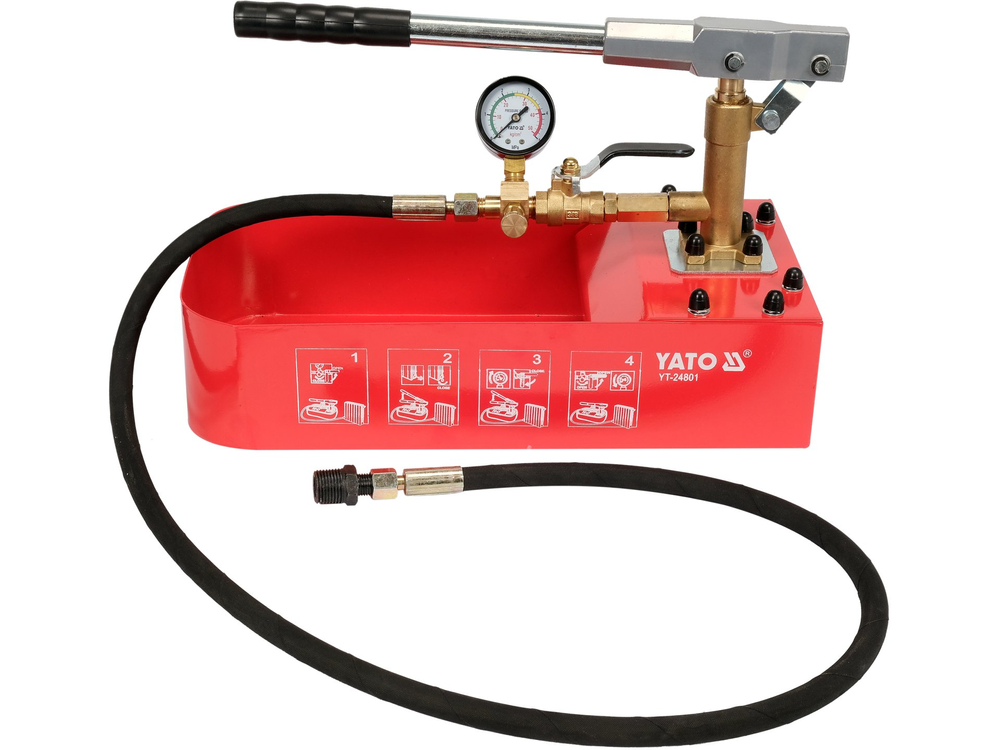

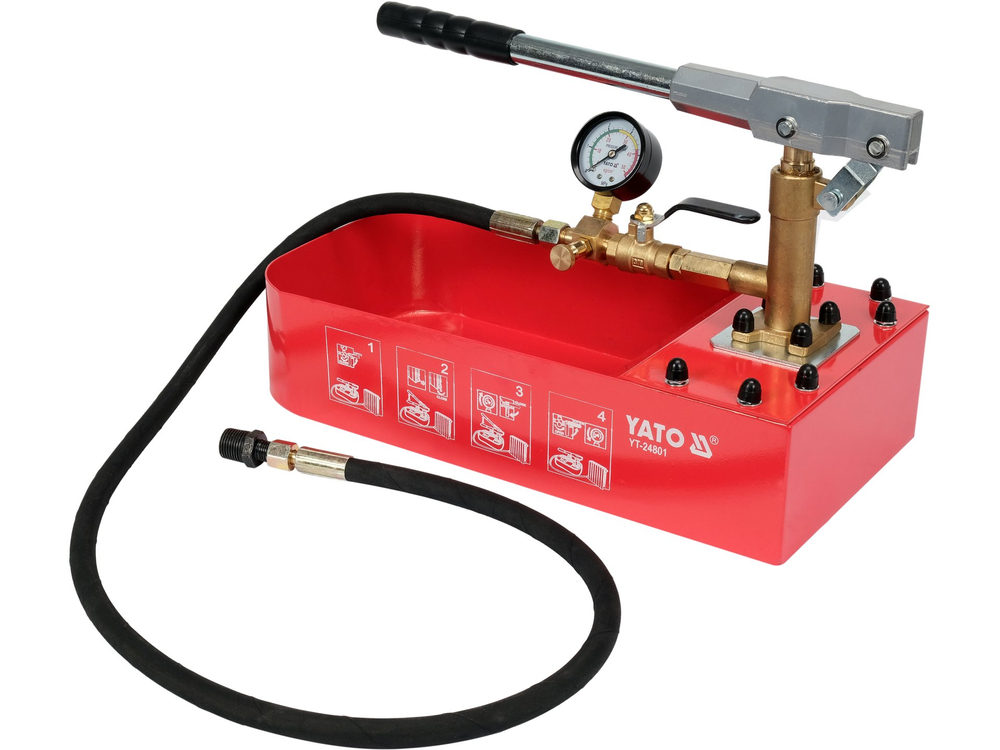

YT-24801
HAND TEST PUMP
Brand
Symbol
YT-24801
Producer code
5906083090752
Series
Max. pressure
5 MPa
Tank volume
7 l
Connection thread size
G1/2
Arm length
360 mm
Hose length
1400 mm
Body material
aluminium
Surface finish
powder painted
Wykończenie rękojeści
chromowana
Valve
Yes
MAX. Liquid temperature
50 ˚C
Application
Conducting pressure tests and testing tubular systems (water installations, compressed air, oil), filling solar installations,
Application CD.
introducing anti -freezing means to CO installation
Pump with valve designed for:
- carry out pressure tests
- test the tightness of piping systems (installations water, CO, compressed air, oil)
- fill solar installations
- inject antifreeze into CO installations
. /li> - filling solar installations
- injecting antifreeze into CO installations
Parameters:
- pressure: 0-50 bar
- tank capacity: 7 l
- 1 cycle: 40 ml
- arm length: 360 mm
- hose length: 1400 mm
