55400

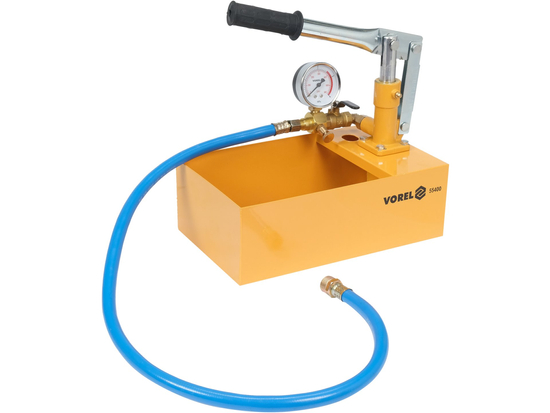

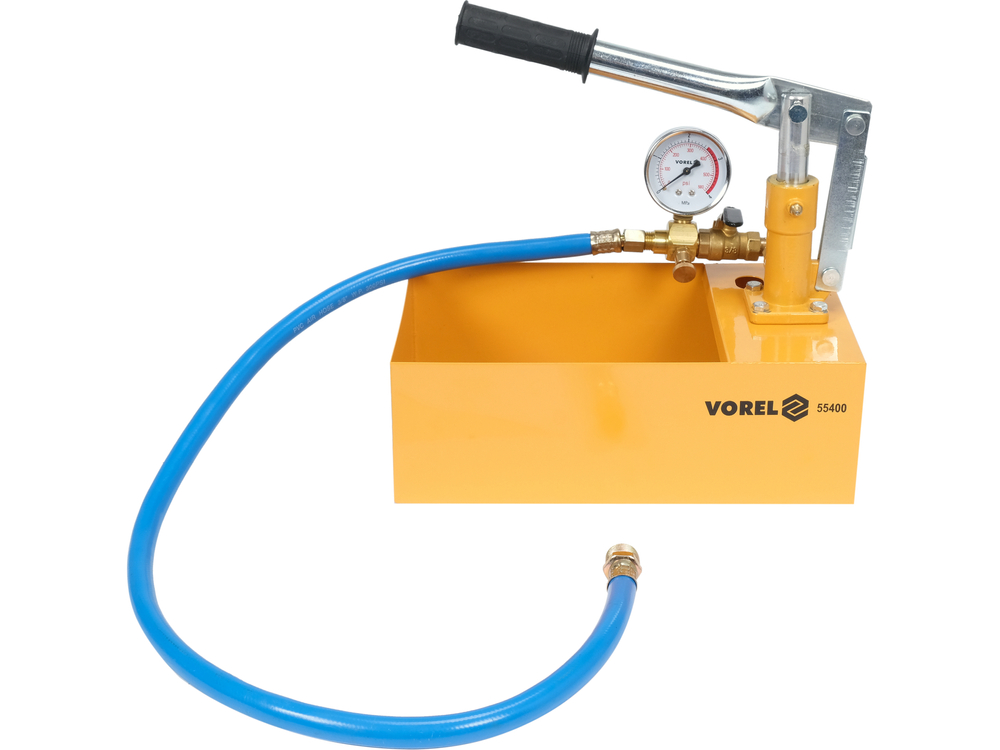

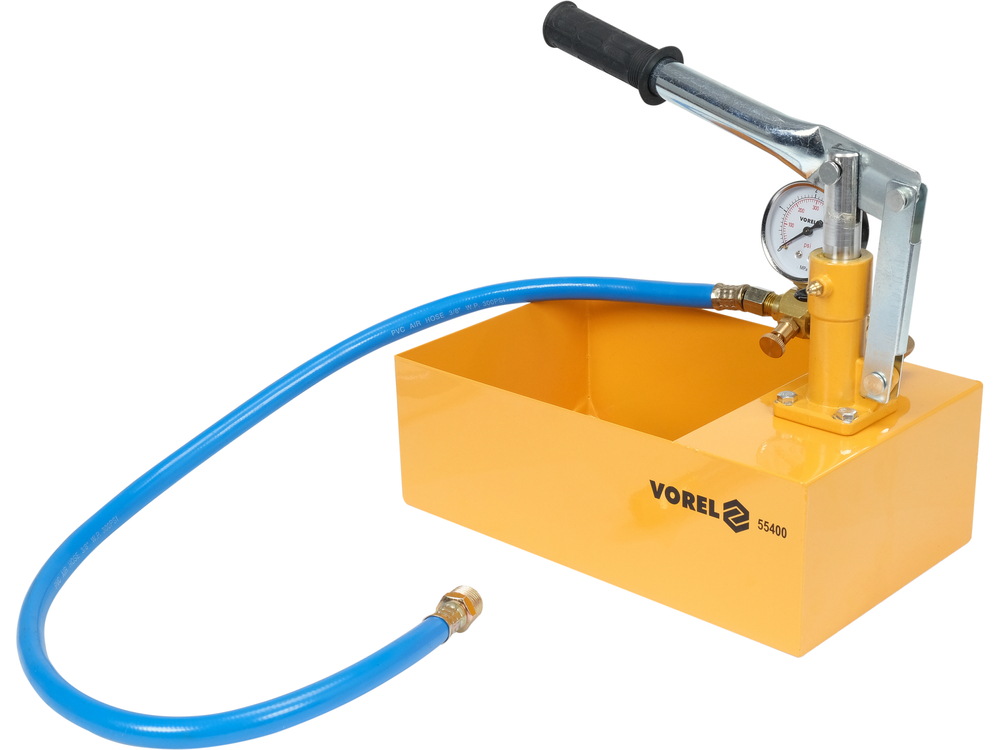

HAND TEST PUMP
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. pressure
4 MPa
Tank capacity
5 l
Working cycle
13 ml
Connector thread size
G1/2
Arm length
260 mm
Hose length
900 mm
Body material
aluminum
Surface finish
surfaced
Valve
yes
Max. fluids temperature
50 ˚C
Application
conducting pressure tests, tightness testing of pipe systems (water installations, central heating, solar installations),
Application contd
filling solar installations, introducing antifreeze agents into the central heating installation
Symbol
55400
![](https://pim.toya.pl/piktogramy/L_ml/image-thumb__51483__Sklep_pikto/5_L.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__114461__Sklep_pikto/0-4_MPa.png")
![](https://pim.toya.pl/piktogramy/G_M_P_PM_T_E/image-thumb__59540__Sklep_pikto/G_1-2.png")
Precision Tightness Tests
Discover reliability with pump 55400, perfect for professional pressure testing and system servicing. Perform precise tightness tests in various systems.
Versatile application, reliable performance
- Precise pressure testing
- Effective testing of pipe system tightness (water, CO, solar)
- Easy filling of solar installations
- Efficient introduction of antifreeze agents into CO installations
- Durable construction with aluminum body
- Corrosion resistance thanks to powder coating
- Long 900 mm hose for convenient work
- Maximum pressure of 4 bar ensures versatility

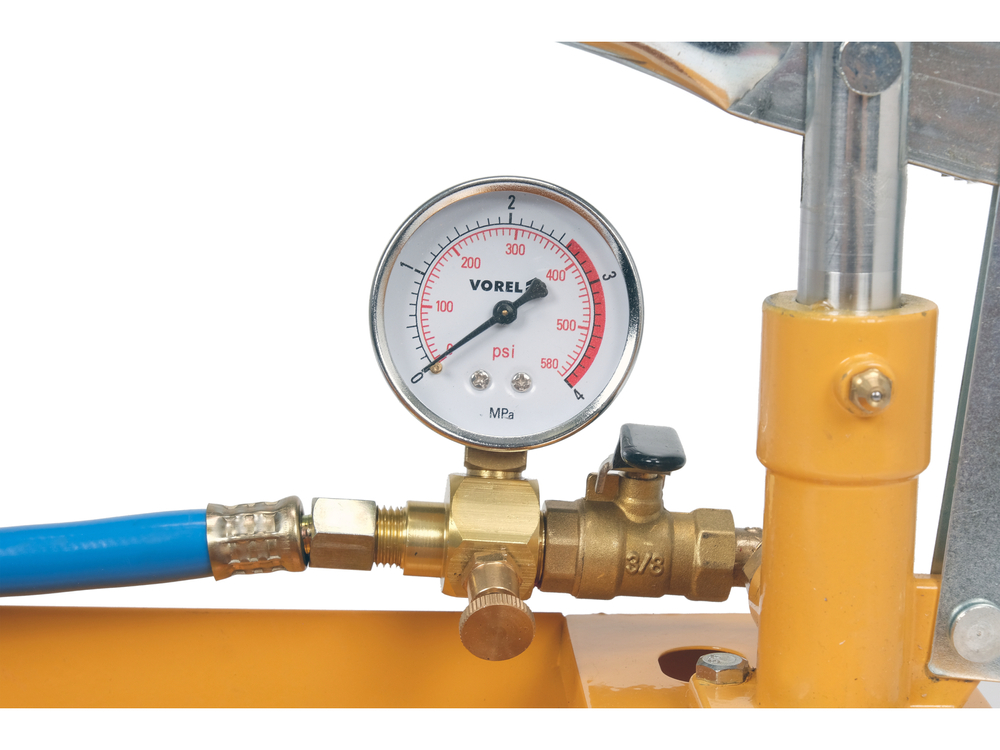

- Equipped with a valve for full control
- Handling of fluids up to 50°C
Pressure Tests
System Tightness
Aluminum Body
0.9 m Hose
5L Capacity
Detailed Technical Parameters:
- Tank capacity: 5L
- 1 cycle performance: 13 ml
- Maximum pressure: 4 bar
- Arm length: 260 mm
- Hose length: 900 mm
- Body material: aluminum
- Connection thread: G1/2
- Maximum fluid temperature: 50°C
- Surface finish: powder coated
