YT-86781
MANUAL LEVELER WITH WHEELS
Brand
Symbol
YT-86781
Producer code
5906083094477
Series
Operating range
1050-1750 mm
The height of the working part
180 mm
Total width
1200-2100 mm
Working part thickness
2 mm
Długość trzonka
1000 mm
Working depth
390 mm
Handle tube diameter
32 mm
Working part material
steel S235
Moaning
M6 screw
Colic
Yes
Wheel diameter
200 mm
Telescopic
Yes
Regulated
yes
Weight
17 kg
Application
For leveling the area, e.g. land for lawn or other garden arrangements, for a foundation for small garden architecture, loose surface at a horse -drawn horses or beach game fields

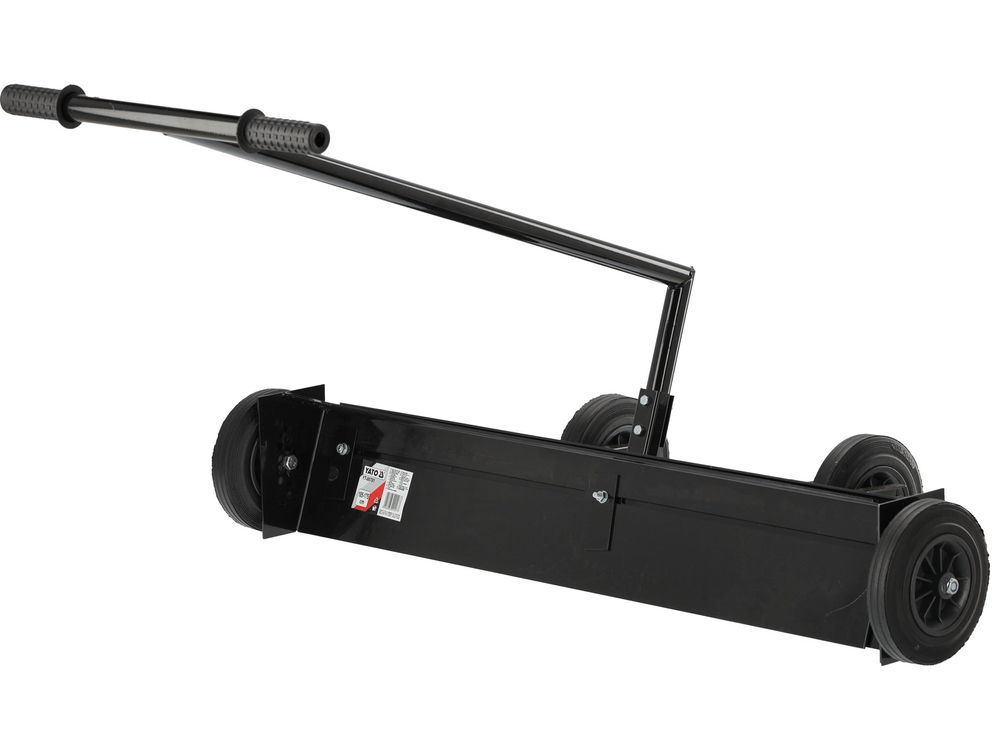

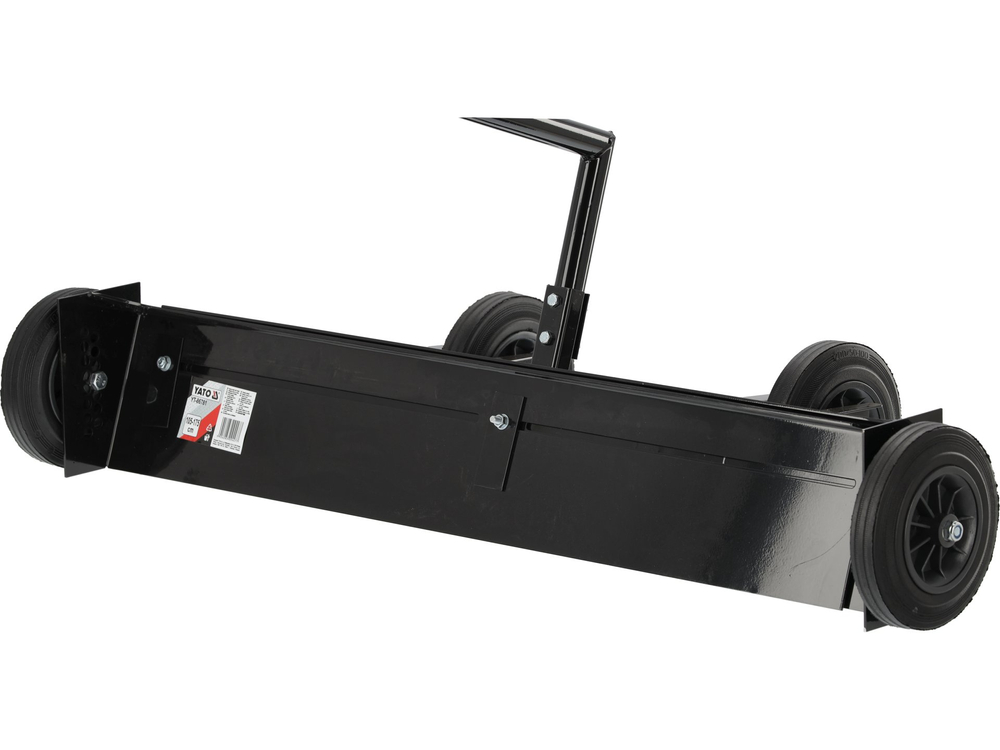

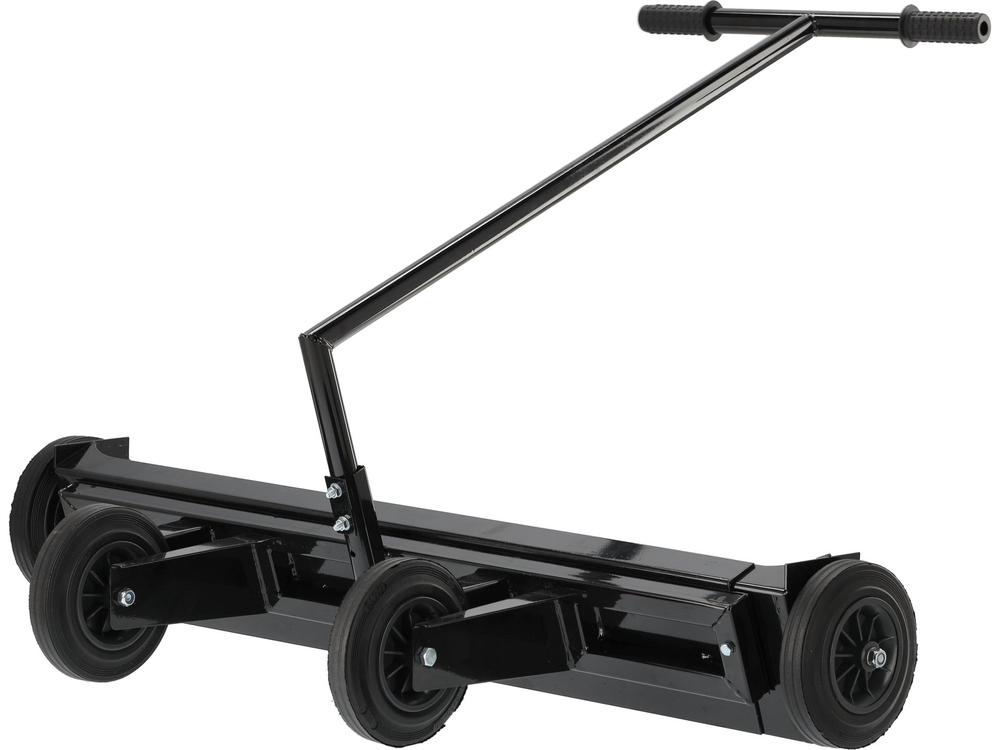

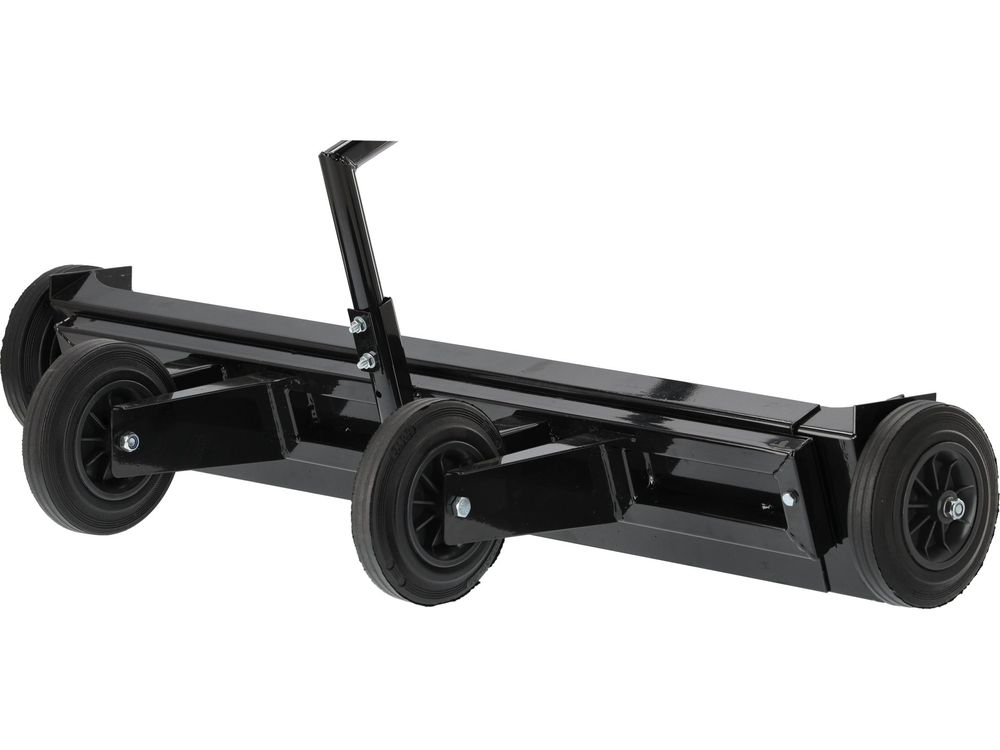

Hand-held leveler for leveling terrain such as land for a lawn or for garden arrangements.
It is used for leveling the foundation for small garden landscaping, surfaces in paving work, loose surface on a horse riding arena or pitches for beach games.
The leveler has an adjustable working part in terms of height and width, which allows you to adjust it to the work to be performed, the height adjustment of the handle has also been applied.
- Working range (working width without wheels): 1050-1750 mm
- overall width: 1200-1900 mm
- working plate height: 180 mm
- depth of working area (with rear casters): 390 mm
- thickness of working sheet: 2 mm
- material of working part: steel S235
- diameter of casters: 200 mm
- sleeved casters , mounted with M12 screw
- weight: 17 kg
- handle arm dimensions: 1000 x 500 x 500 mm
- handle arm outside diameter: 32 mm
- handle arm wall thickness: 1.5 mm
- screw-mounted handle : M6
