AC VOLTAGE DETECTOR WITH LCD SCREEN
AC VOLTAGE DETECTOR WITH LCD SCREEN
AC VOLTAGE DETECTOR WITH LCD SCREEN
AC VOLTAGE DETECTOR WITH LCD SCREEN
AC VOLTAGE DETECTOR WITH LCD SCREEN
AC VOLTAGE DETECTOR WITH LCD SCREEN
AC VOLTAGE DETECTOR WITH LCD SCREEN
AC VOLTAGE DETECTOR WITH LCD SCREEN

YT-28320

AC VOLTAGE DETECTOR WITH LCD SCREEN

30,49 zł
incl. VAT / pcs.
Buy now, pay in 30 days
Buy on installment
Official manufacturer's store
Safe shopping
Brand
Symbol
YT-28320
Producer code
5906083089374
Series
Voltage - induction method
12-1000 V a.c.
Frequency of measured voltage
50/60 Hz
Length
165 mm
Material
ABS
Voltage
3 V d.c.
Circuit continuity test
Yes
Conduction test
No
Display type
LCD
LED backlight
Yes
Workplace lighting
Yes
Flashlight function
No
LED controls
Yes
Sound signal
Yes
Regulation of sensitivity
Yes
Automatic switching off
Yes
Switch
tak
Low battery level indicator
Yes
Power supply
battery
Type of battery
2x1.5V; AAA
Operating temperature range
0~40 ˚C
Storage temperature
-10 ~ +50 ˚C
Application
electric

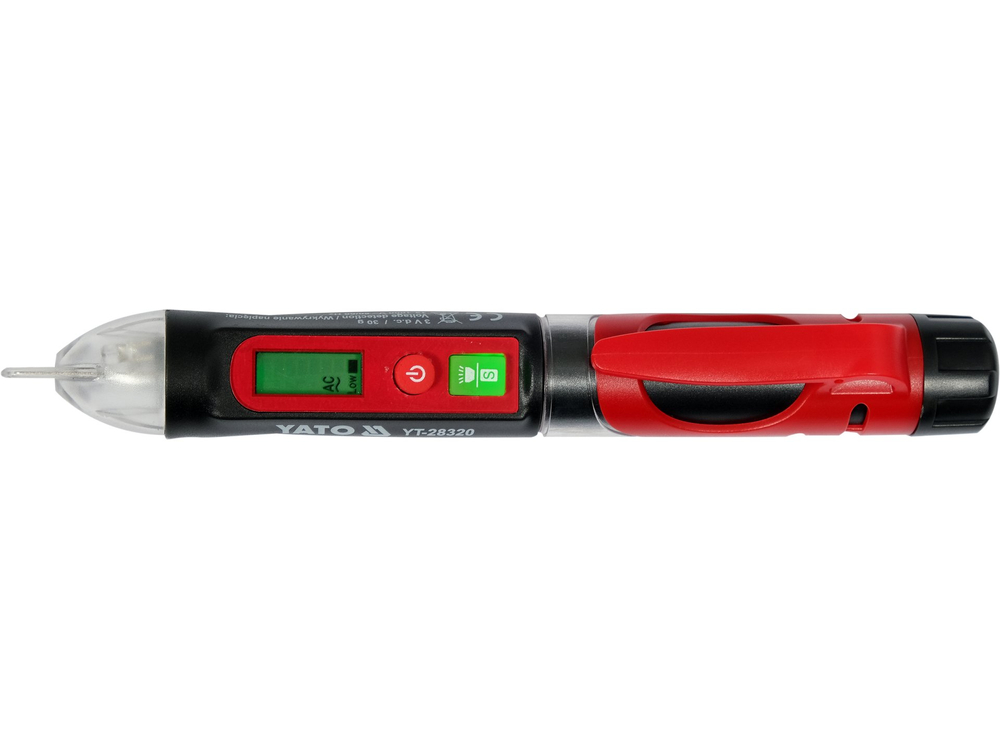

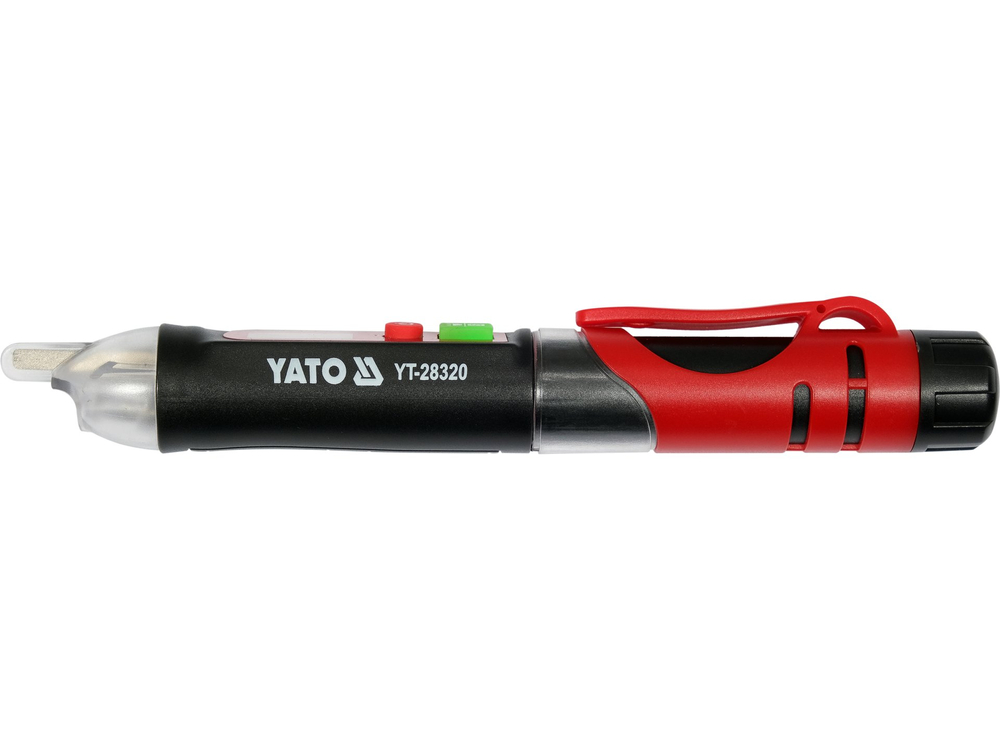

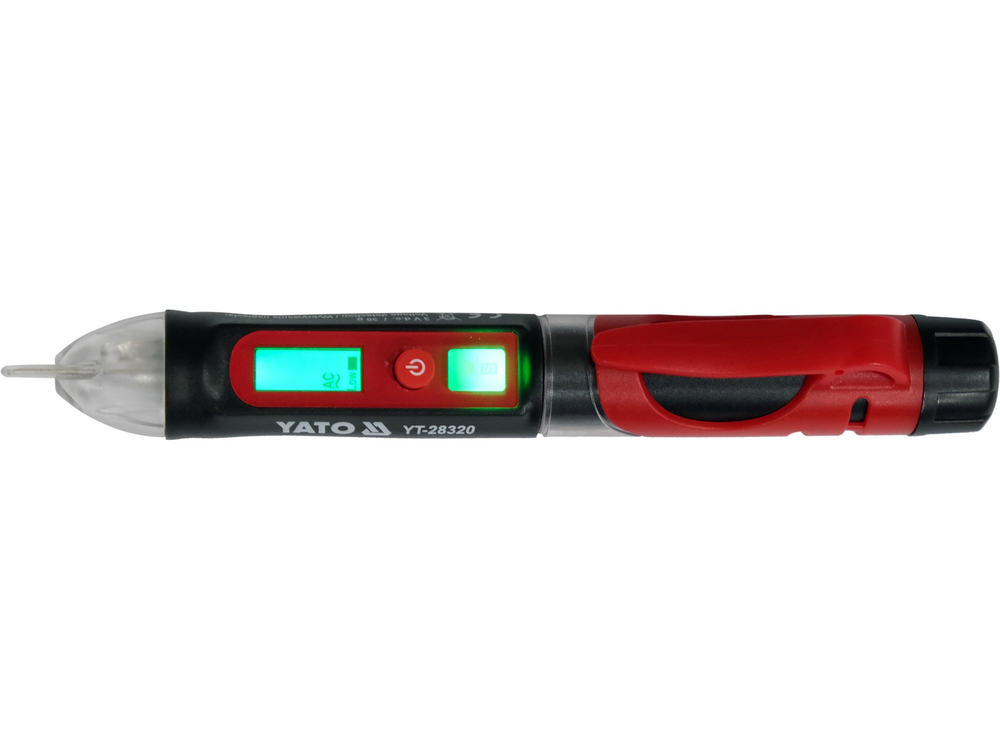

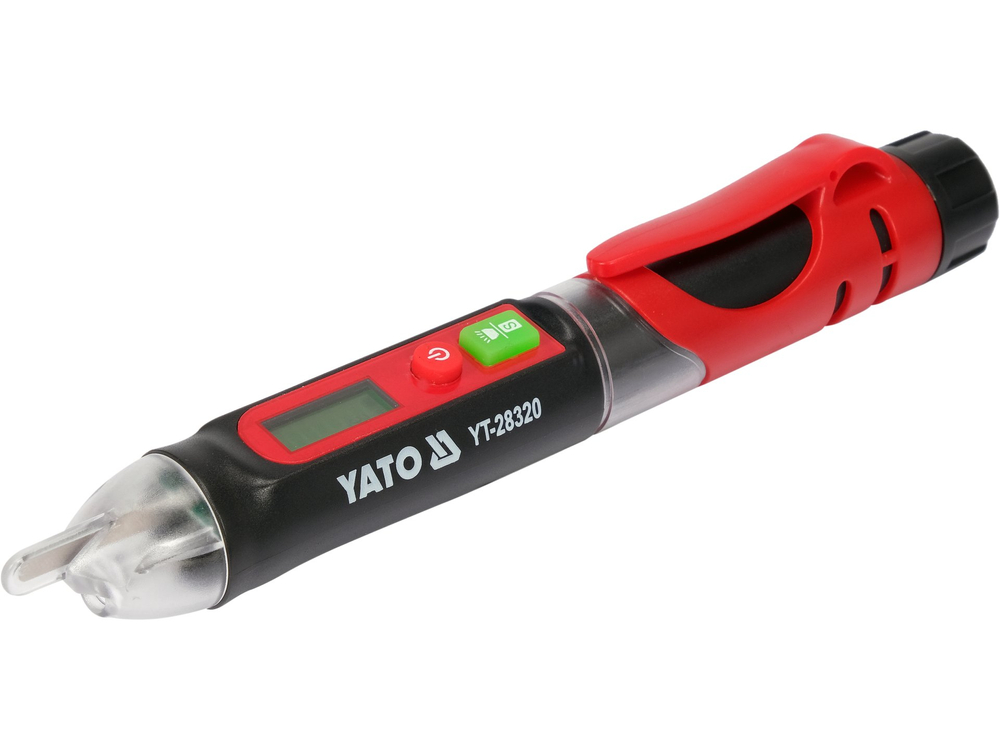

The non-contact AC voltage indicator detects the presence of voltage in an insulated wire and within a short distance from it. Voltage detection is indicated by a red LED, a beep, and an indication on the LCD display.

The tester uses the phenomenon electromagnetic induction. The closer to the voltage source, the frequency of the indication increases. When turned on, the sampler operates in low-sensitivity mode, in which the frequency of indication increases when the wire is touched. In high sensitivity mode, the frequency of indication increases about 1 cm from the wire. The tester also allows "non-contact" detection of a break in a live electrical cable. At the point of the break, the tester will stop signaling the presence of voltage.

  • Signaling by sound, light (led diode) and LCD display
  • Detection of AC voltage by inductive method: 12 - 1000 V
  • low sensitivity mode* - detection of AC voltage at a distance of up to 1 cm from the insulated wire, intense indications when the wire is touched
  • high sensitivity mode* - detection of AC voltage at a distance of up to 5 cm from the insulated wire, intensive indications up to 1 cm from the wire
  • conductor continuity test by inductive method
  • two-stage sensitivity adjustment of the tester
  • workspace illumination with built-in white led
  • tester length: 165 mm
  • automatic shutdown of the tester after 3 minutes
  • low battery indication
  • power supply: 2 x AAA

*distances and sensitivity were determined from mains voltage detection tests ~230V
