YT-81028

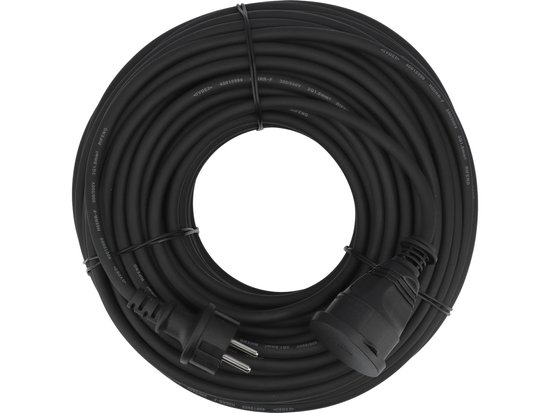

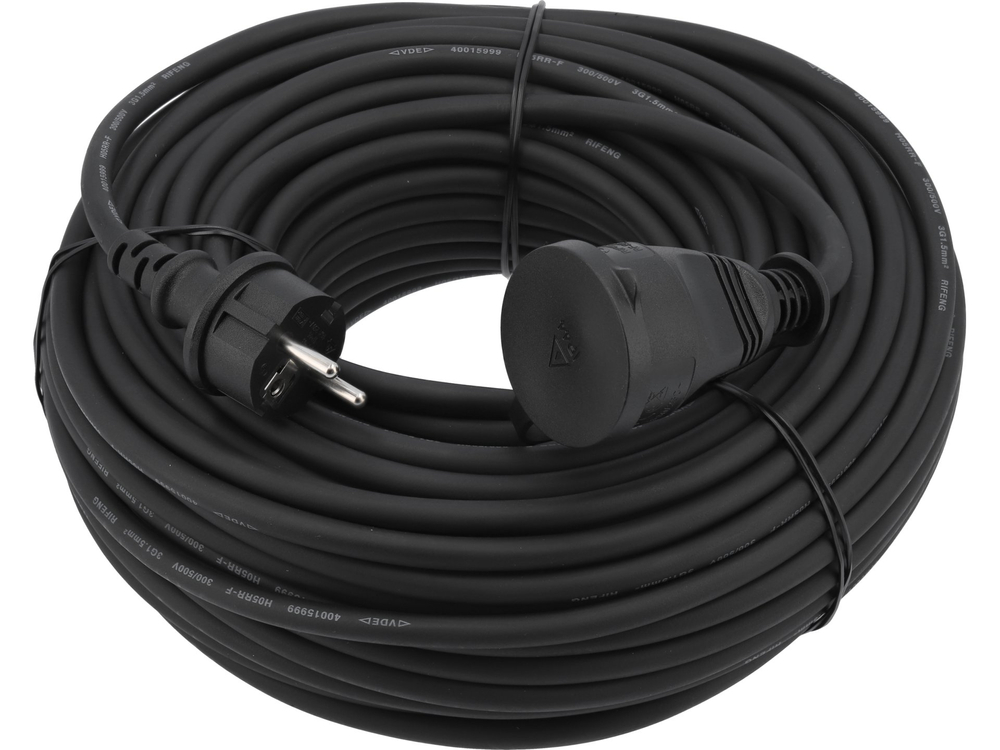

EXTENSION CORD H05RR-F 3X1.5MM2 40M
Brand
Symbol
YT-81028
Producer code
5906083095931
Series
Length
40 m
Type of extension cable
Building
Max.
3680 W
Maximum electricity
16 A
Voltage
250 V a.c.
Nest type
E & F
Plugin
E
Grounding
Yes
Number of sockets
1
Type of wire insulation
H05RR-F
Cable cross-sectional field
3Gx1.5 mm²
Material
CPE (osłona), EPDM (izolacja pojedynczego przewodu)
Color
black
Średnica zewnętrzna
9 mm
Resistance to UV radiation
Yes
Resistance to chemicals
Yes
Ingress protection
IP44
Switch
no
Protection against children
Yes
Building extension cable with dust and splash-proof socket. The chlorinated polyethylene (CPE) sheathed cable will work well both indoors and outdoors. It is resistant to oils, acids, most solvents and sunlight. It does not stiffen in the cold. Does not spread fire. It is characterised by high resistance to ageing.
- maximum operating voltage: ~250 V
- maximum load: 16 A
- continuous operation: up to 3680 W
- three-conductor copper wire of the 1.5 mm² stranded type
- external diameter with cover: ~9.0 mm
- sheathing/coating material: CPE
- insulation material of single conductor: EPDM

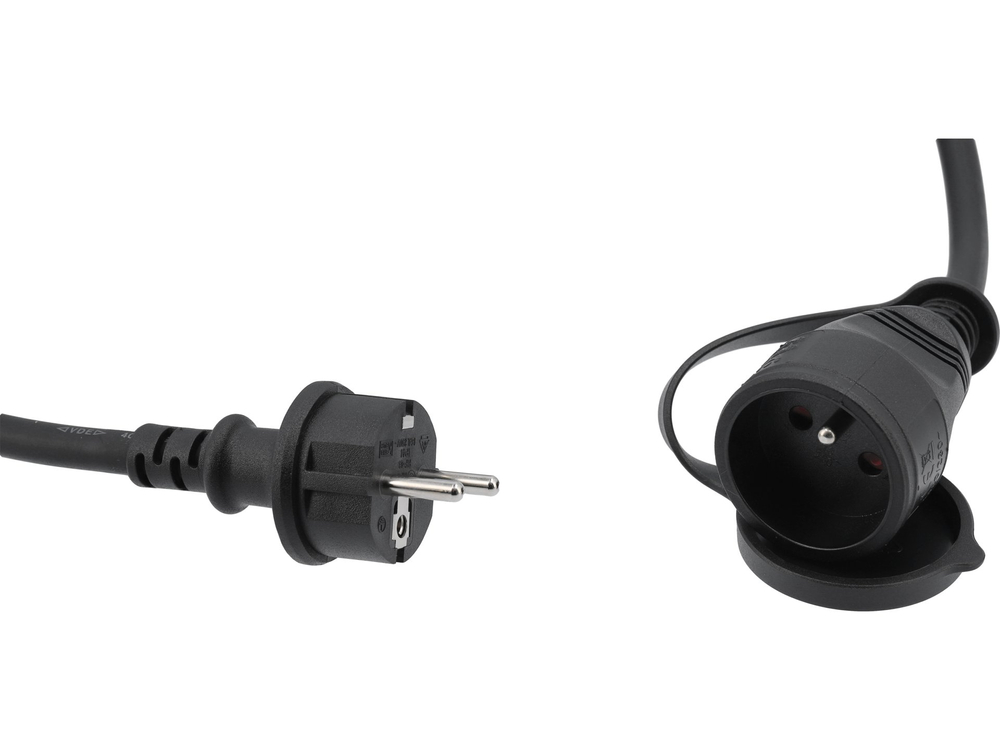

- the dust- and splash-proof IP44 socket provides protection against moisture or dust and sand.
