YT-81121
EXTENSION CORD H07RN-F 3X1.5MM2 5M
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Length
5 m
Extension cord type
building
Max. power
3680 W
Max. current
16 A
Voltage
250 V a.c.
Nest type
E & F
Plug type
E
Earthing
yes
Socket quantity
1
Wire insulation type
H07RN-F
Wire section area
3Gx1.5 mm²
Material
CPE (shield), EPDM (single conductor insulation)
Color
black
External diameter
10 mm
UV proof
yes
Chemical resistance
yes
Protection grade
IP44
Switch
no
Children protection
yes
Symbol
YT-81121
Construction and workshop extension cable with dust and splash-proof socket. The increased diameter chlorinated polyethylene (CPE) sheathed cable will work well both indoors and outdoors. It is resistant to oils, acids, most solvents and sunlight. It does not stiffen in the cold. Does not spread fire. It is characterised by high resistance to ageing. The increased diameter of the insulation improves puncture resistance parameters and increases resistance to mechanical damage.
- maximum operating voltage: ~250 V
- maximum load: 16 A
- continuous operation: up to 3680 W
- three-conductor copper wire of the 1.5 mm² stranded type
- external diameter with cover: ~10.0 mm
- sheathing/coating material: CPE
- insulation material of single conductor: EPDM

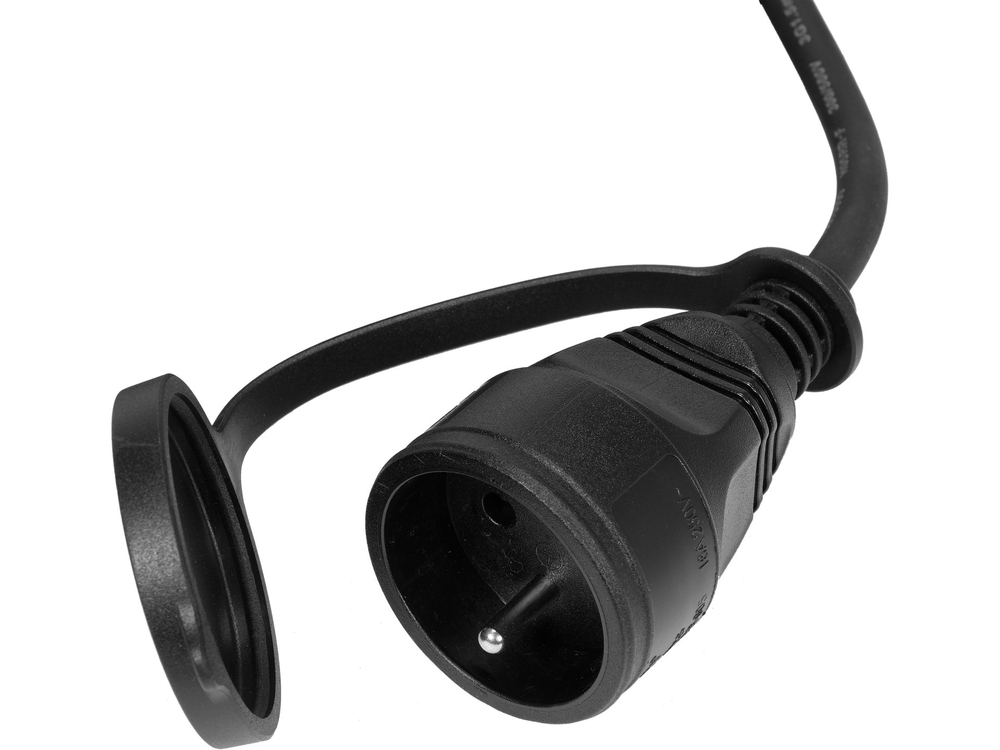

- the dust- and splash-proof IP44 socket provides protection against moisture or dust and sand.
