YT-81031
EXTENSION CORD IN RUBBER PROTECTION 2G TYPE F 15M
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Length
15 m
Extension cord type
building
Max. power
3680 W
Max. current
16 A
Voltage
230 V a.c.
Frequency
50 Hz
Nest type
E & F
Plug type
F
Earthing
yes
Socket quantity
1
Wire insulation type
H05RR-F
Wire section area
3Gx1.5 mm²
Color
black
Protection grade
IP44
Switch
no
Symbol
YT-81031

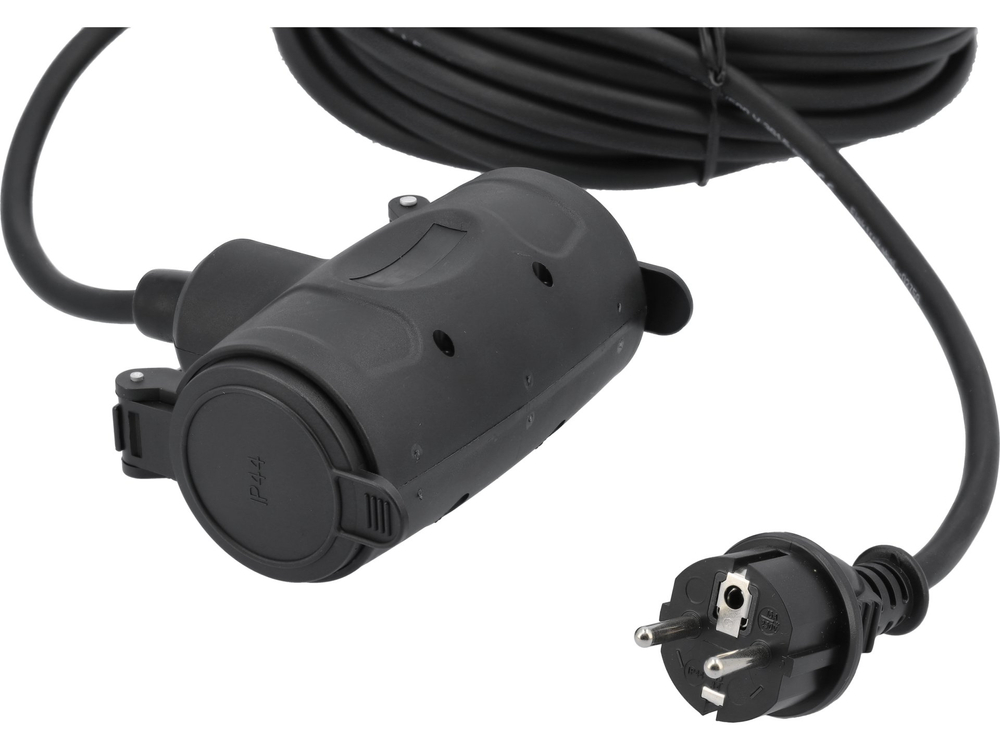

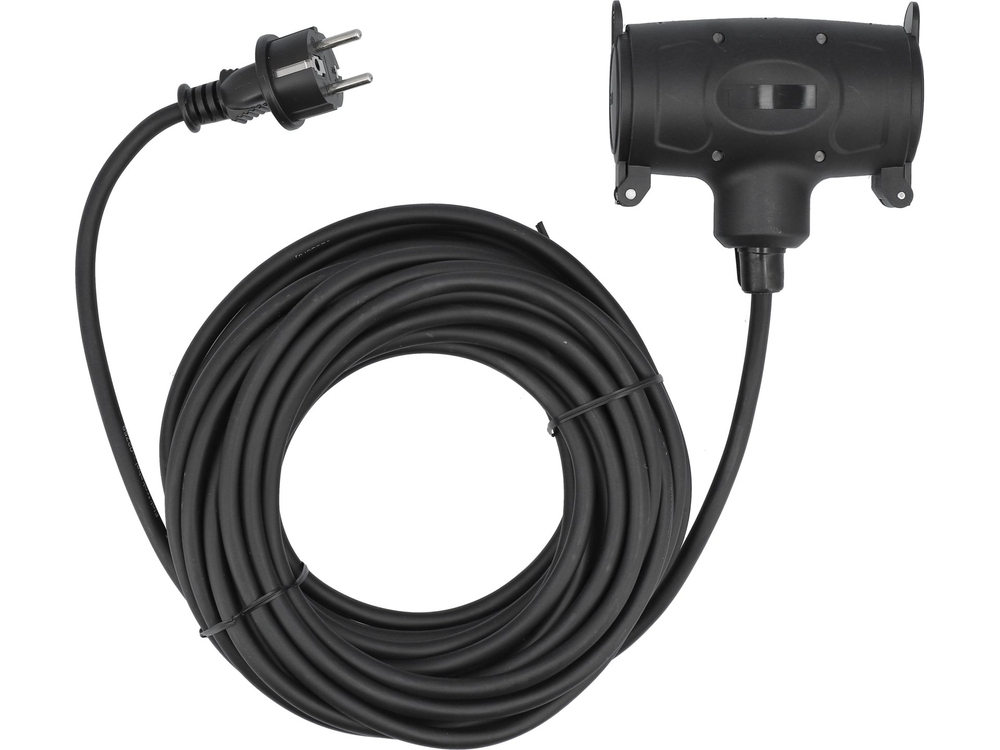

Three-wire extension cord with double IP44 type "F" socket and flooded IP44 type "E" and "F"
Type "F" sockets and plugs are used in countries such as Germany, Ukraine, Russia, Spain, Scandinavia, southern Europe.
While type "E" is, for example, Poland, France, Czech Republic, Belgium.
Length-15m
H05RR-F cable
3 x 1.5 (H-according to harmonized standard, 05- for voltage 300/500V, R-insulation made of ERP rubber, R-rubber ERP sheath, F-flexible copper conductors, multi-stranded, 3 x 1.5-three conductors of 1.5mm2)
Double strippable socket with spring-loaded shutters type "F" in black
Flooded, non-removable plug type "E" and "F" in black
Protection degree-IP44, rated voltage-250V, rated current-16A, wire color-black.
