YT-818271

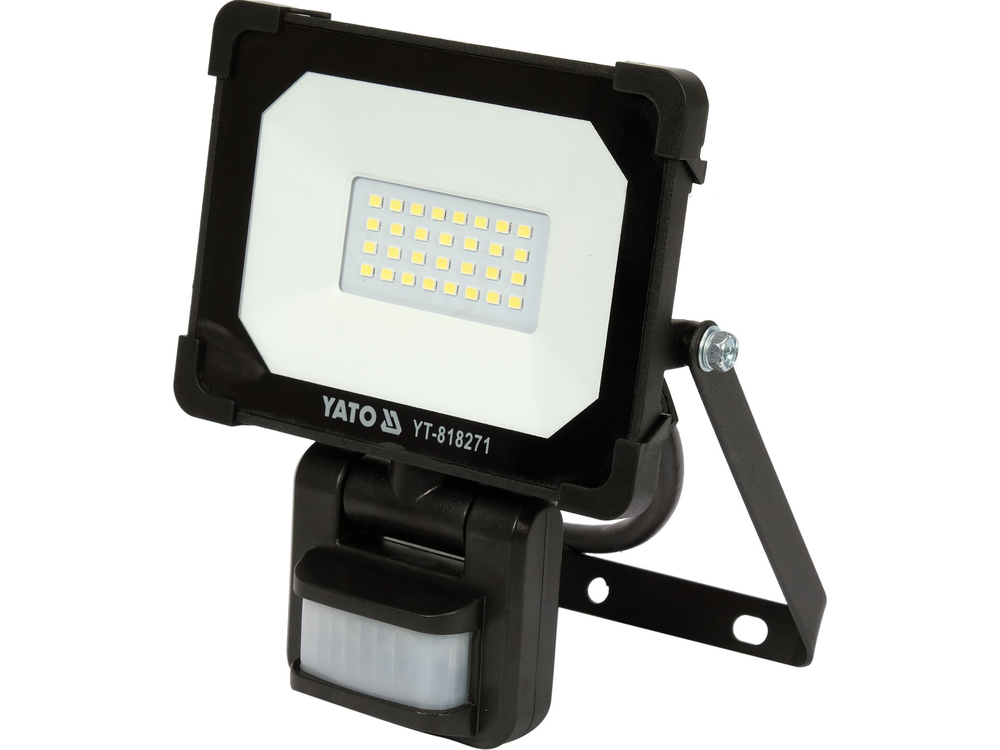

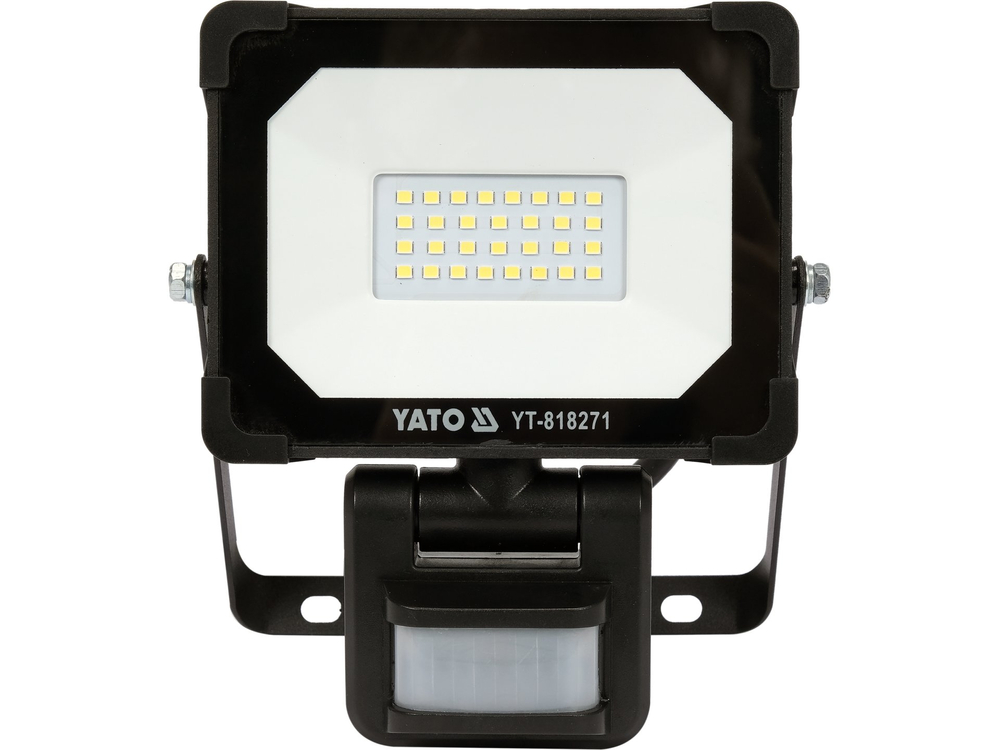

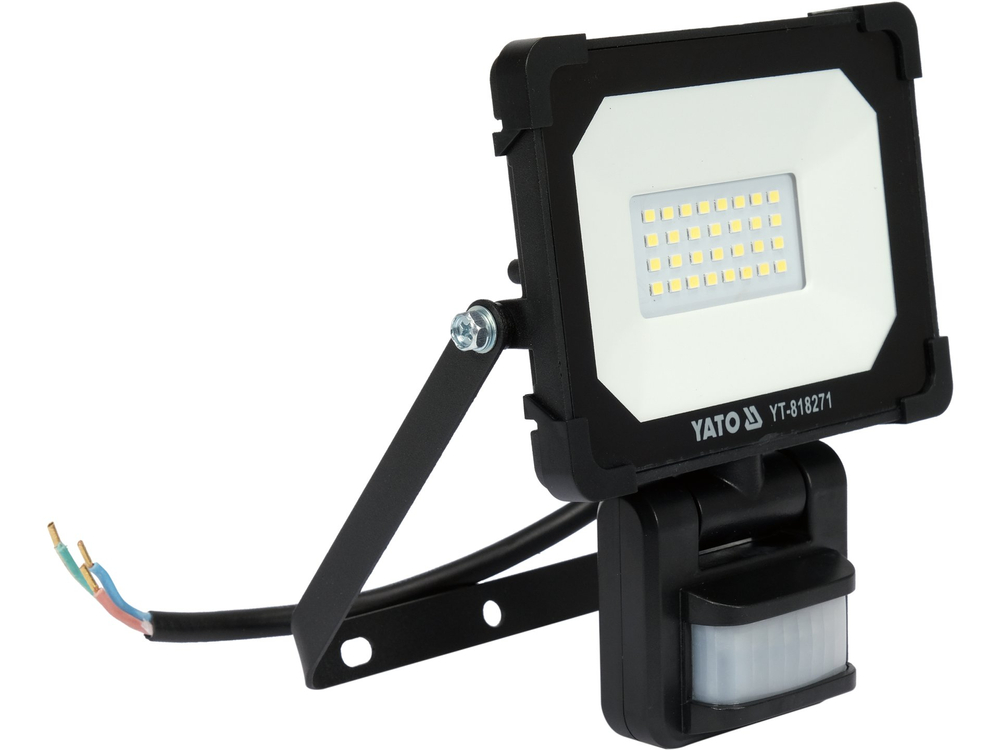

FLOODLIGHT SMD LED 20W 1900LM PIR SENSOR
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type
SMD LED
Power
20 W
Luminous flux
1900 lm
Voltage
230 V a.c.
Frequency
50/60 Hz
Material
aluminum
Cloche material
tempered glass
Color
black
Dimensions
140x173.5x37 mm
Light source
30 LED
Color temperature
6500 K
Colors reflection factor CRI Ra
≥80
Power factor
0.5
Motion detector
yes
Detection angle
120 ˚
Detection range
10 ± 2 m
Detector time delay
10 ± 5 ÷ 300 ± 60 s
Min. mounting height
3 m
Stand / tripod
no
Wire length
0.2 m
Wire section area
3Gx1 mm²
Wire insulation type
H05RN-F
Electric insulation class
I
Protection grade
IP54
Lifetime
30000 h
Weight
0.37 kg
Symbol
YT-818271
![](https://pim.toya.pl/piktogramy/POWER_SUPPLY/image-thumb__60426__Sklep_pikto/230V_50_60Hz.png")
![](https://pim.toya.pl/piktogramy/W_kW/image-thumb__53061__Sklep_pikto/20_W.png")
![](https://pim.toya.pl/piktogramy/lm_K_LED/image-thumb__98189__Sklep_pikto/1900_lm.png")
![](https://pim.toya.pl/piktogramy/lm_K_LED/image-thumb__51330__Sklep_pikto/6500_K.png")
![](https://pim.toya.pl/piktogramy/PICTURE_PARAMETER/image-thumb__82811__Sklep_pikto/MOTION_DETECTOR_10_%2B-2_m.png")
![](https://pim.toya.pl/piktogramy/PICTURE_PARAMETER/image-thumb__60145__Sklep_pikto/30000_h.png")
![](https://pim.toya.pl/piktogramy/IK_IP_IPX/image-thumb__51166__Sklep_pikto/IP54.png")
Flat floodlight with efficient SMD LEDs and waterproofing class IP54 recommended for indoor and outdoor lighting - building facades, staircases, driveways, garages, warehouses.
- Flat floodlight with efficient SMD LEDs and waterproofing class IP54 recommended for indoor and outdoor lighting - building facades, staircases, driveways, garages, warehouses.
- power: 20 W
- Lumen output: 1900 lm
- Number of LEDs: 30
- IP54 waterproof rating
- Light color: 6500 K
- Aluminum housing
- Glass diffuser
- LED life: 30,000 h
- cable length: 20 cm
- type : flat (slim)

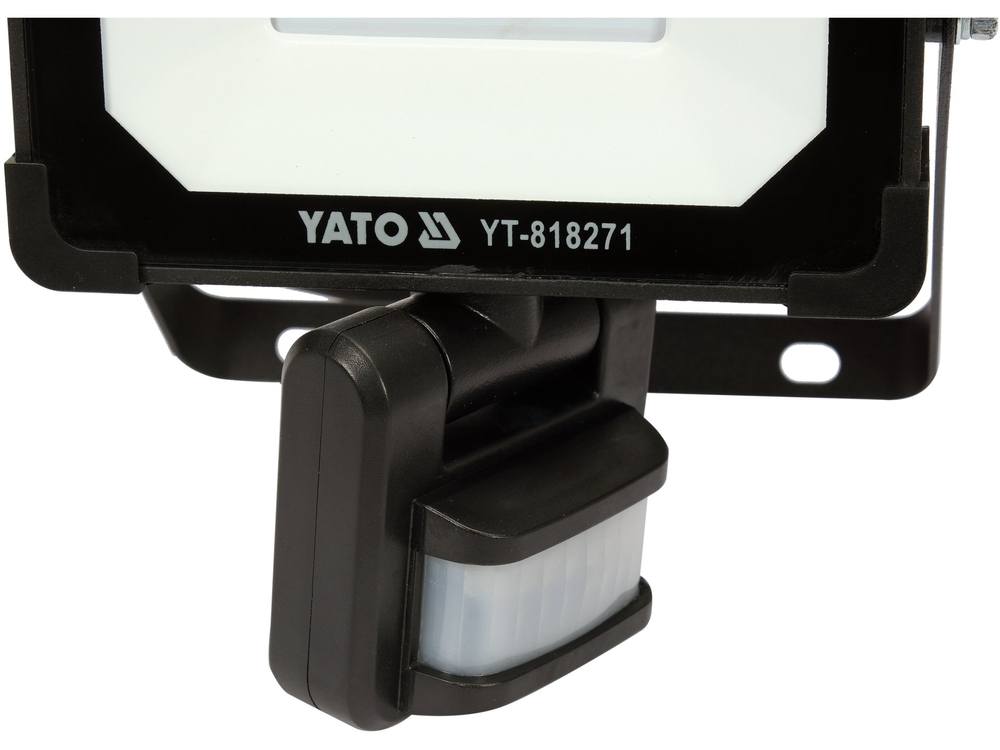

Motion sensor:

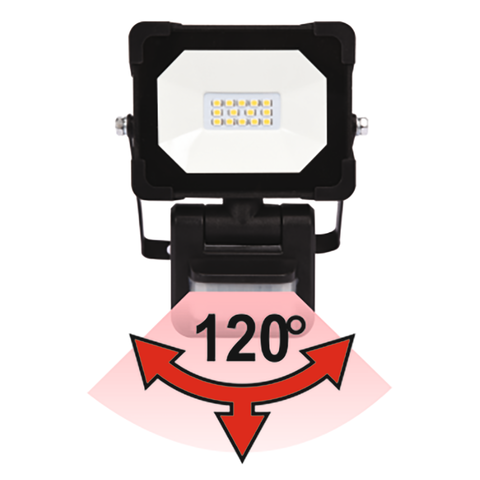

- detection angle: 120º
- range: 10m (+/- 2m)
- adjustable lighting switching time: from 10s (+/- 5 sec) to 5 min (+/- 1min)

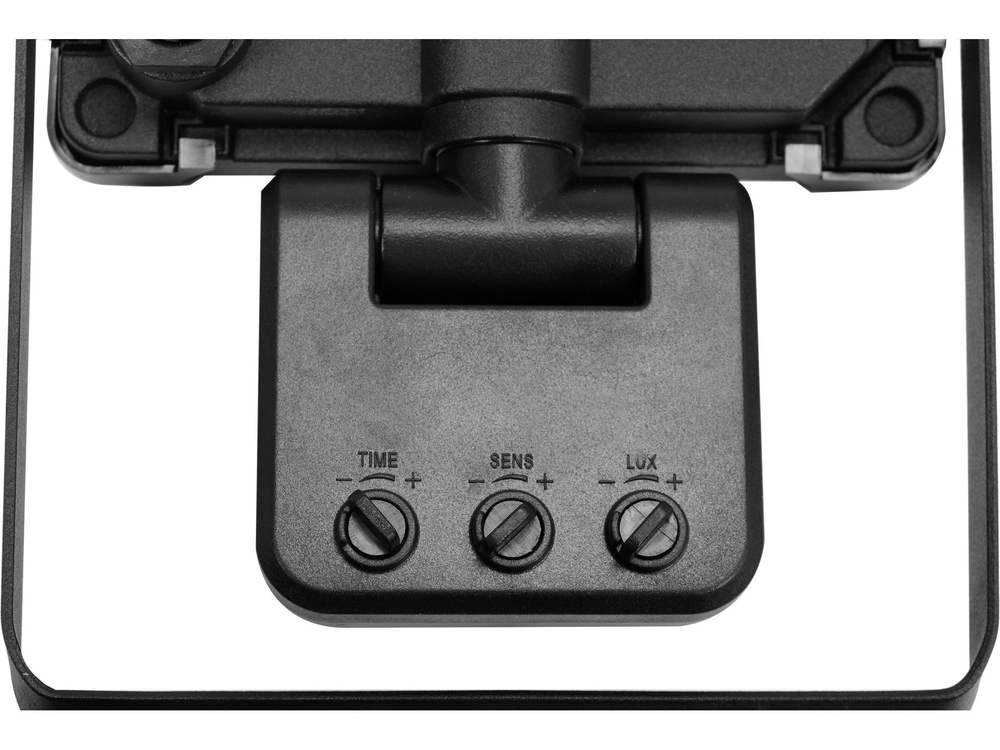

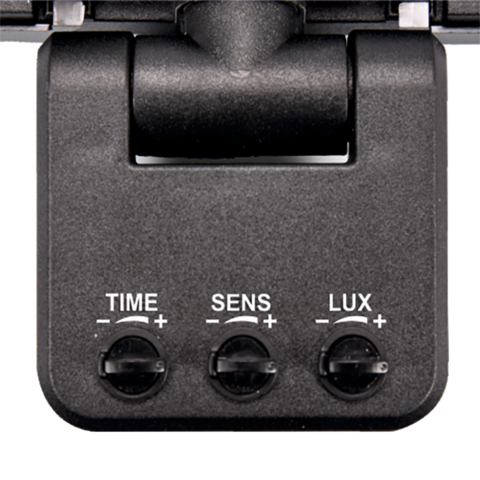

Regulation
Regulation:
TIME - time setting, determining how long the light is emitted by the lamp
LUX - setting the day/night mode, so you can set the optimal brightness at which the lamp should start
SENS - setting the sensitivity of the motion sensor and adjusting its range
IP54 - dust protection, protection against water splashes from any direction
