YT-44732
STEP DRILL SET 3PCS
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Diameter
4-12 (4, 6, 8, 10, 12 mm), 4-22 (4, 6, 8, 10, 12, 14, 16, 18, 20, 22 mm), 6-38 (6, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38 mm) mm
Rung quantity
10

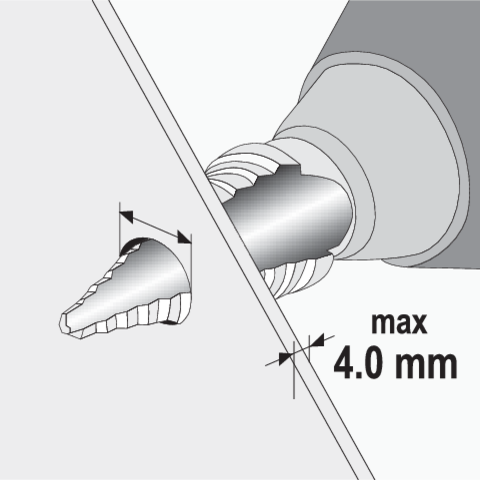

Max. cutting capacity
4 mm
Toolholder type
triangle
Material
HSS 4241
Surface finish
blackened
Pcs
3
Application
high-quality stainless steel, structural steel, cold rolled steel, non-ferrous metals, steel sheets, plastic
Symbol
YT-44732

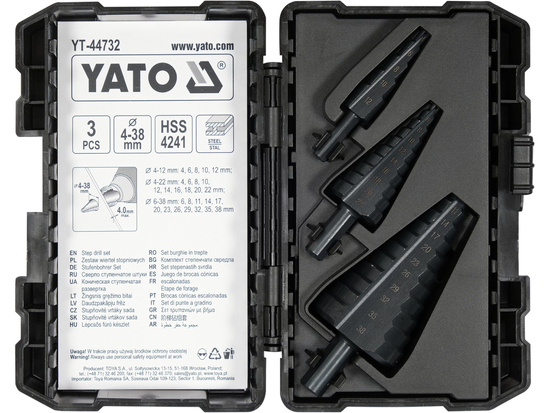

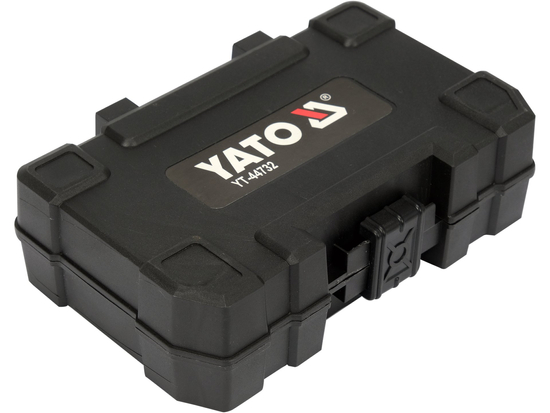

Set of three step drills for drilling in high-grade stainless steel, structural steel, cold-rolled steel, non-ferrous metals, steel sheets and plastics.

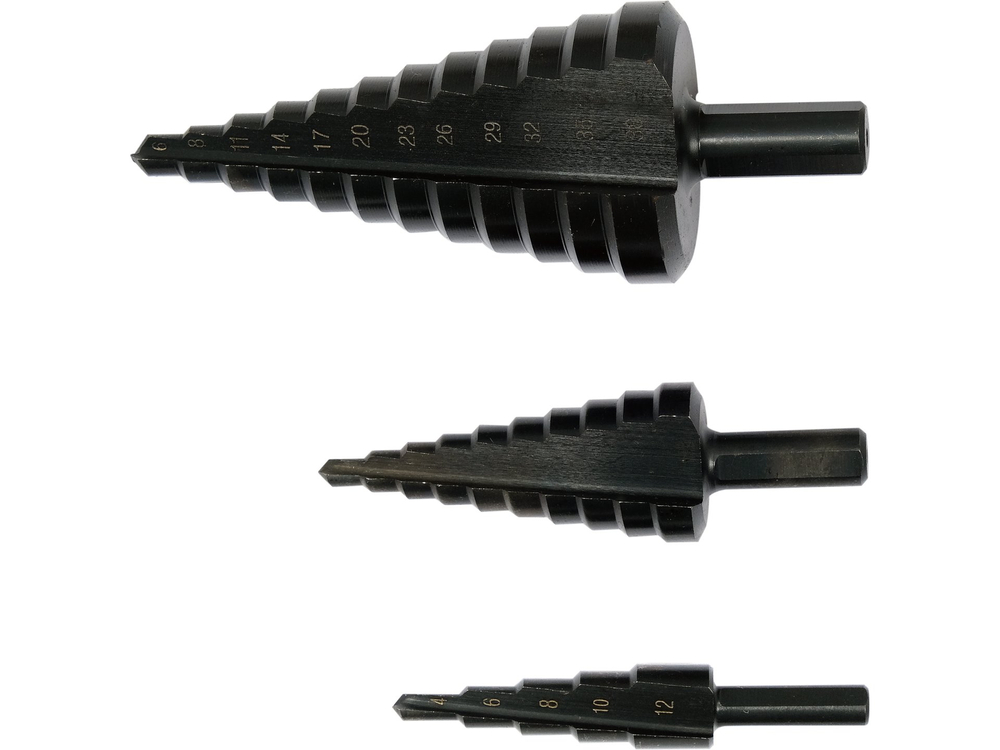

- drill parameters:
- diameter 4-12 (4, 6, 8, 10, 12 mm), working length 43 mm, overall length 64 mm
- diameter 4-22 (4, 6, 8, 10, 12, 14, 16, 18, 20, 22 mm), working length 52 mm, overall length 74 mm
- diameter 6-38 (6, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38 mm), working length 76 mm, overall length 100 mm
- material: HSS4241 steel
- blackened surface
- handle: cylindrical with three flat surfaces
Usage warnings:
Warning! Always use personal safety equipment at work.Ask a question
