54900
SEALING PLUG BLUE 1/2"
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Color
blue (for cold water)
Material
PP
Length
88 mm
Thread size
G1/2
Type of thread
cylindrical, inch
Min. diameter
30 ± 5% mm
Max. diameter
35 ± 5% mm
Working max.
12 bar
Working temperature range
-45 ~ +120 ˚C
Weight
20 ± 5% g
Application
temporary plugging of threaded holes in central heating (Cheating) and domestic water (WU) installations,
Application contd
used, for example, when carrying out a tightness test, necessary before starting the above installations
Symbol
54900

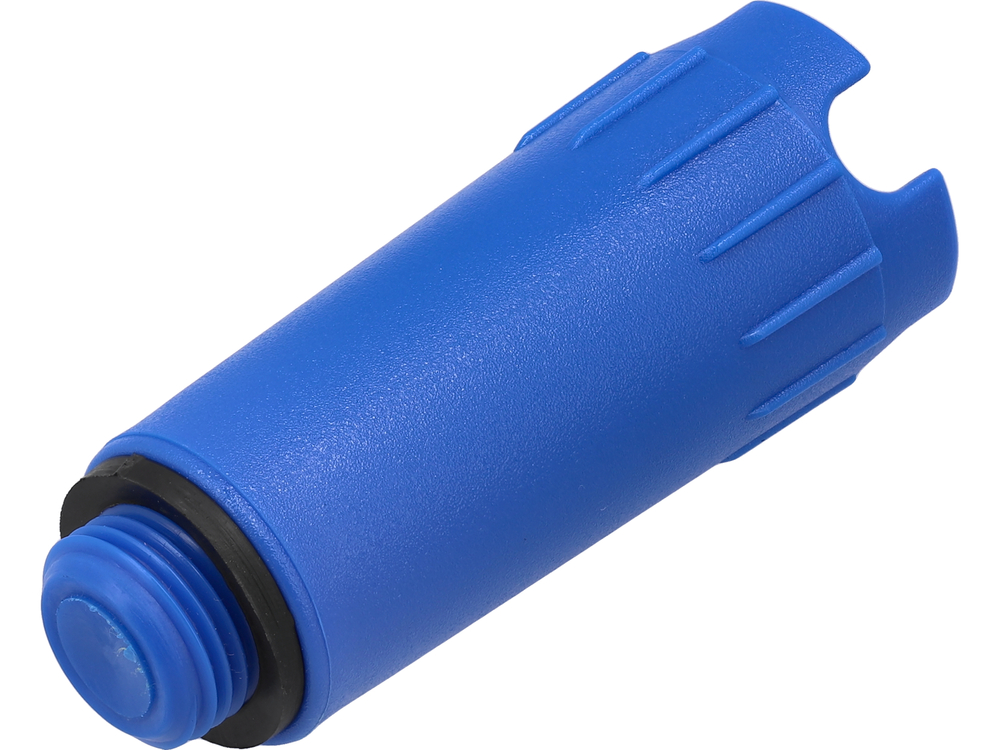

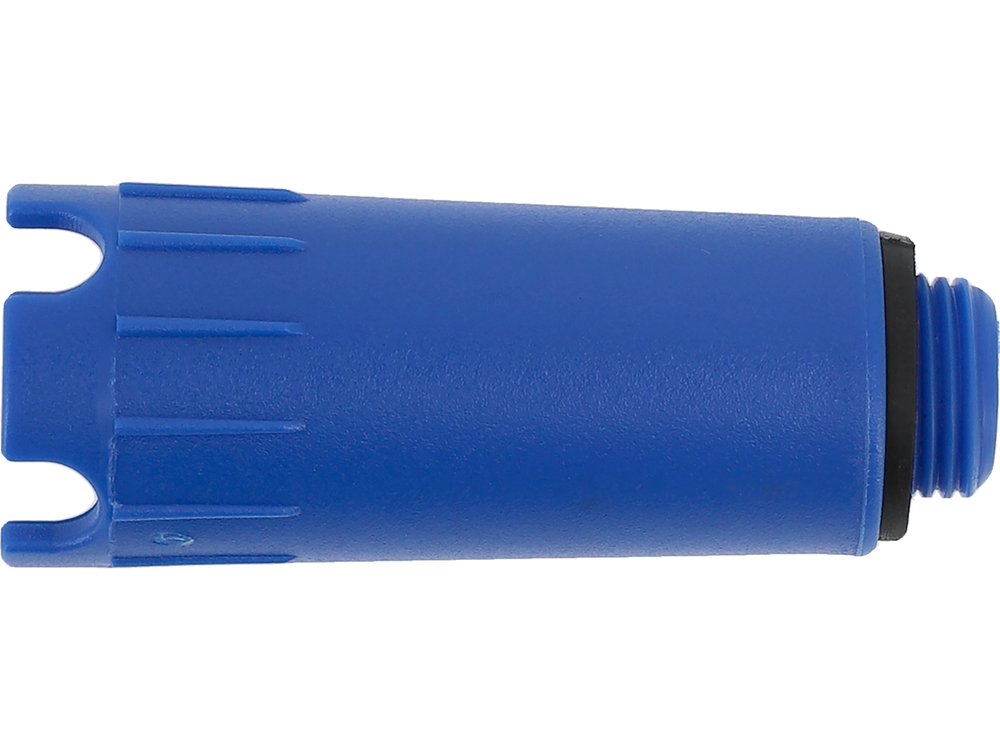

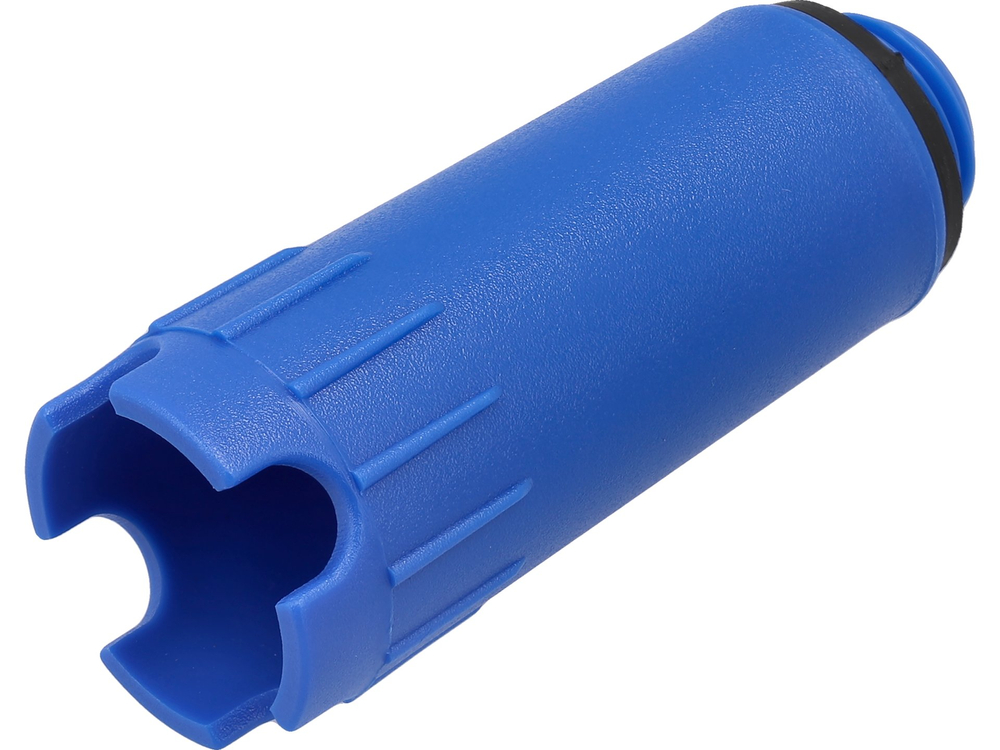

The plug is used in temporary plugging of threaded holes in central heating (C.O.) and domestic water (W.U.) installations. It is used, for example, when carrying out a tightness test, necessary before starting the installation. Proper length and corrugation limiting hand slippage, allows convenient plugging of pipes and fittings, as well as easy assembly and disassembly without the use of any tools. Equipped with a rubber gasket.
- thread diameter: 1/2"
- type of thread: cylindrical, inch
- material: PP (polypropylene)
- length: 88 mm
- maximum diameter: 35 mm +/-5%
- minimum diameter: 30 mm +/-5%
- color: blue (for cold water)
- maximum operating pressure: 12 bar
- temperature range from -45 to 120oC
