54901

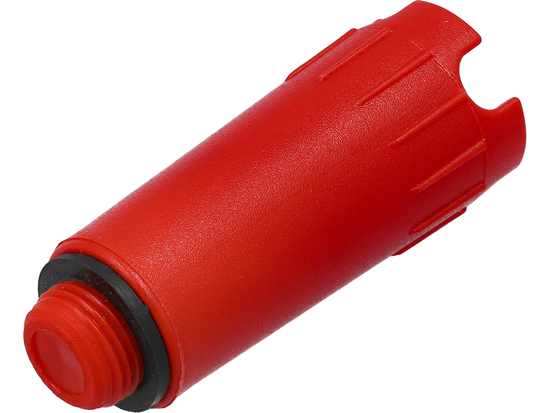

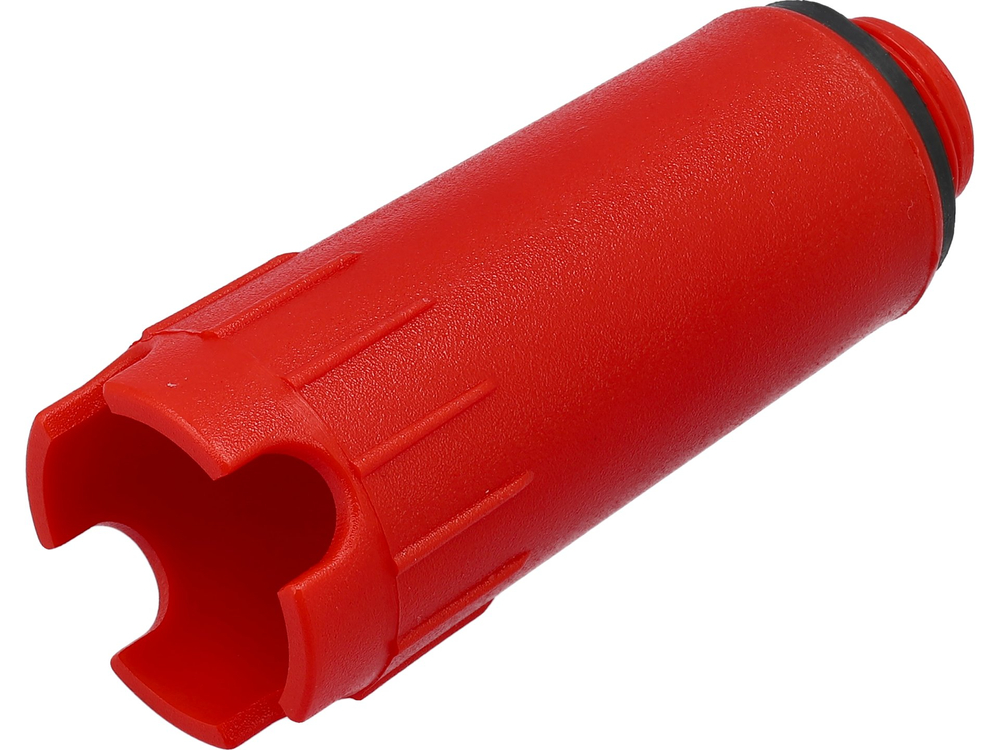

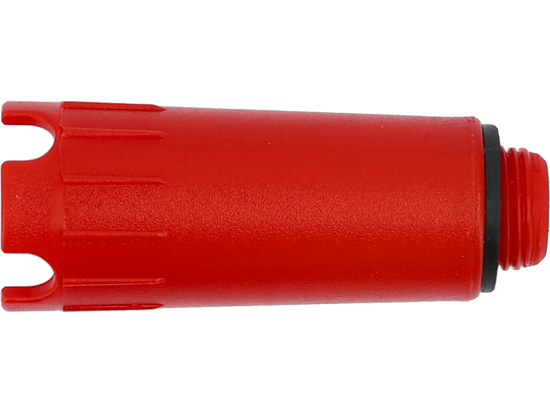

SEALING PLUG RED 1/2"
Brand
Symbol
54901
Producer code
5906083095283
Series
Color
red (to the hot water)
Material
PP
Length
88 mm
Thread size
G1/2
Type of thread
cylindrical, inch
Min. Diameter
30 ± 5% mm
Max. diameter
35 ± 5% mm
Working max.
12 bar
Operating temperature range
-45 ~ +120 ˚C
Weight
20 ± 5% g
Application
temporary blinding of threaded holes in central heating installations (central heating) and utility water (W.U.),
Application CD.
Used, e.g. when conducting tightness test, necessary before starting the above installations
The plug is used in temporary plugging of threaded holes in central heating (C.O.) and domestic water (W.U.) installations. It is used, for example, when carrying out a tightness test, necessary before starting the installation. Proper length and corrugation limiting hand slippage, allows convenient plugging of pipes and fittings and easy installation and removal without the use of any tools. Equipped with a rubber gasket.
- thread diameter: 1/2"
- type of thread: cylindrical, inch
- material: PP (polypropylene) .
- length: 88 mm
- maximum diameter: 35 mm +/-5%
- minimum diameter: 30 mm +/-5%
- color: red (for hot water)
- maximum working pressure: 12 bar
- temperature range : -45 to 120oC
