71620
LINEAR DRAIN WET&DRY 150X150MM
Brand
Symbol
71620
Producer code
5906083086601
Series
Series
Wet & dry
Grate pattern
tile to paste, brushed steel
Product material
stainless steel 304
Gutter length
150 mm
Gutter size
150x150 mm
Gutter width
150 mm
Collar width
20 mm
Siphon height
52 mm
Connection size
50/40 mm
WET&DRY
Yes
EASYclean
Yes
GRIPstrong
Yes
HYDROcloth
Yes
STRAINer
Yes
HQwelding
Yes
EXTRAslim
Yes
EASYfix
Yes
Application
bathrooms - shower cabins, swimming pools - pools, laundries, boiler rooms, balconies, terraces
Contents of the set
grate, drainage trough with covering, sewage reduction, adjustable fastening feet, insulation mat, grate lifting hook

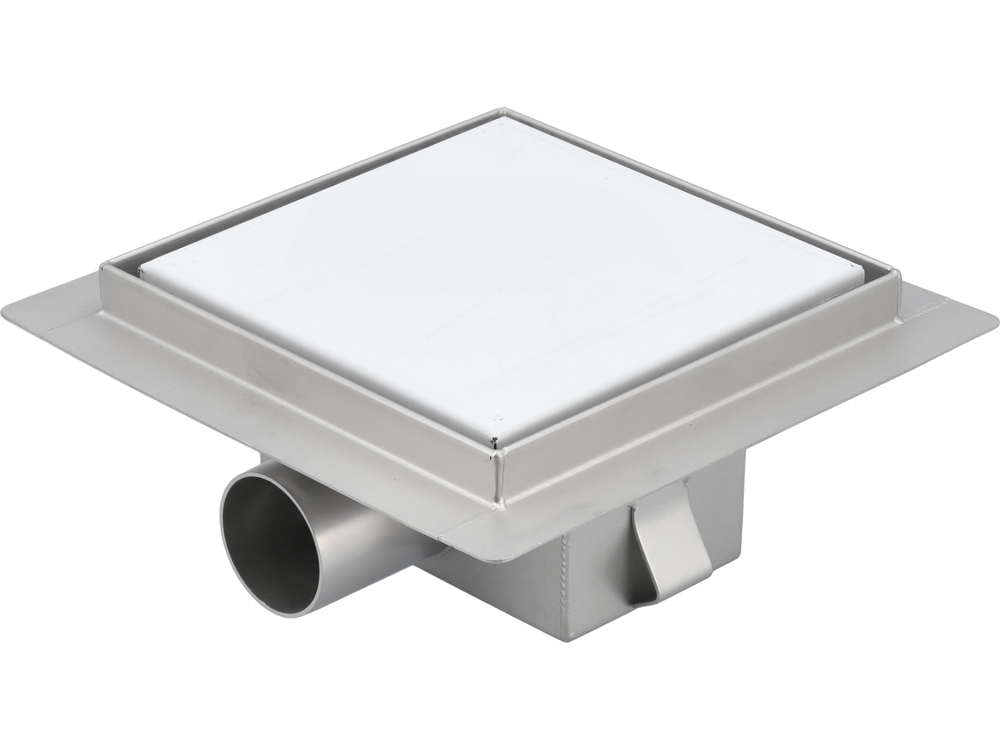

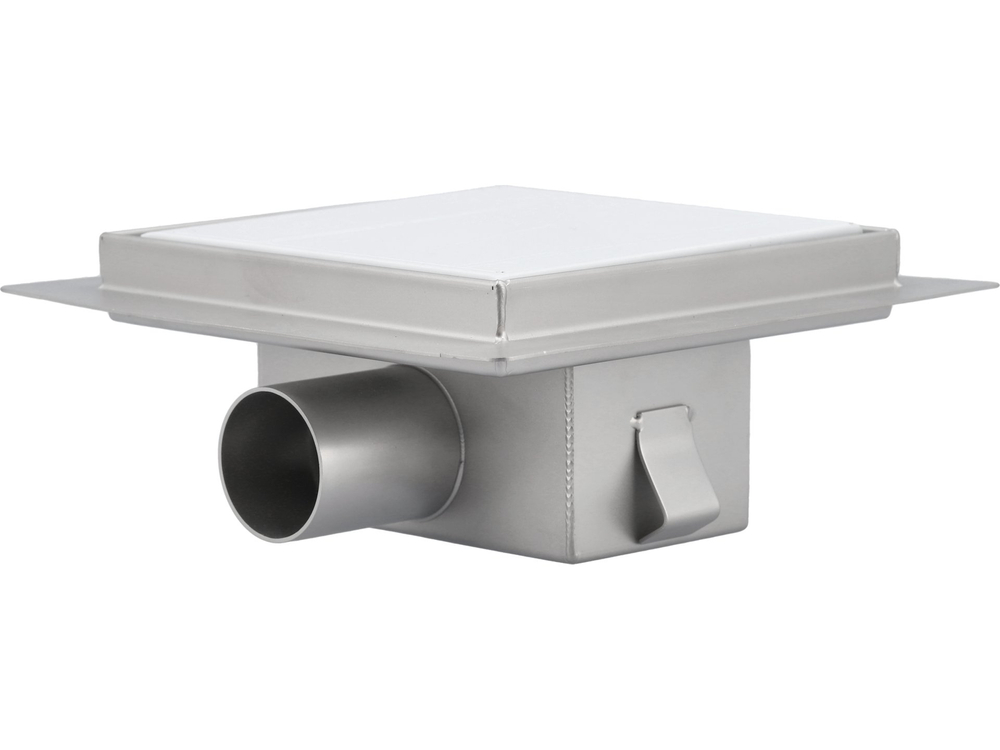

The Wave square linear drain is a great idea for elegant and practical arranging bathroom space. It is made wholly of AISI 304 stainless steel, which is characterized by resistance to corrosion, detergents and mechanical damage.
Fala shower drains are equipped with facilities that guarantee comfortable and efficient operation for many years:
- Special WET&DRY solution that prevents odors and bugs from entering during use as well as after drying;
- .special inspection window is 100% patency control and convenient cleaning;
- it is easy to clean;
- the sealing mat is included - an essential part for waterproofing;
- an effective and durable screen, which prevents clogging of the trap and facilitates the ongoing maintenance of the drain;
- .high quality precision welds , which guarantee the tightness of the drain;
- made of AISI 304 stainless steel very low siphon, which facilitates installation;
Data:
- size: 15x15 cm
- 40 mm outlet .
- includes 50/40 mm reduction;
- grate design 2-in-1 - insertable plate, brushed steel when reversed;
- material: AISI 304 stainless steel
- thickness of steel of linear drains: trap: 1.2 mm, grate: 1 mm
- Product complies with EN 1253-1
- Capacity class: K3 (surfaces without circular traffic)
- Product thermal behavior class: Class A (without installation restrictions)
- Flow rate: more than 36 l/min (shower faucet has a maximum flow rate of 18 l/min)
