YT-09510
ANGLE IMPACT WRENCH 1/2"
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1/2" (12.7 mm)
Toolholder type
Driver
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
113 l/min
Rotations
8000 min⁻¹
Max. torque
500 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
277 mm
Casing material
aluminum
Rotation switch
yes
Acoustic pressure
84.8 ± 3.0 / 90.1 ± 3.0 dB(A)
Acoustic power
95.8 ± 3.0 / 101.1 ± 3.0 dB(A)
Vibrations
4.894 ± 1.5 m/s²
Weight
1.4 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09510

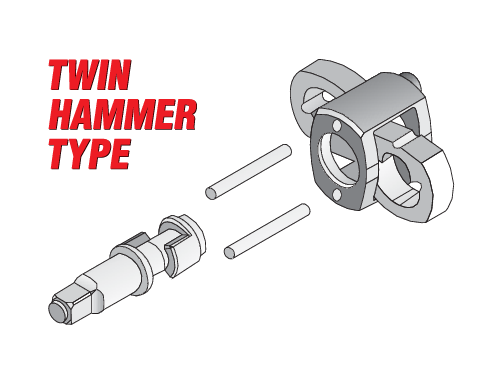

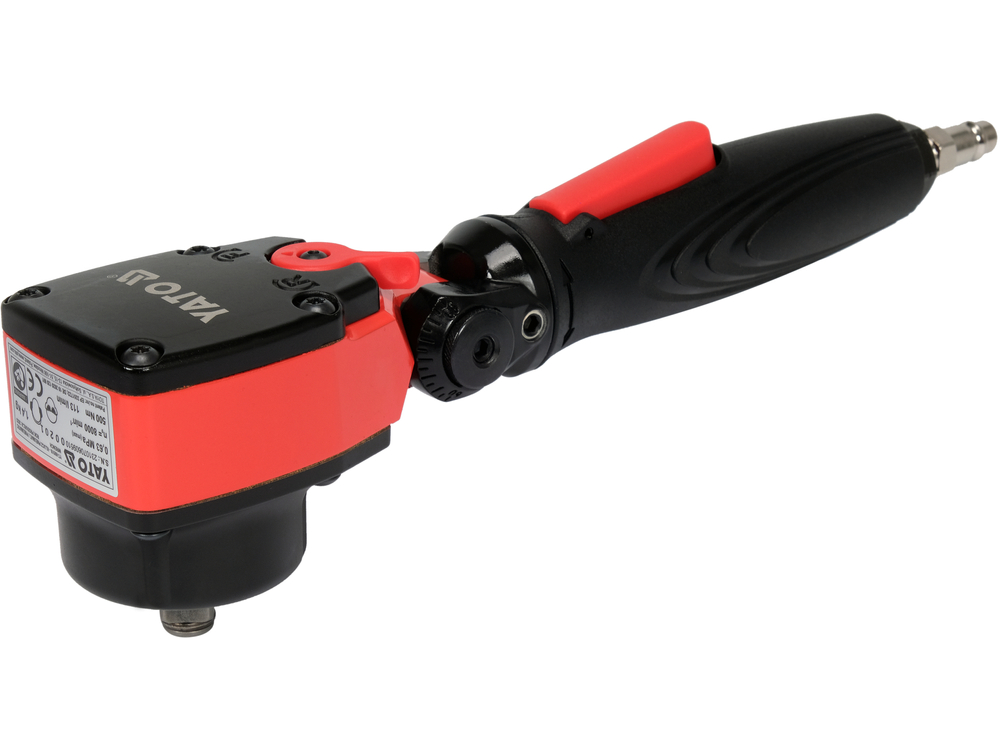

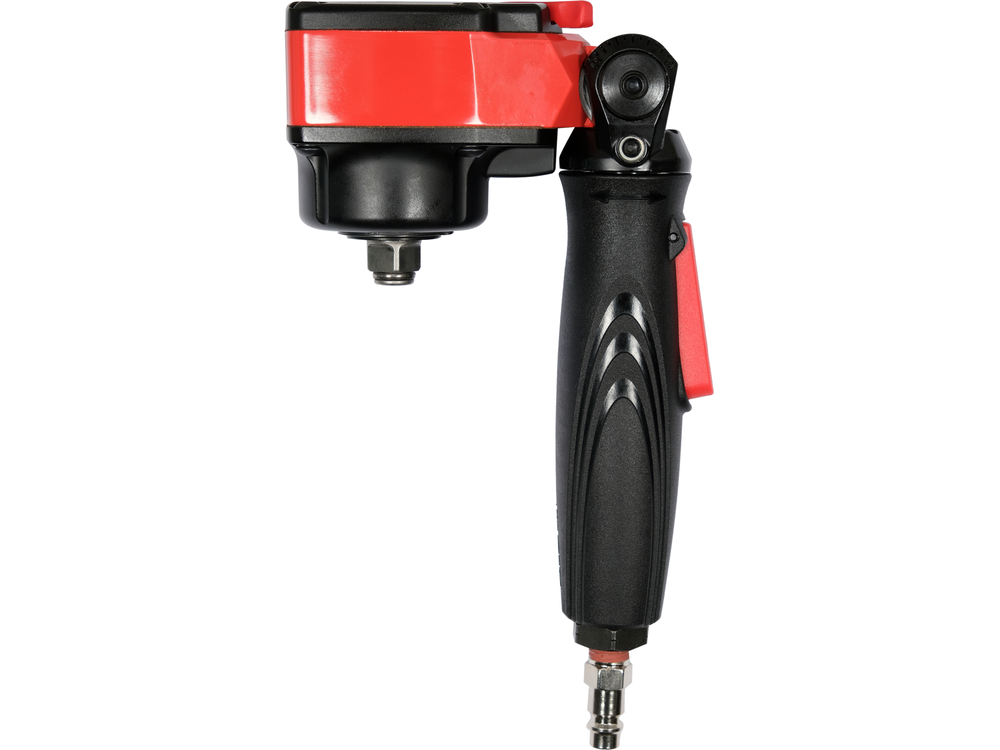

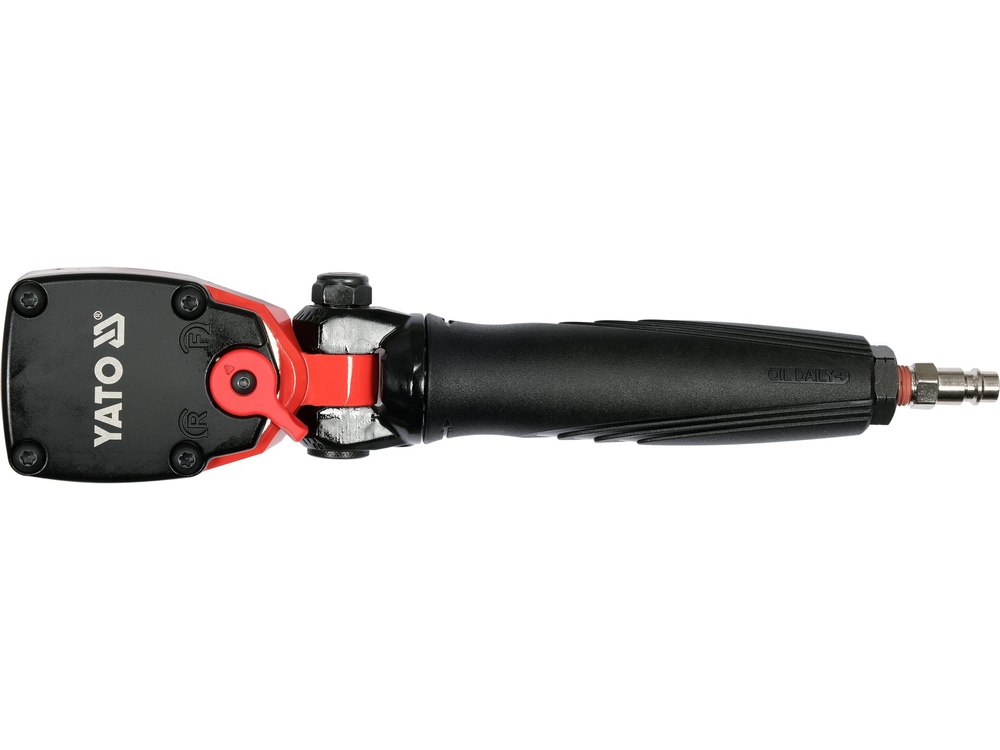

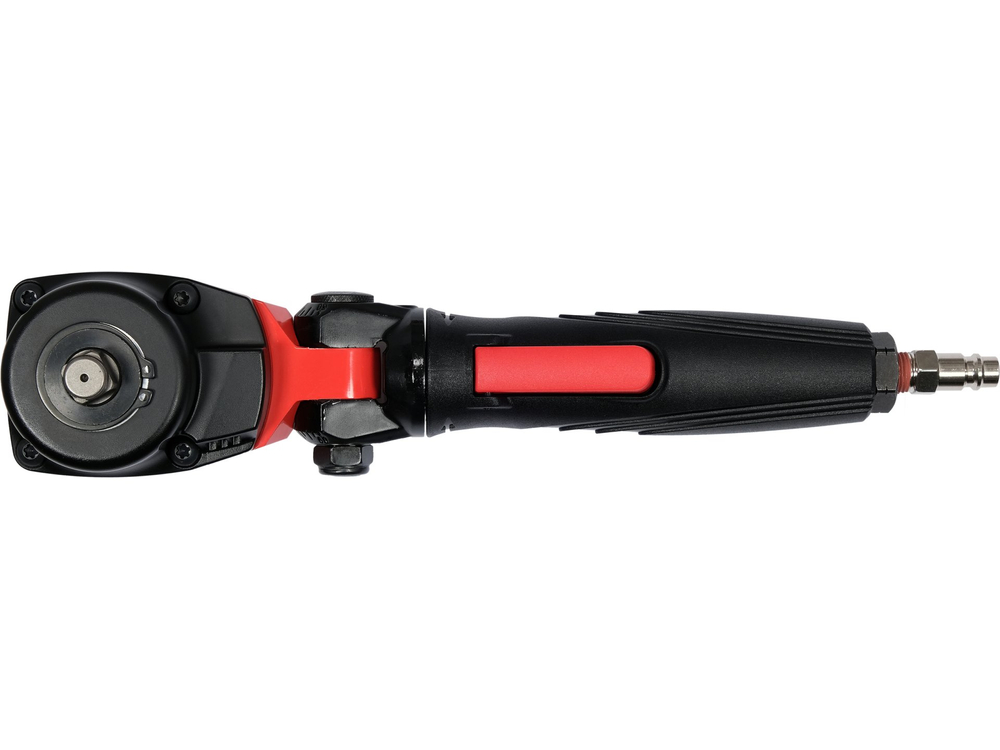

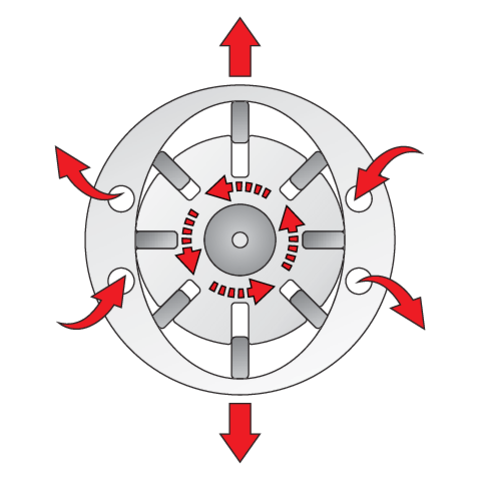

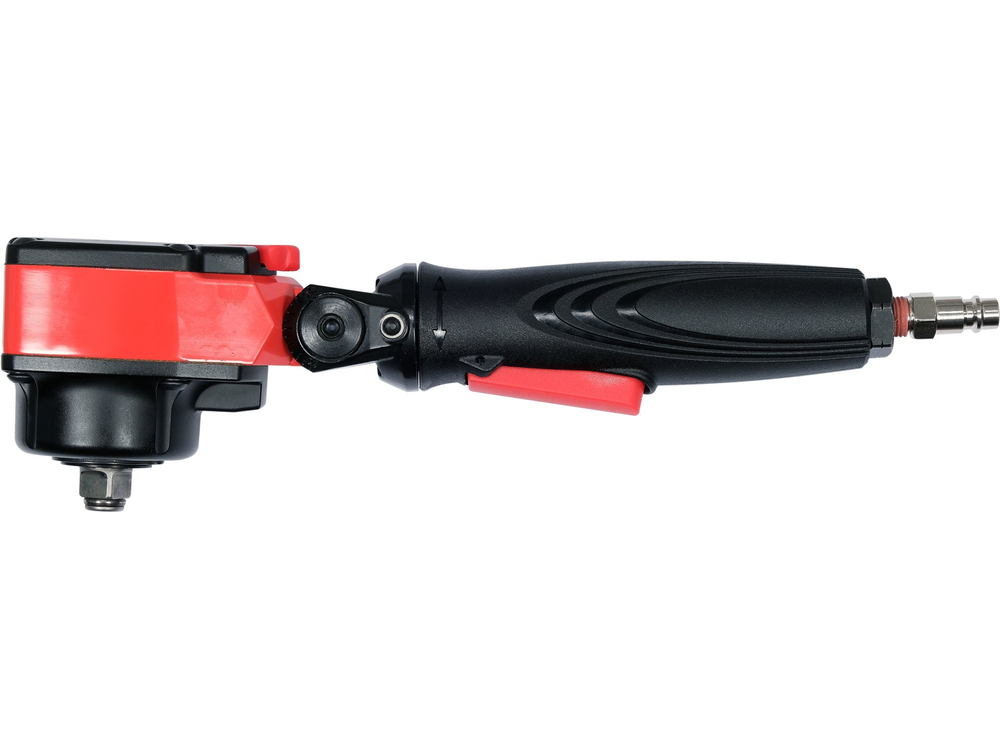

A composite impact wrench with a performance-enhancing double compression chamber and twin hammer system. The wrench will be perfect for hard-to-reach places. Convenience of use is due not only to its compact size, but also to its fully rotating handle and 180-degree movable head.
- power: 500 Nm
- prędkość obrotowa: 8.000 obr./min
- weight: 1.4 kg (without connection)
- head length: 85 mm
- overall length: 277 mm
- tool handle: 1/2" (12.7 mm)
- connection diameter: 3/8" (9.5 mm)
- air consumption: 113 l/min
- housing material: aluminum
