81772

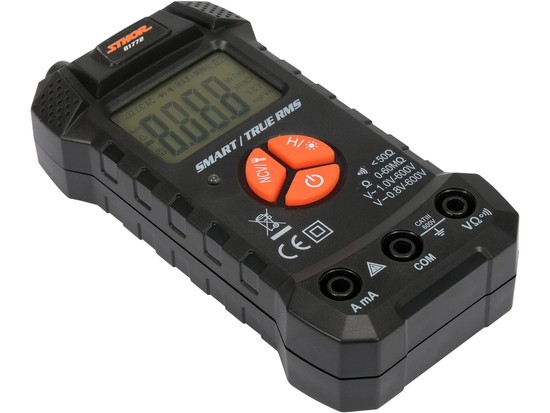

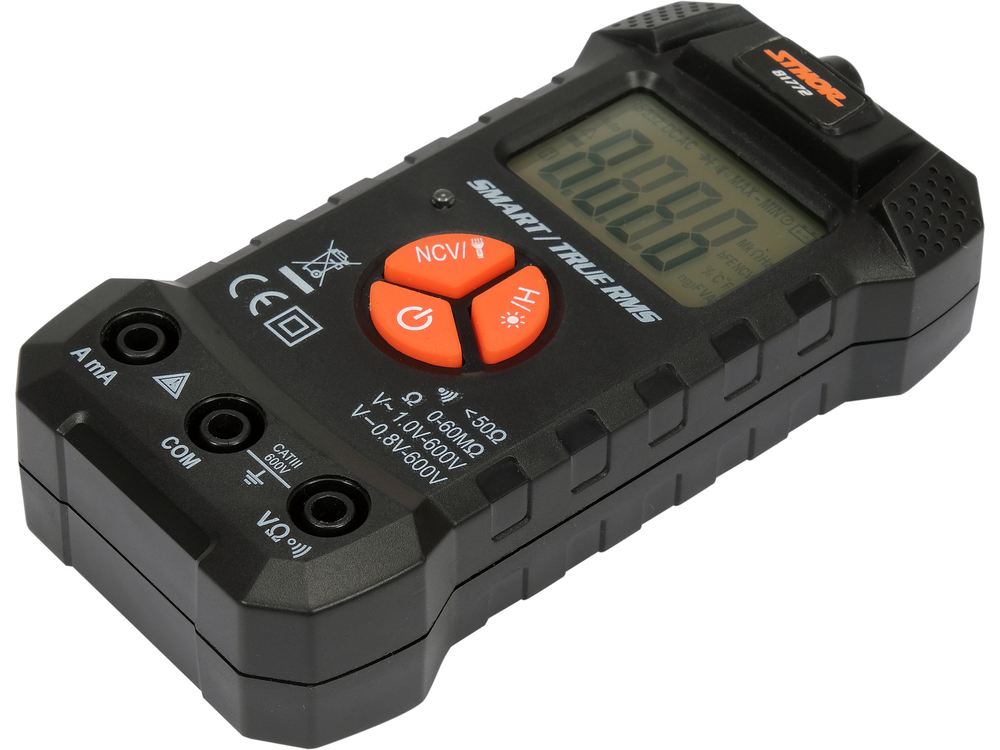

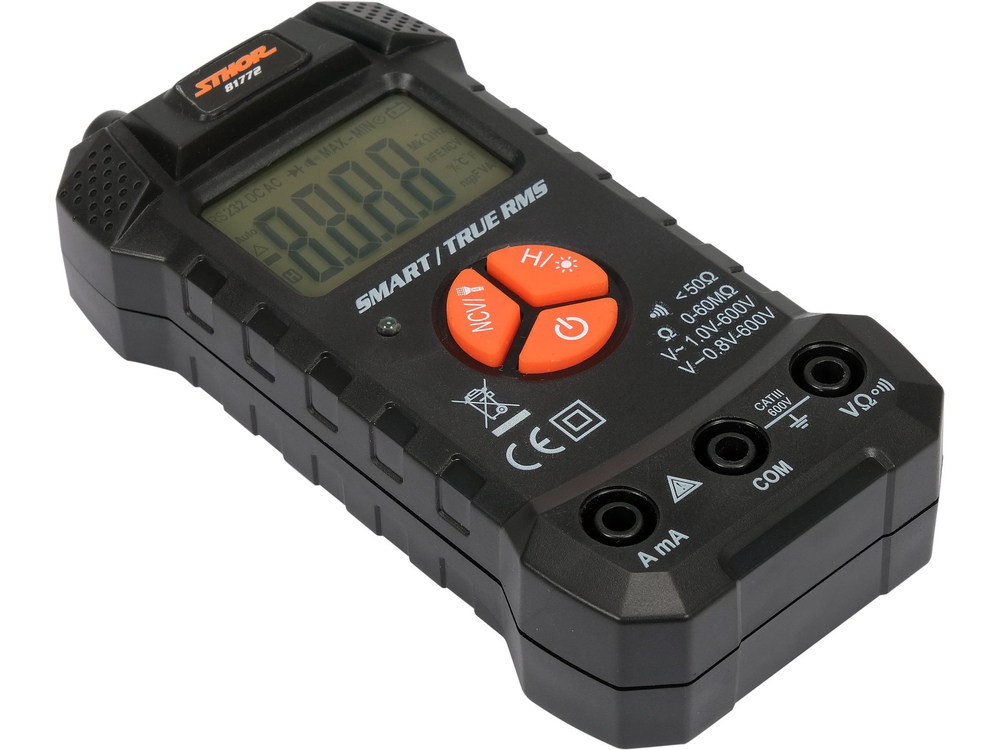

SMART DIGITAL MULTIMETER TRUE RMS
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Alternating voltage
0-600 V a.c.
Direct voltage
0-600 V d.c.
Alternating current
0-10 A
Direct current
0-10 A
Resistance
0-60 MΩ
Continuity test
0-50 Ω
Conduction test
yes
TRUE RMS
yes
Data Hold
yes
Non-contact AC voltage detection NCV
yes
Dimensions
123x58x28 mm
Material
ABS
Display type
LCD
LED backlight
yes
Display range
5999
Bell ring
yes
Auto measurement range
yes
Auto power off
15 min
Front lighting
no
Low battery indicator
yes
Power supply
battery
Type of battery
2x1.5V; AAA
Working temperature range
0~40 ˚C
Operating relative humidity Rh
<75 %
Storage temperature
-10 ~ +50 ˚C
Weight
0.075 kg
Application
electric
Symbol
81772

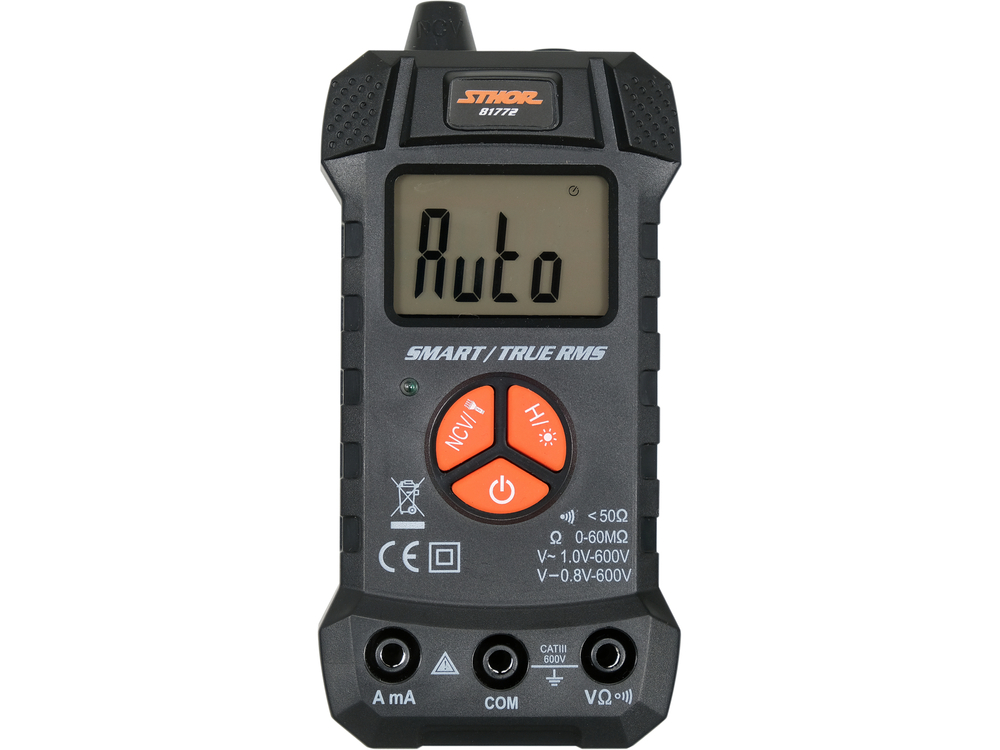

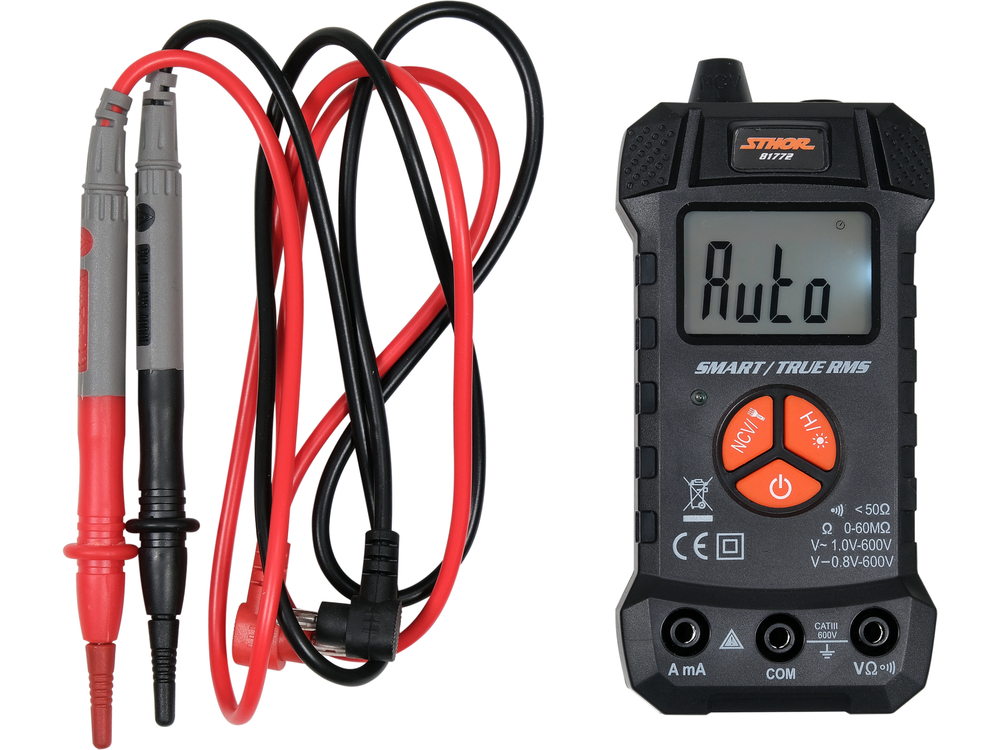

Universal smart meter with TRUE RMS function and automatic range for each measurement. The meter not only automatically selects the measuring range, but also autonomously recognises whether resistance, circuit continuity, DC or AC voltage is being measured. This makes the meter very easy to use.
- basic measurements:
- aC voltage measurement: A.C. 0-600 V, TRUE RMS
- dC voltage measurement: D.C. 0 – 600 V
- aC current measurement: A.C. 0-10 A, TRUE RMS
- dC current measurement: D.C. 0-10 A
- resistance measurement: 0–60 MΩ
- circuit continuity test: 0-50 Ω
- non-contact AC voltage detection: NCV
- lCD display, maximum displayed result: 5999

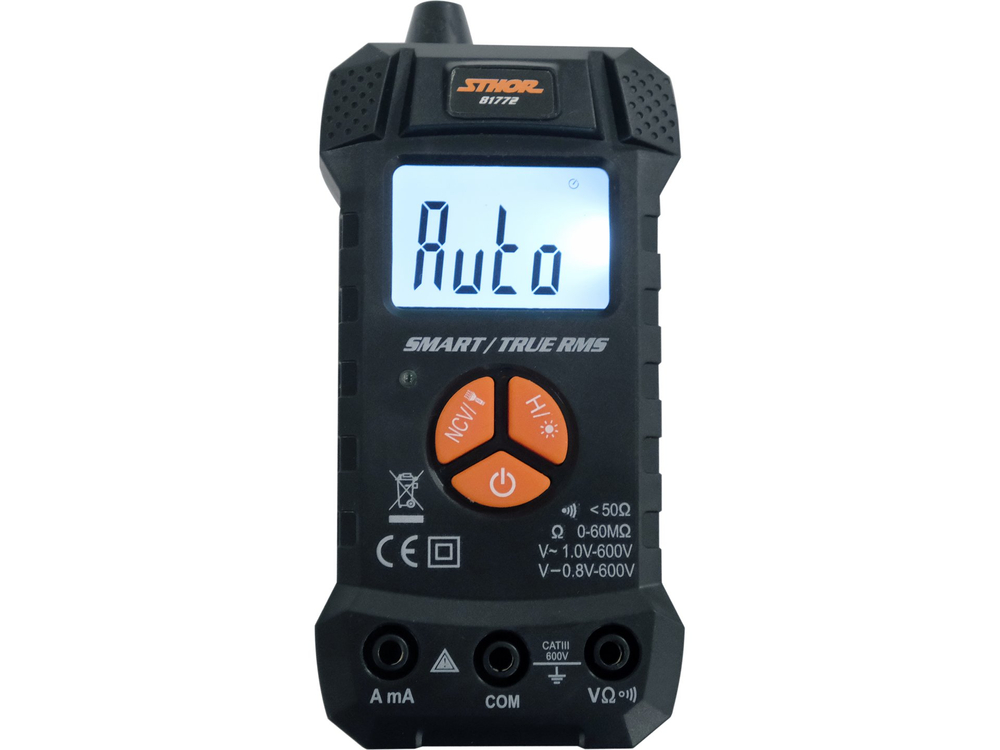

- screen backlight
- acoustic signal in the continuity test for resistances below 50 Ω

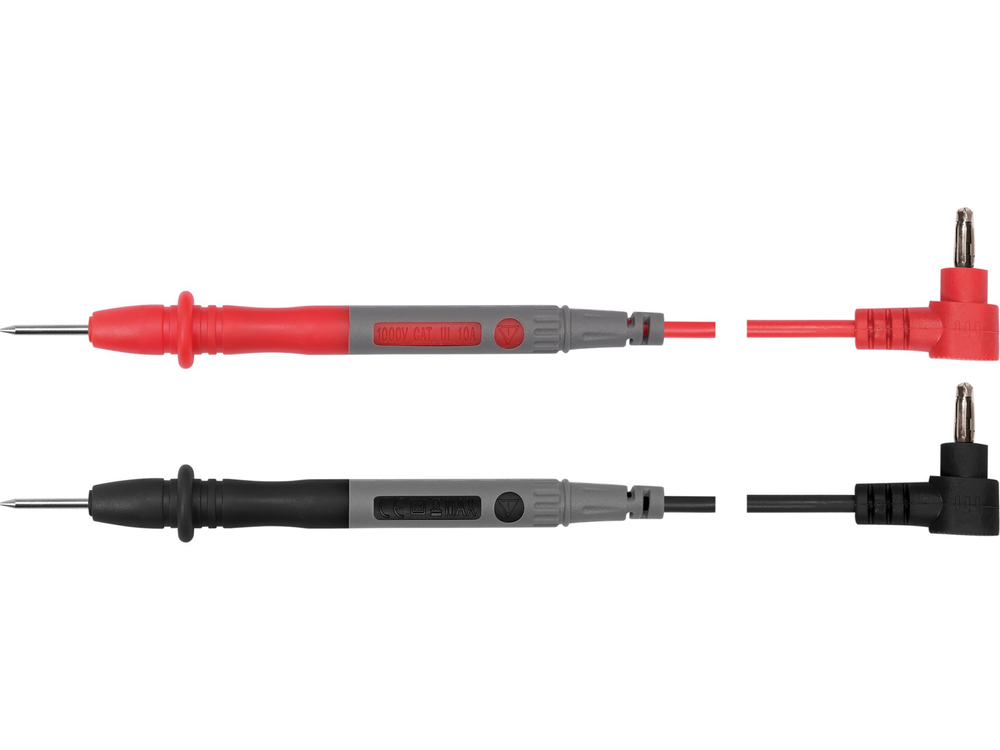

- length of measuring probes: 12 cm long
- length of cable including probes: 84 cm long
- cable diameter including insulation: 3.5 mm long
- aBS plastic housing
- the meter automatically switches off after 15 minutes of inactivity
- low battery indicator

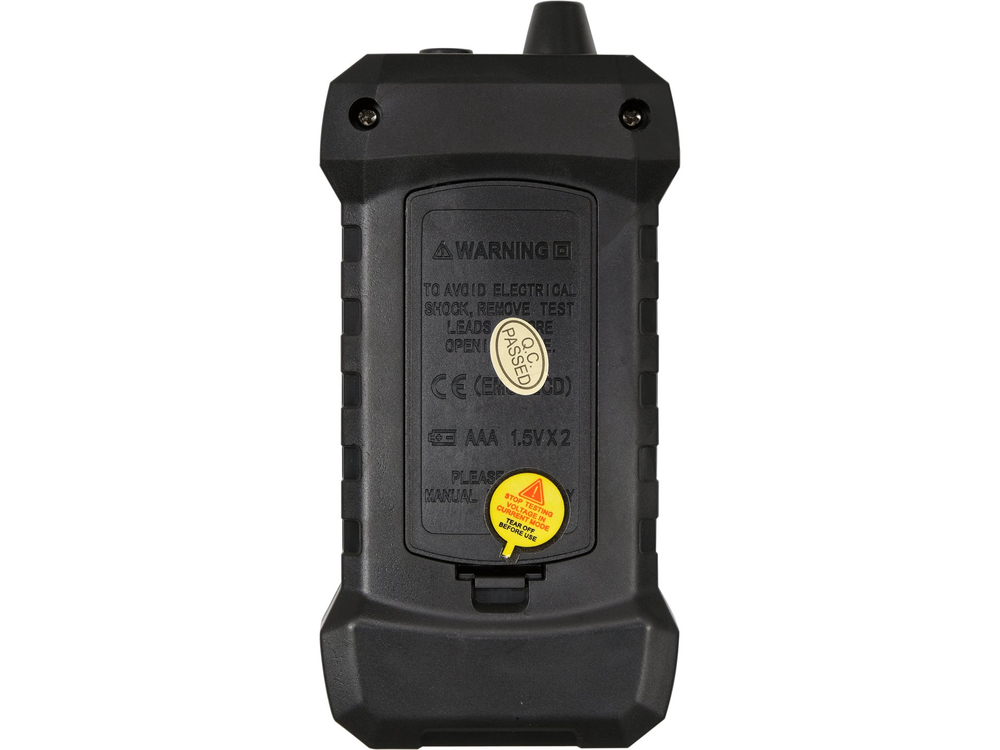

- power supply: two 1.5 V (AAA) batteries
