YT-30340
LED MULTI-FUNCTION TORPEDO LEVEL
Brand
Symbol
YT-30340
Producer code
5906083094514
Series
Work range
10 m
Dimensions
230x20x47 mm
Functions
distance measurement (single, continuous), vertical or horizontal marking, Libella backlight
Length
230 mm
Material
ABS, aluminium
Dragonfly
2
Laser
Yes
Laser class
2
Laser power
˂ 1 mW
Laser wavelength
630-670 nm
Laser accuracy
± 3 mm / 0.5-20 m
Type of laser indication
linear
Laser indicator color
red
Magnet
Yes
Number of magnets
3
Display type
LED
Power supply
rechargeable
Battery type
Li-Ion
Battery voltage
3.7 V d.c.
Battery capacity
300 mAh
Battery energy
1.11 Wh

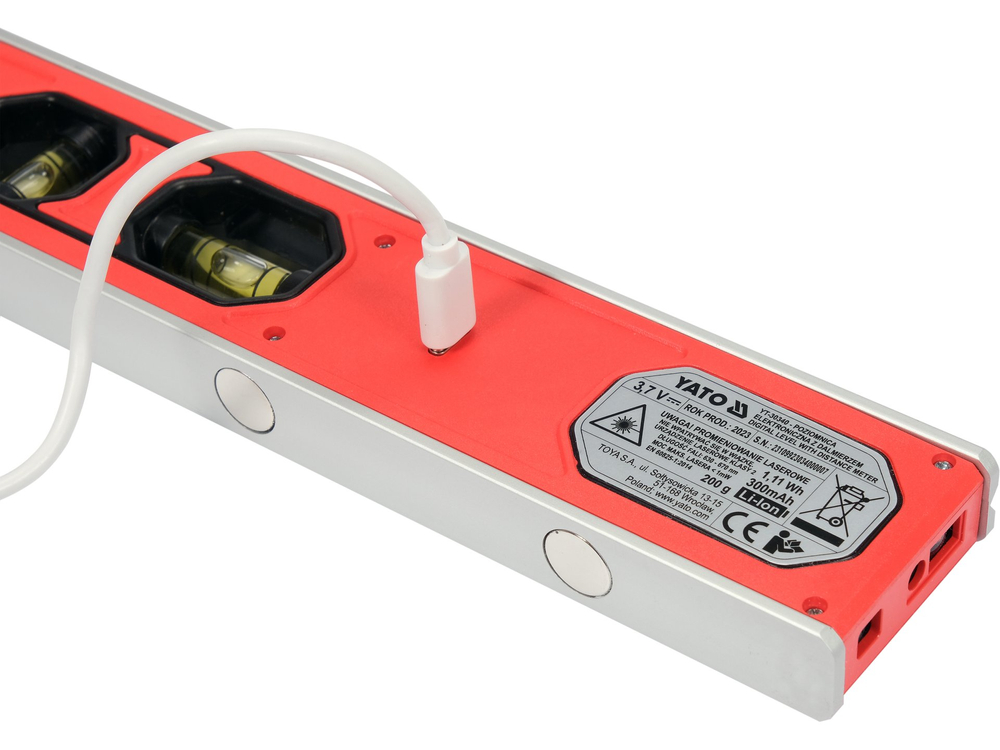

Charger
USB Type-C
Automatic switching off
3 min
Operating temperature range
10~40 ˚C
Storage temperature
0~50 ˚C
Weight
200 g

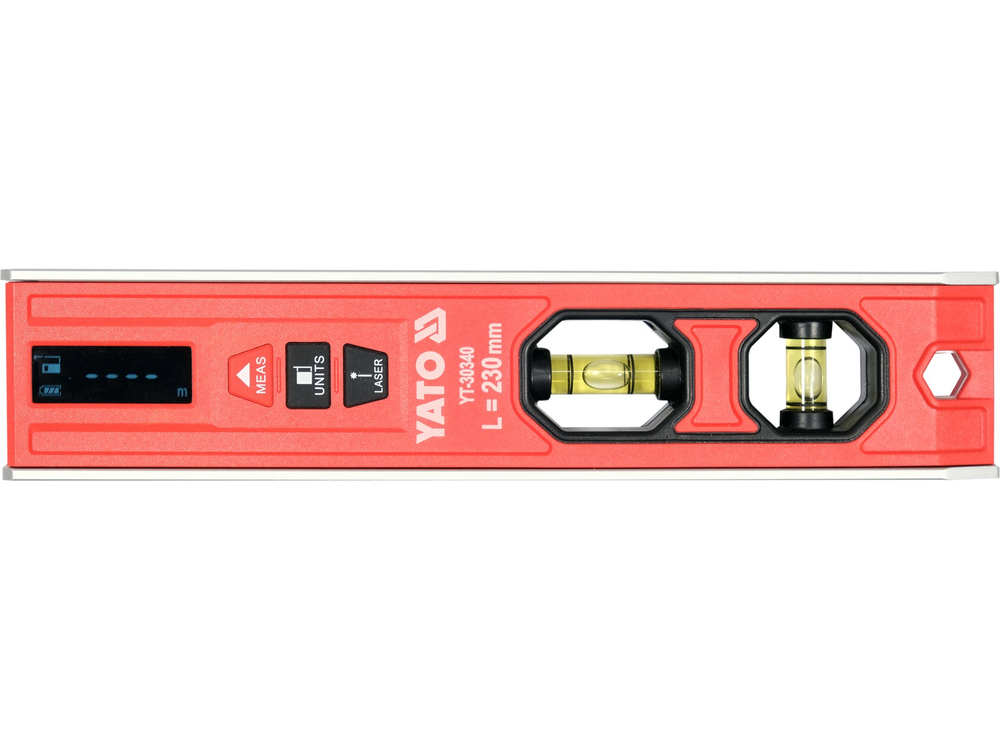

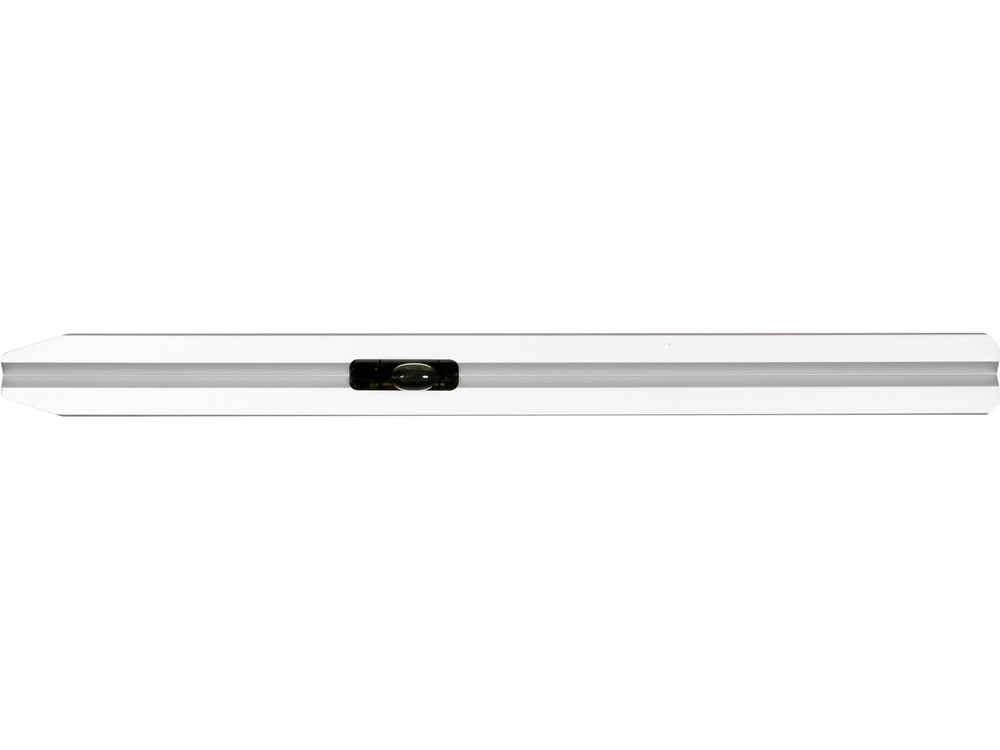

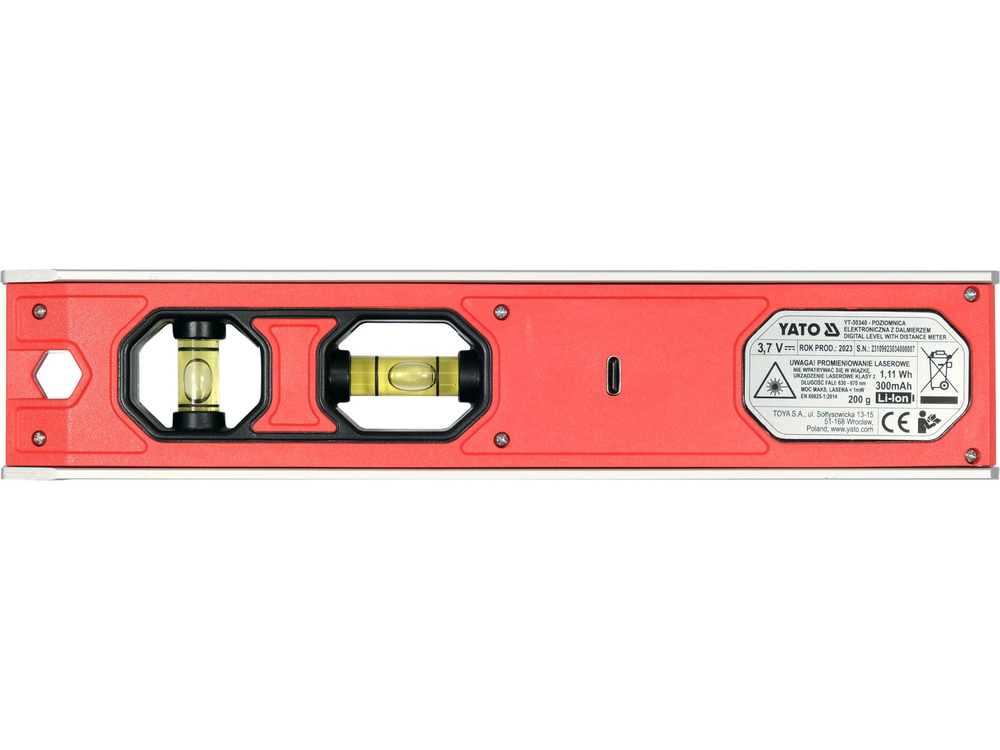

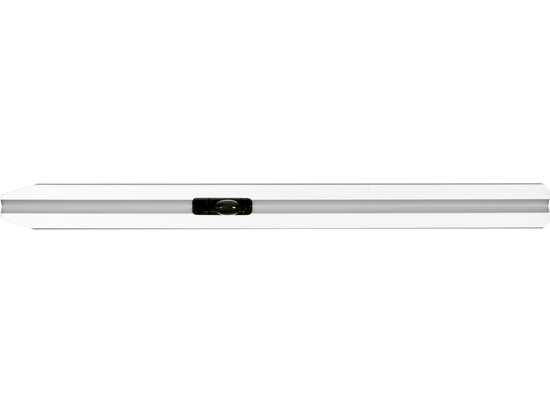

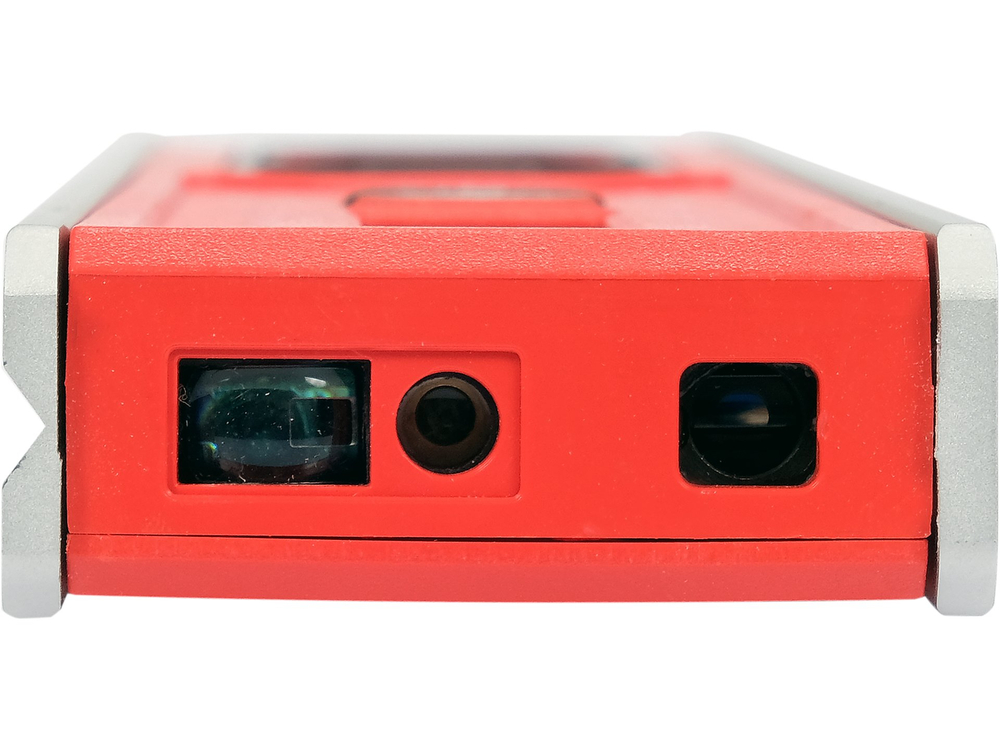

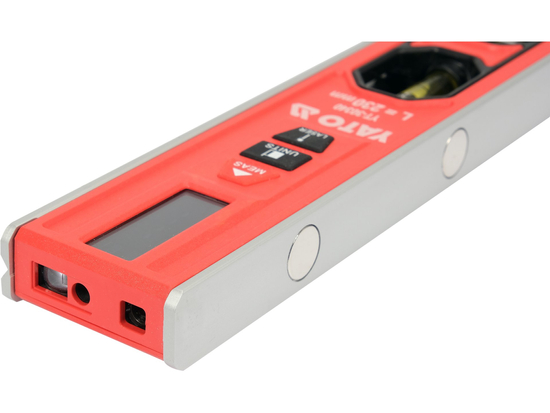

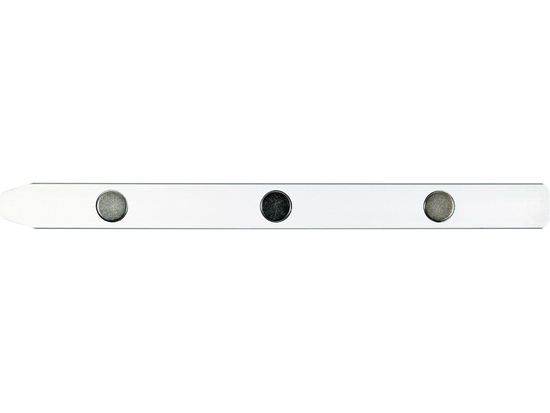

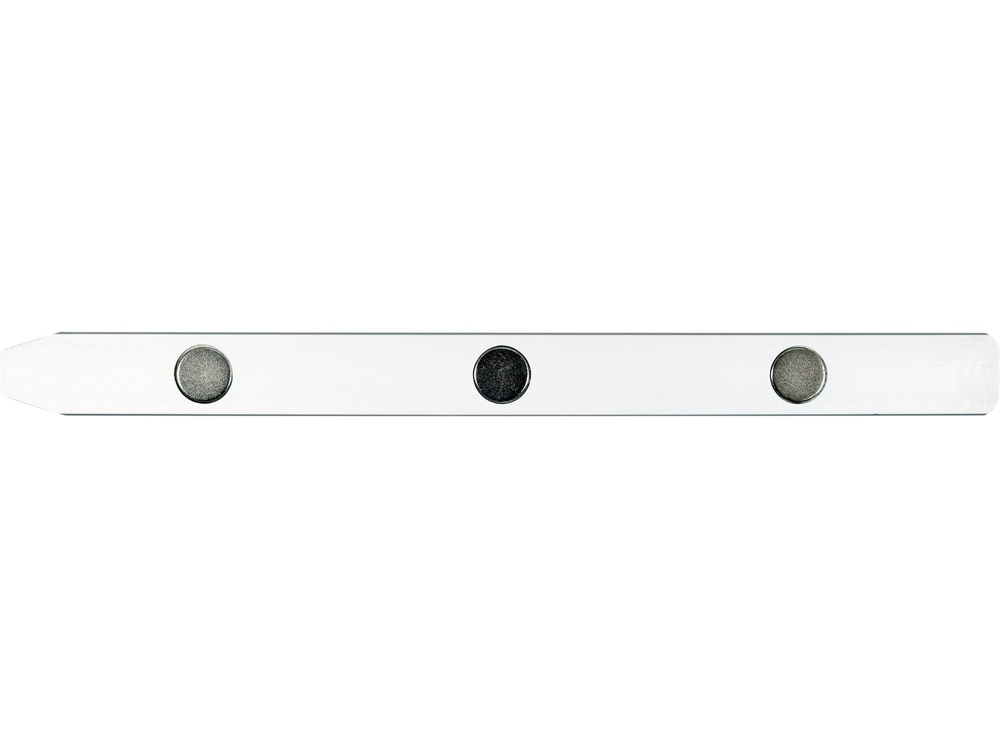

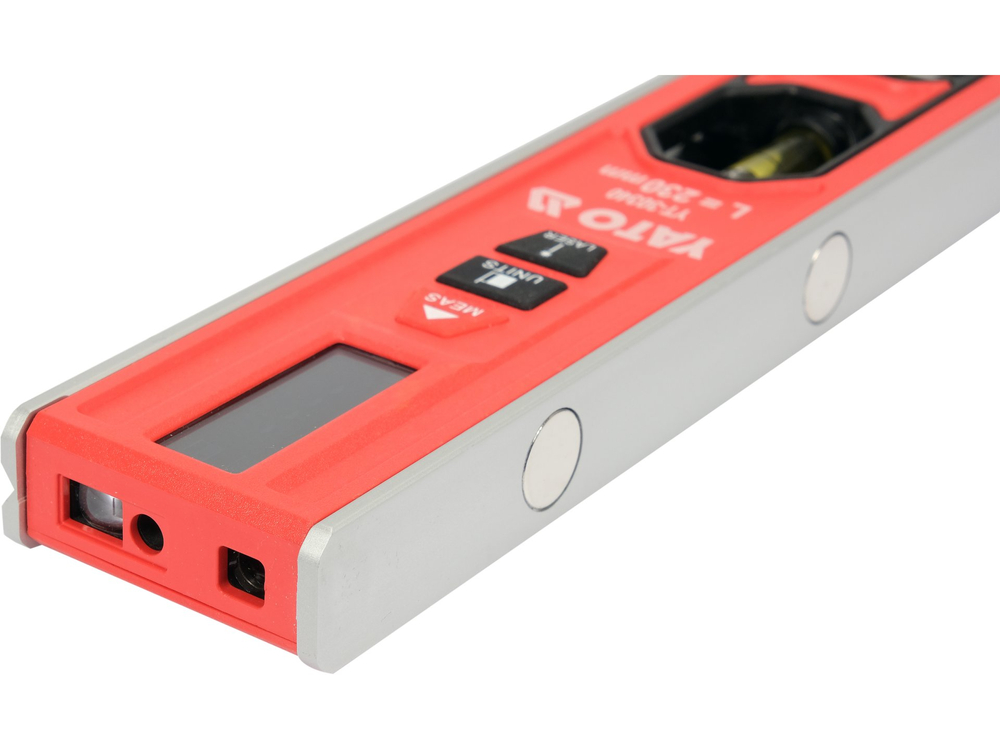

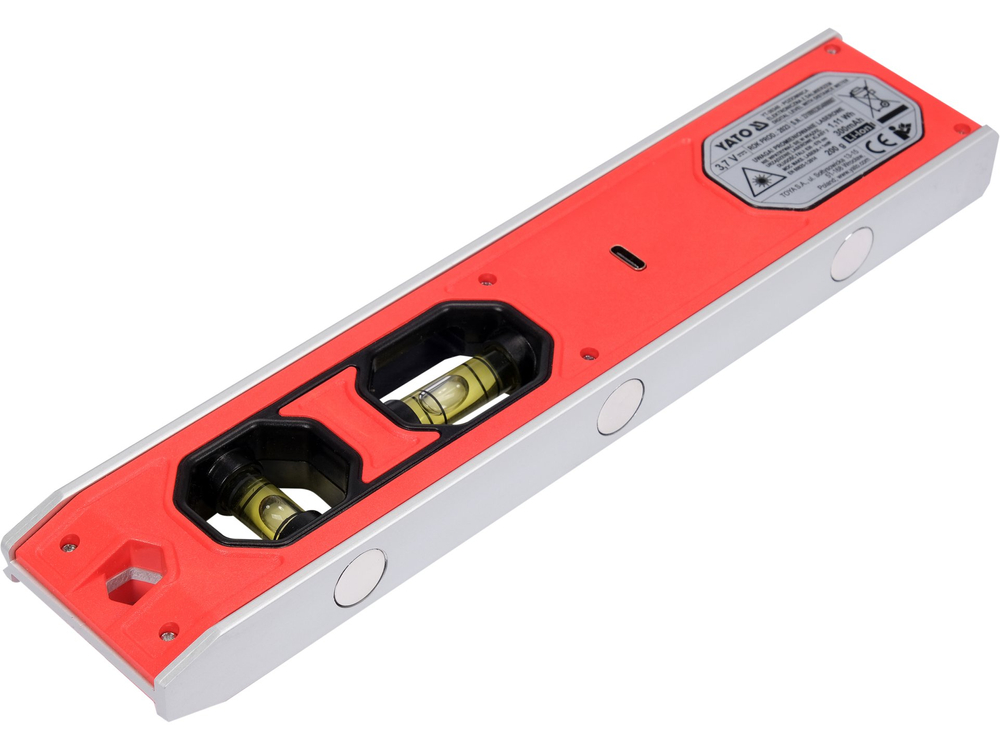

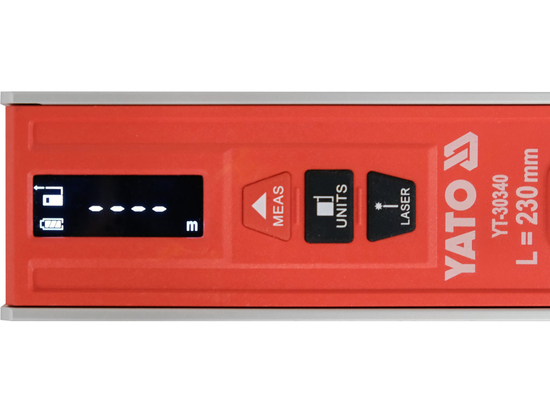

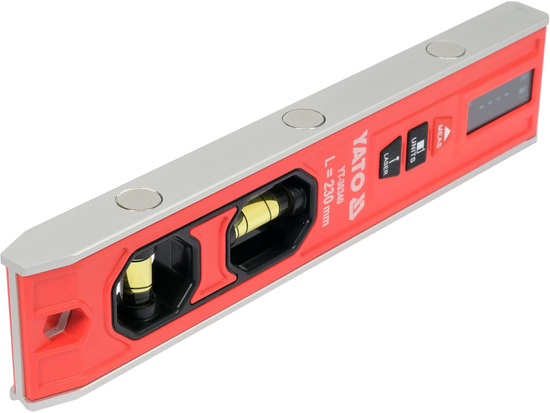

Electronic torpedo level 230 mm with laser for distance measurement and horizontal or vertical line determination. The rangefinder can operate in stationary or dynamic mode (changing distance during measurement). Can be measured from the front or rear edge. The results are displayed on the LCD screen. A groove (prism) is cut into the upper plane of the housing. The spirit level has two glass vials that can be illuminated independently of each other. There are 3 strong magnets mounted in the base. Body made of aluminium section, housing made of ABS.
- laser accuracy: ± 3 mm / 0.5-20 m
- laser: class 2, red colour
- automatic switch-off after 3 min
- operating temperature: 10 to 40 ˚C
- power supply: lithium batteries 300 mAh 3.7 V
- dimensions: 230x20x47 mm
