75954
SEWAGE PUMP 400W WITH BLADES
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
400 W
Voltage
220-240 V a.c.
Frequency
50 Hz
Max. lifting height
6 m
Max. capacity
100 l/min
Water outlet diameter
40 x3, 100 x1 mm
Max. supply water temperature
40 ˚C
Electric insulation class
I
Protection grade
IPX4
Weight
4.8 kg
Set includes
sanitary pump with a built-in non-return valve, clamp x5, cap with nuts and seals x4, flexible connector x3, anchor element for the floor x2
Symbol
75954

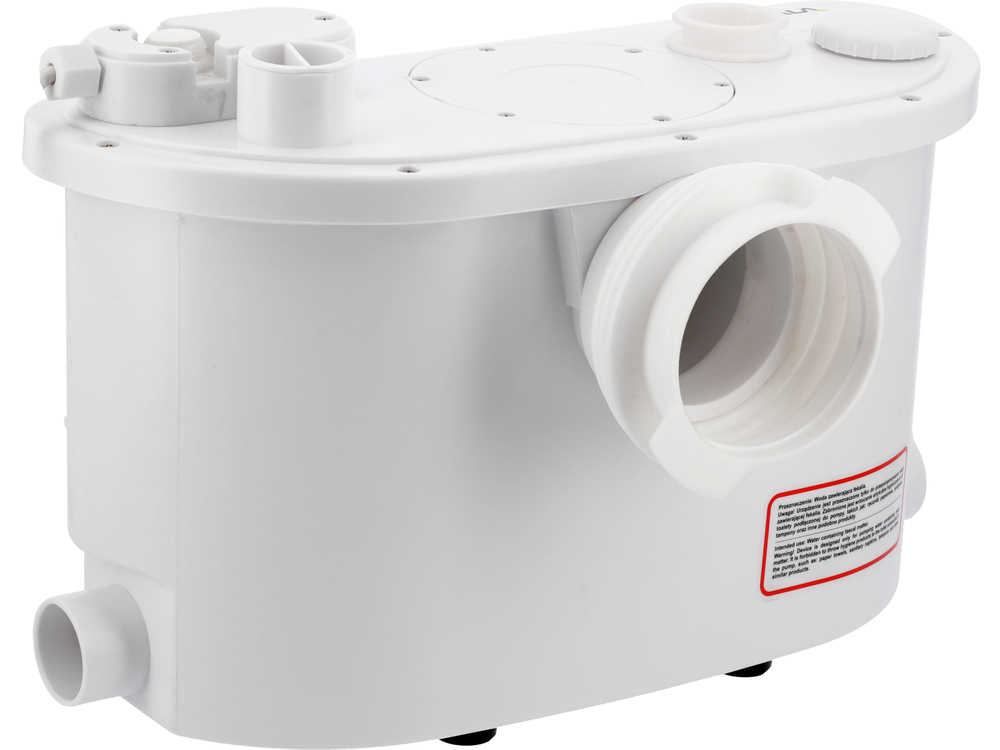

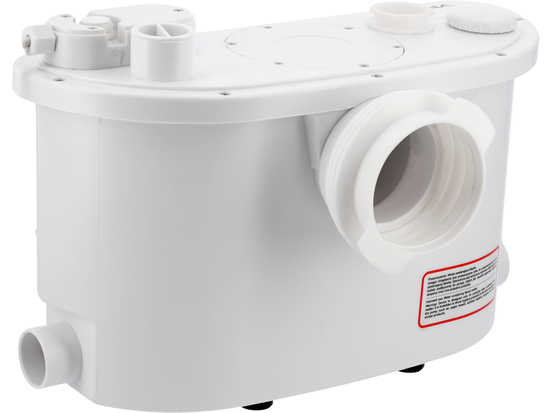

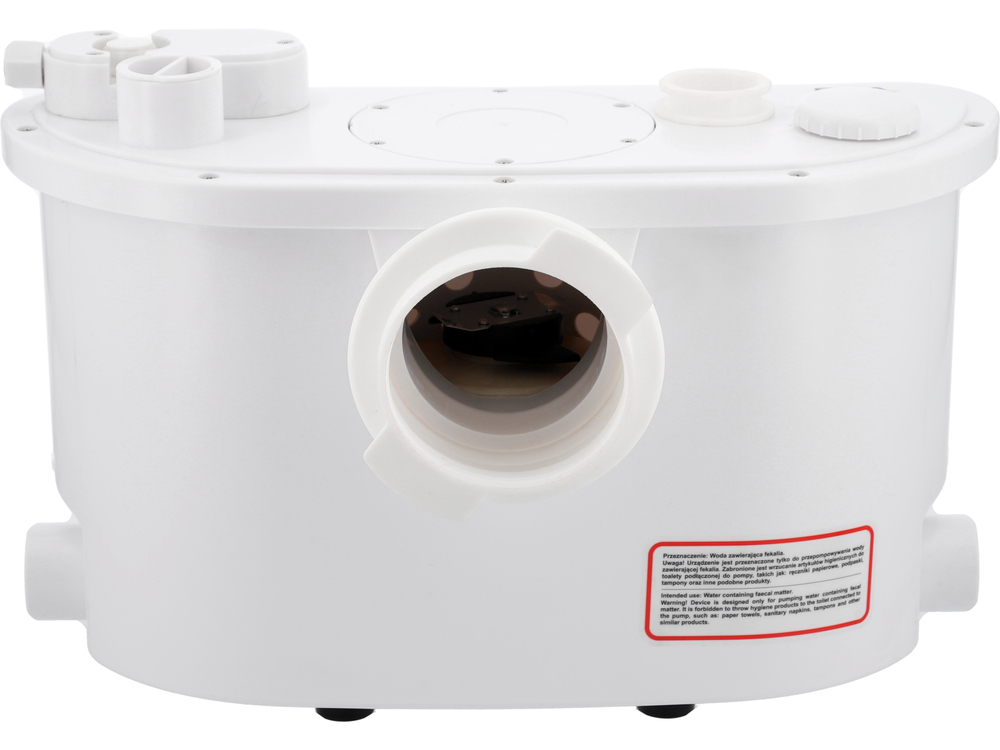

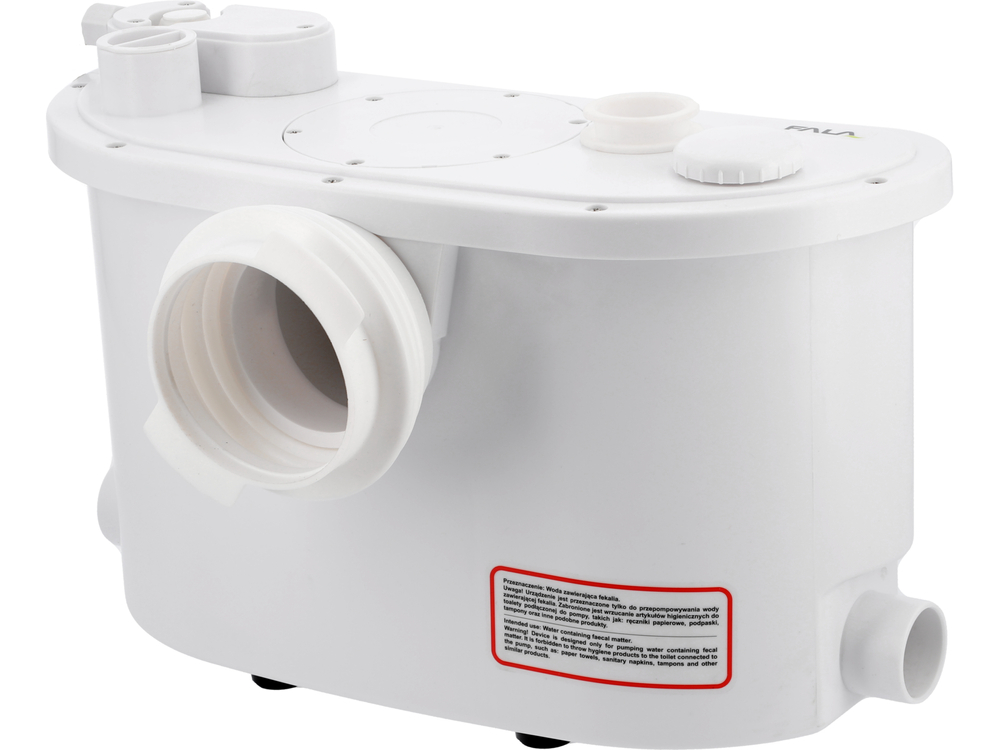

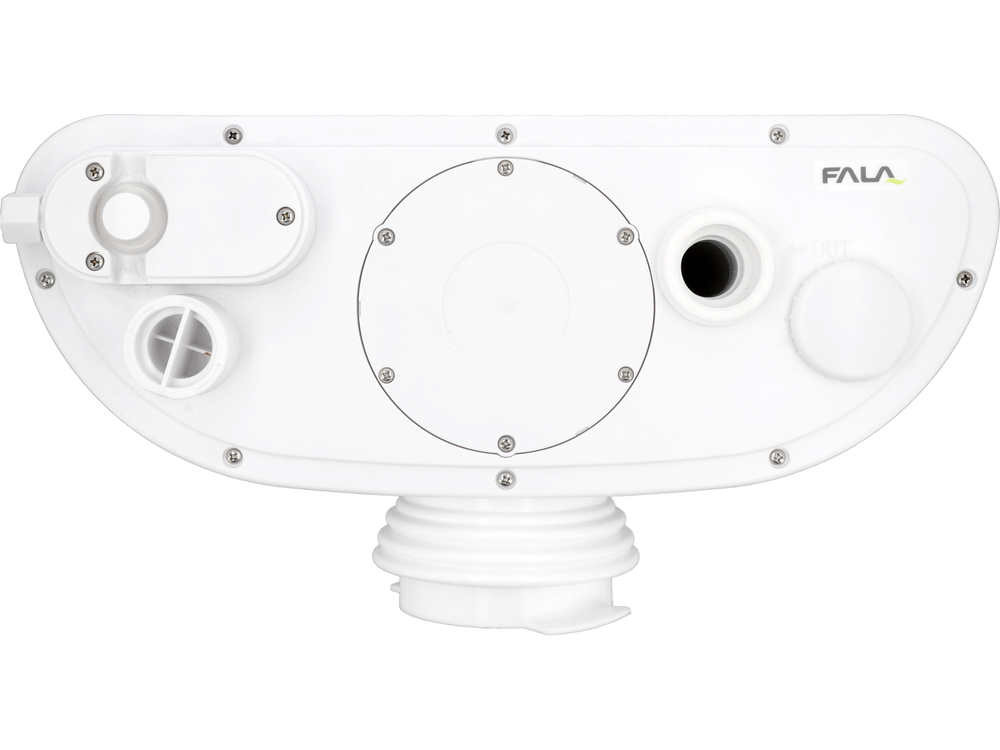

Powerful sanitary pump with grinder equipped with a quiet 400 W motor. The pump operates automatically controlled by a float switch. In addition, the user can start the motor manually using a button. An inspection window allows access to the pump container.
- stainless steel cutting blades
- built-in non-return valve
- power: 400 W
- efficiency: 100 l/min
- lifting height: 6 m
- maximum horizontal coverage: 60 m
- outlet diameter: 22-32 mm
- max. waste water temperature 40°C
- water connection diameter: 100 mm and 3 x 40 mm
- weight: 4.8 kg
- set: clamping bracket 5 pcs, cap with nuts and seals 4 pcs, flexible coupling 3 pcs, floor anchor 2 pcs.





Usage warnings:
Warning! Device is designed only for pumping water containing fecal matter. It is forbidden to throw hygiene products to the toilet connected to the pump, such as: paper towels, sanitary napkins, tampons and other similar products.To download
