77990
GREASE INJECTOR 12L
Brand
Symbol
77990
Producer code
5906083090950
Series
Efficiency
0.85 L/min
Working pressure
0.6-0.8 MPa
Air flow required
300 l/min
Grease outlet pressure
30-40 MPa
Compression coefficient
50:1
Grease tank capacity
12 l
External dimensions
795x335x290 mm
The inner diameter of the air supply hose
3/8" (10.0 mm)
Hose length
3.9 m
Air connection diameter (PT)
standard
Colic
Yes
Number of wheels
2
Acoustic pressure
81.34 ± 3.0 dB(A)
Acoustic power
95.0 ± 3.0 dB(A)
Weight
12 kg
Contents of the set
air towel / grease gun, flexible hose, grease gun
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__57840__Sklep_pikto/40_MPa_max.png)
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52591__Sklep_pikto/0%2C6-0%2C8_MPa.png)
![](https://pim.toya.pl/piktogramy/L_ml/image-thumb__51372__Sklep_pikto/12_L.png)
![](https://pim.toya.pl/piktogramy/HOSE/image-thumb__304364__Sklep_pikto/HOSE_3%2C9_m.png)
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION_PARAMETER/image-thumb__70418__Sklep_pikto/50--1_RATIO.png)
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png)

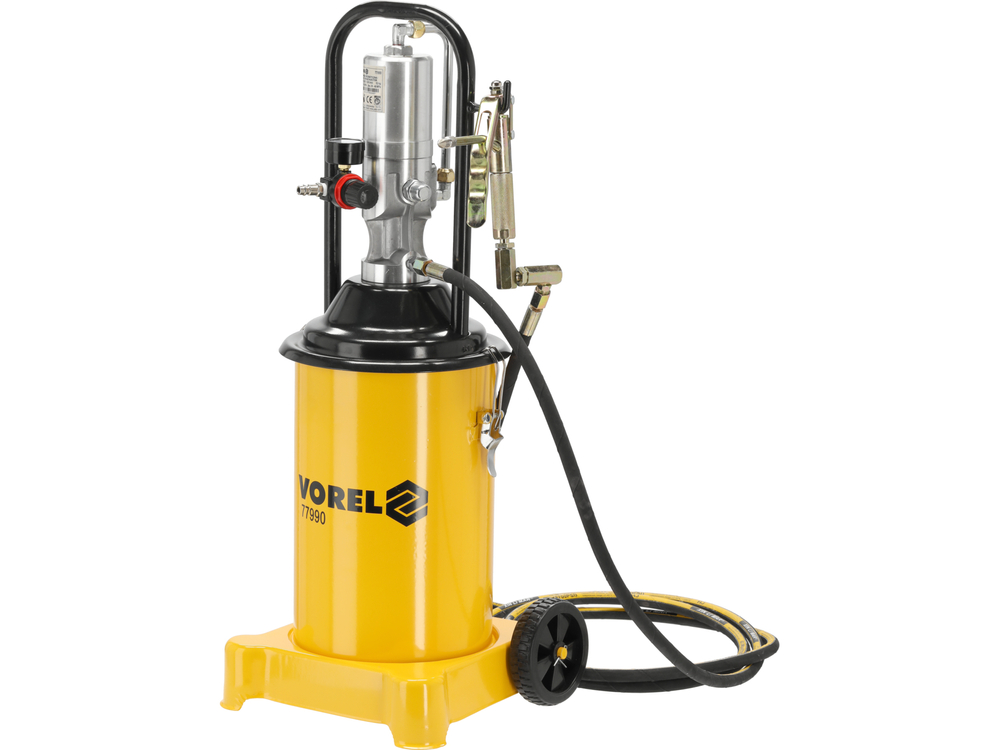

Pneumatic lubricator with flexible hose ending in a metal gun. Equipped with wheels for manoeuvrability.
- cable length: 4 m
- tank capacity: 12 l
- compression ratio 50:1
- capacity: 0.85 l/min
- working pressure: 6–8 bar
- lubricant pressure: 300–400 bar
