YT-81000

Name: EXTENSION CORD H05RR-F 3*2.5MM2 LED 10M
Brand: Yato
Availability: InStock

EXTENSION CORD H05RR-F 3*2.5MM2 LED 10M

+ Add to compare Add to shopping list

Brand

Yato

Symbol

YT-81000

Producer code

5906083103421

Series

GRF

Length

10 m

Type of extension cable

Building

Max.

3680 W

Maximum electricity

16 A

Voltage

250 V a.c.

Nest type

E & F

Plugin

Grounding

Yes

Number of sockets

Type of wire insulation

H05RR-F

Cable cross-sectional field

3Gx2.5 mm²

Material

CPE (osłona), EPDM (izolacja pojedynczego przewodu)

Color

red

Średnica zewnętrzna

10.2 mm

Resistance to UV radiation

Yes

Resistance to chemicals

Yes

Ingress protection

IP44

Switch

Protection against children

Yes

Functions

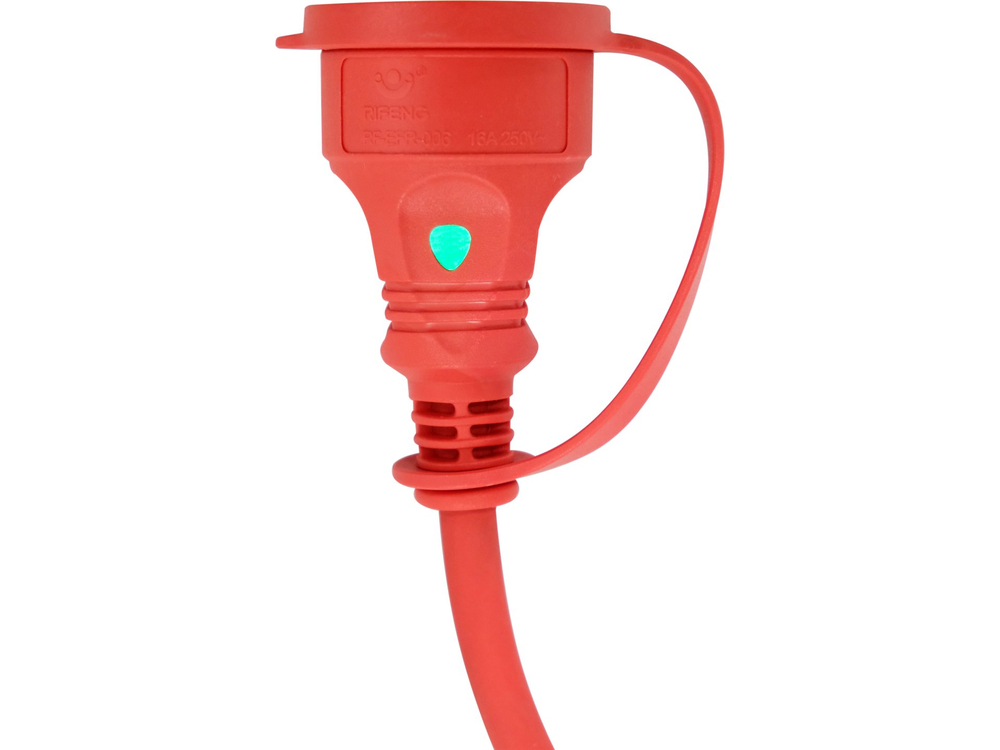

Built -in LED informing about the presence of voltage

Construction extension cord with dust and a brizgoszczych nest with a built -in LED, which informs about the presence of voltage. The cable in chlorinated polyethylene (CPE) cover will work both indoors and outside. It is resistant to oils, acids, most solvents and sunlight. Does not stiff in cold. Does not spread the fire. It is characterized by high resistance to aging. Maximum operating voltage: ~ 250 V Maximum load: 16 A continuous operation: up to 3680 in a copper three -line cable type LINK with a cross -section of 2.5 mm² Outdoor diameter with cover: ~ 10.2 mm Cover material/coating: CPE Single cable insulation material : EPDM Dust and Bryzgoszczne nest in the level of protection of IP44 guarantees protection against moisture or dust and sand, the cable resistance at 20 ℃: ≤7.97Ω/km

To download

User manual YT-81000
