YT-81003

Name: EXTENSION CORD H05RR-F 3*2.5MM2 LED 40M
Brand: Yato
Availability: InStock

EXTENSION CORD H05RR-F 3*2.5MM2 LED 40M

+ Add to compare Add to shopping list

Brand

Yato

Entity responsible for this product in the EU

TOYA S.A.More

Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl

Series

GRF

Length

40 m

Extension cord type

building

Max. power

3680 W

Max. current

16 A

Voltage

250 V a.c.

Nest type

E & F

Plug type

Earthing

yes

Socket quantity

Wire insulation type

H05RR-F

Wire section area

3Gx2.5 mm²

Material

CPE (shield), EPDM (single conductor insulation)

Color

red

External diameter

10.2 mm

UV proof

yes

Chemical resistance

yes

Protection grade

IP44

Switch

Children protection

yes

Functions

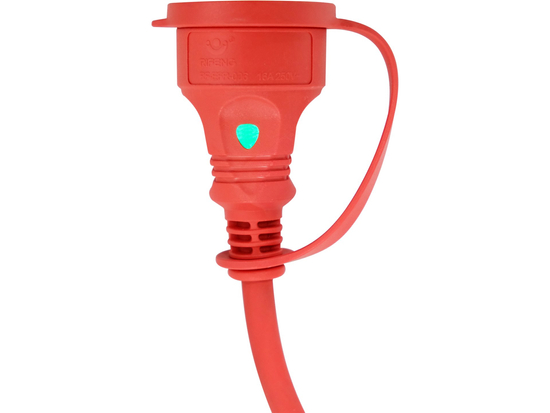

built-in LED indicating the presence of voltage

Symbol

YT-81003

Construction extension cord with dust and a brizgoszczych nest with a built -in LED, which informs about the presence of voltage. The cable in chlorinated polyethylene (CPE) cover will work both indoors and outside. It is resistant to oils, acids, most solvents and sunlight. Does not stiff in cold. Does not spread the fire. It is characterized by high resistance to aging. Maximum operating voltage: ~ 250 V Maximum load: 16 A continuous operation: up to 3680 in a copper three -line cable type LINK with a cross -section of 2.5 mm² Outdoor diameter with cover: ~ 10.2 mm Cover material/coating: CPE Single cable insulation material : EPDM Dust and Bryzgoszczne nest in the level of protection of IP44 guarantees protection against moisture or dust and sand, the cable resistance at 20 ℃: ≤7.97Ω/km

To download

User manual YT-81003
