YT-99733
GAS FIRED HEATER 30KW
Brand
Symbol
YT-99733
Producer code
5906083100338
Series
Thermal power
30 kW
Supply gas pressure
70 MPa
Air flow
650 m³/h
Heating surface
300 m²
Voltage
220-240 V a.c.
Frequency
50 Hz
Engine power
70 in
Fuel consumption
2.18 kg/h
Power gas type
G30 / g31
Ignition piezo
Yes
Overheating protection
75˚C
Dimensions
460x230x360 mm
Nozzle diameter
1.28 mm
Hose length
1.5 m
Length of cable
1.2 m
Gas device type
A3
Gas device category
I3B/P / I3P
Ingress protection
IPX4
Electrical insulation class
I
Weight
7.6 kg
Application
for heating public utilities

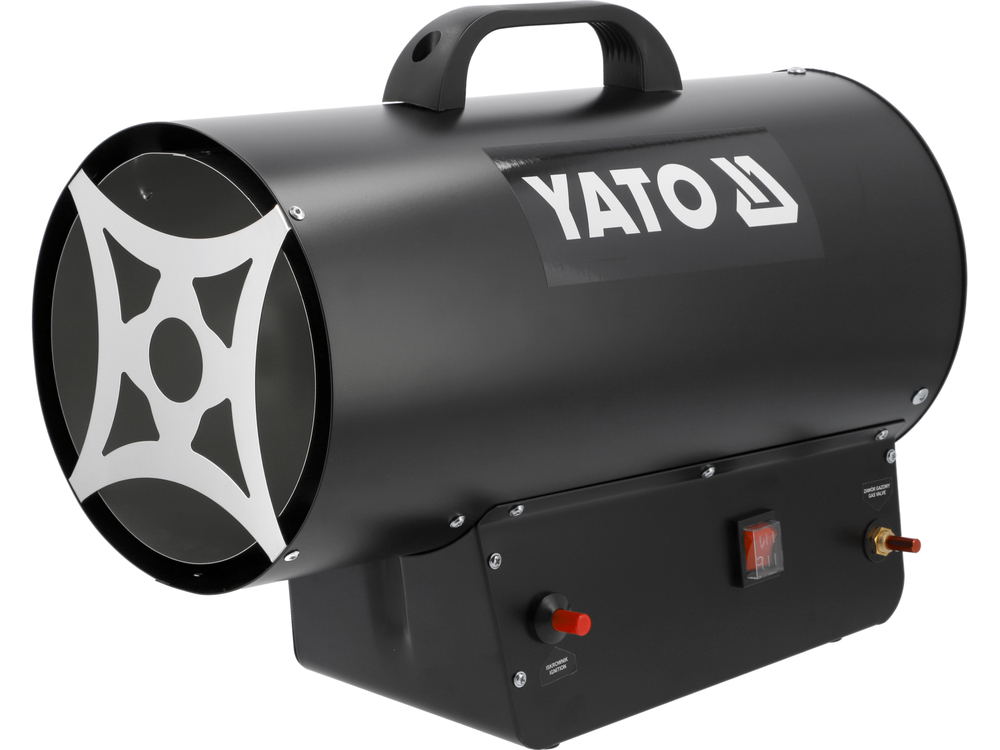

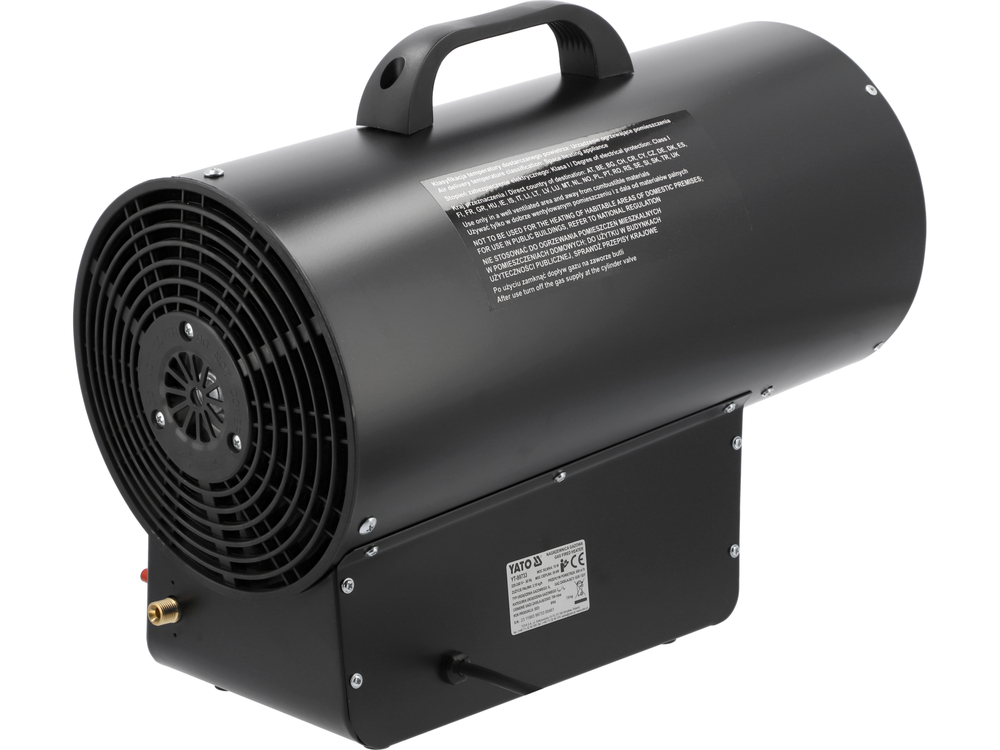

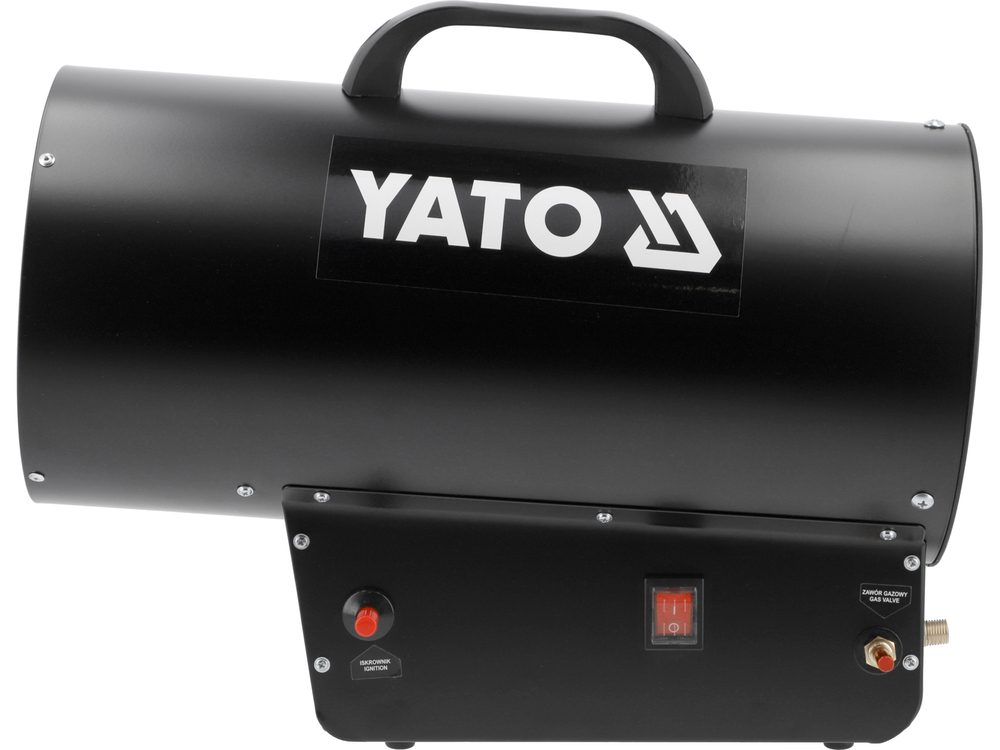

Portable gas heater with metal casing. It is used for heating public spaces - workshops, halls and for drying during repair and construction work. The casing is powder-coated, which protects the heater from rusting. The heater has double overheating protection. The device cuts off the fuel supply at the disappearance of the flame or when the temperature exceeds 75 ℃.
- heat output: 30 kW
- supply gas: propane-butane G30 / G31
- airflow: 650 m³/h
- fuel consumption: 2.18 kg/h
- air pressure: 0.7 bar
- weight: 7.6 kg
- Ingress protection rating: IPX4
- Motor power: 70 W
- ignition: piezo
- degree of insulation: class I
- gas appliance category: I3B/P/I3P
- gas appliance type: A3
- connection diameter: Φ 1.28 mm
- dimensions: 460x230x360 mm
- cable length: 1.2 m
- voltage: 220-240V/50Hz

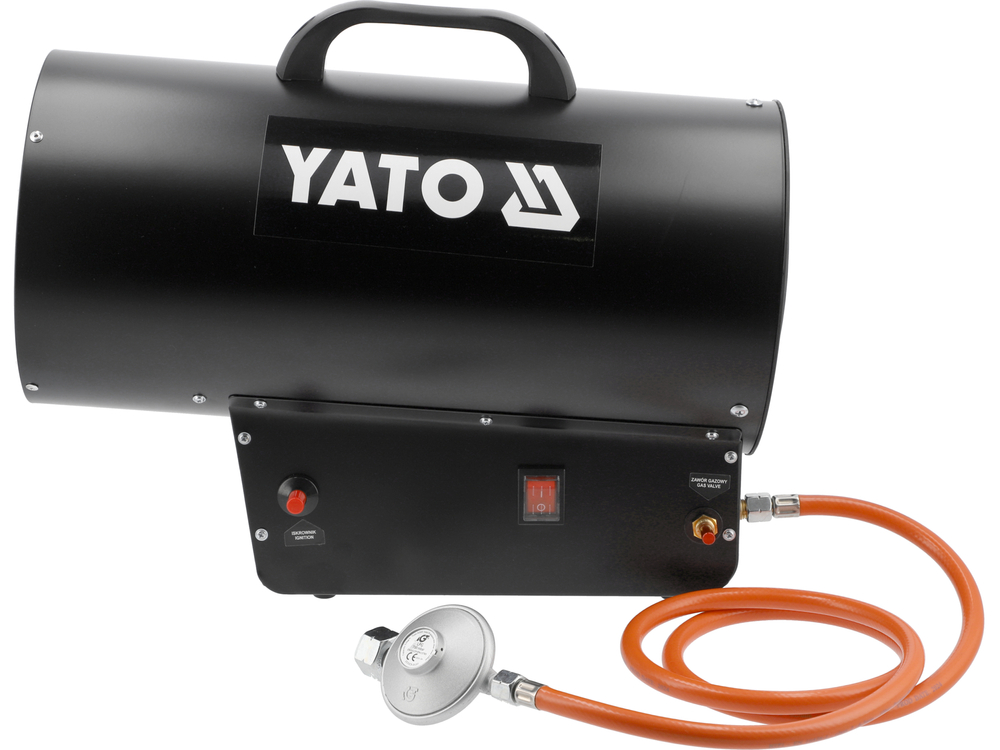

- pressure regulator and 1.5 m hose included
