YT-09159
TOOL BOX ON WHEELS

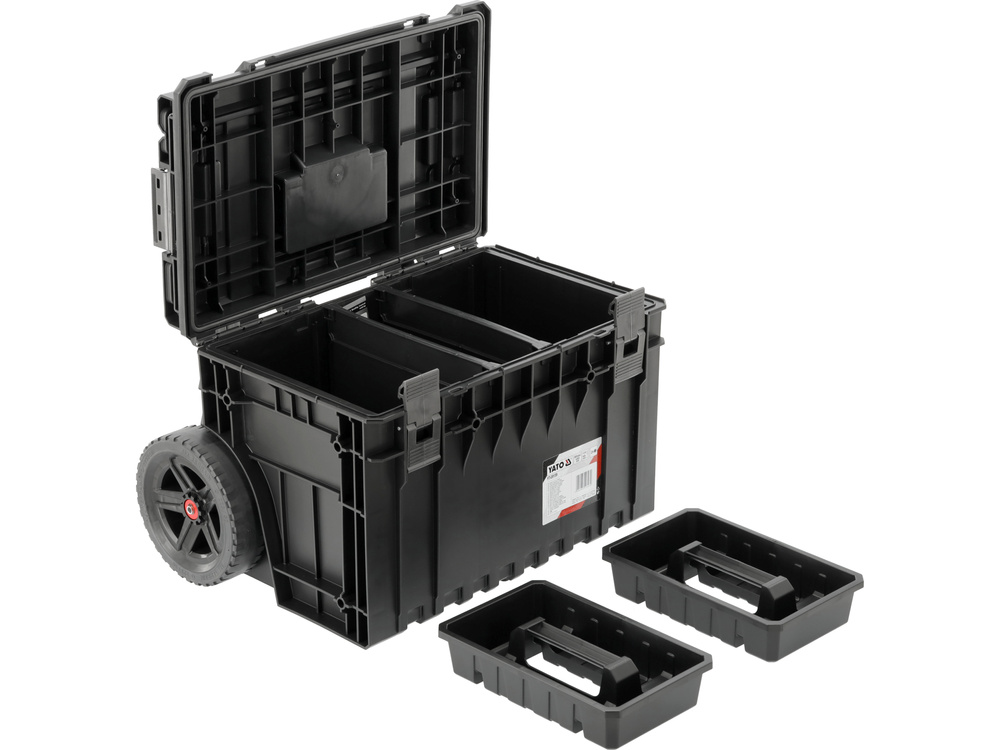

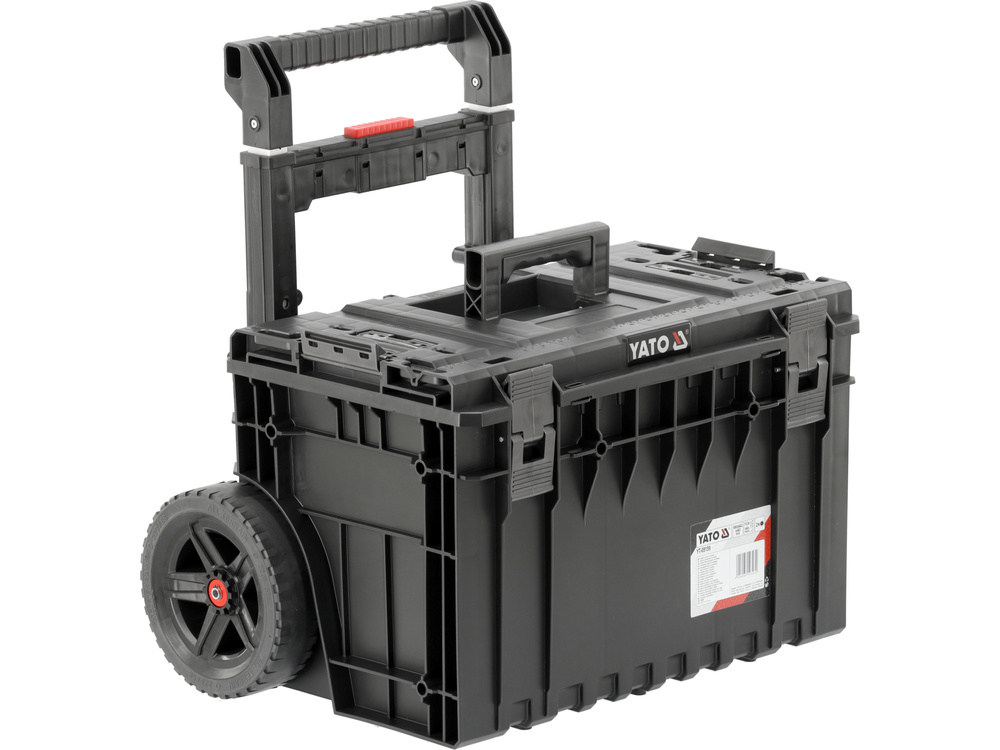

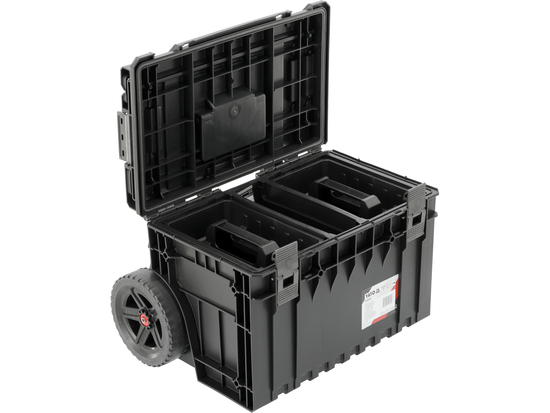

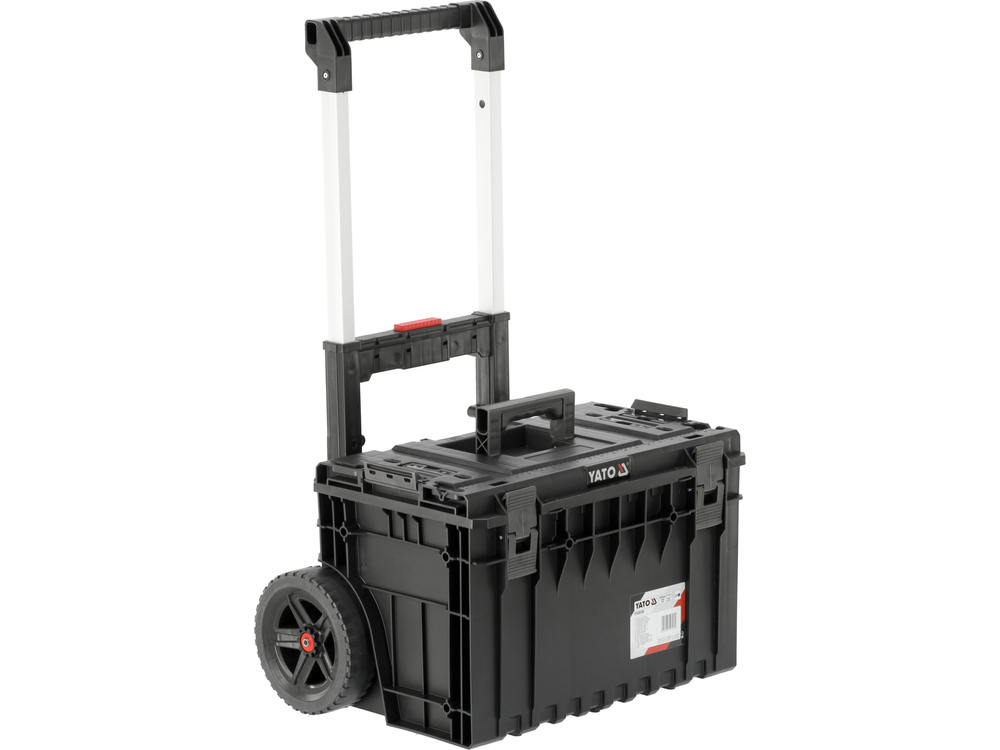

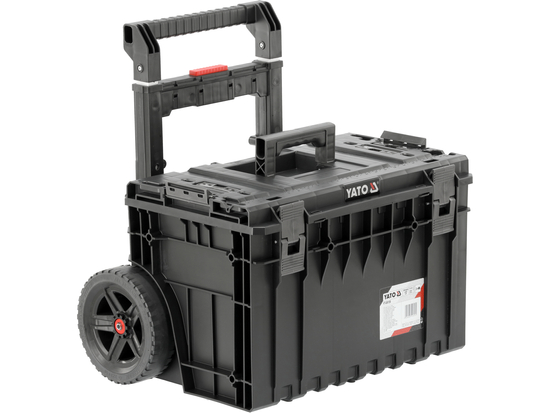

Transport box on wheels for storing and transporting heavy tools. It provides a solid base for the other elements of the S1 and S12 system. The box has a solid, wide handle mounted on two telescopic arms. The ability to remove the telescopes allows transportation. The large wheels are covered with a thick layer of rubber. The wide track width ensures good handling performance even in difficult off-road conditions. The box is fitted with a flexible seal to provide protection against dust and water ingress. The interior features two adjustable compartments and two portable trays. There is a graduated slot on the lid for taking measurements. The lid has an additional rear connector, the fastening of which guarantees a permanent connection of the system components in the event of great tilts and shocks. There is space between the telescopes to allow the set to be clasped with a foot to tip it on itself.
- external length: 643 millimeters
- external length without wheels: 584 millimeters
- outer width: 483 millimeters
- external width without wheels and handle: 390 millimeters
- external height without handle: 395 millimeters
- height with handle folded: 660 millimeters
- height with handle unfolded: 1038 millimeters
- min. internal length: 488 millimeters
- min. interior width: 300 millimeters
- min. internal height 332 millimeters
- weight: 10.2 kg
- capacity: 52 l +/-5%
- max. payload 100 kg
- material: PP
- fastening material (connectors): PA
- tightness: IP66
