YT-23300
AIR COMPRESSOR 24L
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Tank capacity
24 l
Power
2 KM
1500 W
Max. pressure
0.8 / 0.8 / 116 MPa/bar/PSI
volume
200 l/min
Rotations
2850 min⁻¹
Voltage
230-240 V a.c.
Frequency
50 Hz
Short-circuit current
36 A
Load current
6.2 A
Wheels
yes
Wheel quantity
2
Manometer
yes
Electric insulation class
I
Protection grade
IP20
Acoustic pressure
74.2 ± 3.0 dB(A)
Acoustic power
93.7 ± 2.23 dB(A)
Weight
23 kg
Set includes
compressor, quick connector x2
Symbol
YT-23300
![](https://pim.toya.pl/piktogramy/POWER_SUPPLY/image-thumb__60421__Sklep_pikto/230-240V_50Hz.png")
![](https://pim.toya.pl/piktogramy/W_kW/image-thumb__303428__Sklep_pikto/1%2C5kW_2KM.png")
![](https://pim.toya.pl/piktogramy/W_kW/image-thumb__53032__Sklep_pikto/1500_W.png")
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__82585__Sklep_pikto/2850_min-1.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52607__Sklep_pikto/0%2C8_MPa.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52655__Sklep_pikto/200_l-min.png")
![](https://pim.toya.pl/piktogramy/L_ml/image-thumb__51412__Sklep_pikto/24_L.png")
Power and precision in one device

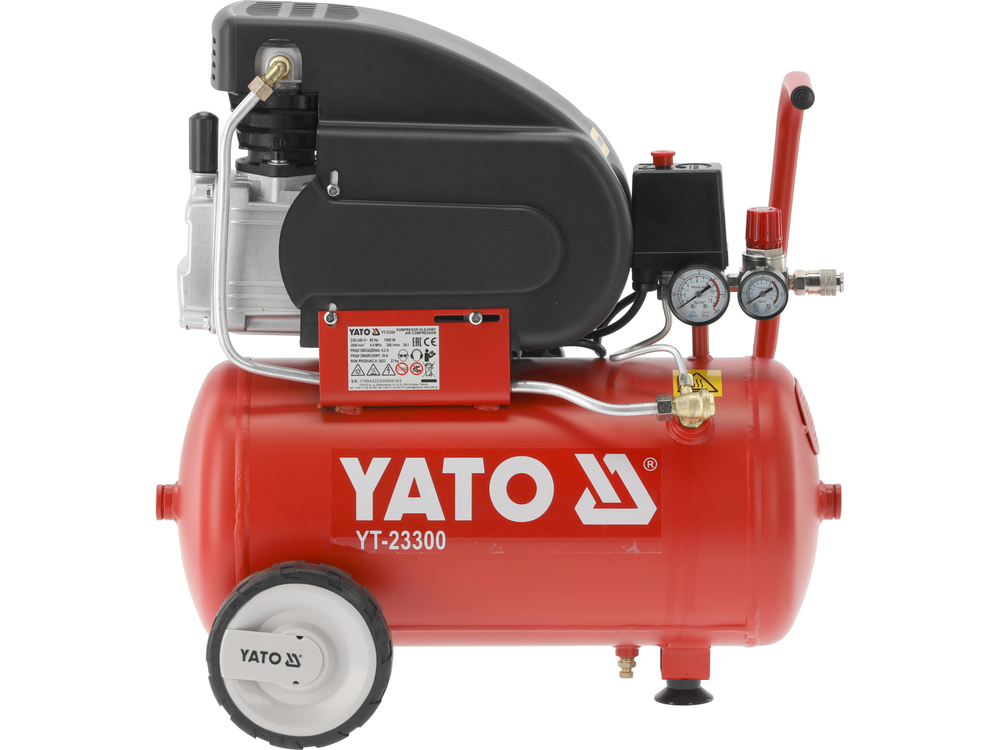

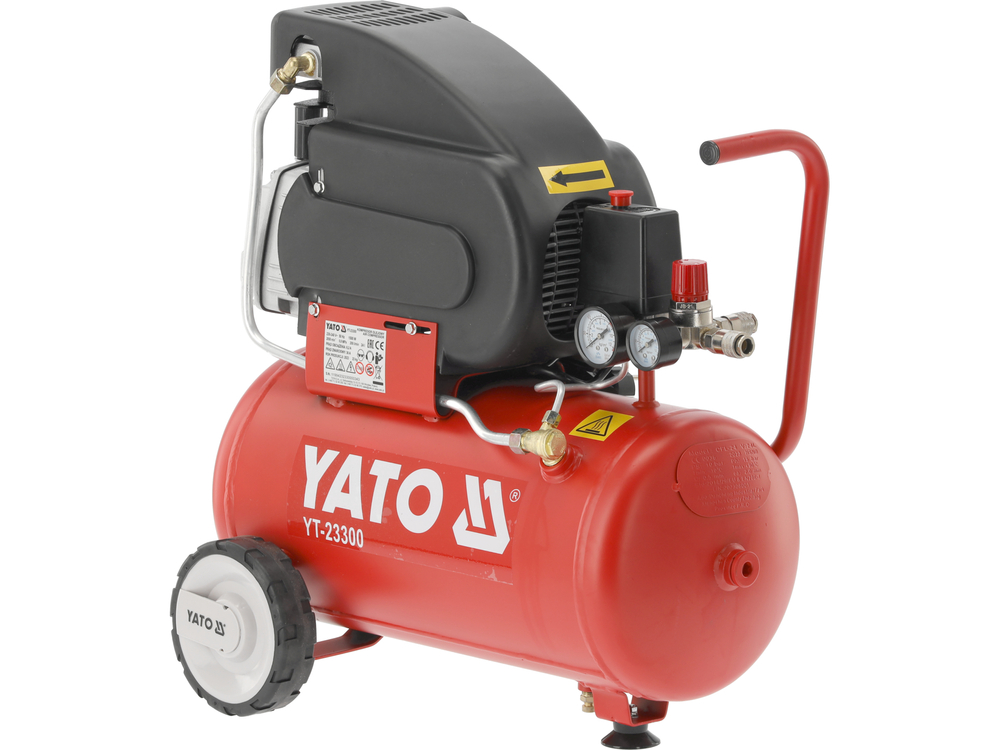

Introducing the oil compressor YT-23300, a versatile tool that will perform in any situation. It is a reliable source of compressed air for professionals and DIY enthusiasts.
Power and versatility
- Universally applicable to power a wide range of pneumatic devices
- Ideal for precise blowing of holes and surface cleaning
- Indispensable support in industry and construction sites
- Essential equipment for any professional workshop
- Practical and efficient solution in agriculture

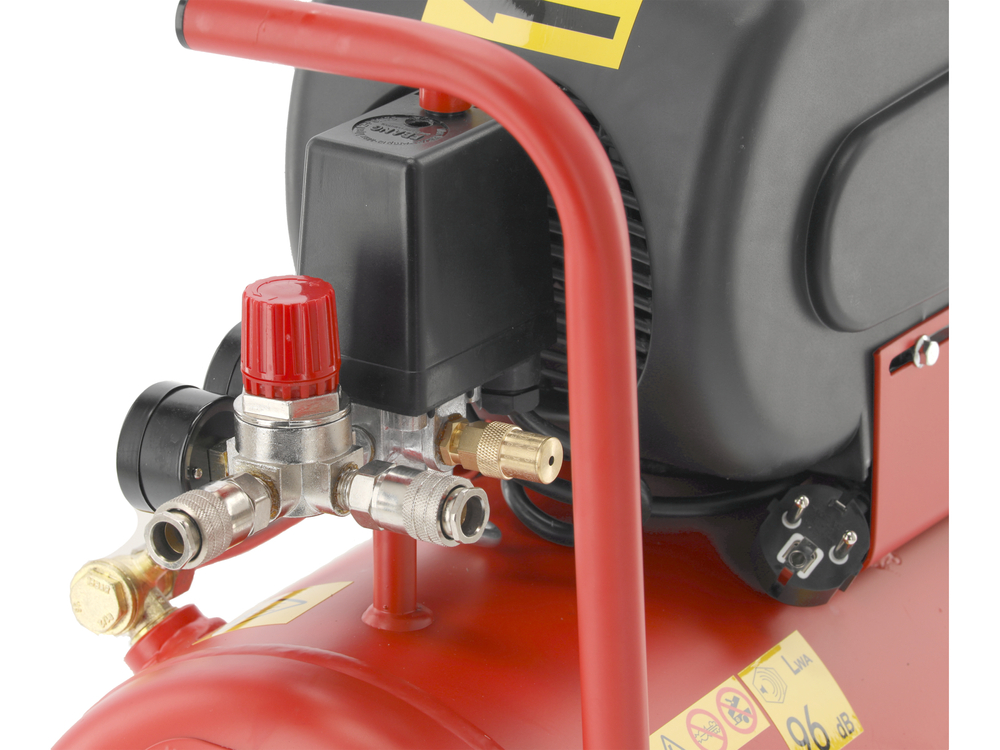

- Equipped with two quick couplings for greater work flexibility
- Precise pressure regulation for optimal results
Pressure regulation
High efficiency
Solid construction
Professional applications
Large capacity
Technical data:
- Power: 1500 W (2 HP)
- Tank capacity: 24 liters
- Efficiency: 200 l/min
- Maximum pressure: 8 bar (115 PSI)
- Engine speed: 2850 rpm

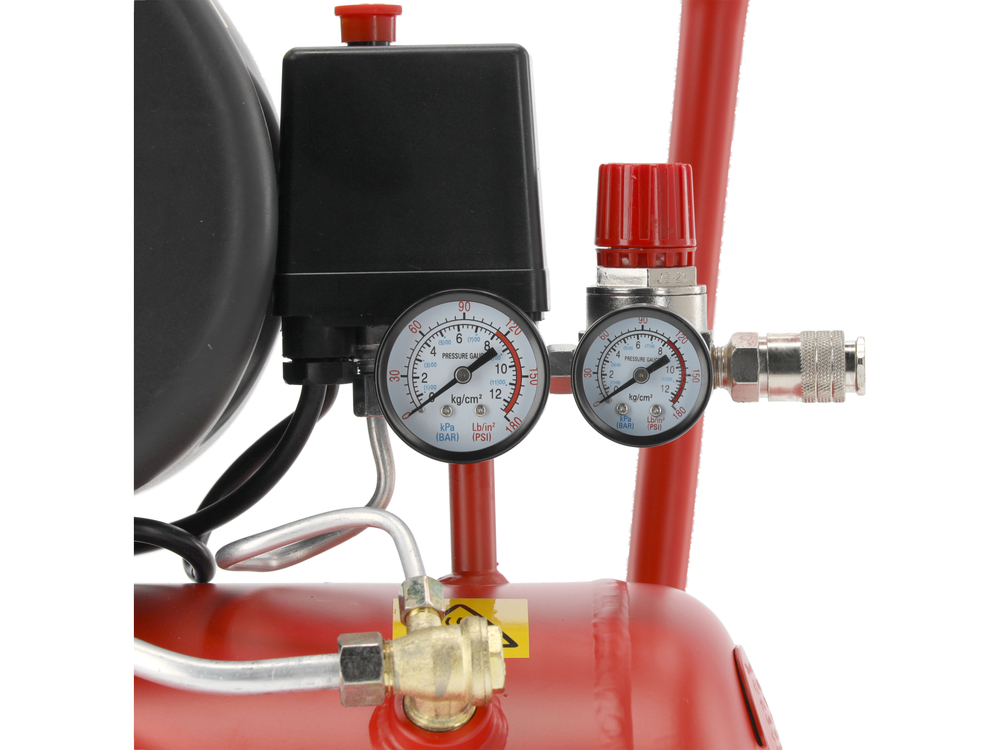

- Equipped with 2 quick couplings and 2 pressure gauges

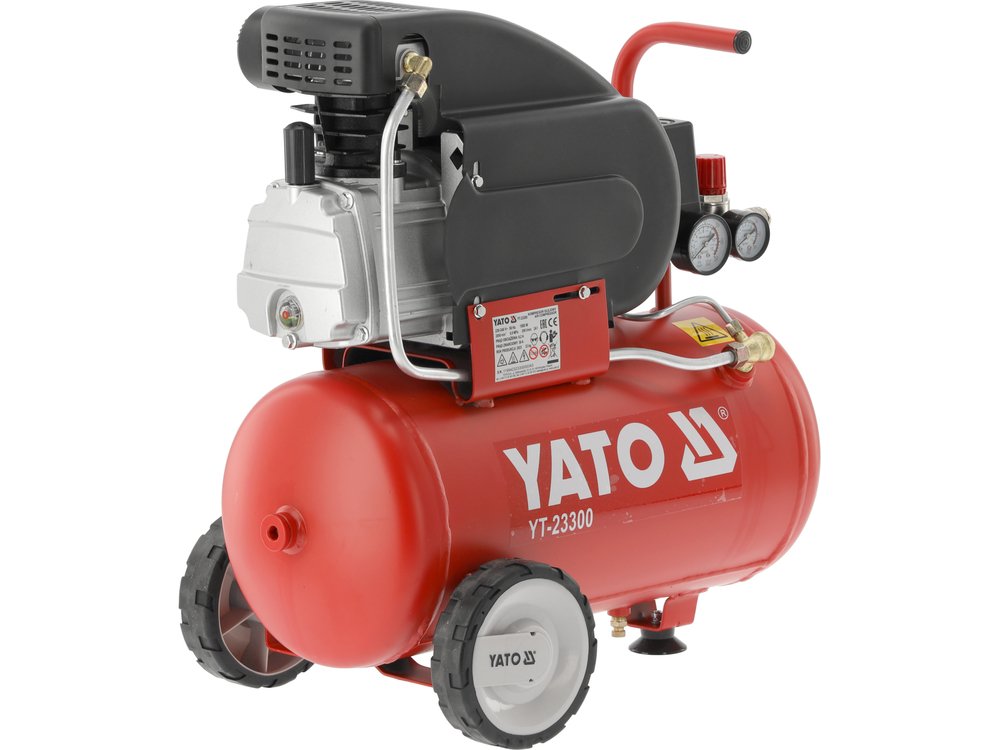

- Transport wheels for easy movement
Usage warnings:
Before first use, fill in oil and replace the transport plug by supplied oil plug.To download
