Bestseller
YT-09575
AIR IMPACT WRENCH 3/4"
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
3/4" (19.0 mm)
Toolholder type
Driver
Stroke mechanism type

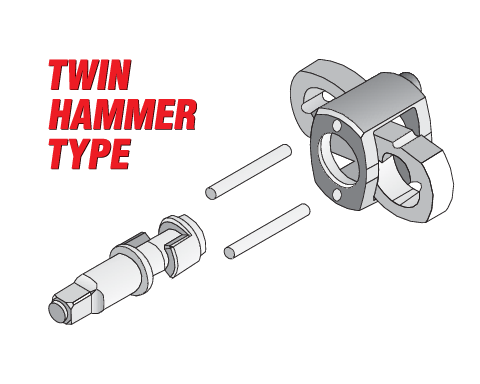

TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
255 l/min
Rotations
7000 min⁻¹
Max. torque
2300 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
229 mm
Casing material
composite, duralumin

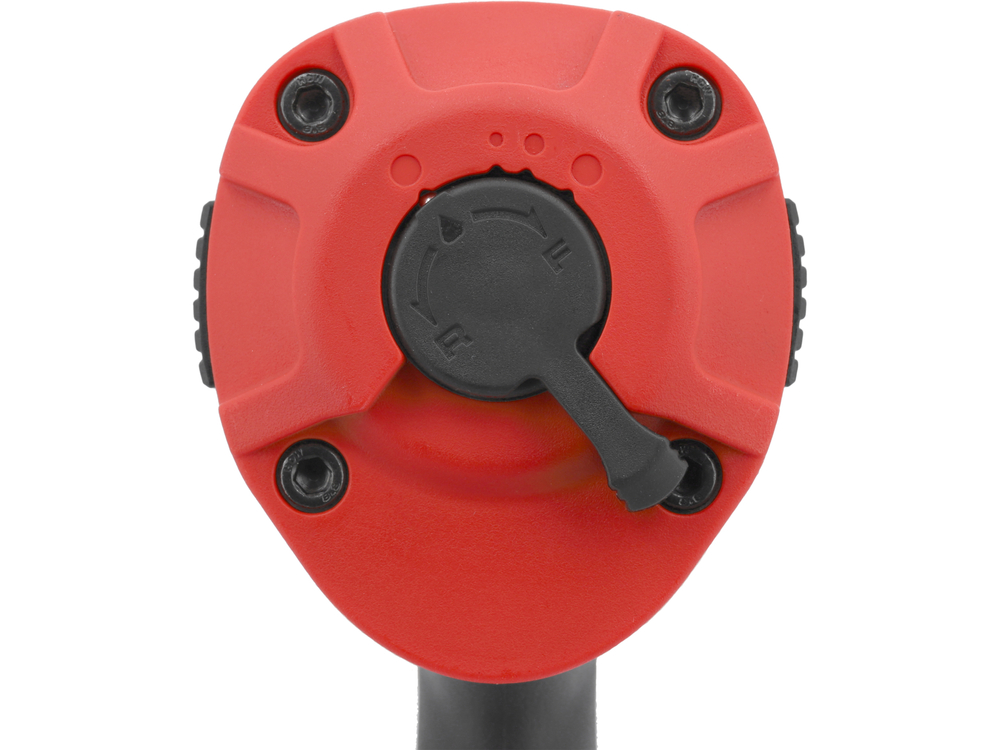

Rotation switch
yes
Acoustic pressure
97.9 ± 3.0 dB(A)
Acoustic power
108.9 ± 3.0 dB(A)
Vibrations
5.75 ± 1.5 m/s²
Weight
3.8 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09575
Composite 3/4" air spanner with a power output of 2300 Nm. Designed for use in industry, mechanical services and garages. Made of composite casting and duralumin. The high performance of the spanner is ensured by the TWIN HAMMER impact mechanism.
- power supply: standard 1/4" connection
- Speed: 7.000 rpm
- Length: 229 mm
- weight: 3.8 kg
- air consumption: 255 l/min
