YT-24271
PNEUMATIC HOSE FOR THE CAR
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Length
12 m
Internal diameter
6 mm
External diameter
10 mm
Thread size
M16x1.5mm
Material
PVC, polyester
Operating pressure
1 MPa
Bursting pressure
3.5 MPa
Working temperature range
-20 ~ +60 ˚C
Weight
0.7 kg
Application
for pumping and blowing in buses, trucks, semi-trailers, agricultural tractors, etc.
Symbol
YT-24271

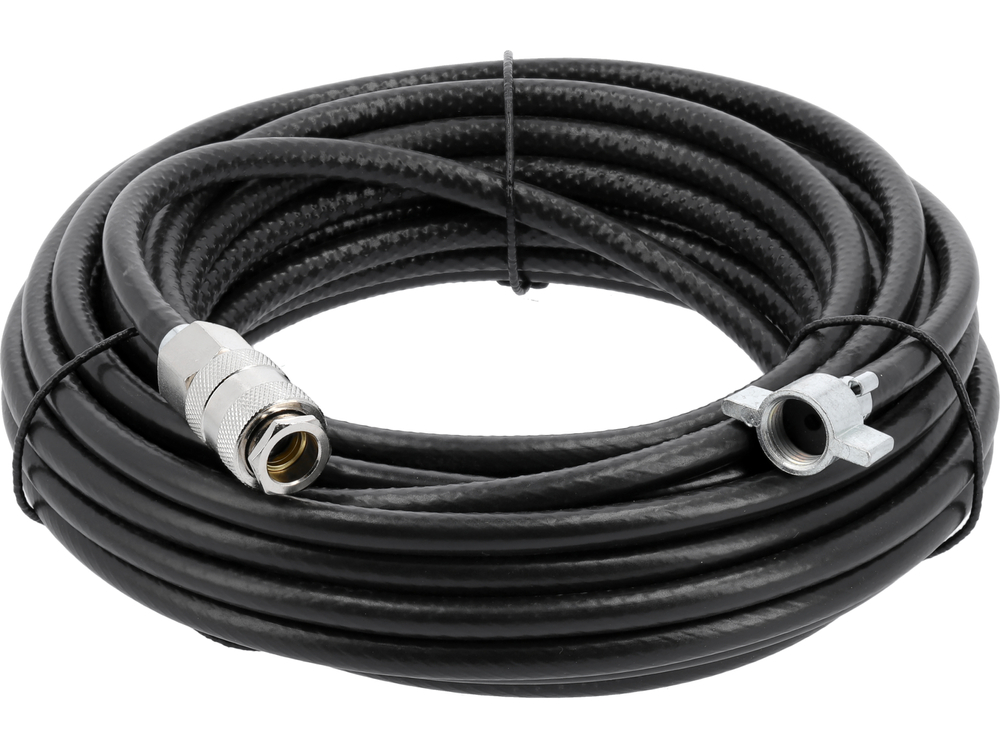

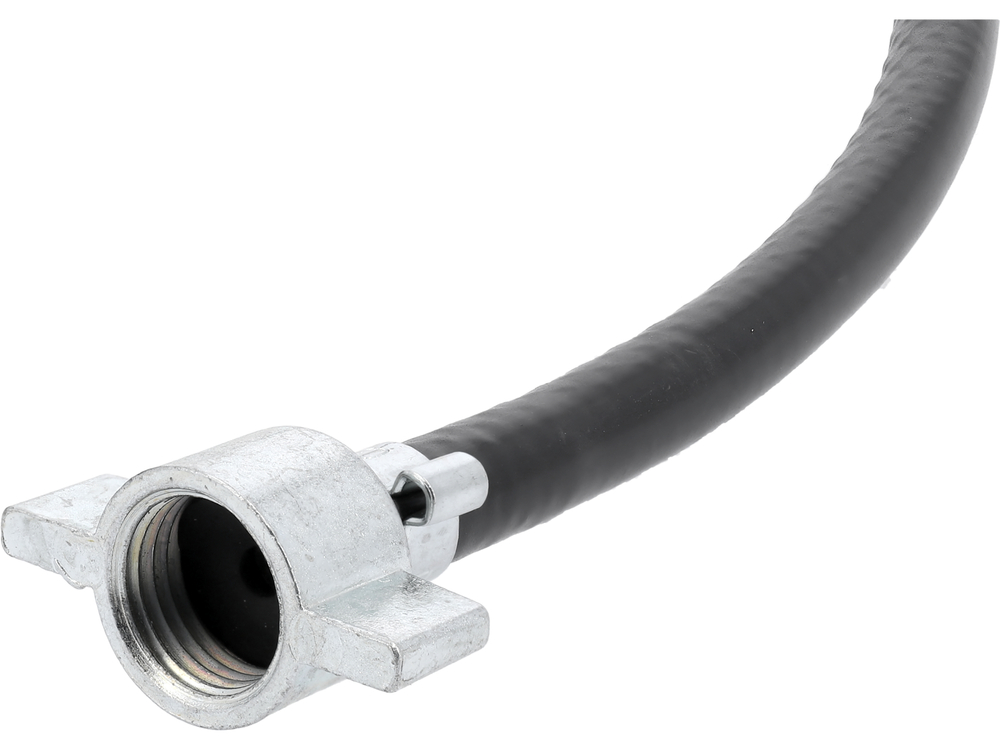

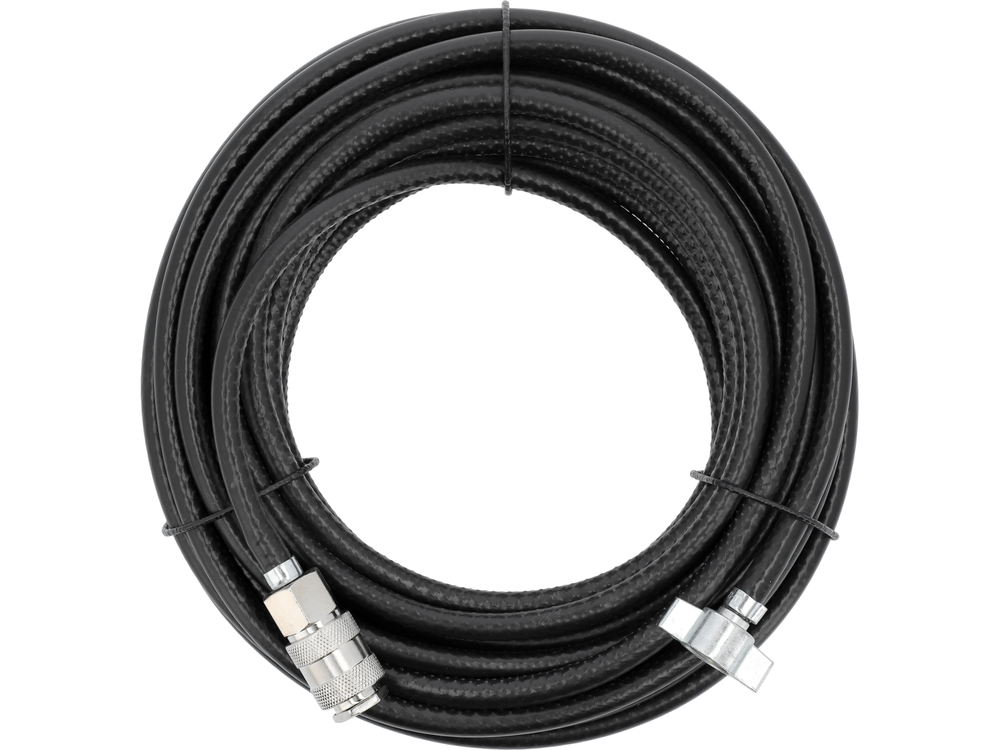

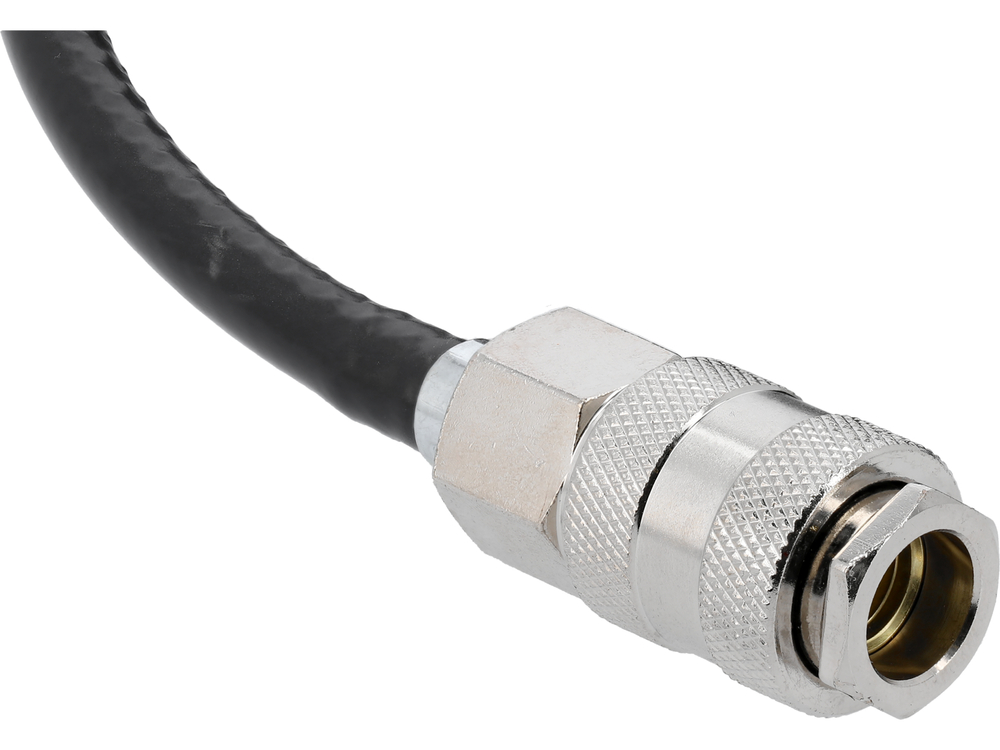

Professional, flexible compressed air hose. Adapted for vehicles with an air compressor. Used for pumping and blowing in buses, trucks, trailers, agricultural tractors, etc. Hose terminated with couplings on both sides. Ended on one side with a M16x1.5 mm female threaded butterfly end suitable for automotive compressors. On the other, a universal metal quick-release coupling allows the connection of various pneumatic instruments and tools, e.g. pump or blow guns. The hose is made up of three layers. The inner is made of soft PVC and a dense polyester textile reinforcement braid. Weather-resistant PVC outer layer.
- external diameter: 10 millimeters
- Internal diameter 6 millimeters
- working pressure: 1.0 MPa (10 atm) at an ambient temperature of 23 °C
- bursting pressure: 3.5 MPA (35 atm) at an ambient temperature of 23 °C
- safe operating temperature range: -20°C to 60°C
- weight: 0.5kg
