YT-24272
PNEUMATIC HOSE FOR THE CAR
Brand
Symbol
YT-24272
Producer code
5906083106378
Series
Length
18 m
Inside diameter
6 mm
Średnica zewnętrzna
10 mm
Thread size
M16x1.5 mm
Material
PVC, poliester
Working pressure
1 MPa
Tearing pressure
3.5 MPa
Operating temperature range
-20 ~ +60 ˚C
Weight
1 kg
Application
For pumping and blowing in buses, trucks, semi -trailers, agricultural tractors, etc.

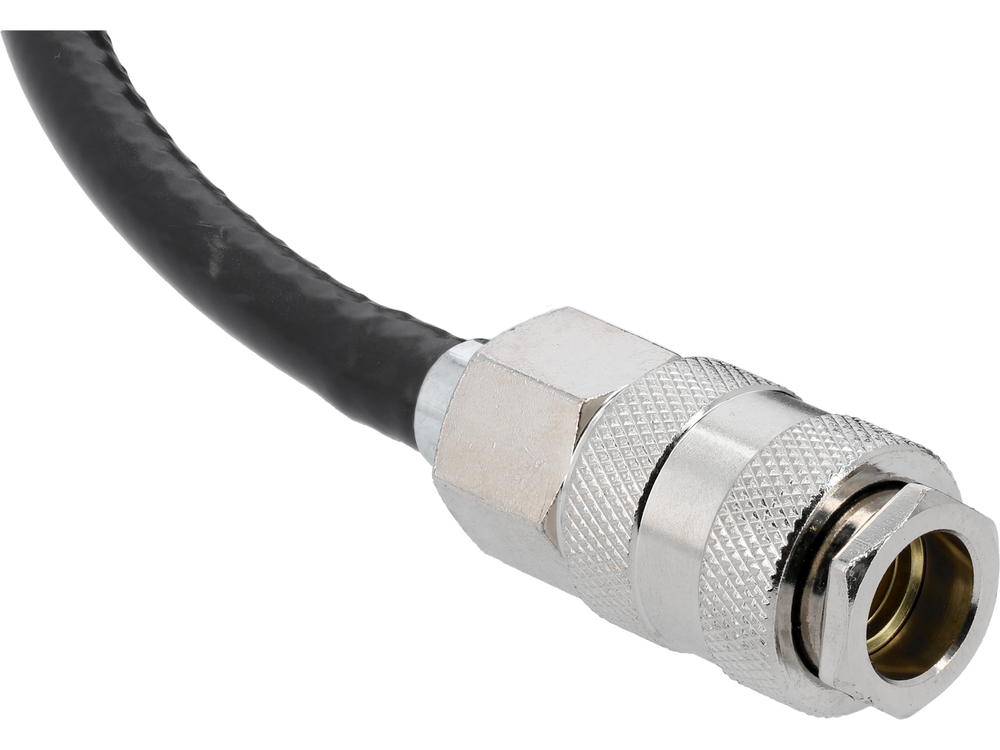

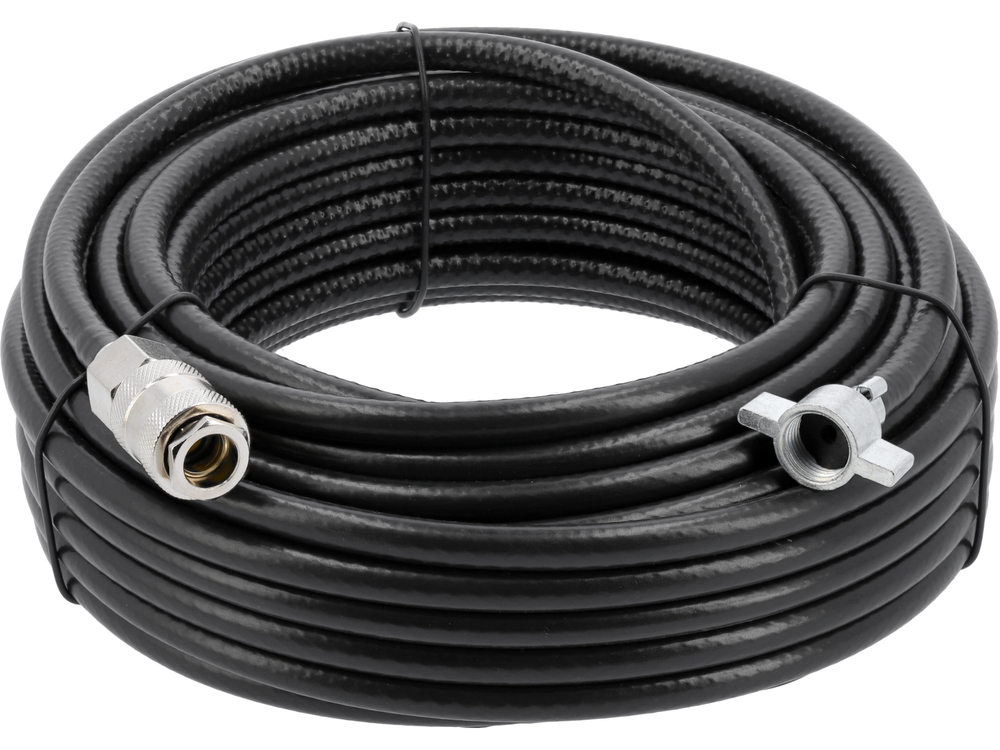

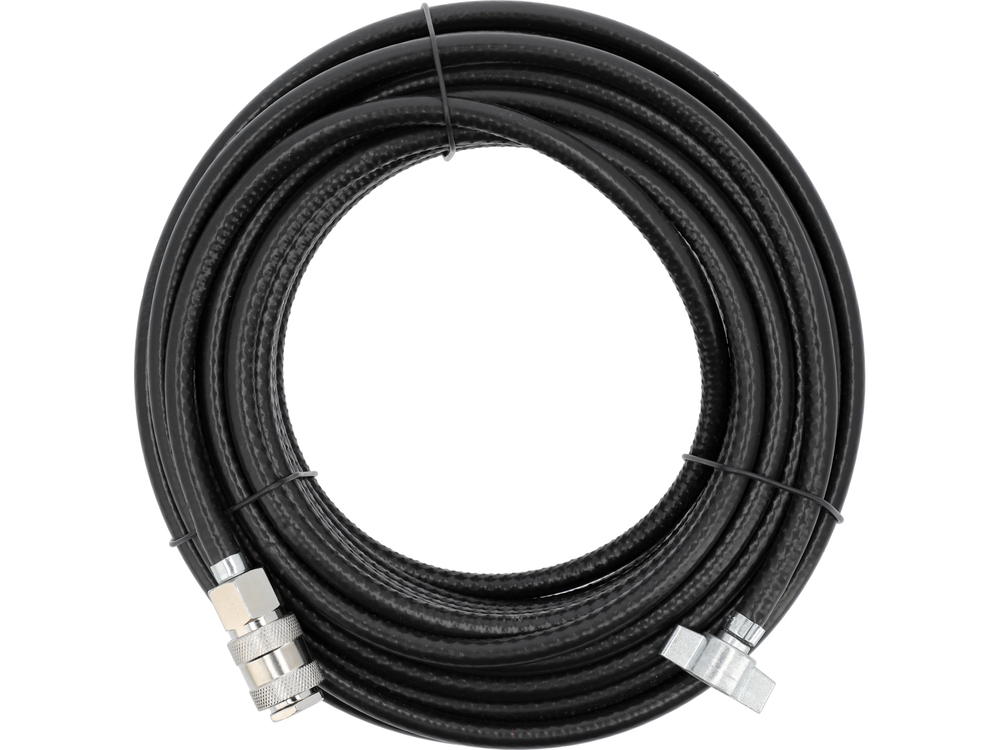

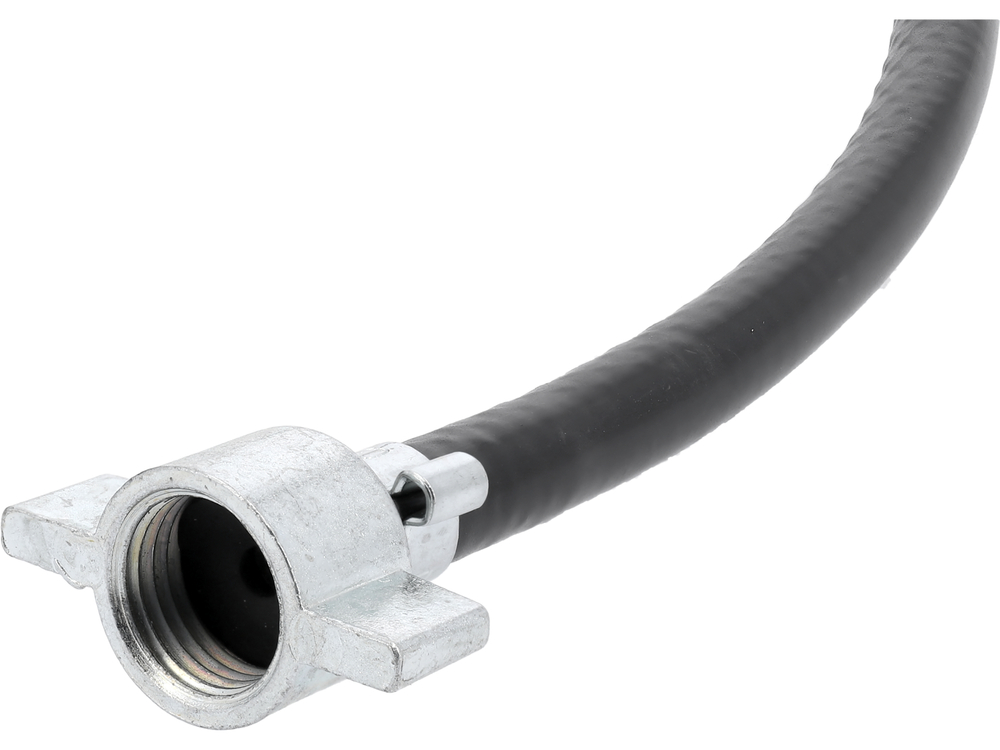

Professional, flexible compressed air hose. Adapted for vehicles with an air compressor. Used for pumping and blowing in buses, trucks, trailers, agricultural tractors, etc. Hose terminated with couplings on both sides. Ended on one side with a M16x1.5 mm female threaded butterfly end suitable for automotive compressors. On the other, a universal metal quick-release coupling allows the connection of various pneumatic instruments and tools, e.g. pump or blow guns. The hose is made up of three layers. The inner is made of soft PVC and a dense polyester textile reinforcement braid. Weather-resistant PVC outer layer.
- external diameter: 10 millimeters
- Internal diameter 6 millimeters
- working pressure: 1.0 MPa (10 atm) at an ambient temperature of 23 °C
- bursting pressure: 3.5 MPA (35 atm) at an ambient temperature of 23 °C
- safe operating temperature range: -20°C to 60°C
- weight: 0.5kg
