YT-24281
PNEUMATIC HOSE FOR THE CAR
Brand
Symbol
YT-24281
Producer code
5906083106392
Series
Length
12 m
Inside diameter
6 mm
Średnica zewnętrzna
10 mm
Thread size
M16x1.5 mm
Product material
Pvc, colester
Working pressure
1 MPa
Tearing pressure
3.5 MPa
Operating temperature range
-20 ~ +60 ˚C
Weight
0.7 kg
Application
For pumping in buses, trucks, semi -trailers, agricultural tractors, etc.

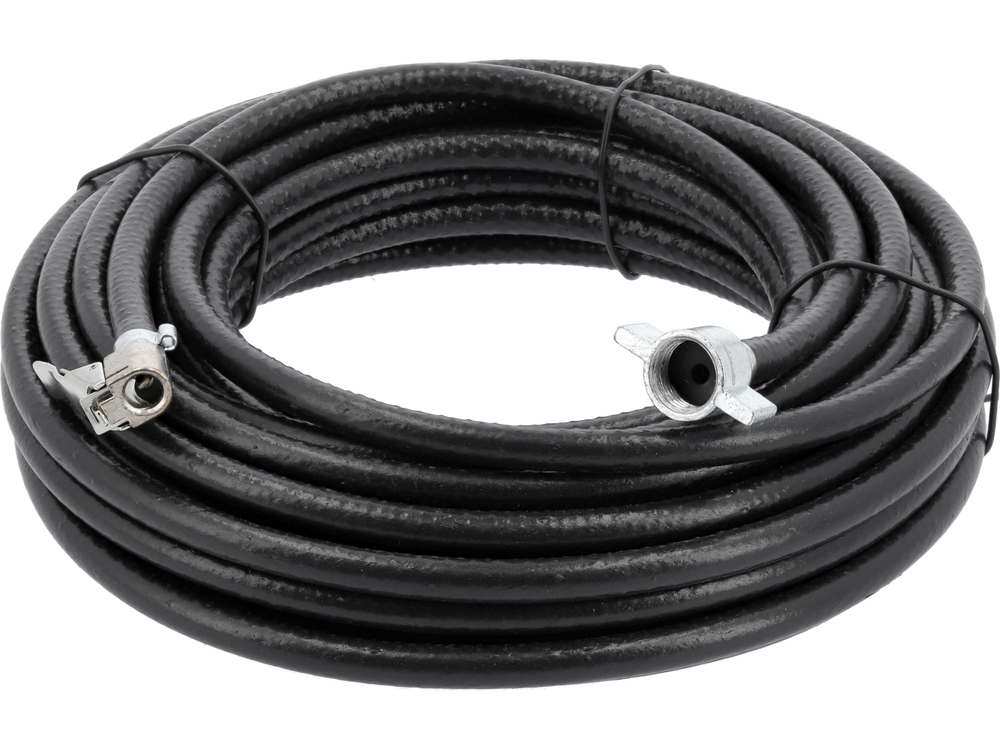

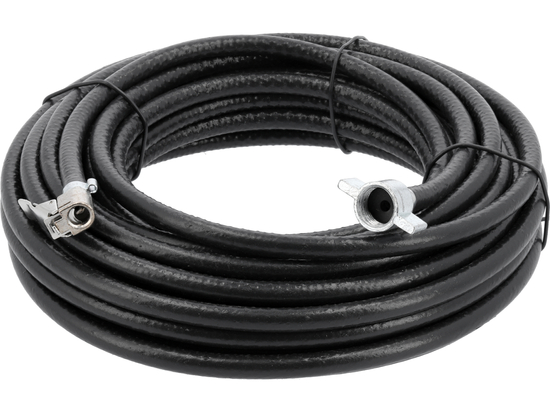

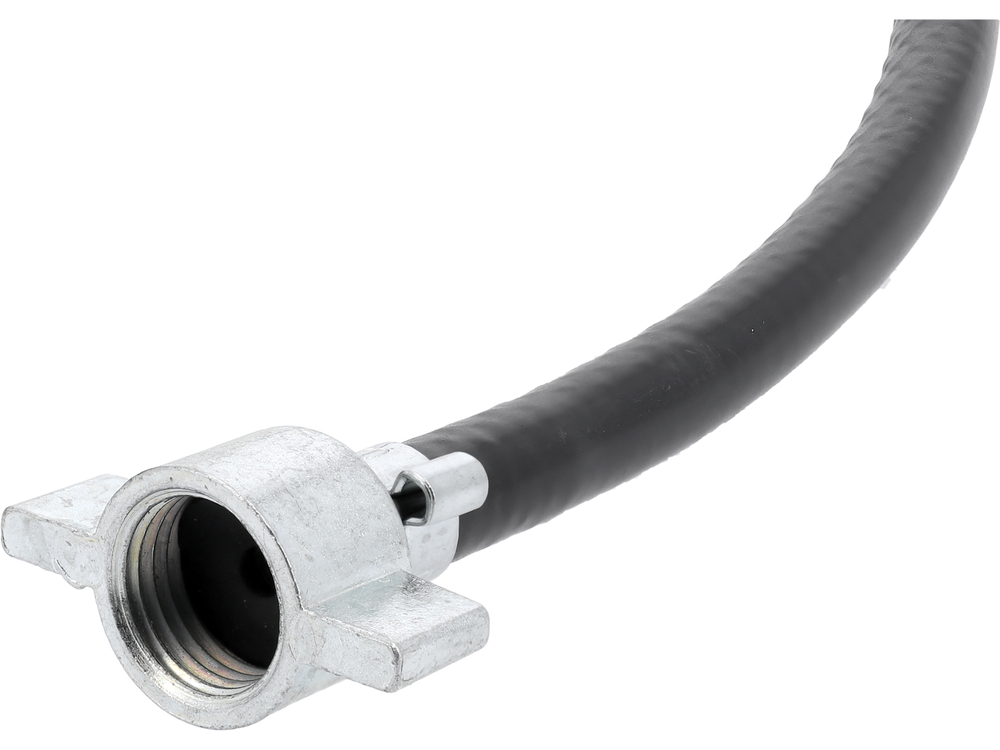

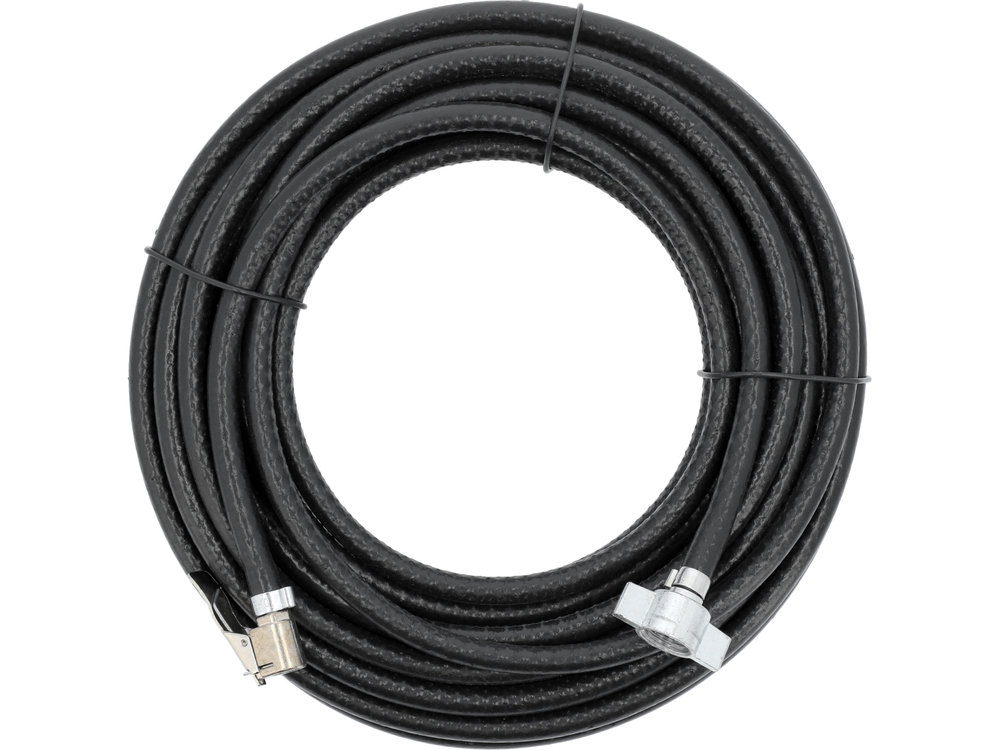

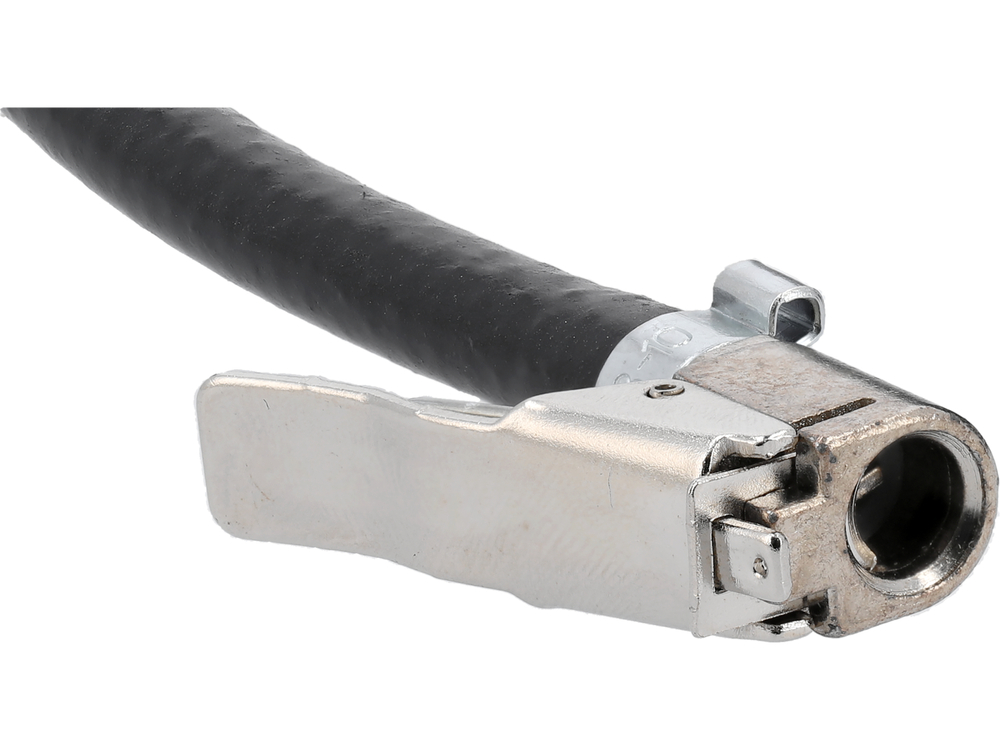

Professional, flexible compressed air hose. Adapted for vehicles with an air compressor. Used for pumping in vans, lorries, trailers, agricultural tractors, etc. Allows all wheels to be pumped even on a very long vehicle. Cable terminated with connectors on both sides. Ended on one side with a M16x1.5 mm female threaded butterfly end suitable for automotive compressors. With the second connection terminal adapted to a standard car valve. The hose is made up of three layers. The inner is made of soft PVC and a dense polyester textile reinforcement braid. Weather-resistant PVC outer layer.
- external diameter: 10 millimeters
- Internal diameter 6 millimeters
- working pressure: 1.0 MPa (10 atm) at an ambient temperature of 23 °C
- bursting pressure: 3.5 MPA (35 atm) at an ambient temperature of 23 °C
- safe operating temperature range: -20°C to 60°C
- weight: 0.5kg
