YT-73032
ENGINE / TRANSMISSION OIL PRESSURE SET
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Measuring range
0-2.75 / 0-400, 0-0.7 / 0-100 MPa/PSI
Manometer diameter
90 mm
Hose length
1.85 m
Pcs
17
Set includes
pressure gauge x2, flexible hose, x14 adapter
Application
for measuring engine and gearbox oil pressure, for diesel and petrol engines
Symbol
YT-73032

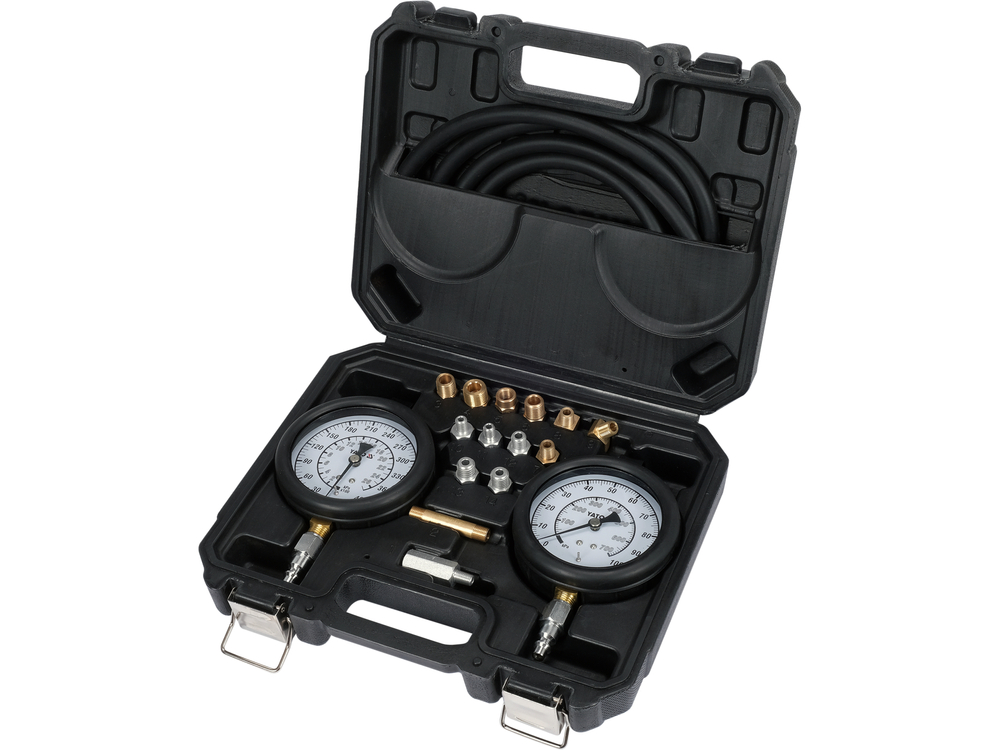

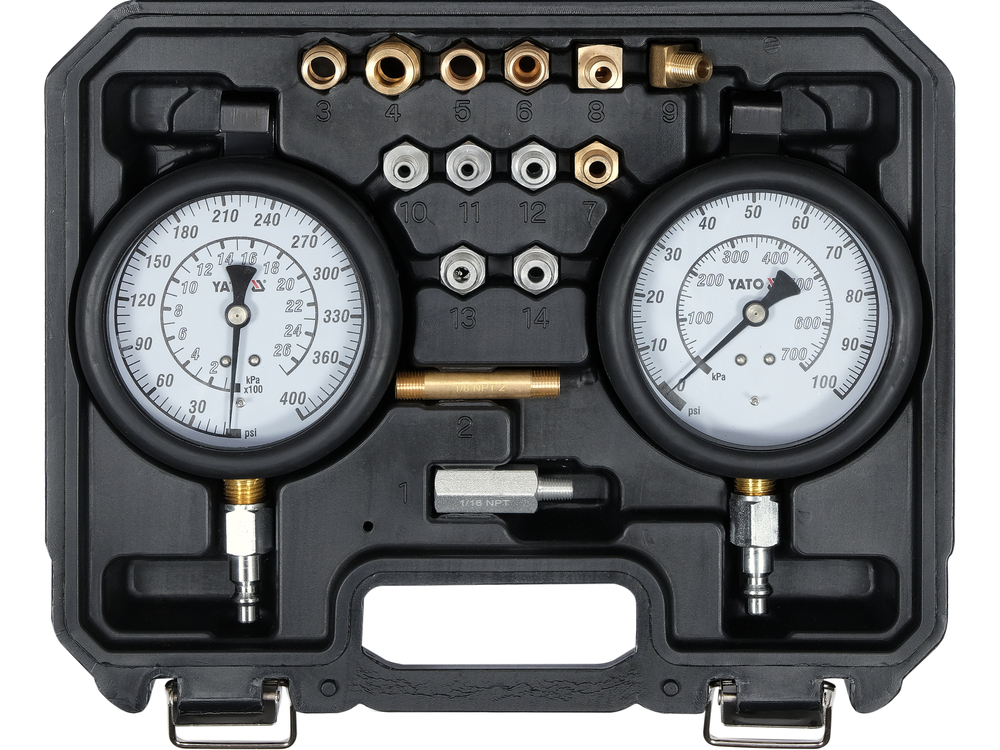

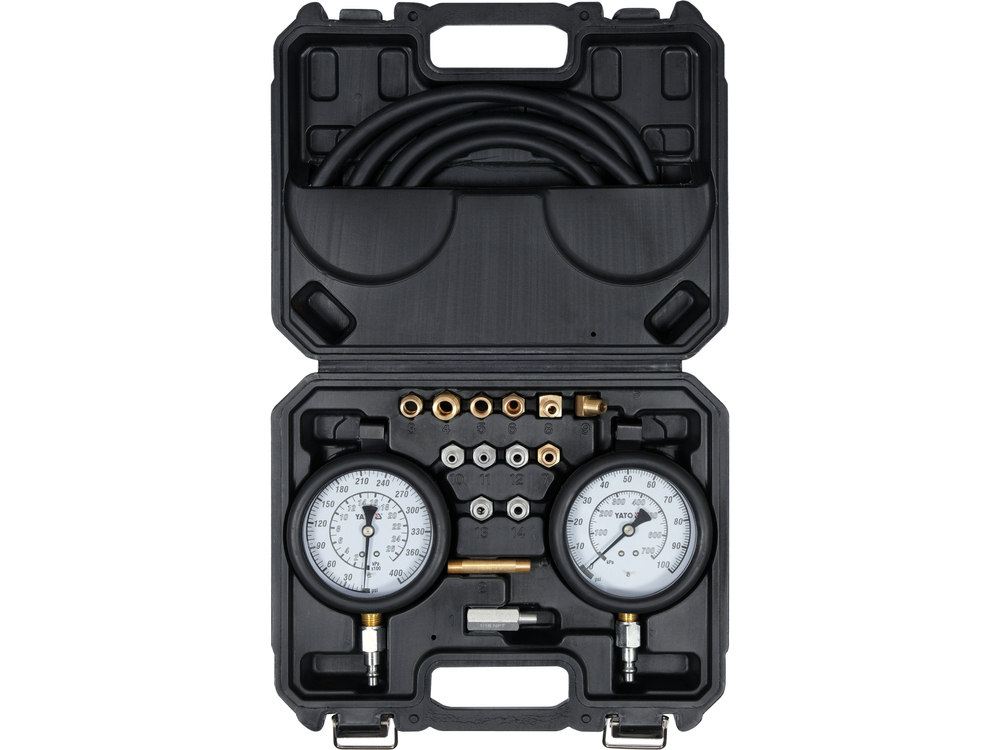

Engine and gearbox oil pressure gauge set. Pressure gauges with a diameter of 90 mm (plus rubber boot).
Included in the package:
- two pressure gauges graduated 0-400 PSI and 0-100 PSI
- 185 cm long high-pressure hose
- 14 reductions:
- 1/8-27 NPT x 2" straight adapter
- 3/8-18 NPT male x 1/8-27 female adapter
- 1/4-18 NPT male x 1/8-27 NPT female adapter
- 1/4-18 NPT male x 1/8-27 NPT male adapter
- 1/8-27 NPT straight female adapter
- 1/8-27 NPT male x 1/8-27 NPT female adapter elbow 90
- 1/8-27 NPT male x 1/8-27 NPT female adapter elbow 45
- M8 x 1.0 taper to 1/8-27 NPT female adapter
- M8 x 1.25 taper to 1/8-27 NPT female adapter
- M10 x 1.0 taper to 1/8-27 NPT female adapter
- M12 x 1.5 taper to 1/8-27 NPT female adapter
- M12 x 1.75 taper to 1/8-27 NPT female adapter
- 1/8-28 BSPT x 1/8-27 NPT female adapter
- 1/16-27 NPT male x 1/8-27 NPT female adapter
